1080P HDMI Wireless 30M
Introduction

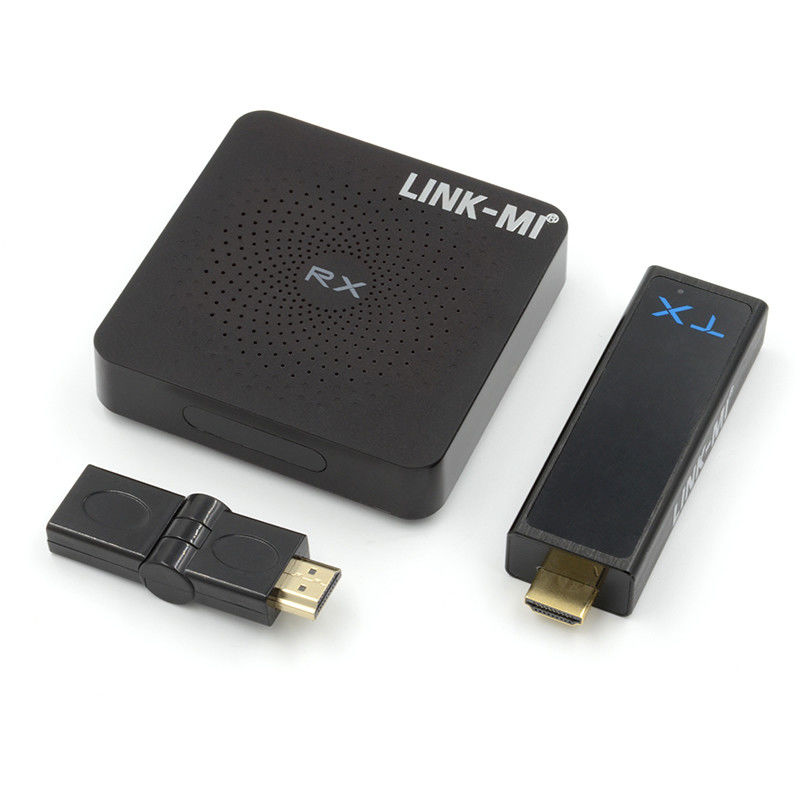

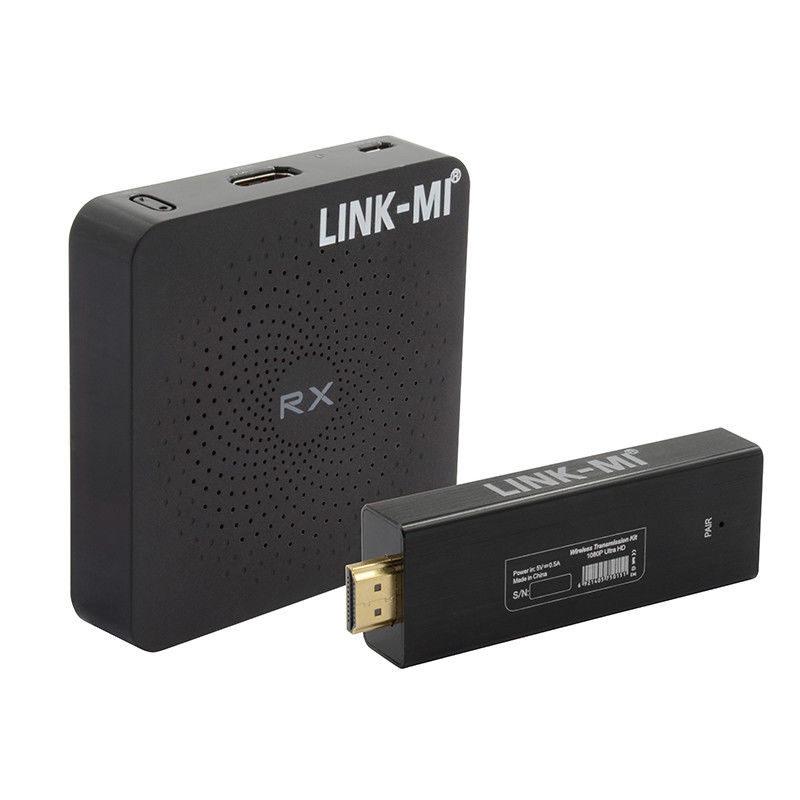

LINK-MI LM-W2HS-30 Wireless HDMI Transmitter/ Receiver from LINK-MI, applies wireless HD technology, working in the uncompressed 60 GHz frequency band, which supports the highest resolution up to 1080p@60Hz at wireless transmitting distance of up to 30m and can get connected easily and signal transmitted in high resolution and stable status.LM-W2HS-30 wireless transmitter and receiver is inevitable choice for office environment and wireless transmission system of home audio &video
Features
1. One-key to match, there is no need to do some settings. Devices which already did matching don’t need to match next time. With power on, you can use it directly (the are all matched when leave factory)
2. 1080P@60HZ no compression and no delay transmission, which is suit for all kinds of game, such as Need for Speed.
3. The longest straight line wireless transmission could be up 30 meter.
Specification
| Technical standard |
WirelessHD1.1 |
| Bandwidth |
7Gbps |
| intermediate frequency |
60GHz(59~66GHz) |
| Radio-frequency power |
10dBm |
| Security agreement |
HDCP |
| delay time |
<5ms |
| Transmission distance |
30m(can not through body or wall) |
| resolution |
Max 1080P @60Hz |
| port |
HDMI A Type |
| Average power consumption |
Transmit max 2.5w, Receiver max 2.5w |
| Power supply |
Micro USB B, 5V 1A |
| Operating temperature |
0 -~45°C |
Connection Diagram

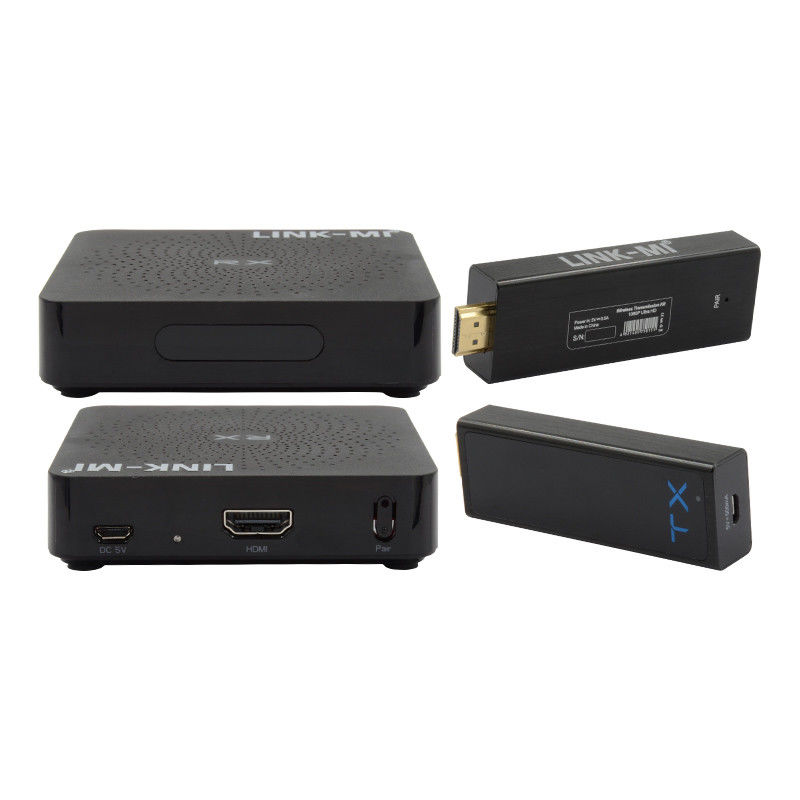

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
