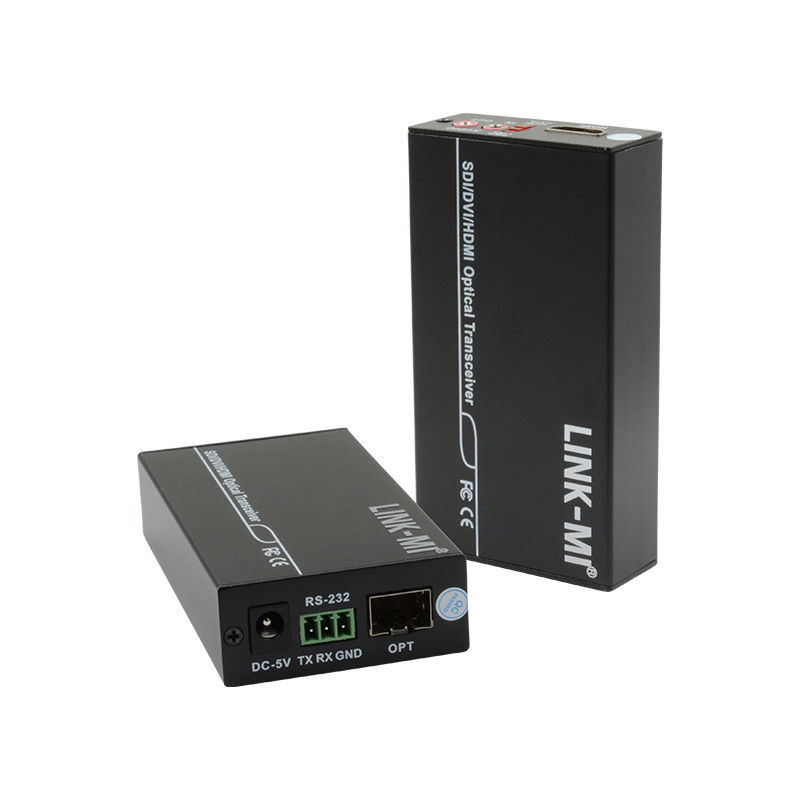

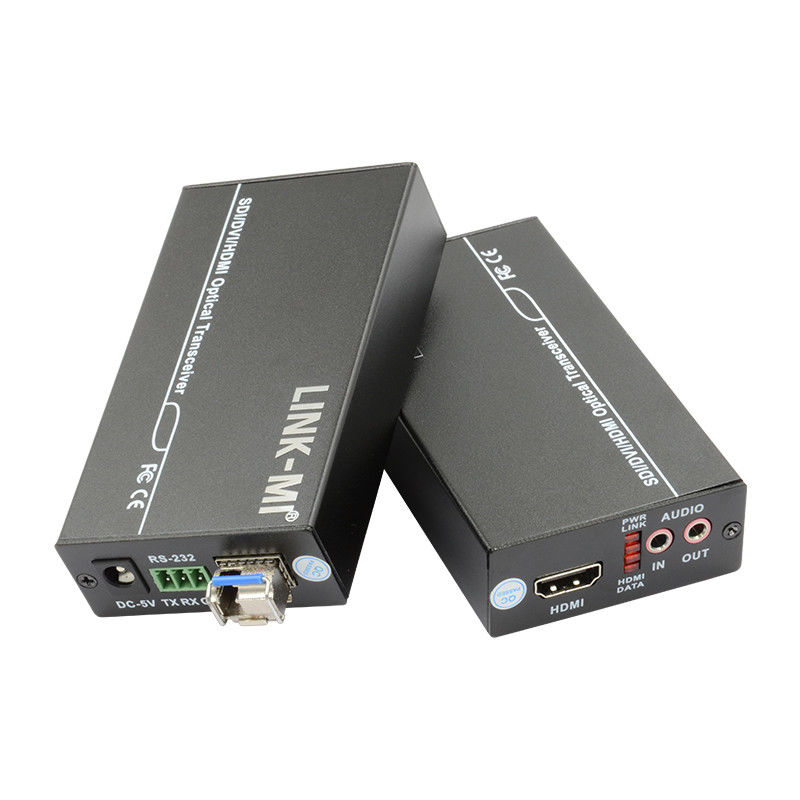

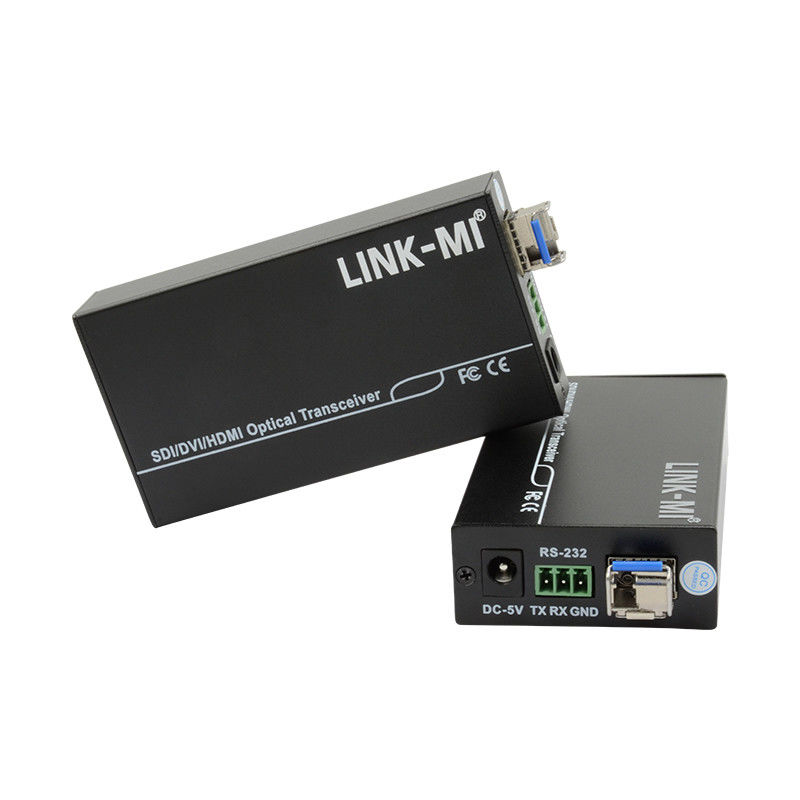

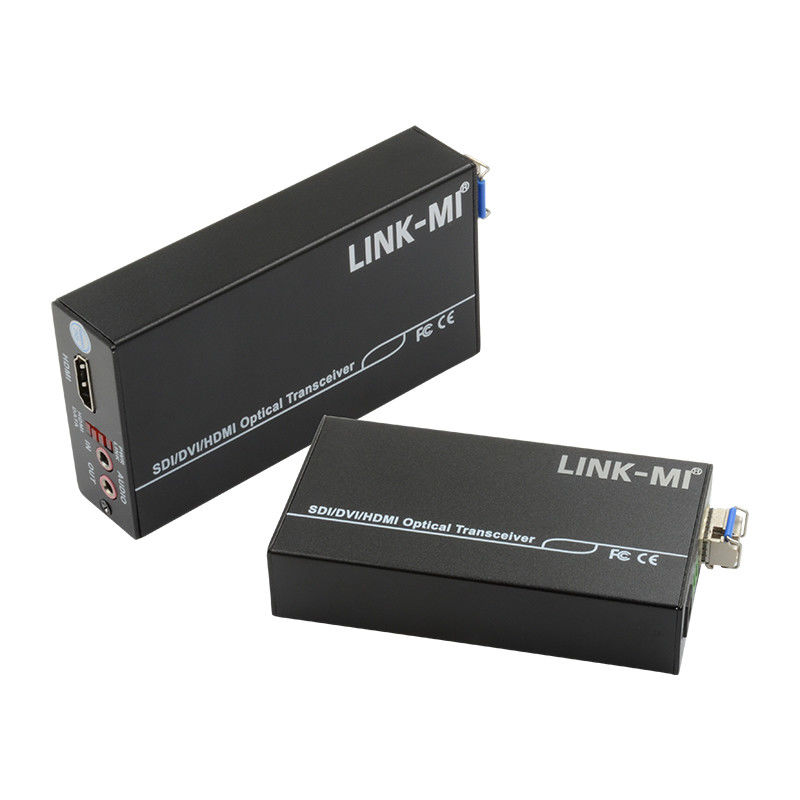

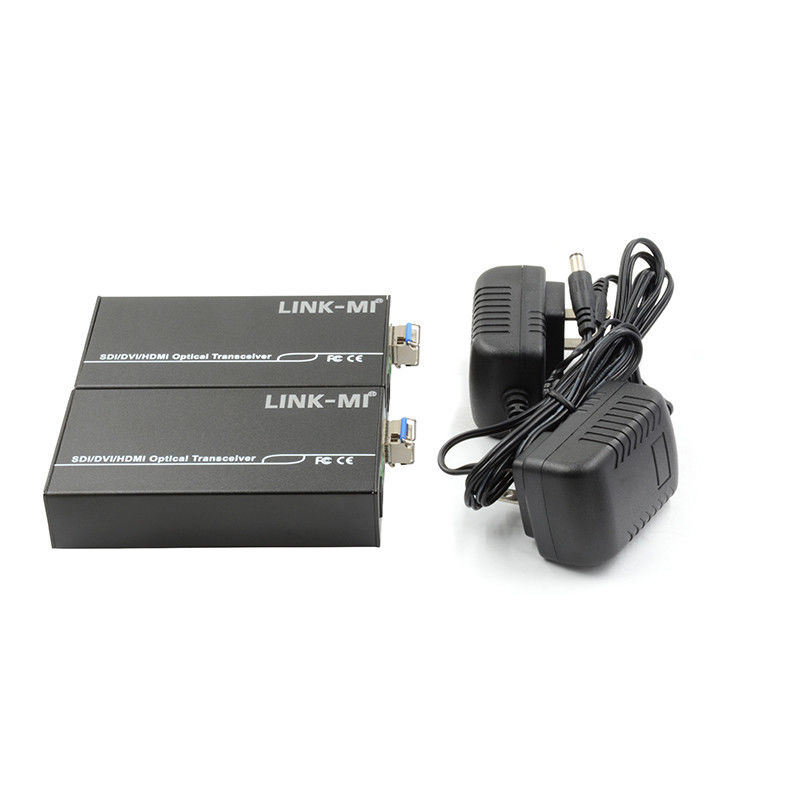

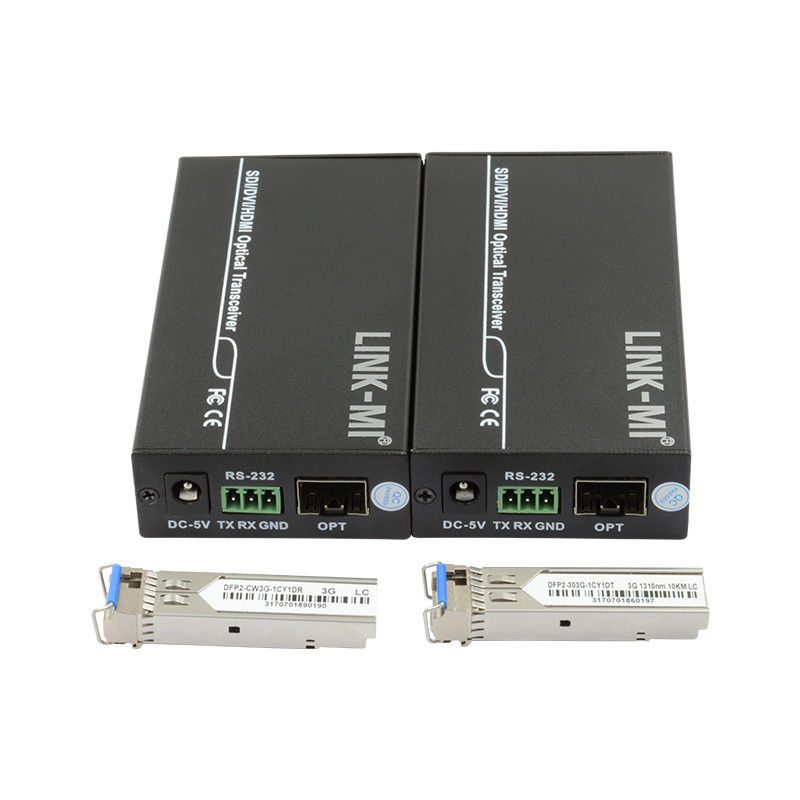

Full HD Optical transmitter and receiver
Introduction
LINK-MI LM-HF01 HDMI Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced,It can transfer signal source(computer signal source, HDMI signal source high digital DVD/DVR) to long distance terminal easily, with strong performance, ensure the signal completed and stable.
Features
1. Full digital, Uncompressed HD optical fiber transmission
2. Support Full HD 1920*1080@60Hz
3. All the two-way audio
4. Automatic identification and configure display mode
5. Automatic equalization inside, stable and clear graphics.
6. ESD protection circuit inside, to ensure the ESD damage.
7. Easily to installation, plug and play, no need to set up
Specification
| Temperature |
-5°C to +75°C |
| Humidity |
5 to 90 % RH (no condensation) |
| Pixel band width |
165MHz |
| The signa of Audio input and output |
3.5MM Audio |
| Audio format |
44.1K,48K,96K,176K,192K |
| RS232 port |
3 ports industrial terminal |
| RS232 Baud rate |
Support 115200 and all below |
| RS 232 Data bits |
8 bits |
| Fiber port |
FC |
| Fiber wavelength |
1550/1310nm |
| Fiber band width |
3Gbps |
| The Maximum transmission distance |
10KM/20KM/40KM/60KM |
| Input voltage |
DC 5V,inside+ outside- |
| Power consumption |
receiver 4W
transmitter 4W
|
| Device size |
110mm*58mm*25mm(length*width*height) |
| Packing box size |
175mm*74mm*74mm (length*width*height) |
| Weight |
1KG |
Connection Diagram
Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
