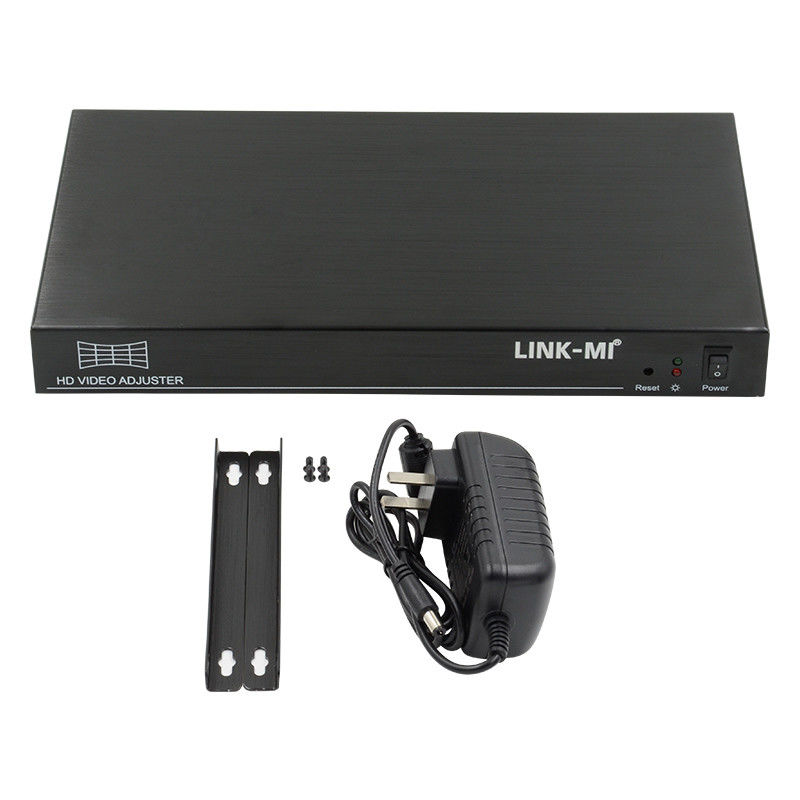

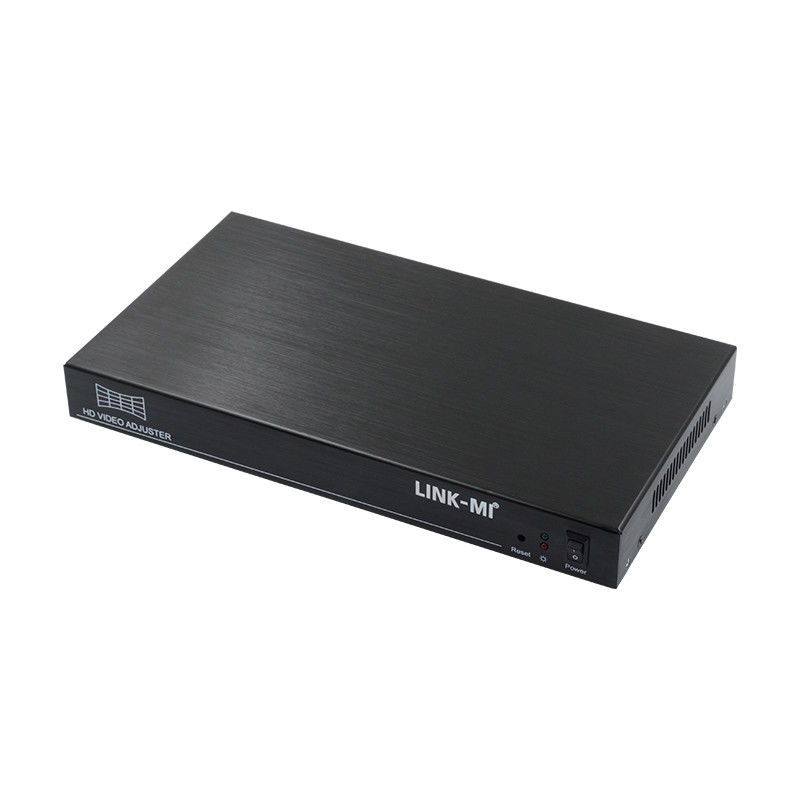

HD Video Adjuster
Introduction
The most important function of the LM-AD01 device is to make the image to be projected onto the screen, and keep the image free from overflow and deformation. In accordance with the requirements of the projector in advance to do the physical location of the maximum extent to enable the display of the image to do the most clear. No corrector, we recommend that users of the projector image is slightly greater than or equal to the projection screen the effective display area, but not too large.
Features
1. Support VGA/HDMI/DVI input,HDBaseT/HDMI/VGA output
2. Support high definiton resolution up to 1920X1200
3. Support IP control
4. Support arbitrary point correction
5. DC 12V 3A power supply
Specification
| Model |
LM-AD01 |
| Input signal |
1 channel VGA,1 channel HDMI,1 channel DVI |
| Output signal |
1 channel HDMI and 1 channel VGA |
| Input resolution |
640X480 to 1920X1200 identification automatically |
| Output resolution |
1920X10801280X7201024X7681280X8001280X10241366X768
1400X10501440X9001600X9001600X12001680X10501920X1200
|
| Correction technique |
Arbitrary point correction |
| Operation mode |
IP control |
| power |
15W |
| Power source |
DC 12V 3.0A |
| Operating temperature |
0 to 60℃ |
| Operating humidity |
15-80% |
| Dimension |
260mm(L)X140mm(W)X30mm(H) |
| Weight |
0.9KG |
Connection Diagram

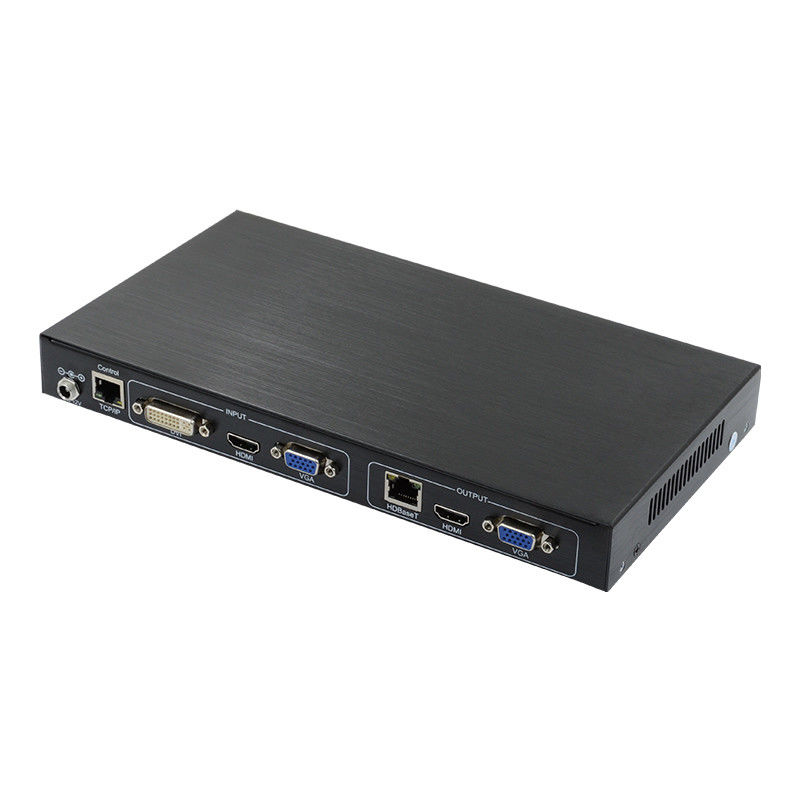

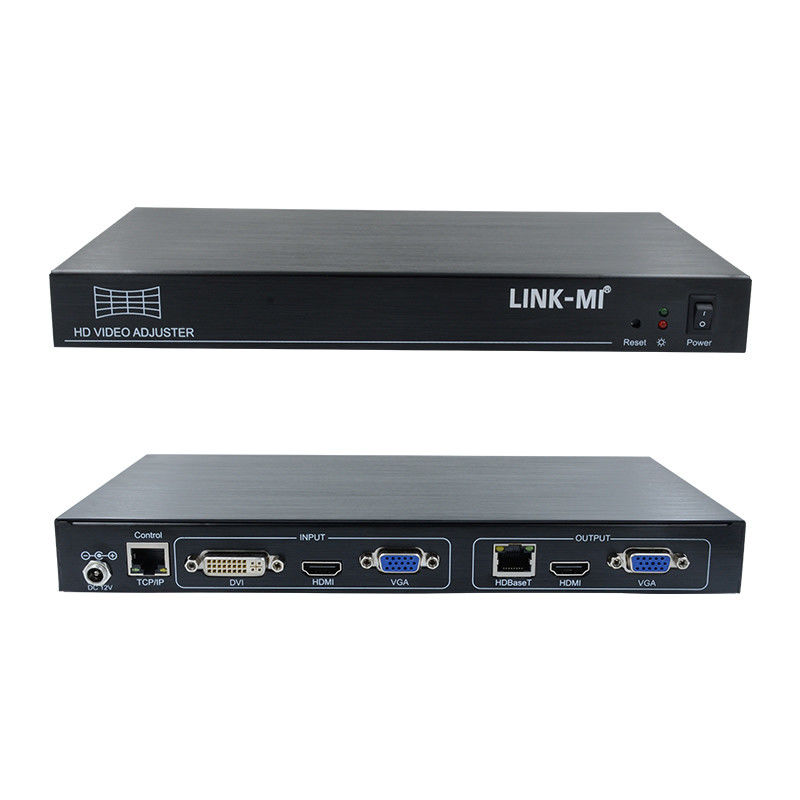

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
