4K60 2x2 Video Wall Controller For 4 Splicing TVs Support 1x2 1x3 1x4 4x1 3x1 2x1 UHD TV Wall Processor

4K60 2x2 Video Wall Controller For 4 Splicing TVs Support 1x2 1x3 1x4 4x1 3x1 2x1 UHD TV Wall Processor

Introduction

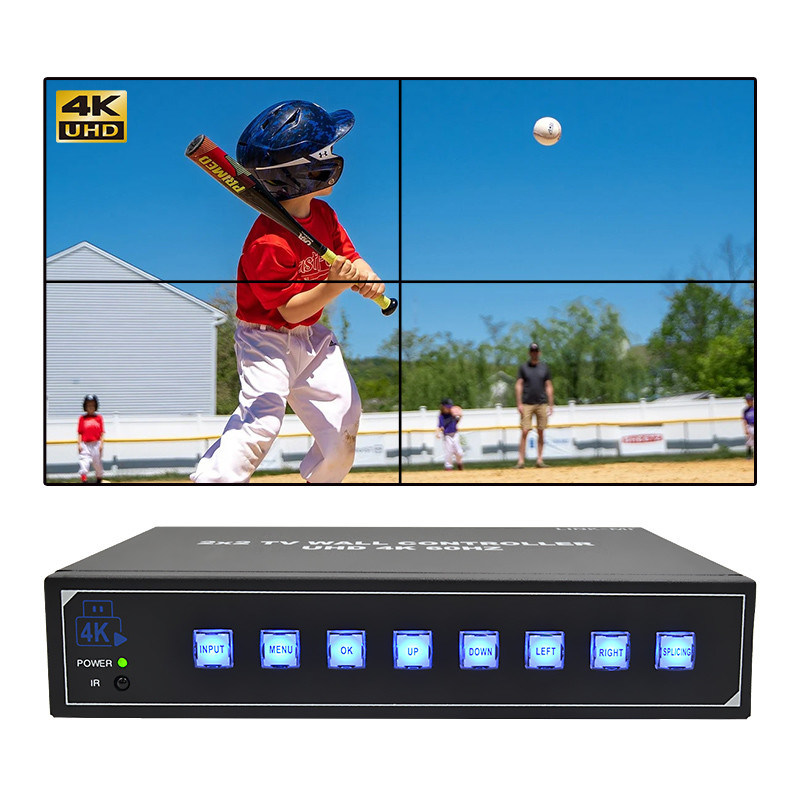

LINK-MI LM-TV04U 2x2 Video Wall Controller is used for 4 Ultra HD Splicing TVs. It supports max input resolution up to 4K@60Hz. It can play videos and pictures on USB 2.0, and also music and text.

This device comes with 3 inputs (2x HDMI 2.0, 1x USB 2.0) and 4 HDMI outputs. Any one of the 3 inputs can be switched to 4 large screens for splicing display. It supports various kinds of splicing modes such as 1x2, 1x3, 1x4, 2x2, 2x1, 3x1, 4x1.

Our fully-new remote comes with more user-friendly design. It's very easy and convenient for user to set and switch the splicing modes they need by remote.

This controller is widely used in commercial display scenarios in government and enterprise, conference rooms, hotel design, medical, education and other industries.

Features

1.2x2 Video Wall Controller for 4 Splicing TVs.

2. Support input resolution max 4K@60Hz, YUV 4:4:4, HDCP 2.2, realize true 4K UHD display.

3. Support multiple video wall modes like 1x1, 1x2, 1x3, 1x4, 2x1, 2x2, 3x1, 4x1.

4. Support 2x HDMI 2.0 and 1x USB 2.0 inputs. Any one of the 3 input signals can be switched to 4 TVs for splicing display.

5. Support 4x HDMI outputs, built-in audio.

6. Support 3.5mm analog audio out and SPDIF optical audio out.

7. Support IR extension for 10m long distance remote control.

8. Support USB disk access and USB auto display.

9. Support USB play of videos (up to 3840x2160), pictures (up to 4096x2160), music and text.

10. Each output supports 180 degrees rotation for TV upside down installation.

11. Support bezel adjustment function.

12. USB video and HDMI signal supports image cropping function, display without black edges.

13. Easy to set up and control, control via front buttons and remote. The new remote is more user-friendly, which supports one key to quick switch different splicing modes.

14. Support intelligent temperature control protection technology, which enhances the heat dissipation performance of products to be more stable, reliable, and durable.

15. With intelligent fan, which can be set to automatic, on or off in the menu.

16. With button lights on the front panel, it’s easy to operate in the dark. And it can be turned on or off in the menu.

Specification

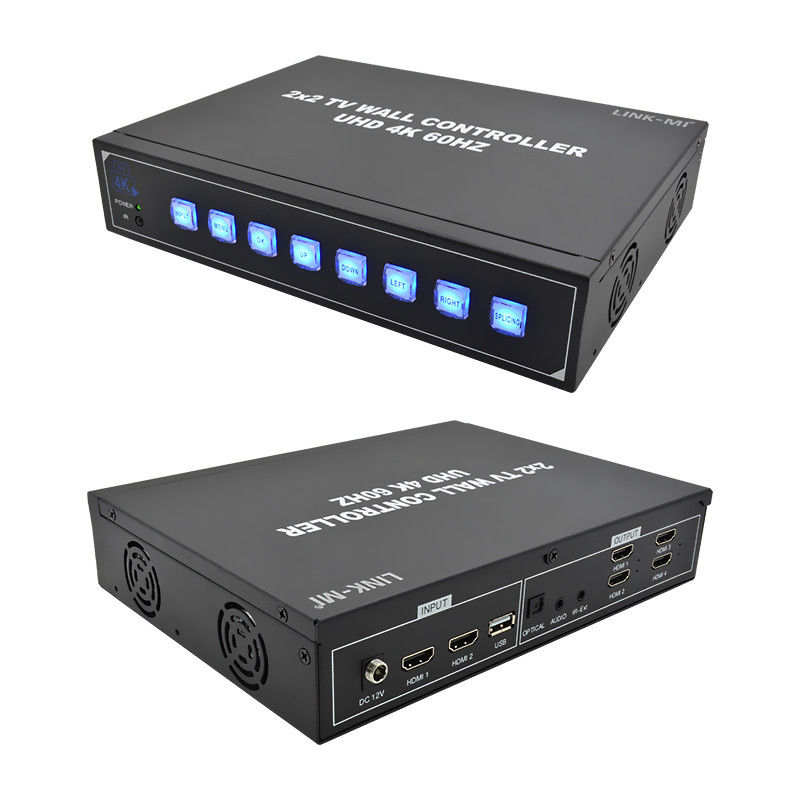

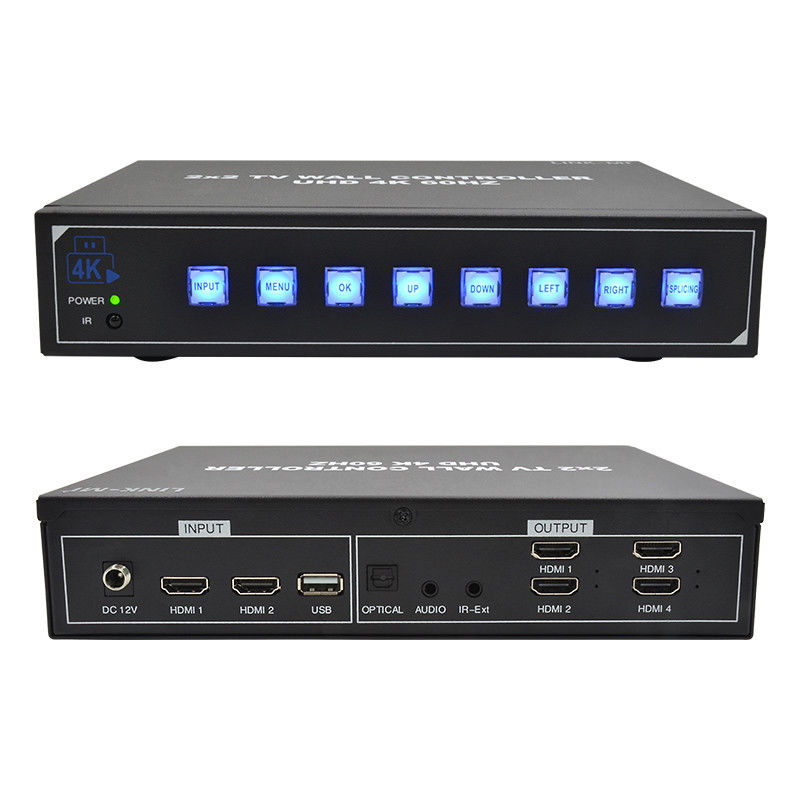

Panel Description

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:
