4K HDMI Video Wall Processor 2X2 Supports USB Auto Display for 4 UHD TVs 4K 60Hz LED Video Wall
Features

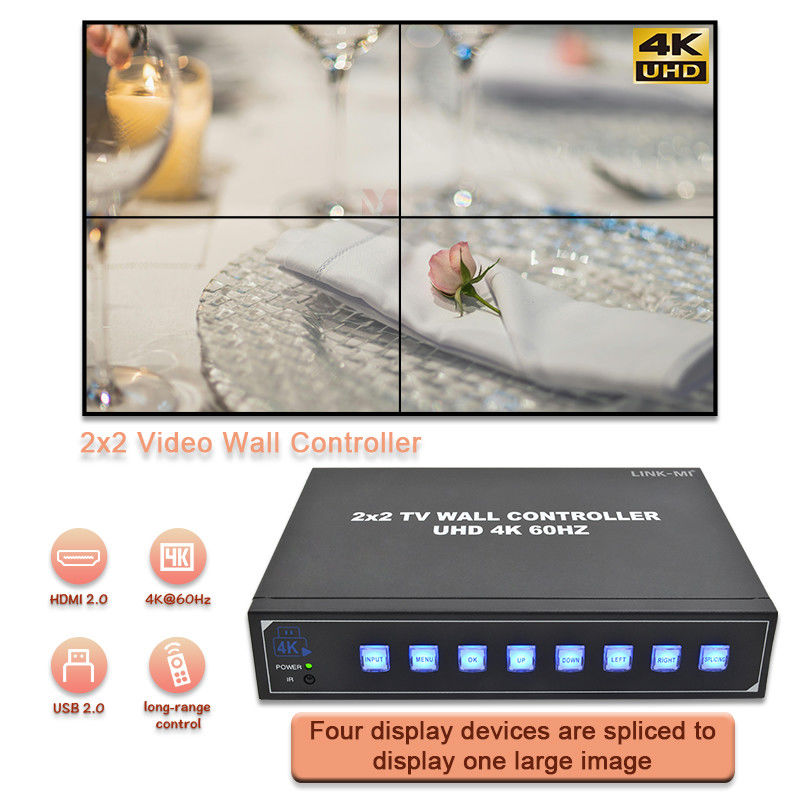

1. 2x2 Video Wall Controller for 4 Splicing TVs.
2. Support input resolution max 4K@60Hz, YUV 4:4:4, HDCP 2.2, realize true 4K UHD display.

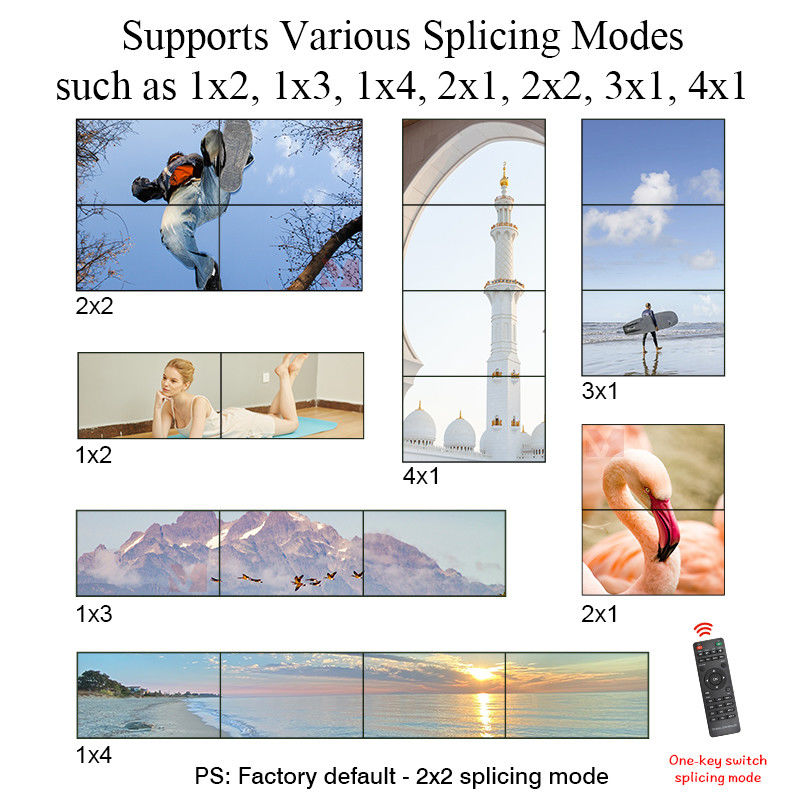

3. Support multiple video wall modes like 1x1, 1x2, 1x3, 1x4, 2x1, 2x2, 3x1, 4x1.
4. Support 2x HDMI 2.0 and 1x USB 2.0 inputs. Any one of the 3 input signals can be switched to 4 TVs for splicing display.
5. Support 4x HDMI outputs, built-in audio.
6. Support 3.5mm analog audio out and SPDIF optical audio out.
7. Support IR extension for 10m long distance remote control.
8. Support USB disk access and USB auto display.
9. Support USB play of videos (up to 3840x2160), pictures (up to 4096x2160), music and text.

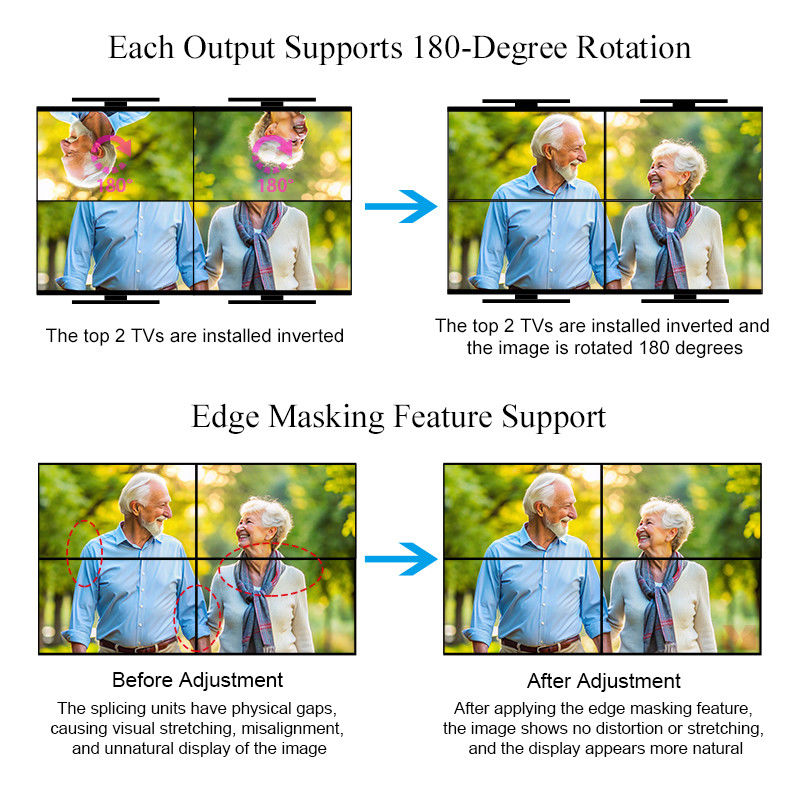

10. Each output supports 180 degrees rotation for TV upside down installation.
11. Support bezel adjustment function.
12.USB video and HDMI signal supports image cropping function, display without black edges.
13. Easy to set up and control, control via front buttons and remote. The new remote is more user-friendly, which supports one key to quick switch different splicing modes.
14. Support intelligent temperature control protection technology, which enhances the heat dissipation performance of products to be more stable, reliable, and durable.
15. With intelligent fan, which can be set to automatic, on or off in the menu.
16. With button lights on the front panel, it’s easy to operate in the dark. And it can be turned on or off in the menu.
Specification
| Product Name |
4K 2X2 Video Wall Controller |
| Model |
LM-TV04U |
| Technical |
| USB Supported Format: |
Video: MP4, MOV, AVI, WMV, MKV, TS...etc.
Audio: MP3, WAV, FLAC...etc.
Picture: JPG, JPEG, PNG, BMP
Text: TXT
|
| HDCP Compliant |
HDCP 2.2 |
| Input Resolution |
HDMI input 1: 640×480 to 3840×2160@60HzHDMI input 2: 640×480 to 3840×2160@60HzUSB input: play max 3840×2160 Video, max 4096×2160 Picture |
| Output Resolution |
Each HDMI output: 1920×1080@60Hz (Max 1920×1200) |
| Interfaces |
| Input Ports |
2× HDMI 2.0 inputs, built-in audio |
| 1× USB 2.0 input, built-in audio |
| Output Ports |
4× HDMI outputs, built-in audio |
| 1× 3.5mm analog audio output, support L/R stereo channels, synchronous switching of audio and video signals |
| 1× SPDIF optical audio output |
| Control Ports |
1× IR-Ext port |
| Functions |
| Control Ways |
Panel buttons, Remote |
| Splicing Modes |
1x1, 1x2, 1x3, 1x4, 2x1, 2x2, 3x1, 4x1 (One-Key Quick Setup by remote) |
| Other Functions |
180 degrees rotation, bezel adjustment, image cropping...etc |
| Mechanical |
| Power Supply |
DC 12V 2A |
| Power Consumption |
16W |
| Housing |
Metal Enclosure |
| Color |
Black |
| Size (L*W*H) |
230×172×47mm (L×W×H) *without mounting brackets |
| Weight |
1.1KG |
| Environment |
| Operating Temperature |
0°C to +70°C |
| Storage Temperature |
-10°C to +80°C |
| Relative Humidity |
≤ 80% |

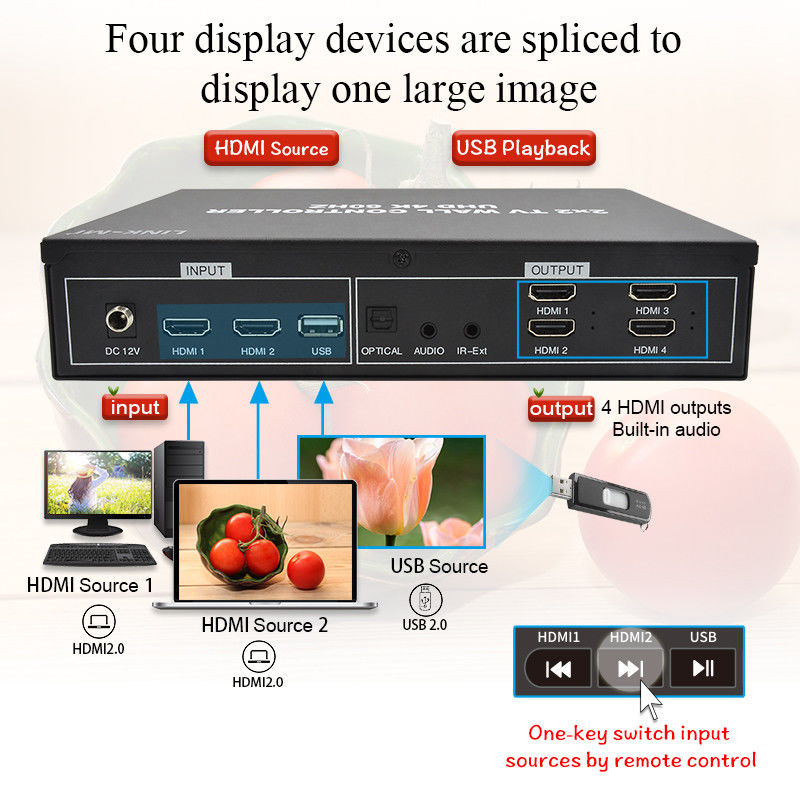

Connection Diagram

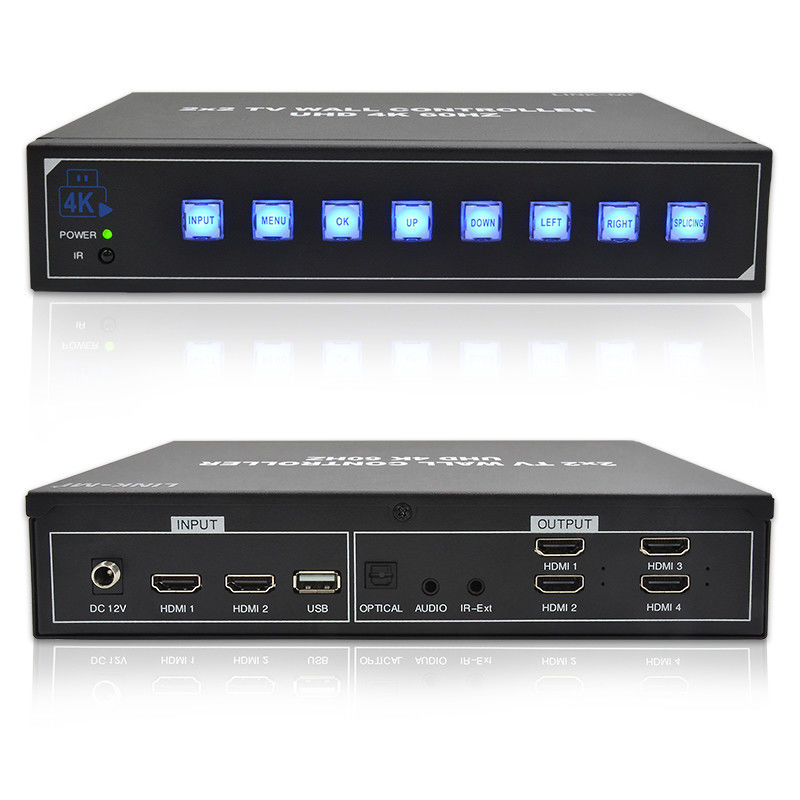

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
