4K Video Wall Controller for Professional Presentations 2x2 Video Wall HDMI Controller
Product Description:

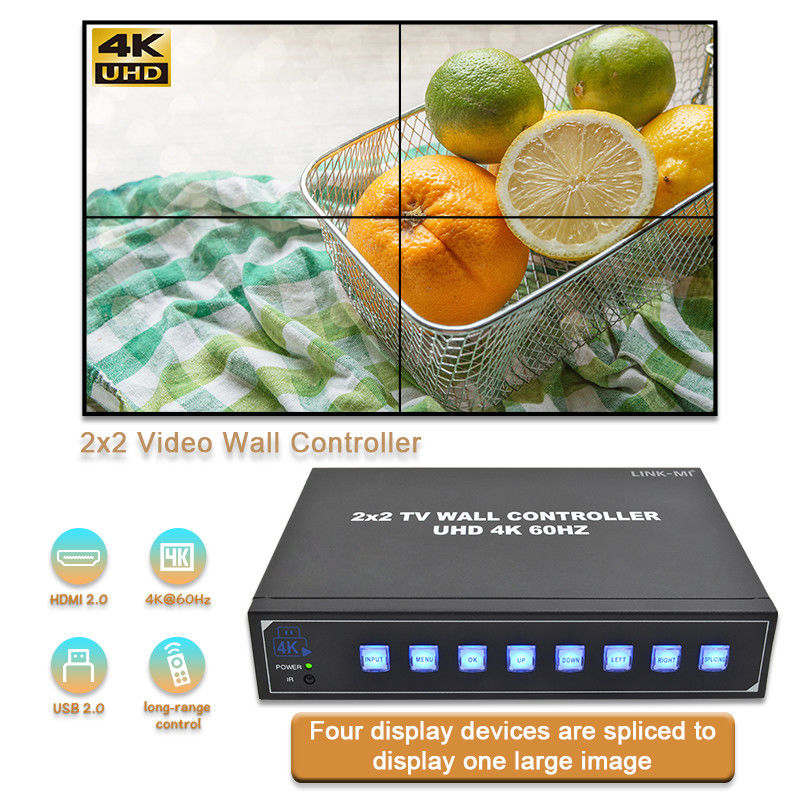

The K-MI LM-TV04U is a special Ultra HD 2x2 Video Wall Controller designed for splicing up to 4 TVs. With support for input resolution up to 4K@60Hz, it delivers a high-quality video experience.
Equipped with 3 input sources, including 2x HDMI 2.0 and 1x USB 2.0, and 4 HDMI outputs, the device can switch any one of the three inputs to four large screens for splicing display. It also supports multiple splicing modes, including 1x2, 1x3, 1x4, 2x2, 2x1, 3x1, and 4x1, providing users with a range of options to choose from.
In addition to USB disk access and USB auto display when inserting USB, the device also supports 3.5mm analog audio and optical audio out. It comes with a range of other functions, including IR extension and border adjustment, making it a versatile choice for various display scenarios.
The latest remote control design comes with a more user-friendly interface, making it easy and convenient to set and switch the splicing modes by remote.
Overall, the K-MI LM-TV04U is a widely used product in commercial display scenarios used in industries such as government and enterprise, conference rooms, hotel design, medical, education and many others.
Features:
Our product features include:
1. Our device supports input resolution up to a maximum of 4K@60Hz, with YUV 4:4:4 and HDCP 2.2. It enables the user to achieve a real 4K UHD display, providing the best-quality visual experience.
2. Our video wall controller supports multiple video wall modes like 1x1, 1x2, 1x3, 1x4, 2x1, 2x2, 3x1, 4x1, offering flexibility and versatility to users.
3. You can easily switch between modes to get your desired viewing experience.
4. Our device comes with 4x HDMI outputs, built-in audio, and supports 3.5mm analog audio out and SPDIF optical audio out.
5. You can enjoy high-quality sound and video on multiple displays at the same time.
6. Our video wall controller also supports IR extension for 10m long-distance remote control, ensuring convenient control of your devices from a distance.
7. USB disk access and USB auto display allows for effortless content sharing.
8. Our video wall controller comes with USB video and HDMI signal supports image cropping function, display without black edges. All this without the need for any software.
9. This plug-and-play device is designed to make your life a lot easier.

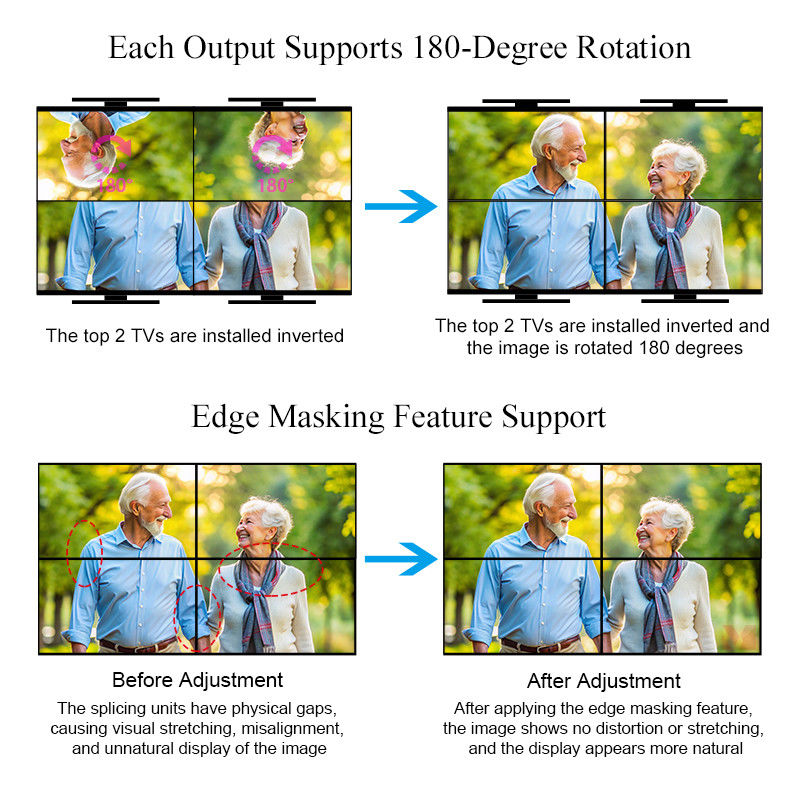

10. Our device supports intelligent temperature control protection technology, enhancing the heat dissipation performance of products, making it more stable, reliable, and durable.
11. With an intelligent fan, which can be set to automatic, on, or off in the menu, our video wall controller is optimized for longevity.
Technical Parameters:
| Product Name |
4K Video Wall Controller |
| Input Resolution |
Max 3840*2160@60Hz |
| Net Weight |
1.1KG |
| Hdmi Input |
2 X HDMI In |
| Video Format Supported |
640×480 To 3840×2160@60Hz |
| Power Supply |
DC 12V 2A |
| Input Signal |
2 HDMI, 1 USB |
| 180 Degrees Rotation |
Yes |
| Weight |
230mm(L)x172mm(W)x47mm(H) |
| Hdcp Compliant |
HDCP 2.2 |
| Video Wall Modes |
2x2, 1x1, 1x2, 1x3, 1x4, 2x1, 3x1, 4x1 |
This 4K Video Wall Controller is ideal for Control Room Video Wall applications.
Applications:
1. Control Room Video Walls: The LM-TV04U is an excellent choice for control room video walls. With its support for 4K video display and HDCP 2.2 compliance, it can handle even the most demanding video feeds. The 2 HDMI and 1 USB inputs make it easy to connect multiple sources, and the compact size of 230mm(L)x172mm(W)x47mm(H) means it won't take up too much space in your control room.
2. Trade Show Displays: If you're looking for a way to make your trade show booth stand out, the LM-TV04U can help. With its support for 4K video, you can display your products or services in stunning detail. The 4K Video Wall Display will attract more attention from potential customers. Its compatibility with HDCP 2.2 ensures that your content is protected from unauthorized copying.
3. Digital Signage: The LM-TV04U is also a great choice for digital signage. Its support for 4K video ensures that your content looks crisp and clear, even from a distance. Use it to display advertisements, menus, or other information in your store or restaurant. Its compact size makes it easy to install in a variety of locations.
Overall, the LINK-MI LM-TV04U is a versatile product that can be used in many different scenarios. Its high-quality output, compatibility with HDCP 2.2, and support for 4K video make it a great choice for anyone who needs a reliable and flexible video wall controller. Get yours today and experience the difference!

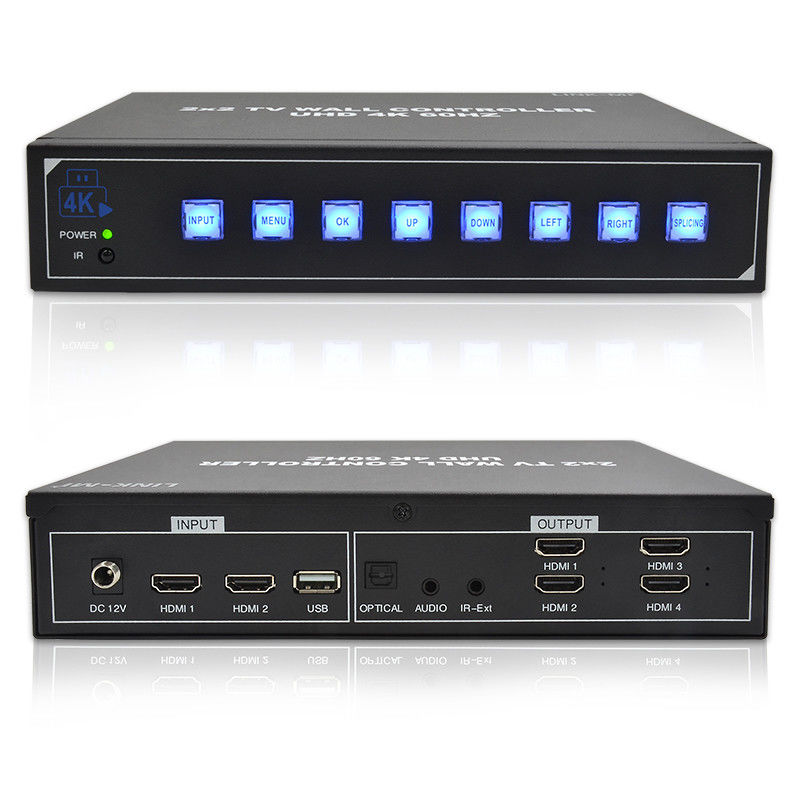

Interfaces:

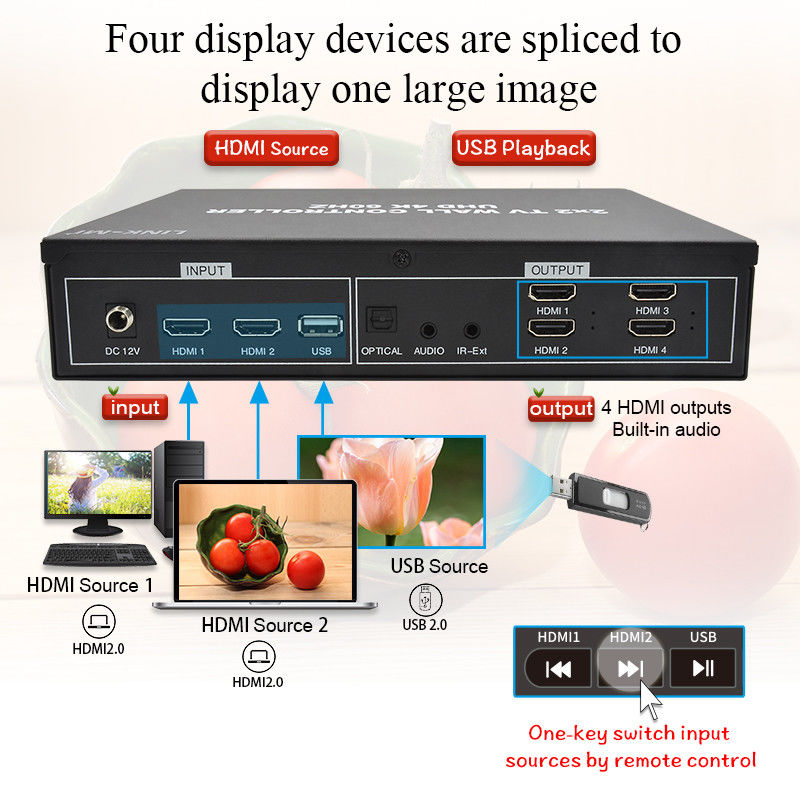

Connection:

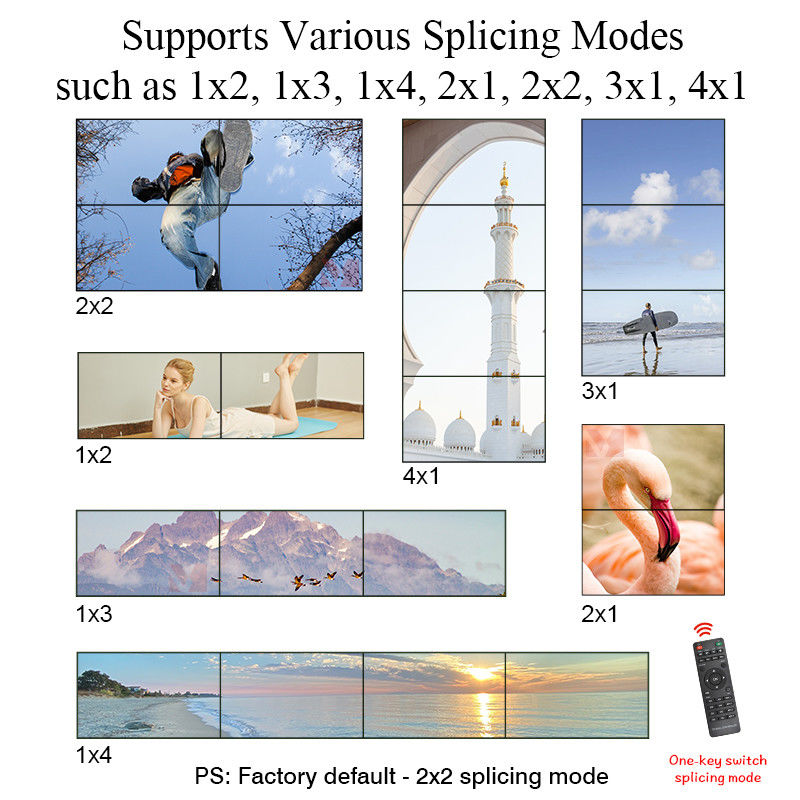

Video Wall Modes:
FAQ:
