5V DC Powered HDMI Audio Extractor 192KHz Sampling Frequency Compliant HDCP 2.3

5V DC Powered HDMI Audio Extractor 192KHz Sampling Frequency Compliant HDCP 2.3

HDCP 2.3 HDMI Audio Extractor

5V DC HDMI Audio Extractor

192KHz HDMI Audio Extractor

Place of Origin:

China

Brand Name:

LINK-MI

Model Number:

LM-AEX02

Contact Us

Request A Quote
Product Details
External Power Supply:
5V DC@<1A>
Sampling Frequency:
192KHz
Hdcp Compliance:
HDCP 2.3 / 1.x
Application:
Indoor/Home
Hdcp:
Compliant HDCP2.2/1.4
Dimension:
14x48x23 (mm)
Support Audio Format:
LPCM, DTS, Dolby(CH7.1)
Audio Supported:
Toslink, Coaxial, Stereo, ARC Audio...
Payment & Shipping Terms
Product Description

Product Description:

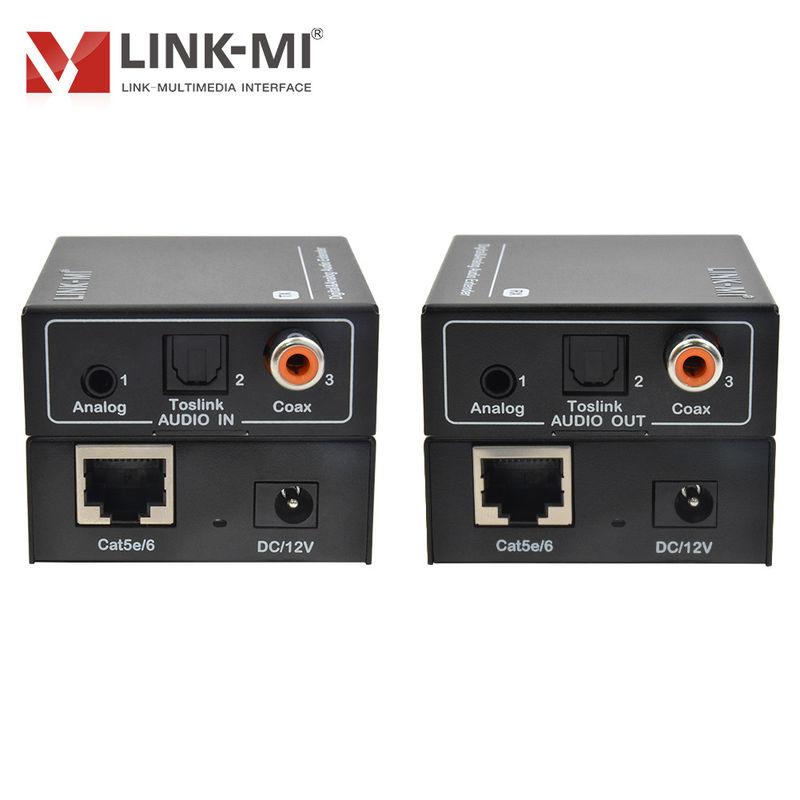

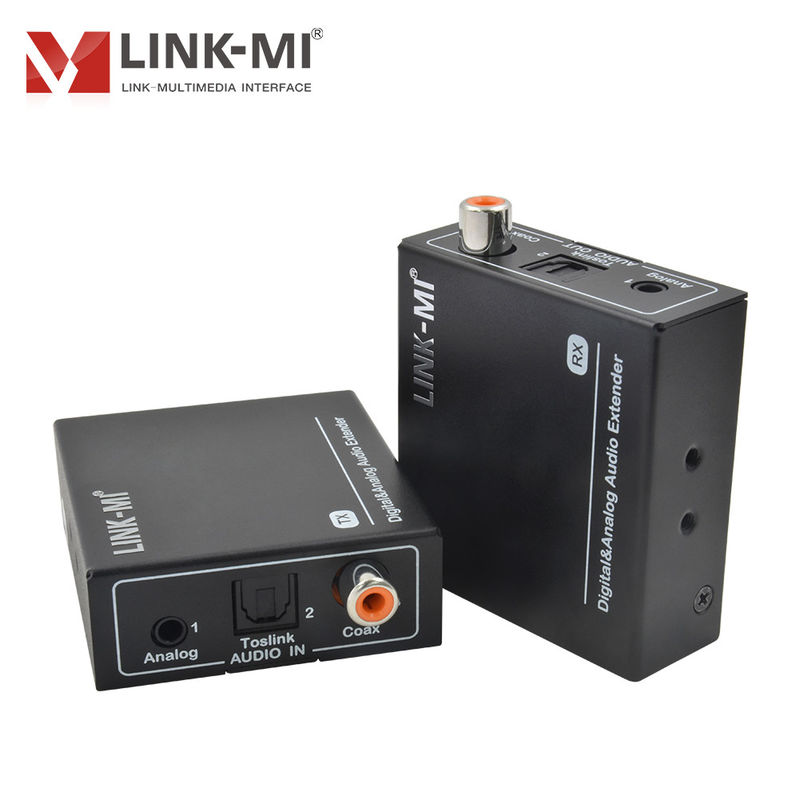

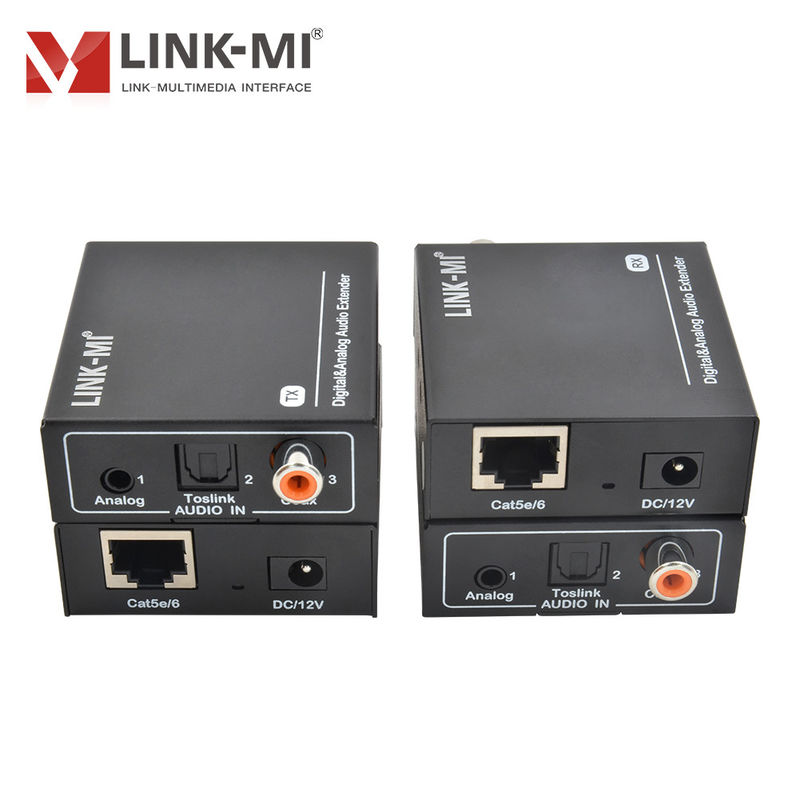

LINK-MI LM-AEX02: The Ultimate 500m Audio Extender for Digital and Analog Signals

If you need to extend your audio signal for over 500 meters, LINK-MI's LM-AEX02 is the perfect solution. This extender is designed for both digital and analog audio signals and can support a wide range of audio inputs, including POC, analog, digital coax, and optical Toslink.

The LM-AEX02 is incredibly easy to use thanks to its automatic input identification feature. This means it can detect the source audio signal and automatically adjust its settings, ensuring hassle-free operation.



Features:

Improved Description of Audio Transmission Device
Transmission Range

The audio transmission device is capable of transmitting up to 1480ft (450 meters) of analog audio and up to 1640ft (500 meters) of digital audio.

Compatibility

The device is compatible with analog, digital coaxial, and optical Toslink inputs.

Auto Identification

The audio input is automatically identified in the following sequence: analog, digital coaxial, then optical Toslink.

Supported Formats

The device supports PCM2.0 as well as digital 5.1 formats such as DTS and Dolby Digital.

Input and Output

The device supports input frequencies ranging from 44.1-96khz and outputs at 48khz with a bit range of 16-24.

Power Support

The audio transmission device supports AC 100-240V 50/60hz power supply and DC 12V/1A with dual POC.



Technical Parameters:

Product Attribute Value
Product Name AV HDMI Splitter Distribution
Application Indoor/Home
Support Audio Format LPCM, DTS, Dolby(CH7.1)
Sampling Frequency 192KHz
HDMI Compliance HDMI 2.0b
Video Bandwidth 18 Gbps
HDCP Compliance HDCP 2.3 / 1.x
Data Transfer Speed 12.8 Mb/s
Peak Wavelength 650nm
Standard CE / ROHS / FCC
Package Contents 1 X HDMI Audio Extractor, 1 X Power Adapter, 1 X User Manual
Product Description HDMI Audio Decoder, SPDIF Audio Extender


Applications:

The HDMI Audio Extractor is ideal for a variety of product application occasions and scenarios. For example, it can be used to extract audio from a video game console, Blu-ray player, or DVD player. Additionally, the LM-AEX02 can be used to extract audio from a cable box or satellite receiver. This Audio Extender is also great for use with projectors, as it can extract audio from a laptop or desktop computer.

The HDMI Audio Extractor is also great for use in home theaters. This Audio Extender allows users to extract audio from their television, which can be used to power a high-quality sound system. The LM-AEX02 is also great for use with soundbars, as it can extract audio from a television and output it to an external sound system. Additionally, this product can extract audio from a television and output it to a set of headphones, providing a more personalized audio experience.

The LM-AEX02 HDMI Audio Extractor is also great for use in commercial settings. For example, this Audio Extender can be used to extract audio from a digital signage display. Additionally, this product can be used to extract audio from a video conference system, providing high-quality audio that is essential for effective communication.

The HDMI Audio Extractor is compatible with a variety of audio formats, including Toslink, Coaxial, Stereo, and ARC Audio. This product is also designed with an external power supply of 5V DC@<1A>, ensuring stable and reliable performance. With dimensions of 14x48x23 (mm), the LM-AEX02 is a compact and portable Audio Extender that can be easily integrated into a variety of settings.
