Name: 1080P 4 Channels HDMI Multi Viewer Signal Quad HDMI Multiviewer 4x1
Brand: LINK-MI
SKU: LM-MVS01
Rating: 4.7 (174 reviews)

Home > products > HDMI Multi Viewer >

1080P 4 Channels HDMI Multi Viewer Signal Quad HDMI Multiviewer 4x1

1080P HDMI Multi Viewer

4 Channels HDMI Multi Viewer

Quad hdmi multiviewer 4x1

Place of Origin:

China

Brand Name:

LINK-MI

Model Number:

LM-MVS01

Request A Quote

1080P 4 Channels HDMI Multi Viewer Signal Quad HDMI Multiviewer 4x1

Product Details

Model No.:

LM-MVS01

Input Ports:

4x HDMI Inputs (female)

Output Ports:

1x HDMI Output (female)

TV Resolution:

Max 1080P@60Hz

Transmission Distance:

Input 8m, Output 15m (Maximum) Over Standard HDMI Cable/26AWG

Control Ways:

IR Remote, Panel Buttons

Video Switching:

12 Display Modes (4x1 Switch/Multiviewer)

Audio Switching:

Switch By Default 1→2→3→4→mute→1

Seamless Switching:

Support

Dimension (LxWxH):

190.4x113x17mm

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

White/Brown/Color Box

Delivery Time

5-7 work days

Payment Terms

T/T, Western Union, PayPal, Bank Transfer

HDMI 4x1 Quad Multi Viewer Support IR Control DC12V/2A Power Adapter

Get Best Price

High Performance HDMI 4x1 Quad Multi Viewer HDMI 1.4b HDCP 1.4 And DVI Compliant

Get Best Price

Video

225MHz HDMI Quad Screen Splitter HDMI 2x1 Multiviewer With PIP 2 In 1 Out

Get Best Price

8X1 HDMI Quad Multiviewer 1080P Multiple Signal VGA CVBS Input Auto Identify Signal

Get Best Price

+8613332950287

sales@link-mi.com

86-755-83513509

Contact Now

Product Description

HDMI 4X1 Quad Multi-Viewer 1080P 4 Channels HDMI Signal Seamless Switching Switch

Introduction

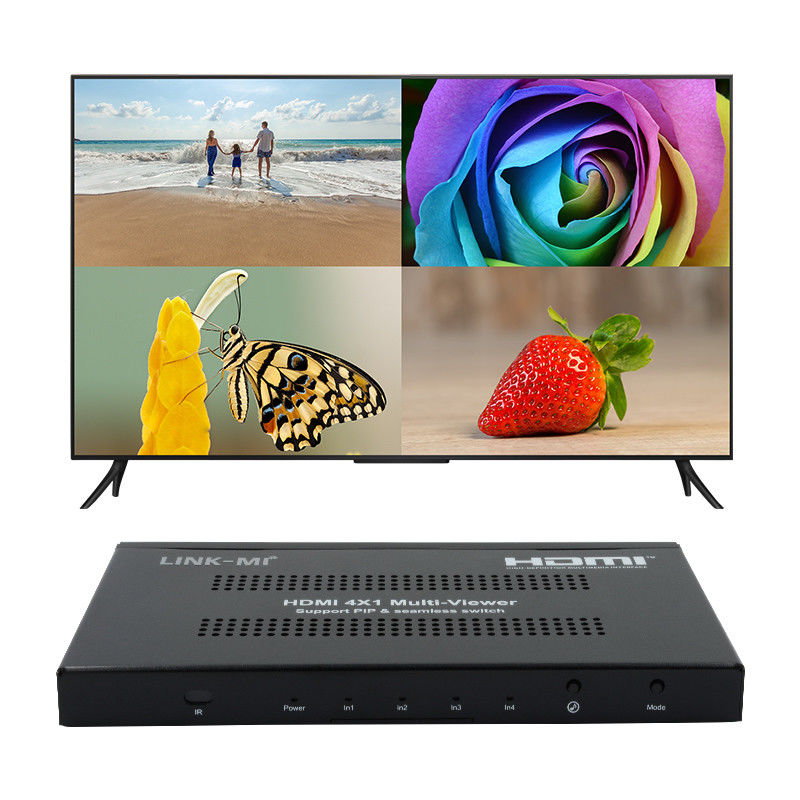

LINK-MI LM-MVS01 HDMI 4x1 Multi-viewer supports four UHD screen segmentation and seamless switching. It can display 4 UHD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 4 UHD input signal synchronously.

The control methods of the switch is flexible, it can be switched via Button and IR control. It's a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places.

Features

1. Support 4 x HDMI input, 1 x HDMI output
2. Support 4 channels HDMI signal screen segmentation; Four frames can be combined into more than ten modes
3. Support 4 channels HDMI signal seamless switching
4. SupportAudio Switching
5. Resolution up to 1080P/60Hz
6. Support IR control and Panel Button Control
7. Support audio output format: PCM2.0

Specification

Model No.	LINK-MI LM-MVS01
Interfaces
Input Ports	4x HDMI inputs (female)
Output Ports	1x HDMI output (female)
Technical
Bandwidth Frequency	4.95Gbps
HDCP	HDCP 1.4
TV Resolution	(50Hz) 576i; 576P; 720P; 1080i; 1080P
	(60Hz/59.94Hz) 480i; 480P; 720P; 1080P
	(30/29.97/24/25Hz) 1080P
Audio Output Format	PCM2.0
Functions
Control Methods	IR Remote, Panel Buttons
Video Switching	12 Display Modes (4x1 Switch, 2x1/4x1...Multiviewer)
Audio Switching	Switch by default 1→2→3→4→mute→1
Seamless Switching	Support
Mechanical
Operating Temperature Range	0 to +40℃ (32 to +104℉)
Operating Humidity Range	5 to 90% RH (No Condensation)
Power Consumption	7W (MAX)
Power Supply	DC 12V 1A
Housing
Dimension	190.4mm(L)x113mm(W)x17mm(H)
Weight	480kg
Note: Specifications are subject to change without notice

Connection Diagram

1080P 4 Channels HDMI Multi Viewer Signal Quad HDMI Multiviewer 4x1 0

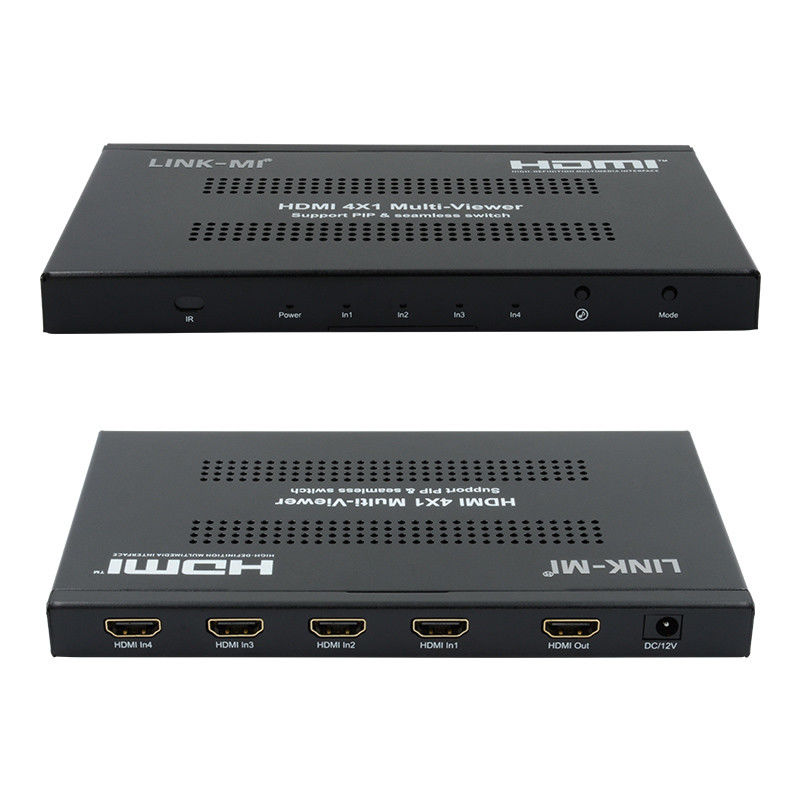

Panel Description

1080P 4 Channels HDMI Multi Viewer Signal Quad HDMI Multiviewer 4x1 1

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-MVS01 1080P 4x1 HDMI Multi-viewer PIP & Seamles...
