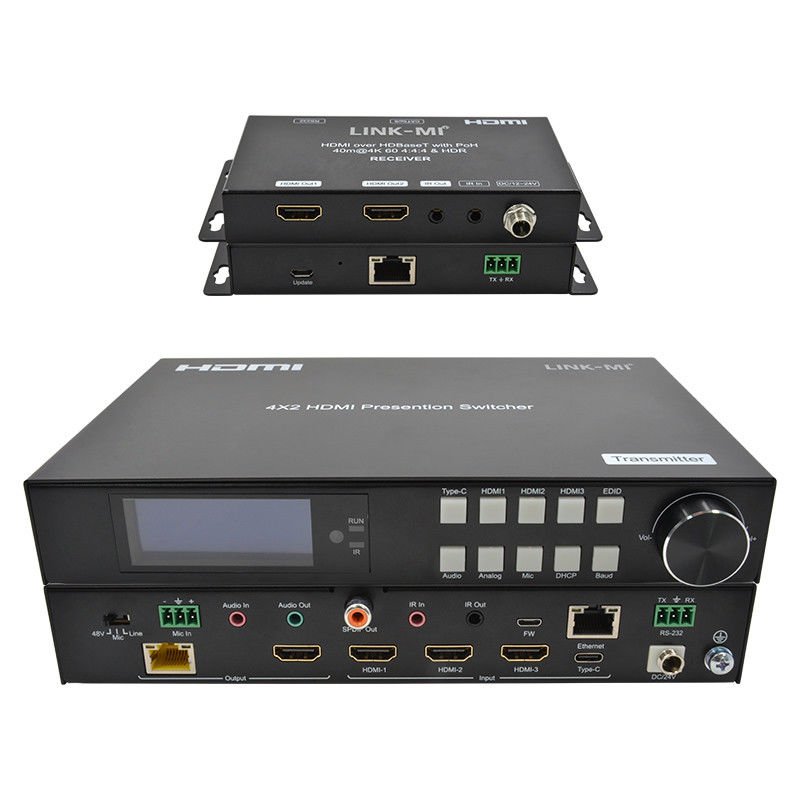

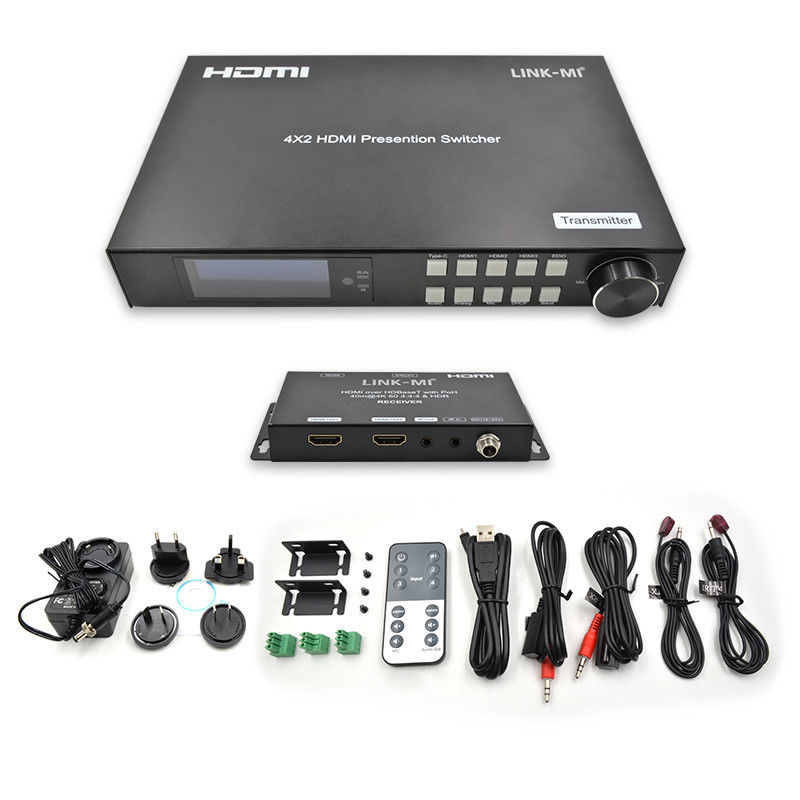

Name: 18Gbps 4K Video HDMI Switch 2.0 HDBaseT Switch With HDMI And USB - C Inputs
Brand: LINK-MI
SKU: LM-SWE02
Rating: 4.9 (146 reviews)

Home > products > Video HDMI Switch >

18Gbps 4K Video HDMI Switch 2.0 HDBaseT Switch With HDMI And USB - C Inputs

18Gbps Video HDMI Switch

4K Video HDMI Switch

2.0 HDBaseT Switch HDMI

Place of Origin:

China

Brand Name:

LINK-MI

Model Number:

LM-SWE02

Request A Quote

18Gbps 4K Video HDMI Switch 2.0 HDBaseT Switch With HDMI And USB - C Inputs

Product Details

Model No:

LM-SWE02

Input Video Signal:

0.5- 1.0 Volts P-p

Bandwidth:

18Gbps

Video Format Supported:

4K@60Hz,YUV4:4:4 4k@30Hz/1080P/1080i/720P/576P/480P

HDCP Compliant:

HDCP2.2 And HDCP1.4

Output Video:

HDMI 2.0( Over HDBaseT And HDMI)

Audio Format Supported:

PCM2.0, Dolby5. 1, DTS5. 1 Digital Audio

Maximum Transmission Distance:

1080P 70m, 4K@60hz 4:4:4 40m

Dimensions:

219 L X 140W X 35H Mm

Mass (Main Unit):

1. 175KG

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

White/Brown/Color Box

Delivery Time

5-7 work days

Payment Terms

T/T, Western Union, PayPal, Bank Transfer

5x1 Video HDMI Switch with remote Support 3D 4K2K

Get Best Price

60Hz 4K 2x1 HDMI Switcher YUV420 Support HDCP2.2 HDR10

Get Best Price

256mA 4X1 HDMI Switcher Box 2.0 Switch YUV4:4:4 18Gbps Support ARC CEC HDR

Get Best Price

3G SDI Video HDMI Switch HD SDI Repeater SD SDI 1x4 Splitter

Get Best Price

+8613332950287

sales@link-mi.com

86-755-83513509

Contact Now

Product Description

HDMI 2.00 HDBaseT Switch with HDMI and USB-C inputs Support 4K@60hz YUV4:4:4, 18Gbps

Introduction

LINK-MI LM-SWE02 HDMI 2.00 HDBaseT Switch comes with HDMI and USB-C inputs. It supports 4K@60hz YUV4:4:4, 18Gbps, POC and multiple control methods like buttons, remote, RS232 and IP control.

Feature

1. Incorporate HDBaseT technology
2. HDMI 2.0 version support 18Gbps, Deep color up to 8 bit
3. 3x HDMI inputs support 4K@60HZ 4:4:4 and downscaler from 4K to 1080P
4. 1x USB-C input support 4K@30HZ and 65W power charging
5. 1x mirrored HDBaseT output can transmit AV signal up to 70M 1080P, 40M 4K@60Hz
6. HDCP 1.4/2.2 compliant with advanced EDID management
7. Support analog 3.5mm audio in and phoenix MIC in
8. Support analog 3.5mm audio out and SPDIF outputs
9. Support HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
10. Support Auto-switch input sources
11. Control via Push buttons, IR remote, RS232 and IP control
12. Support POC (receiver powered by HDBaseT switch)

Specification

Model No.	LM-SWE02
Operating Temperature Range	-5 to +40°C(23 to +104 °F)
Storage Temperature Range	- 10 to +60°C(14 to +140 °F)
Operating Humidity Range	5 to 90 % RH (no condensation)
Input Video Signal	0.5- 1.0 volts p-p
Bandwidth	18Gbps
Video Format Supported	4K@60Hz,YUV4:4:4 4k@30Hz/1080P/1080i/720P/576P/480P
HDCP Compliant	HDCP2.2 and HDCP1.4
Output Video	HDMI 2.0( over HDBaseT and HDMI)
Audio Format Supported	PCM2.0, Dolby5. 1, DTS5. 1 digital audio
Maximum Transmission Distance	1080P 70m, 4K@60hz 4:4:4 40m
Dimensions	219 L x 140W x 35H mm
Mass (Main Unit)	1. 175KG
Note: Specifications are subject to change without notice.

Connection Diagram

18Gbps 4K Video HDMI Switch 2.0 HDBaseT Switch With HDMI And USB - C Inputs 0

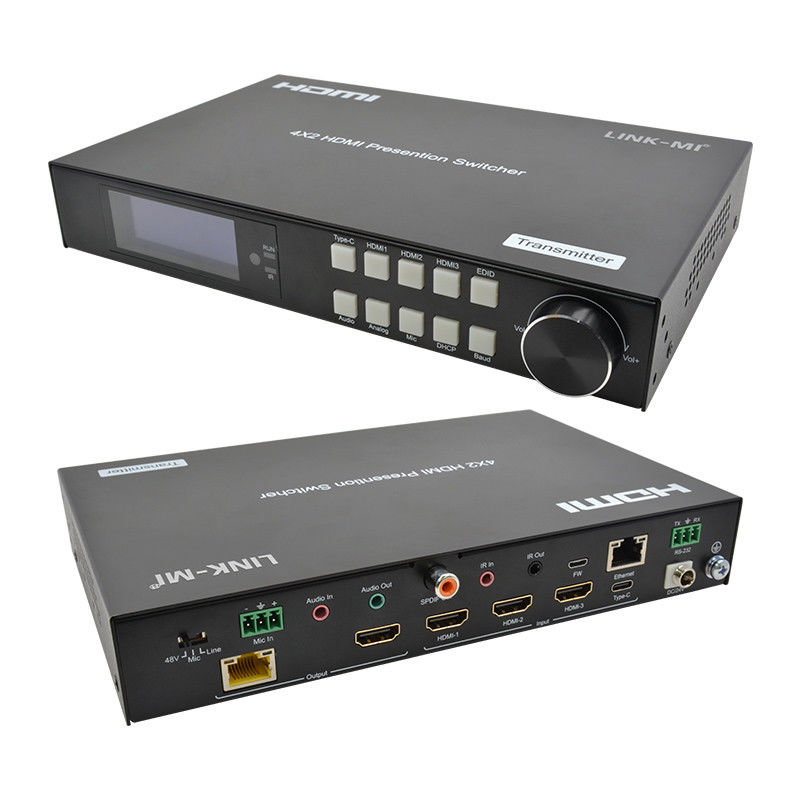

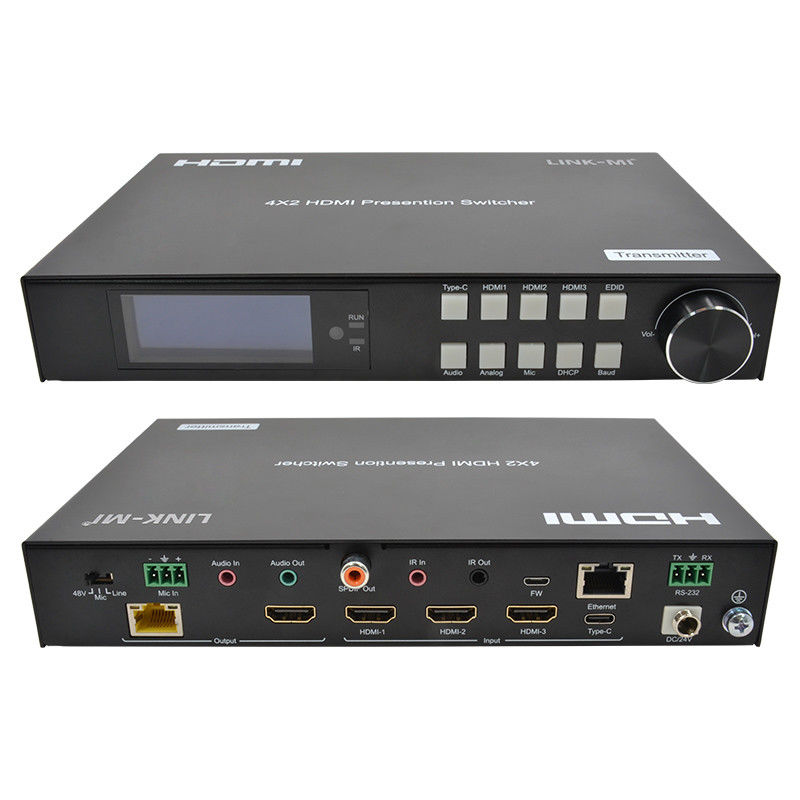

Panel Description

18Gbps 4K Video HDMI Switch 2.0 HDBaseT Switch With HDMI And USB - C Inputs 1

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-SWE02 4x2 HDBaseT Switch with HDMI USB-C inputs...
