Name: 1x4 4K Wireless HDMI Splitter Extender Support 60m 4K@60Hz AV Splitter Over RJ45
Brand: Shenzhen LINK-MI Technology Co., Ltd.
SKU: LM-TVM48
Availability: InStock

Home > products > 4K HDMI Splitter >

1x4 4K Wireless HDMI Splitter Extender Support 60m 4K@60Hz AV Splitter Over RJ45

1x4 4K HDMI Splitter

4K HDMI Splitter Extender

wireless hdmi splitter 1x4

Place of Origin:

China

Brand Name:

LINK-MI

Model Number:

LM-TVM48

Request A Quote

1x4 4K Wireless HDMI Splitter Extender Support 60m 4K@60Hz AV Splitter Over RJ45

Product Details

Model No.:

LM-SPE104C

Input Video Format:

720P / 1080P / 4K@60hz

Data Transfer Speed Rate:

18 Gbps(Maximum)

Input Port:

1xHDMI

Output Ports:

4xRJ45 Output Port, 1xHDMI Loop Out

Output Video Format Supported:

DTV/HDTV: 480P/576P/720P/1080P, 4K, VESA Resolution

Transmission Distance:

60m (197ft) At 4K@60Hz

Power Consumption:

12.5W(Maximum)

Dimension (L×W×H):

TX: 229.5x113.4x24mm; RX:110.2x68.3x18mm

Net Weight:

TX:1300g; RX:1600g(4pcs)

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

White/Brown/Color Box

Delivery Time

5-7 work days

Payment Terms

T/T, Western Union, PayPal, Bank Transfer

4K 1X4 Multi HDMI Splitter EDID Analog Optical HDMI2.0b 4 Port Video Splitter

Get Best Price

4K 2.0b 2 Port HDMI Splitter 4 HDCP 2.2COPY AUTO EDID Hdmi Audio Video Extract

Get Best Price

48Gbps HDMI Splitter 8k 1x2 HDMI Extender Support Downscaler HDR10 EDID HDCP2.2

Get Best Price

70M 1x4 4K HDMI Splitter Extender With Audio Extract 1x4 Hdmi Splitter Over Cat6

Get Best Price

+8613332950287

sales@link-mi.com

86-755-83513509

Contact Now

Product Description

1x4 HDMI Splitter Extender Support 60m 4K@60Hz AV Splitter over RJ45

Introduction

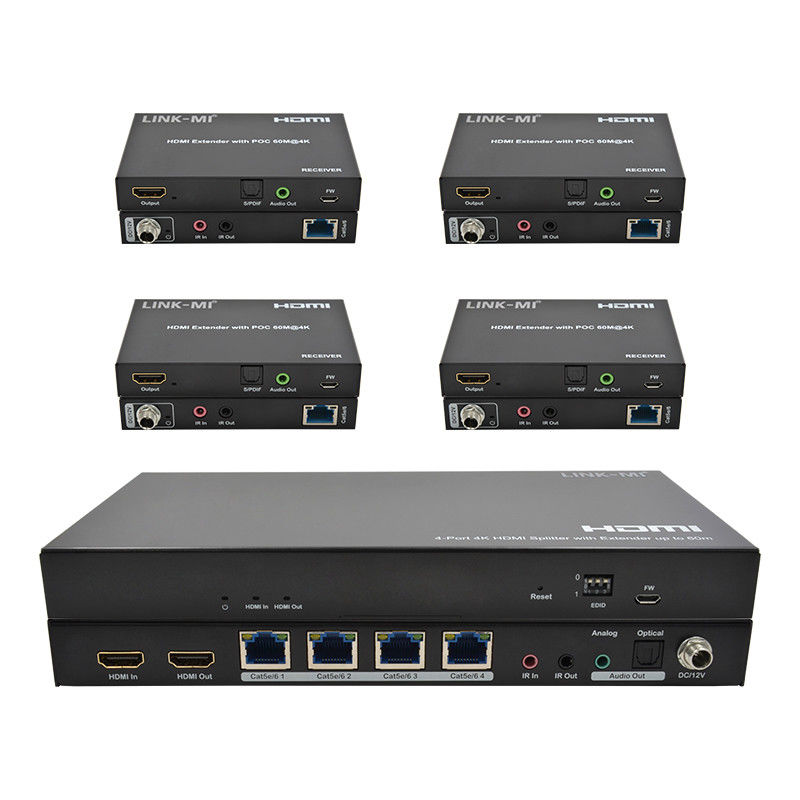

LINK-MI LM-SPE104C 4-Port HDMI Splitter Extender can distribute 1 HDMI source to 4 RJ45 output with 1 HDMI loop out. It supports resolution up to 4K@60Hz and EDID, POC.

Feature

1. HDMI2.0 splitter extender, bandwidth up to 18Gbps, deep color up to 4K@60Hz 8bit

2. Distribute 1 HDMI source to 4 RJ45 output with 1 HDMI loop out

3. Transmission distance up to 60m (197ft) at 4K@60Hz over Cat5e/6 cable

4. HDCP2.2/1.4 Compliant

5. Support analogue and Toslink SPDIF audio out on both TX and RX side

6. Support HDR10, HLG

7. Support LPCM2.0/5.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby True HD

8. Support Bi-Directional wide band IR

9. Support auto downscale 4K@60hz to 1080P at RX end

10. Support EDID management

11. Support POC(RX powered by TX)

12. Support firmware updating through Micro USB port

13. With one built-in reset button for factory reset

Specification

Model No.	LM-SPE104C
Operating Temperature Range	-5 to +40℃(+23 to +104℉)
Operating Humidity Range	5 to 90%RH (No Condensation)
Input Video format	720P / 1080P / 4K@60hz
Data transfer speed rate	18 Gbps(Maximum)
Input port	1xHDMI
Output ports	4xRJ45 output port, 1xHDMI loop out
Output Video Format Supported	DTV/HDTV: 480P/576P/720P/1080P, 4K ,VESA resolution
Transmission Distance	60m (197ft) at 4K@60Hz
Power consumption	12.5W(Maximum)
Dimension (L×W×H)	TX: 229.5x113.4x24mm; RX:110.2x68.3x18mm
Net Weight	TX:1300g; RX:1600g(4pcs)
Note: Specifications are subject to change without notice.

Connection Diagram
1x4 4K Wireless HDMI Splitter Extender Support 60m 4K@60Hz AV Splitter Over RJ45 0

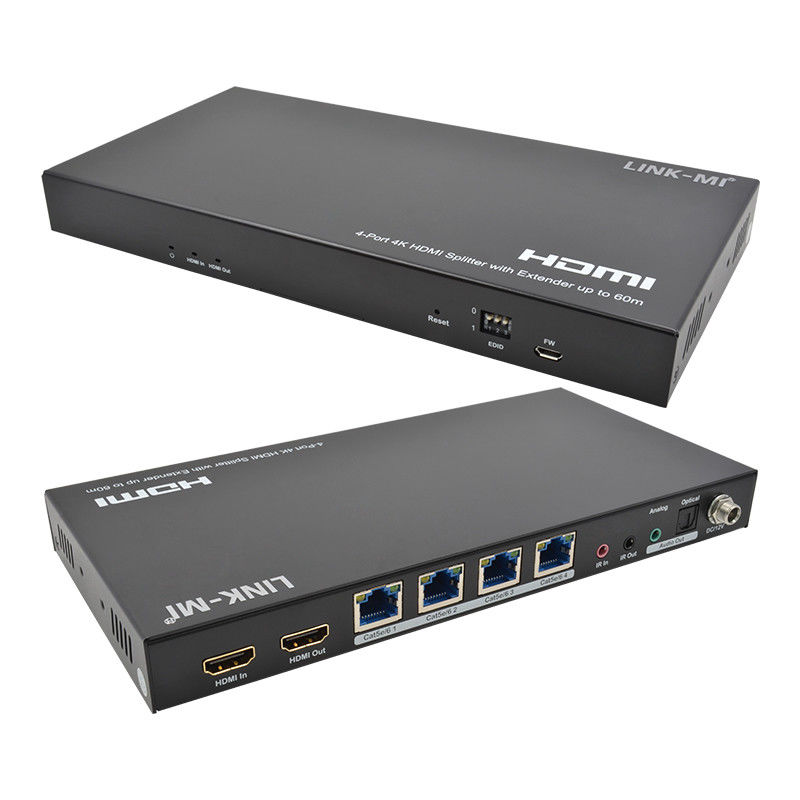

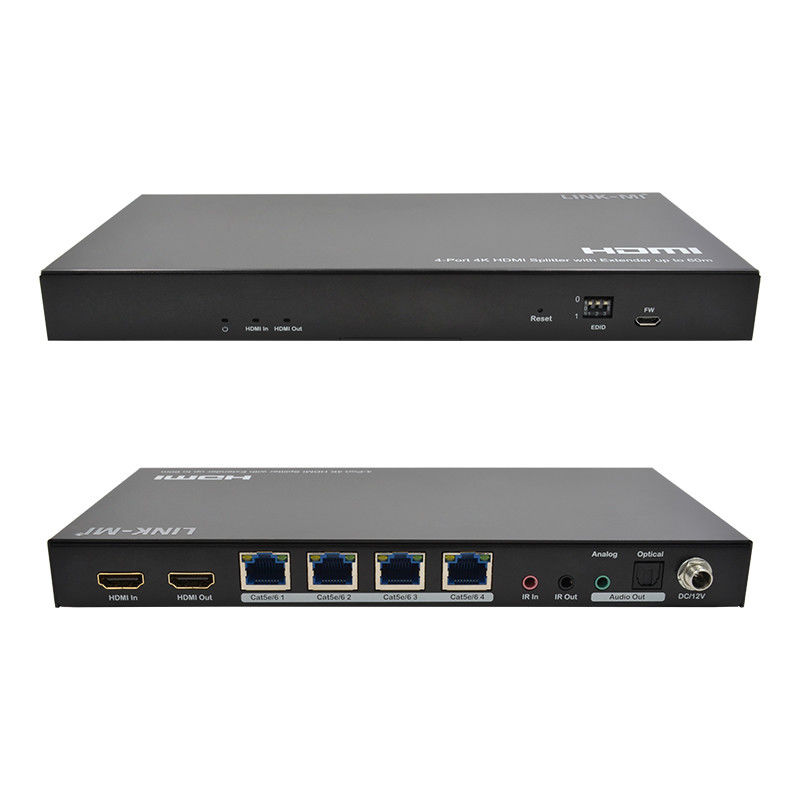

Panel Description

1x4 4K Wireless HDMI Splitter Extender Support 60m 4K@60Hz AV Splitter Over RJ45 1

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-SPE104C 60m HDMI2.0 1x4 Splitter Extender.pdf
