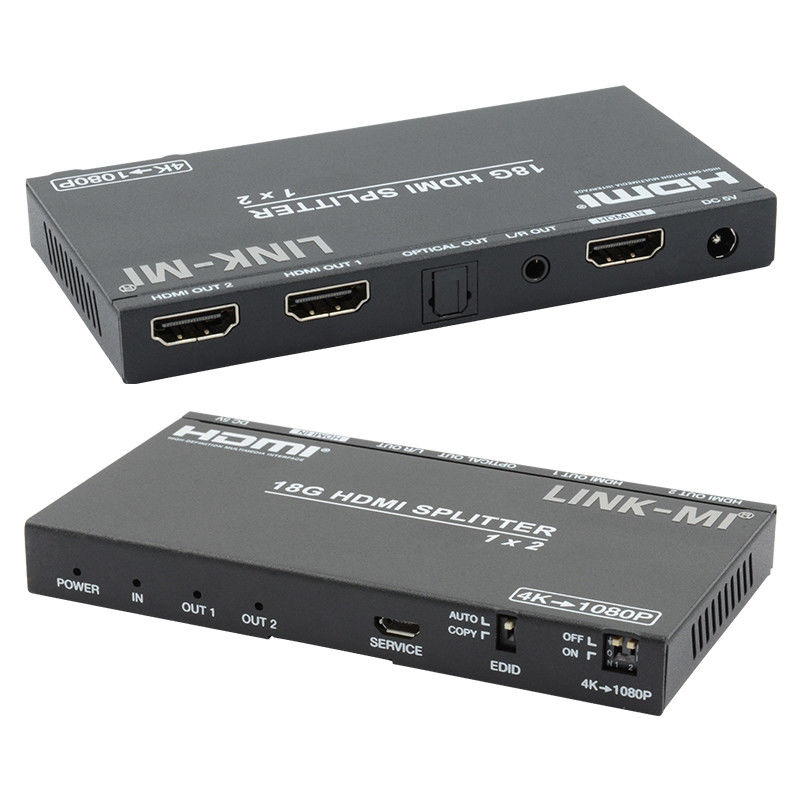

2 Port 4K HDMI Splitter 2.0b 4 HDCP 2.2COPY/AUTO EDID Audio Extract Downscaler Function
Introduction
LINK-MI LM-SC102-AUDIO The 1x2 HDMI 2.0 Splitter simultaneously one route HDMI source to two routes HDMI display. It supports resolution up to 4K2K@60Hz (4:4:4) and HDCP 2.2. This product supports audio extract from HDMI source to optical and analog output. It can be selected COPY, AUTO modes EDID setting. Output supports bypass and downscaler(4K->1080P ) function.
Features
1. HDMI 2.0b, HDCP 2.2 / HDCP 1.4 compliant.
2. Support HDMI resolution the maximum up to 4K2K@50/60Hz (4:4:4).
3. Support digital and analog audio extract output from HDMI source.
4. Support output bypass and 4K->1080P downscaler function via dial switch on panel.
5. EDID can be selected COPY and AUTO modes via dial switch on panel.
(COPY: It copys OUT 1 port EDID setting to all outputs port;
AUTO: Compare OUT 1 and OUT 2 EDID setting and output the best resolution to all outputs).
6. Support HDMI audio format LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD.
Specification
| Model No. |
LM-SC102-AUDIO |
| Technical |
|
| HDMI Compliance |
HDMI 2.0b |
| HDCP Compliance |
HDCP 2.2 and HDCP 1.4 |
| Video Resolution |
720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz,
4K2K@50/60Hz (4:4:4) |
| Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth |
4K60Hz 8-bit, 1080P 12-bit |
| HDMI Audio Formats |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,
DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
|
| L/R Audio Formats |
PCM 2.0 |
| Optical Audio Formats |
LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD,Dolby DD+, DTS
5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1 |
| ESD Protection |
Human-body Model:
±8kV (Air-gap discharge) , ±4kV (Contact discharge)
|
|
Connections
|
|
| Input ports |
1×HDMI Type A [19-pin female] |
| Output ports |
2×HDMI Type A [19-pin female]
1×L/R Audio out [3.5mm Stereo Mini-jack]
1×Optical out [S/PDIF] |
| Mechanical |
|
| Housing |
Metal Enclosure
|
| Color |
Black |
|
Dimensions
|
120mm(W)×62.5mm(D)×14mm(H)
|
| Weight |
166g |
|

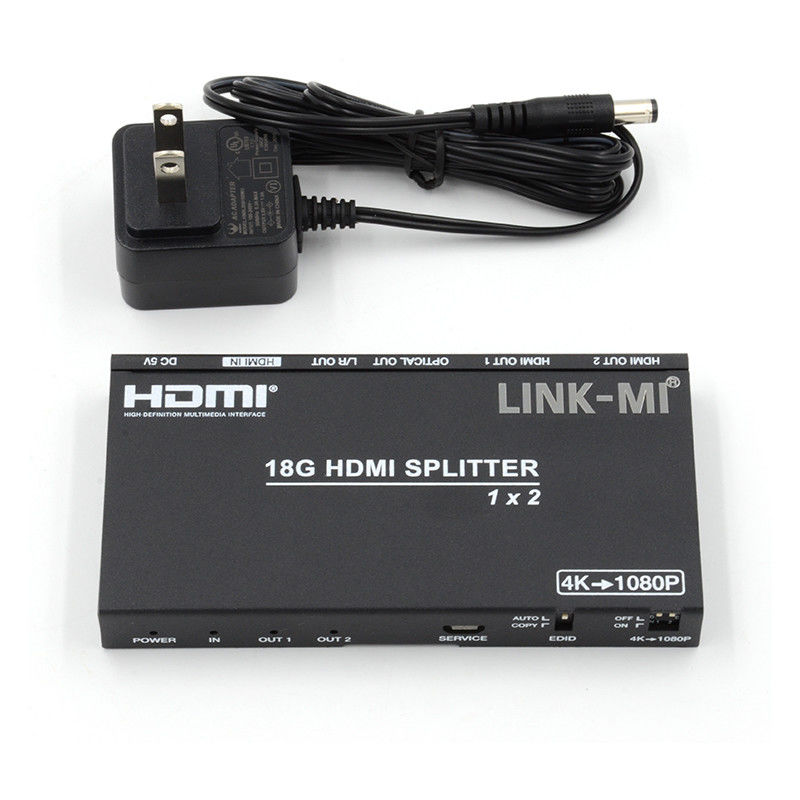

Power Supply
|
Input: AC100~240V 50/60Hz
Output: DC5V/1A (US/EU standards,CE/FCC/UL certified)
|
|
Power Consumption
|
2.8W |
|
Operating Temperature
|
0°C ~ 40°C / 32°F ~ 104°F
|
|
Storage Temperature
|
-20°C ~ 60°C / -4°F ~ 140°F
|
| Relative Humidity |
20~90% RH (non-condensing)
|
| Note Specifications are subject to change without notice |
Connection Diagram

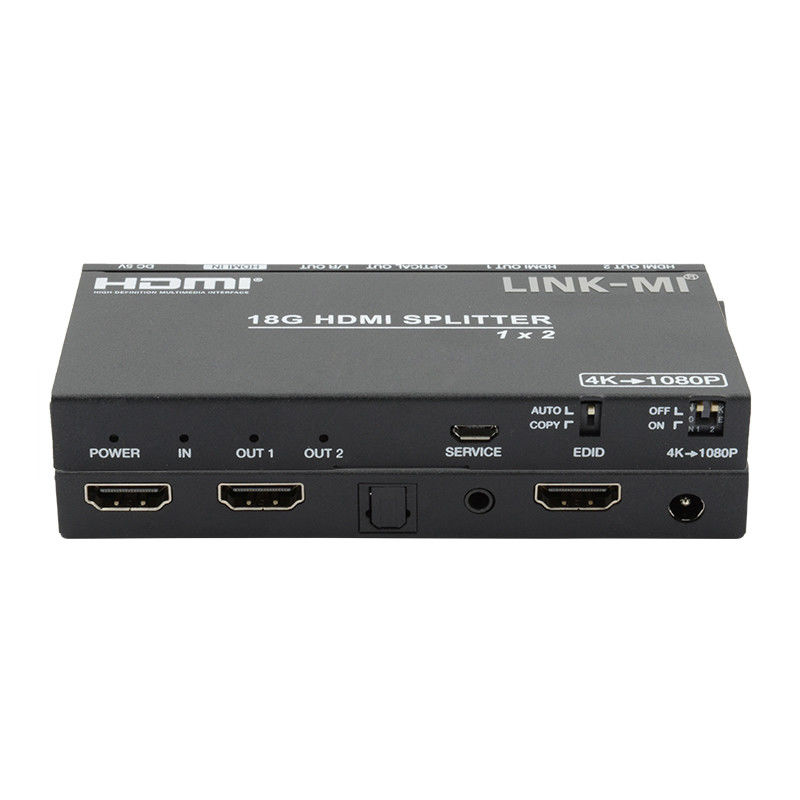

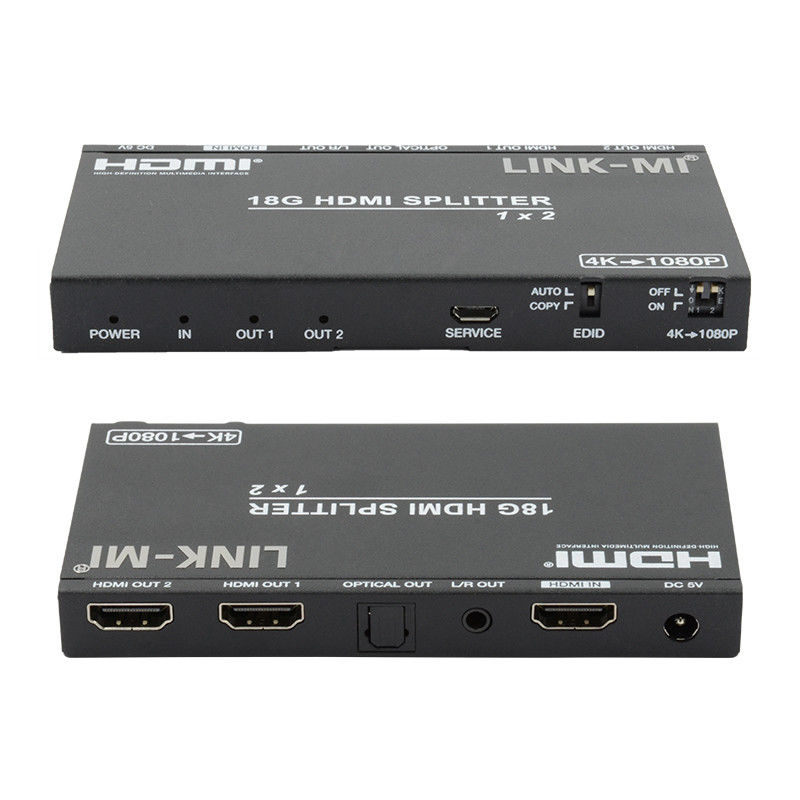

Panel Description
