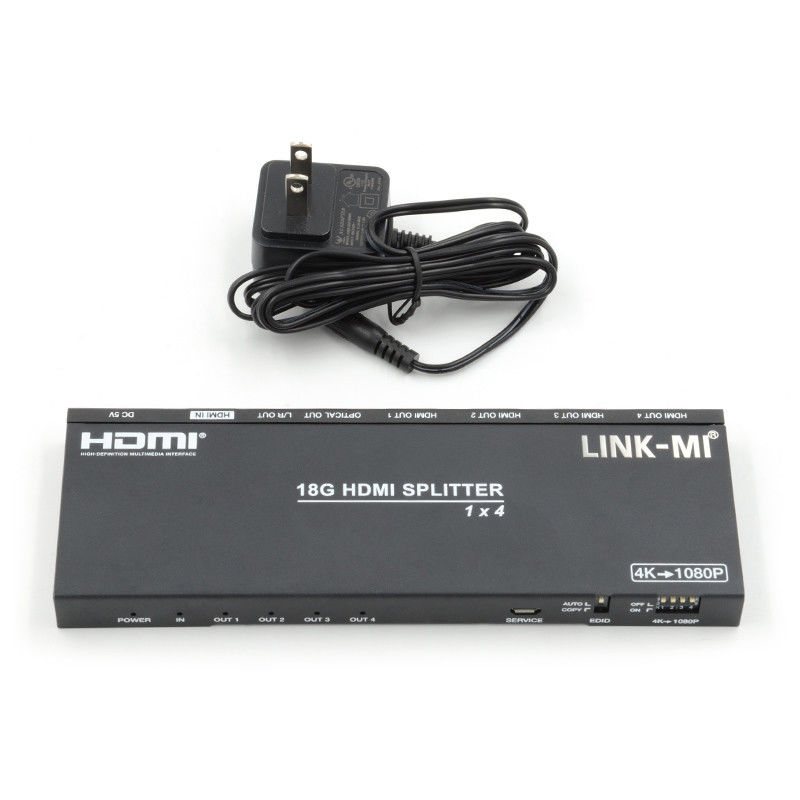

4K 1X4 HDMI Splitter EDID Analog Optical Audio Extraction HDMI2.0b 4 Port Video Splitter
Introduction
LINK-MI LM-SC104-AUDIO The 1x4 HDMI 2.0 Splitter simultaneously one route HDMI source to four routes HDMI display. It supports resolution up to 4K2K@60Hz (4:4:4) and HDCP 2.2. This product supports audio extract from HDMI source to optical and analog output. It can be selected COPY, AUTO modes EDID setting. Output supports bypass and downscaler(4K->1080P)
Features
1. HDMI 2.0b, HDCP2.2/HDCP1.4 compliant.
2. Support HDMI resolution the maximum up to 4K2K@50/60Hz (4:4:4)
3. Support digital and analog audio extract output from HDMI source.
4. Support output bypass and 4K->1080P downscaler function via dial switch on panel.
5. EDID can be selected COPY and AUTO modes via dial switch on panel.
(COPY: It copies OUT 1 port EDID setting to all outputs port, If no HDMI OUT 1 capable EDID is detected then the unit will copy HDMI OUT 2. If no HDMI OUT 1~2 capable 4 EDID is detected then the unit will copy HDMI OUT 3...etc.
The priority order is OUT 1 to OUT 4.
AUTO: Compare OUT 1~OUT 4 EDID setting and output the best resolution to all outputs).
6. Support analog audio PCM 2.0.
7. Support optical audio pass-through format about LPCM 2.0/2.1/5.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1.
Specification
| Model No. |
LM-SC104-AUDIO |
| Technical |
|
| HDMI Compliance |
HDMI 2.0b |
| HDCP Compliance |
HDCP 2.2 and HDCP 1.4 |
| Video Resolution |
720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz,
4K2K@50/60Hz (4:4:4) |
| Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth |
4K60Hz 8-bit, 1080P 12-bit |
| HDMI Audio Formats |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,
DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
|
| L/R Audio Formats |
PCM 2.0 |
| Optical Audio Formats |
LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD,Dolby DD+, DTS
5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1 |
| ESD Protection |
Human-body Model:
±8kV (Air-gap discharge) , ±4kV (Contact discharge)
|
|
Connections
|
|
| Input ports |
1×HDMI Type A [19-pin female] |
| Output ports |
4×HDMI Type A [19-pin female]
1×L/R Audio out [3.5mm Stereo Mini-jack]
1×Optical out [S/PDIF] |
| Mechanical |
|
| Housing |
Metal Enclosure
|
| Color |
Black |
|
Dimensions
|
180mm(W)×62mm(D)×14mm(H)
|
| Weight |
227g |
|
Power Supply
|
Input: AC100~240V 50/60Hz
Output: DC5V/1A (US/EU standards,CE/FCC/UL certified)
|
|
Power Consumption
|
3.5W (Max) |
|
Operating Temperature
|
0°C ~ 40°C / 32°F ~ 104°F
|
|
Storage Temperature
|
-20°C ~ 60°C / -4°F ~ 140°F
|
| Relative Humidity |
20~90% RH (non-condensing)
|
| Note Specifications are subject to change without notice |
Connection Diagram

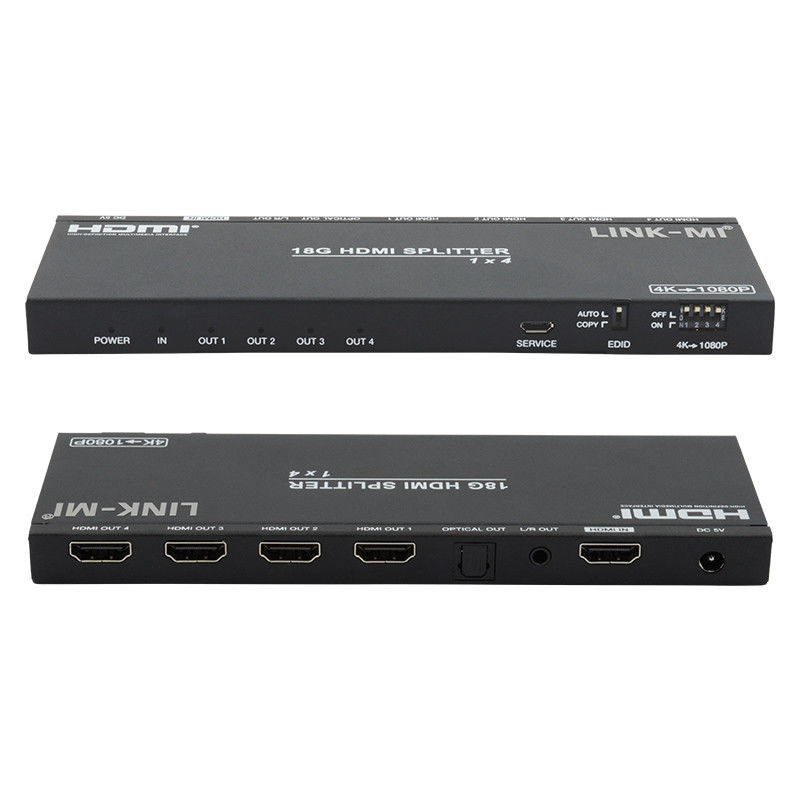

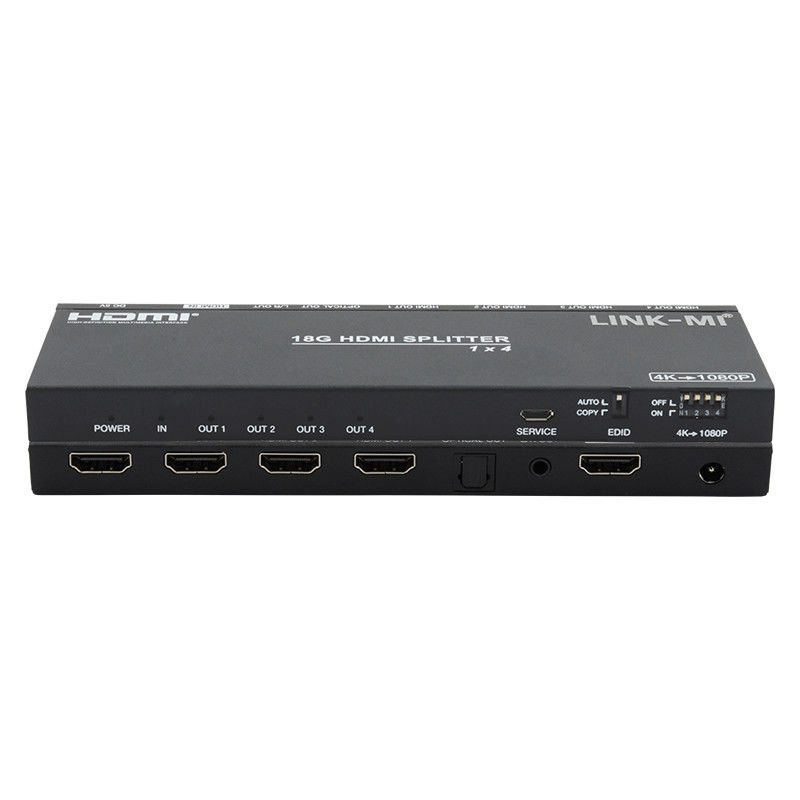

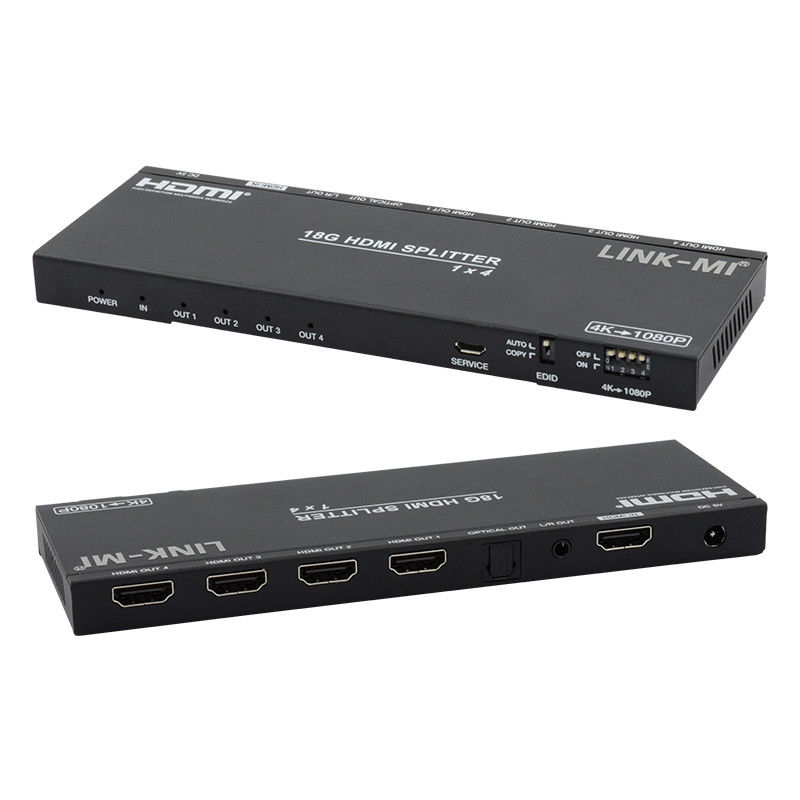

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SC104-Audio 1x4 HDMI 2.0 Splitter with Scaler A...
