Name: 70M 1x4 4K HDMI Splitter Extender With Audio Extract 1x4 Hdmi Splitter Over Cat6
Brand: Shenzhen LINK-MI Technology Co., Ltd.
SKU: LM-SP31
Price: Negotiable USD
Availability: InStock

Home > products > 4K HDMI Splitter >

70M 1x4 4K HDMI Splitter Extender With Audio Extract 1x4 Hdmi Splitter Over Cat6

70M 4K HDMI Splitter

1x4 4K HDMI Splitter

1x4 hdmi splitter over cat6

Place of Origin:

China

Brand Name:

LINK-MI

Model Number:

LM-SP31

Request A Quote

70M 1x4 4K HDMI Splitter Extender With Audio Extract 1x4 Hdmi Splitter Over Cat6

Product Details

Model No.:

LM-SP31

Input Video Format:

720P / 1080P / 4K@60hz

Data Transfer Speed Rate:

18 Gbps(Maximum)

Input Port:

1xHDMI

Output Ports:

4xRJ45 Output Port, 1xHDMI Loop Out

Output Video Format Supported:

DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P, 4K VESA Resolution

Transmission Distance:

90m At 1080P@60Hz, 70m At 4K@60Hz 4:4:4

Power Consumption:

20W(Maximum)

Dimension (L×W×H):

246.1x113.4x24mm

Net Weight:

700g

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

White/Brown/Color Box

Delivery Time

5-7 work days

Payment Terms

T/T, Western Union, PayPal, Bank Transfer

4K 1X4 Multi HDMI Splitter EDID Analog Optical HDMI2.0b 4 Port Video Splitter

Get Best Price

4K 2.0b 2 Port HDMI Splitter 4 HDCP 2.2COPY AUTO EDID Hdmi Audio Video Extract

Get Best Price

48Gbps HDMI Splitter 8k 1x2 HDMI Extender Support Downscaler HDR10 EDID HDCP2.2

Get Best Price

70M 1x4 4K HDMI Splitter Extender With Audio Extract 1x4 Hdmi Splitter Over Cat6

Get Best Price

+8613332950287

sales@link-mi.com

86-755-83513509

Contact Now

Product Description

70M 1x4 HDMI Splitter Extender with Audio Extract Support 4K@60Hz Cascade EDID

Introduction

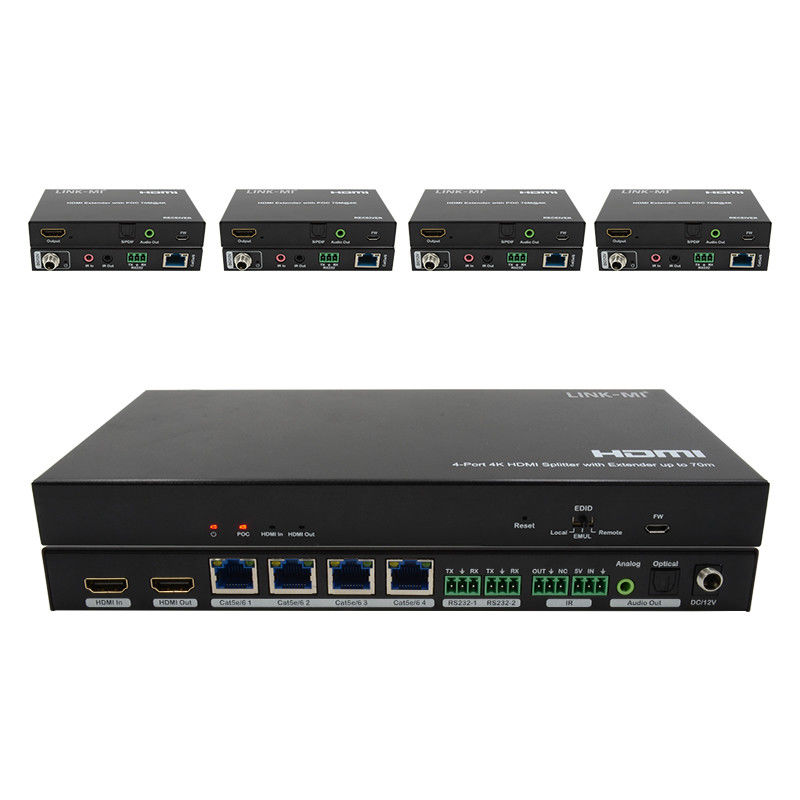

LINK-MI LM-SP31 4-Port HDMI2.0 Splitter Extender distributes 1 HDMI source to 4 RJ45 output with 1xlooping HDMI output. It supports transmission distance up to 70 to 90m. It works with 4 receivers. And it supports high resolution up to 4K@60Hz 4:4:4.

Feature

1. HDMI2.0 splitter, Bandwidth up to 18Gbps, HDR, Deep color support up to 12bit, HD 8CH digital audio format
2. Distributes 1 HDMI source to 4 RJ45 output with 1xlooping HDMI output
3. Transmission distance: 90m at 1080P@60Hz, 70m at 4K@60Hz 4:4:4
4. HDCP2.2/1.4 Compliant
5. Support optical toslink and 3.5mm PCM2.0 analog audio extraction
6. Support Dolby Vision, HDR10, HDR10+, HLG
7. Support LPCM up to 7.1/24-bit/96 kHz, DTS5.1, Dolby5.1
8. Support Bi-Directional wide band IR and RS232 pass through
9. Support auto downscaler 4K@60hz to 1080P at the RX end
10. Support EDID management
11. Support cascade to 8 layers
12. Support Micro USB updating

Specification

Model No.	LM-SP31
Operating Temperature Range	-5 to +40℃(+23 to +104℉)
Operating Humidity Range	5 to 90%RH (No Condensation)
Input Video format	720P / 1080P / 4K@60hz
Data transfer speed rate	18 Gbps(Maximum)
Input port	1xHDMI
Output ports	4xRJ45 output port, 1xHDMI loop out
Output Video Format Supported	DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P, 4K VESA resolution
Transmission Distance	90m at 1080P@60Hz, 70m at 4K@60Hz 4:4:4
Power consumption	20W(Maximum)
Dimension (L×W×H)	246.1x113.4x24mm
Net Weight	700g
Note: Specifications are subject to change without notice.

Connection Diagram
70M 1x4 4K HDMI Splitter Extender With Audio Extract 1x4 Hdmi Splitter Over Cat6 0

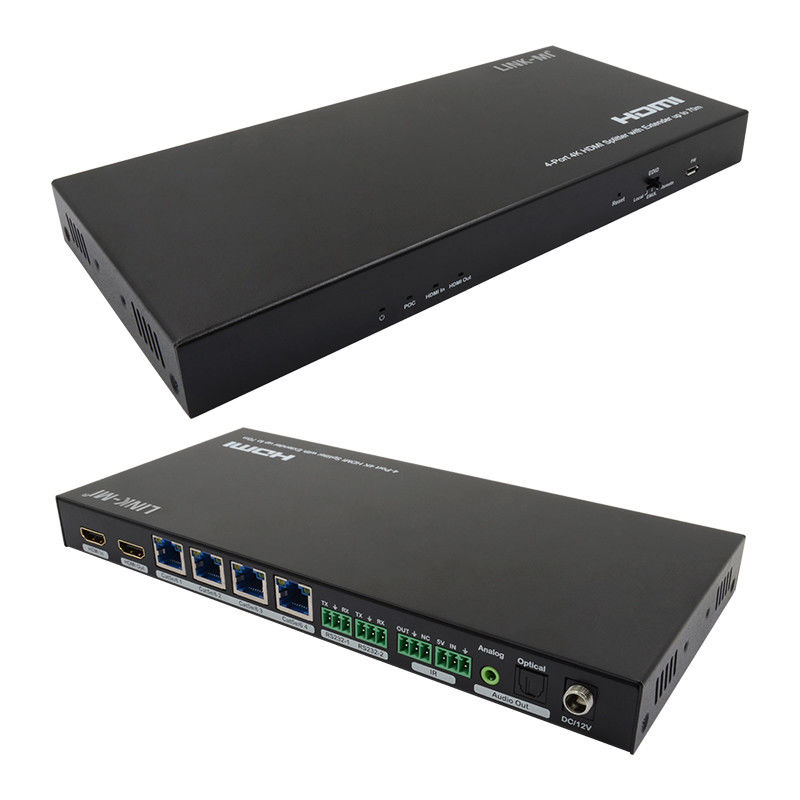

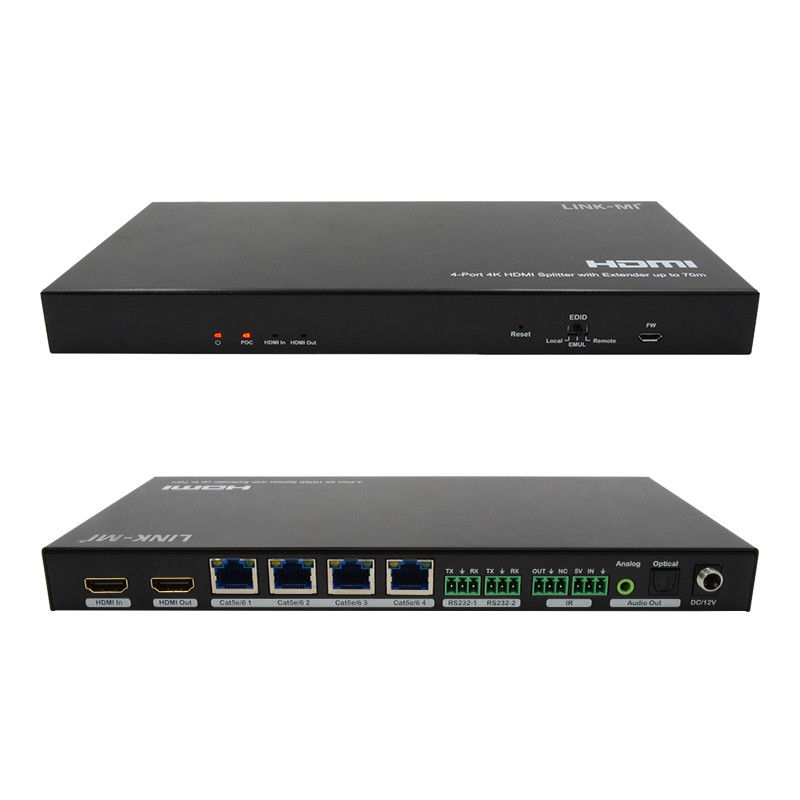

Panel Description

70M 1x4 4K HDMI Splitter Extender With Audio Extract 1x4 Hdmi Splitter Over Cat6 1

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-SP31 70M 1x4 HDMI Splitter Extender 4K@60HZ.pdf...
