8K 1x2 HDMI Splitter Support Downscaler HDR10 EDID HDCP2.2
Introduction
LINK-MI LM-SP33 is a new HDMI Splitter which supports 8K@60Hz. It can simultaneously displays 1 UItra Hi-Def source on up to 2 UItra HD displays.
Feature
1. Simultaneously displays an UItra Hi-Def source on up to two UItra HD displays.
2. Support resolutions up to UItra HD 8K(7680x4320@60Hz YUV 4:4:4 ).
3. Support three kinds of EDID handling abilities(Copy, Auto, Mixed EDID).
4. Support HDCP2.2/1.4 Compliant.
5. Support 10 bit Deep Color.
6. Support LPCM 7.1/ 24-bit/ 96 kHz, Dolby Atmos and Dolby/ DTS-7.1.
7. Support Dolby Vision, HDR10, HDR10+, HLG.
8. Support Bandwidth 48Gbps.
9. Support Downscaler function (HDMI output1)
Specification
| Model No. |
LM-SP33 |
|
Operating Temperature Range
|
-5 to +40℃(+23 to +104℉)
|
|
Operating Humidity Range
|
5 to 90%RH (No Condensation)
|
|
Bandwidth frequency
|
48Gbps
|
|
HDCP
|
HDCP2.2/1.4
|
|
Input ports
|
1xHDMI(female)
|
|
Output ports
|
2xHDMI outputs(female)
|
|
Resolution outputs
|
up to 8K(7680x4320@60Hz YUV 4:4:4)
|
|
Dimensions(LxWxH)
|
120.3x57.2x19mm
|
|
Power consumption
|
5W(MAX)
|
|
Audio format
|
LPCM 7.1/ 24-bit/ 96 kHz, Dolby Atmos and Dolby/
DTS-7.1
|
|
Net Weight
|
191.7g
|
| Note: Specifications are subject to change without notice. |
Connection Diagram

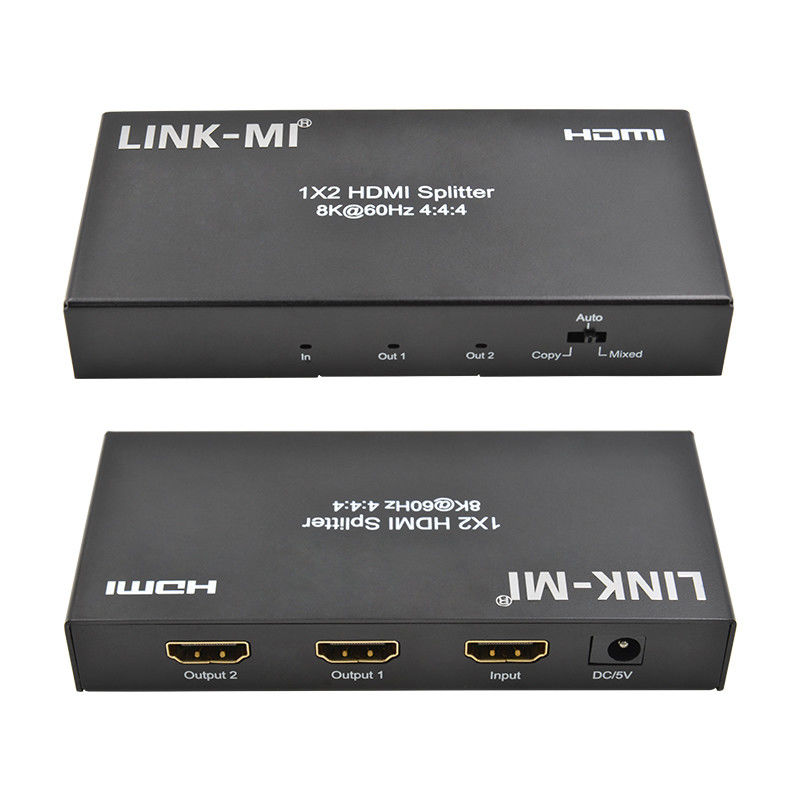

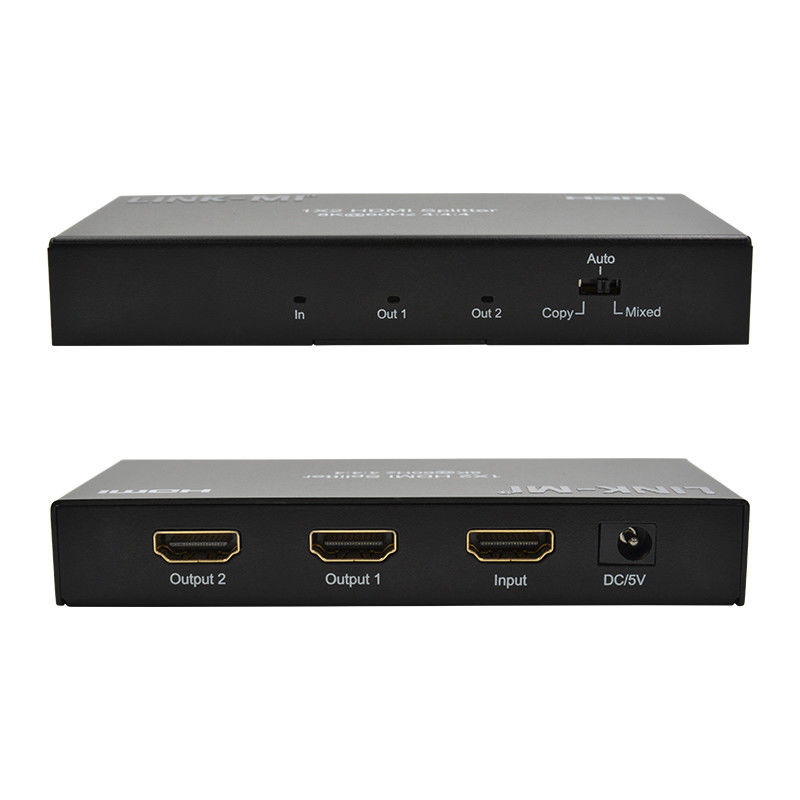

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SP33 8K 1x2 HDMI Splitter.pdf
