4x1 HDMI Multi-viewer with KVM Function Support 4K@60Hz Seamless Switch
Introduction
LINK-MI LM-SH41K-4K is a high-performance HD quad video multiplexer. The main function is to convert the 4 HDMI signals input to the HD video multiplexer into one HD HDMI signal output, so that 4 digital signals are displayed on a HD display unit at the same time. Through hot keys, It can use a set of keyboard and mouse control 4 signals to realize KVM function.
This product also realizes mouse through function. In 4 split mode, the mouse can be moved freely in four windows like one screen. In addition, it also has seamless switching function. Quickly switch between audio and video. It supports various display units with HD interface such as projector, LCD monitor, DLP, plasma, full-color LED.
This is a standard product with many applications in the market. The product is mainly used in video conferences, teaching, exhibitions, stocks and other places that need to use a single display unit to display multiple HD signals at the same time.
Feature

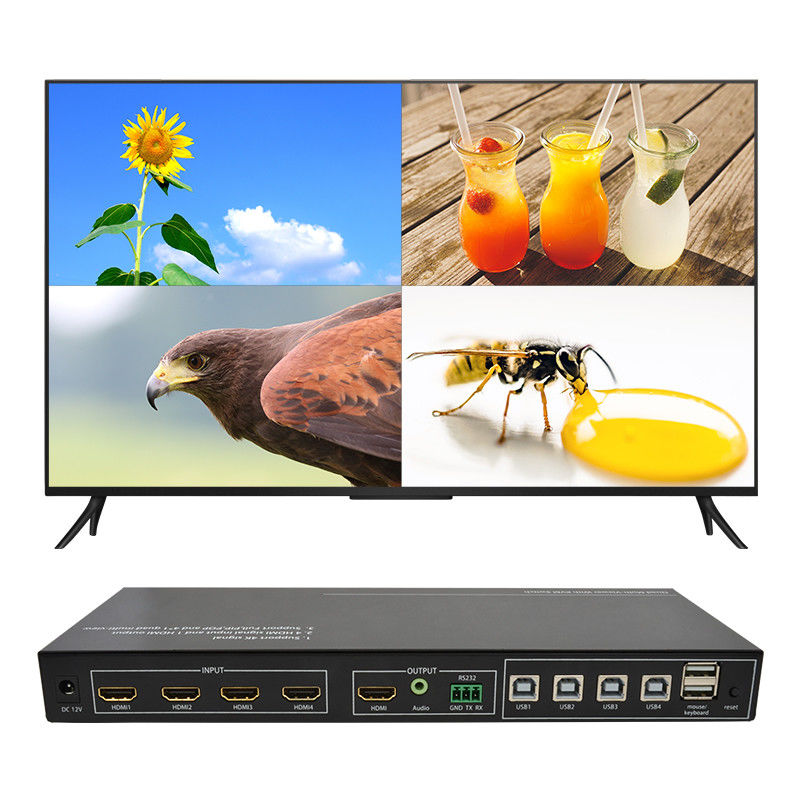

1. A single display unit supports four-split, left-right two-split, up-down two-split, full-screen display modes;
2. 4 HDMI signal input, HDMI signal embedded audio;
3. 1 HDMI output, HDMI signal embedded audio, support resolution up to 4K@60Hz YUV 4:4:4
4. One independent 3.5mm audio port output can be connected to the sound;
5. Audio follow screen switching function, or switch audio separately in split mode;
6. 2 USB signal outputs, USB supports connecting mouse and keyboard;
7. KVM switch function, switch screen display mode, audio switch, quad split mouse through function by keyboard hot key;
8. Support seamless switching of the second-cut function, all single-screen or different split modes switch without black screen;
9. Support chassis keys, infrared remote control, and keyboard hot key control functions.
Specification
| Model No. |
LM-SH41K-4K |
|
Input Signal
|
|
Input Ports
|
4x HDMI
4x USB
|
|
Resolution
|
HDMI support highest resolution of 4K@60Hz
and downward compatibility
|
|
Color Depth
|
24bit, 1677 ten thousand
|
| Output Signal |
|
Output Ports
|
1 HDMI connect display device and support video, audio sync output;
2 USB 2.0,one connect mouse the other connect keyboard;
One 3.5 mm audio right and left stereo
|
|
Resolution
|
4K@60Hz
|
|
Color depth
|
24bit, 1677 ten thousand
|
|
Other
|
|
Control Methods
|
Chassis keys, Remote Control, Keyboard Hot Keys
|
|
Voltage
|
DC 12V
|
|
Power
|
No more than 15w
|
|
Chassis Specification
|
|
Dimension (mm)
|
288x30x119 mm (LxHxW)
|
|
Weight (kg)
|
0.75 kg
|
|
Note: Specifications are subject to change without notice.
|
Connection Diagram

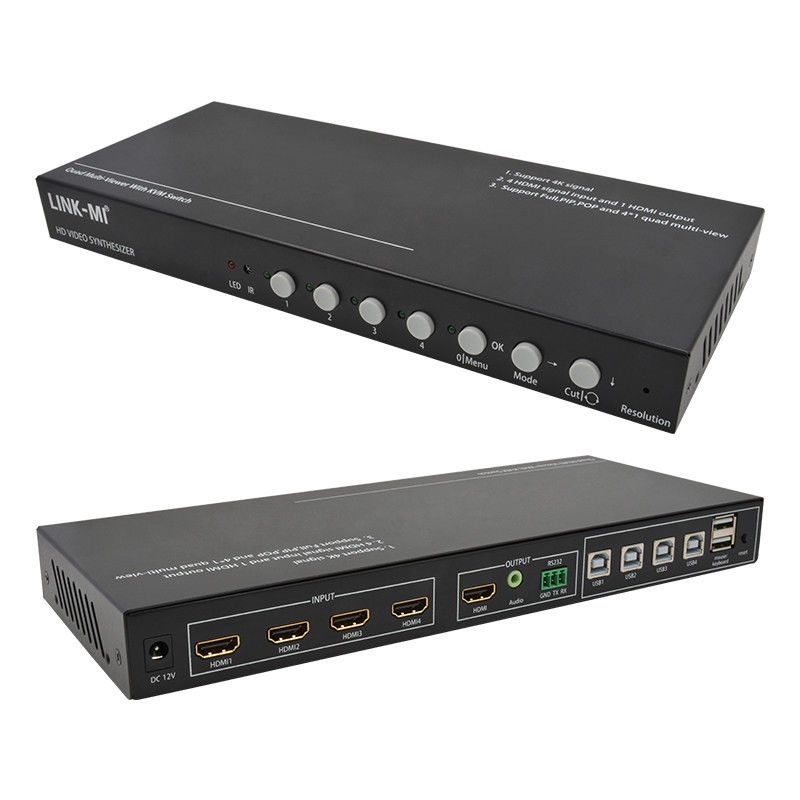

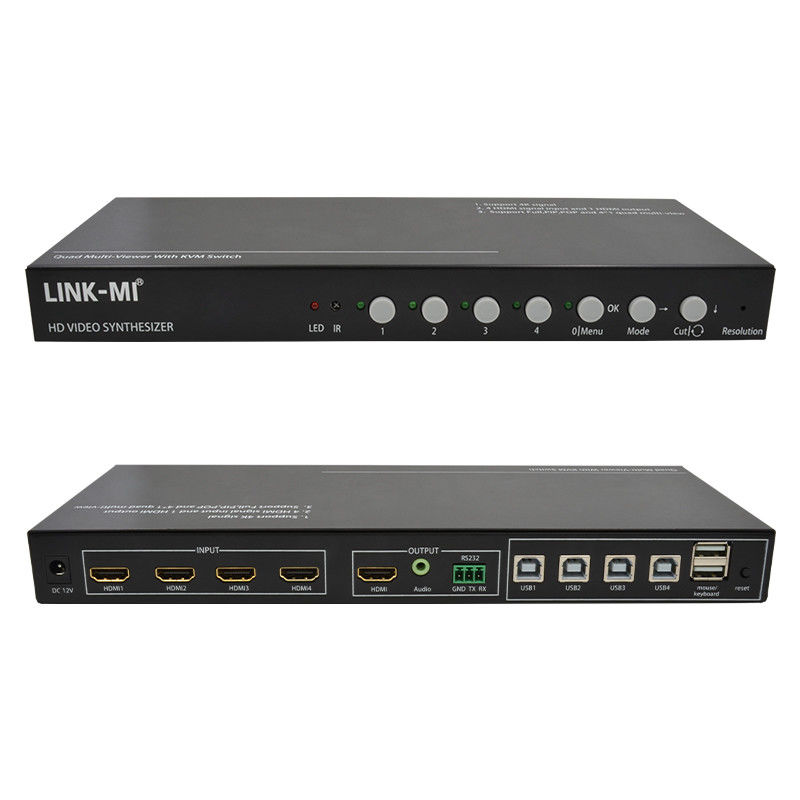

Panel Description
