4x1 HD Video Multi-viewer/Synthesizer HDMI/VGA/CVBS/USB Inputs 4 in 1 out HDMI Switch
Introduction

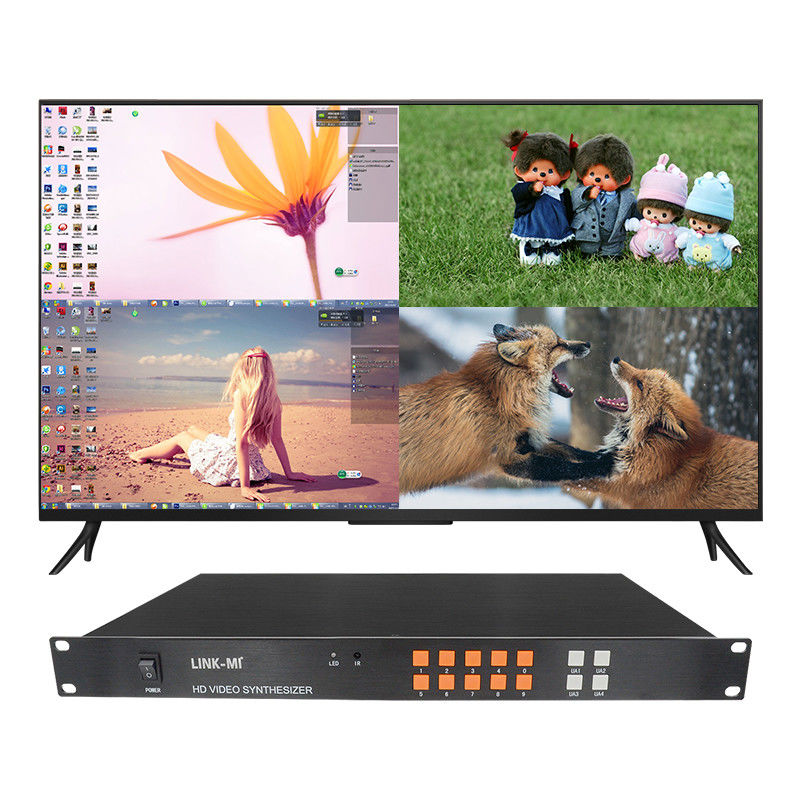

LINK-MI LM-SH41 4x1 HD Video Multi-viewer/Synthesizer is a high performance video processor. It can show 4 signal on 1 screen/monitor. It supports 4 HDMI/4 VGA/4 CVBS / 4 USB total 16 input signal; 1 HDMI and 1 VGA output, and 2 USB (for keyboard and mouse). Any 4 of the 16 input signal can be switched to display on 1 HDMI screen and 1 VGA screen simultaneously (Each screen shows max 4 signal or 1 signal Full Screen Display).
It comes with many function like switching, fenestration, superposition, roaming...etc. All signal can be zoom in or zoom out freely at any position through mouse easily. And it can save user modes (user preset) and supports fast mode by using remote control. It can be controlled via panel buttons, remote, RS232.
This is a classic product in market applications. It is mainly used in video conference, teaching, exhibition display which require a single monitor to show multiple contents.
Features
1. Input signal support 4xHDMI, 4xVGA, 4xCVBS, 4xUSB
2. Output signal support 1xHDMI, 1xVGA, 2xUSB
3. Support multiple display modes
4. Pure hardware architecture
5. Faroudja image processing technology
6. High precision sampling of the analog input signal
7. Strong data processing ability
8. Control function: remote, front buttons, RS232
9. Support a variety of formats and input and output ultra-high resolution, up to 1920x1080@60Hz
10. Video with USB input and output
Specification
| Model No. |
LINK-MI LM-SH41 |
| Input Ports |
4x HDMI, 4x VGA, 4x CVBS 4x USB |
| Output Ports |
1x HDMI, 1x VGA |
| Control Ports |
1x RS232 |
| HDMI |
HDMI 1.0, HDCP 1.3, DVI 1.0 |
| CVBS |
NTSC, PAL or SECAM |
| Input Resolution |
Support 480I~1080P, HDMI and VGA signal support 640x480 to 1920x1080 |
| Output Resolution |
Max 1920x1080@60Hz |
| Color Depth |
24bit, 16.7M |
| Control Ways |
Panel buttons, Remote, RS232 |
| Display Modes |
4x1, 3x1, 2x1 Multi-viewer Modes or 1 signal Full Screen Display;PIP, POP, window, overlay, roam, images of any size and location |
| Signal identification |
Auto identify |
| Image Adjustment |
Zoom, Move, Adjustment of brightness, contrast, transparency, color temperature... |
| Power Supply |
AC 100-240V |
| Power Consumption |
≤15W |
| Dimension |
442mm(L)x45mm(H)x242mm(D) |
| Weight |
kg |
| Note: Specifications are subject to change without notice |
Connection Diagram

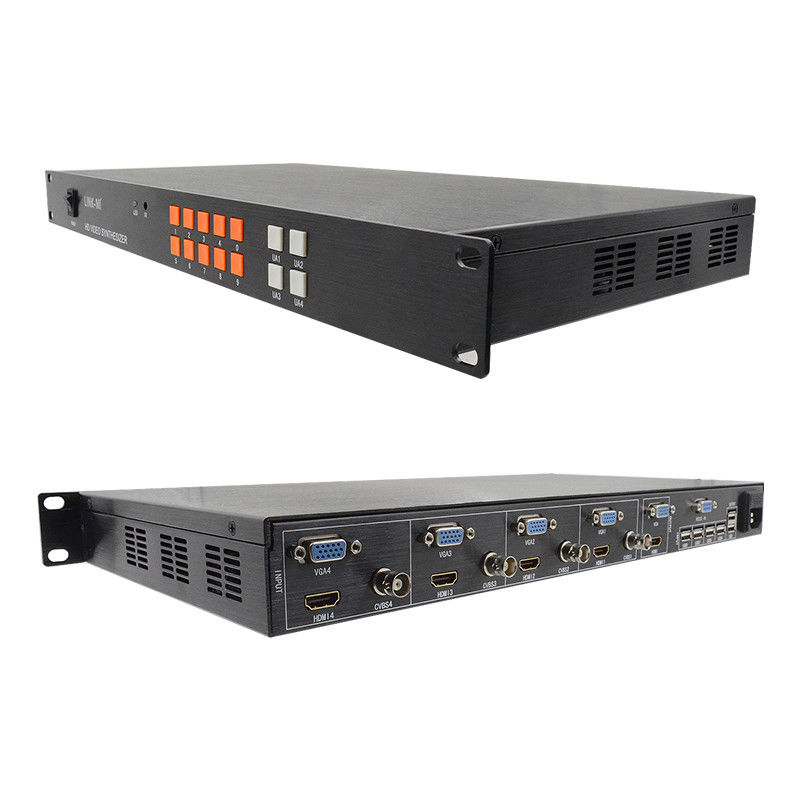

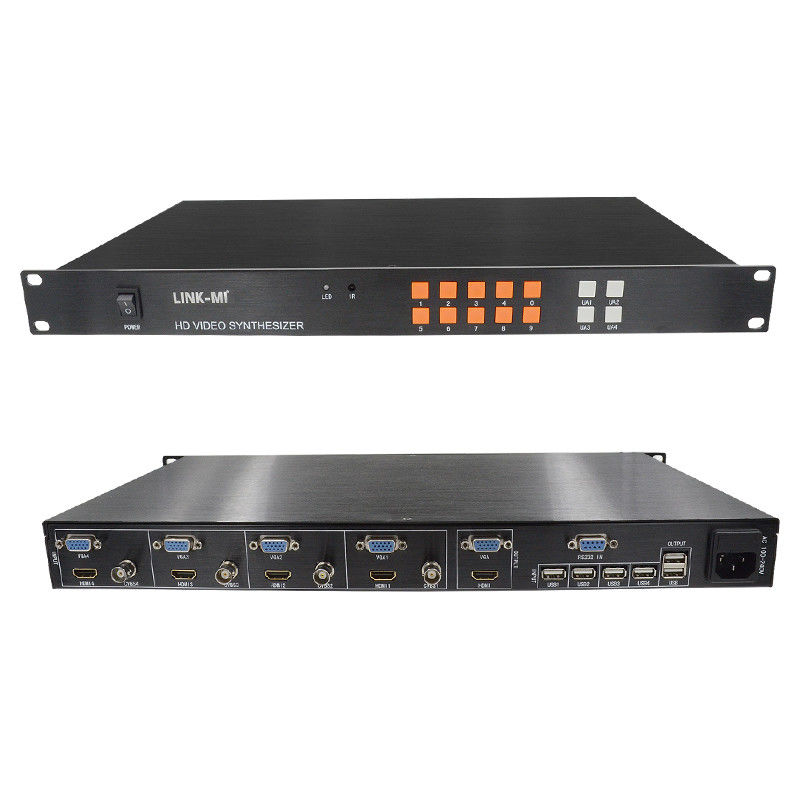

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SH41 4x1 HD Quad Video Multiplexer Multiviewer....
