16X1 HDMI Multi Viewer 16 in 1 out Video Switcher AV Seamless Switching Processor
Introduction

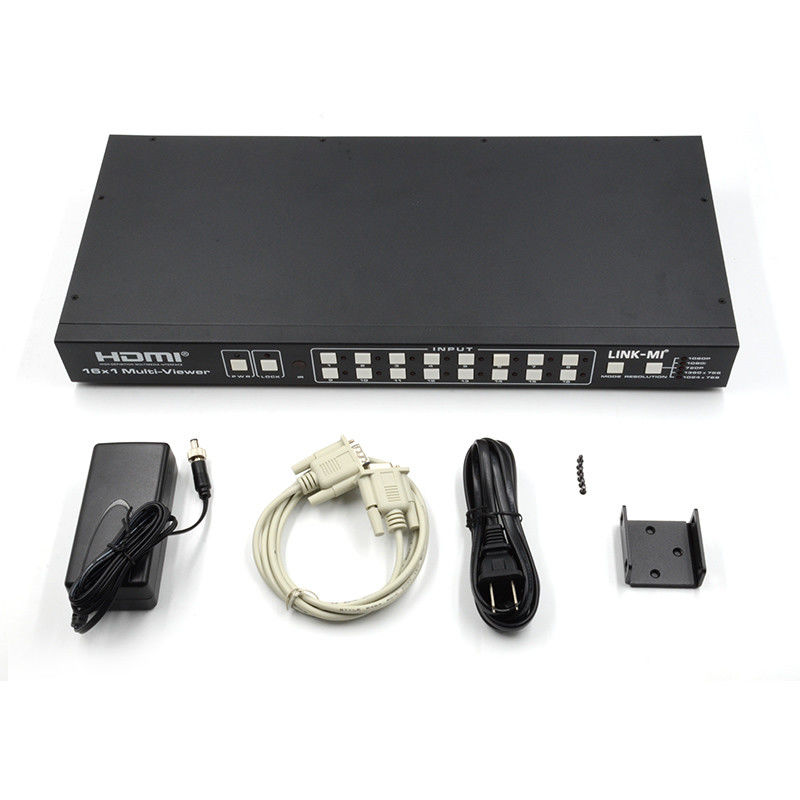

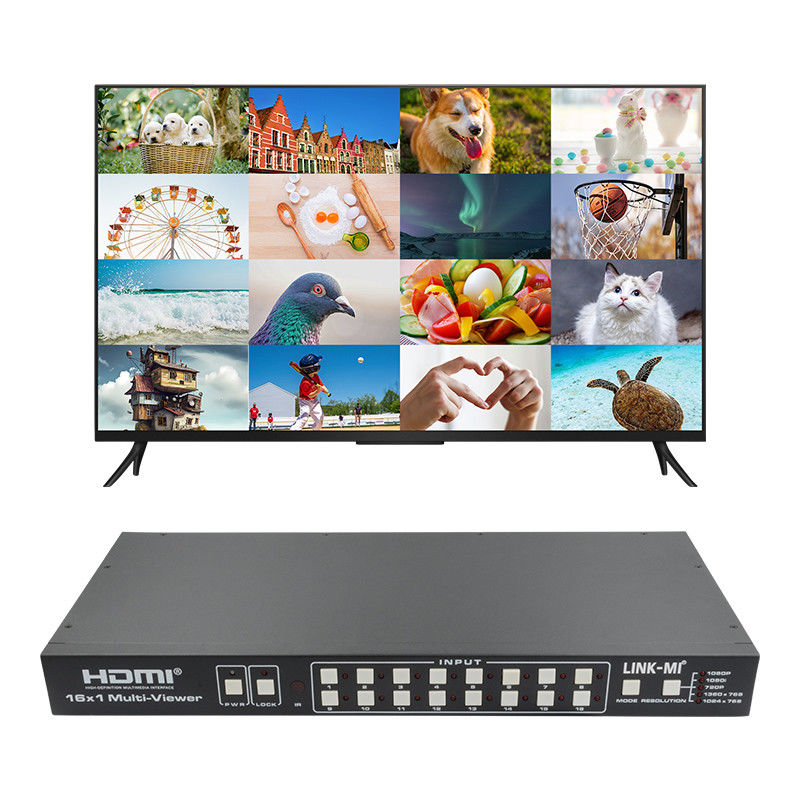

LINK-MI LM-S161 is a high performance 16x1 Multi-Viewer with seamless switcher. It supports 16 High definition input source display on one screen. As a switcher, it can also seamlessly switch the 16 HD inputs freely. The product can be controlled by various ways, through the front panel button control and RS-232 control etc.
Features
1. Compliant with HDMI 1.3a,HDCP 1.2；
2. Supports multiplexed HDMI 16-input and 1-output；
3. Supports up to 1080p High Definition resolution；
4. Support 16 by 1 Quad Multi-viewer and seamless switch；
5. Support scale up, scale down function；
6. Support multiple output resolution；
7. Support digital audio format LPCM/AC3/DTS
8. Support button and RS-232 control；
Specification
|
Technical
|
|
Video Bandwidth
|
2.25Gbps
|
|
Input Ports
|
16 × HDMI (Female type),1x RS232
|
|
Output Ports
|
1 × HDMI (Female type),
|
|
Audio output
|
PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1
|
|
Input Resolution
|
480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz,
1080i50/60Hz,1080p 24/30/50/60Hz,800x600@60,
1024x768@60,1280x720@60,1920x1080@60;
|
|
Output Resolution
|
1080p,1080i,720p,1024x768,1360x768
|
|
ESD Protection
|
±8kV (Air-gap discharge), ±4kV (Contact discharge)
|
|
Power Supply
|
12V/5A DC (US/EU standards, CE/FCC/UL certified)
|
|
Dimensions
|
440mm(W)×200mm(D)×45 mm(H)
|
|
Weight
|
1800g
|
|
Chassis Material
|
Metal
|
|
Silkscreen Color
|
Black
|
|
Operating Temperature
|
0°C ~ 40°C / 32°F ~ 104°F
|
|
Storage Temperature
|
-20°C ~ 60°C / -4°F ~ 140°F
|
|
Relative Humidity
|
20~90% RH (non-condensing)
|
|
Power Consumption
|
24W
|
| Note: Specifications are subject to change without notice |
Connection Diagram

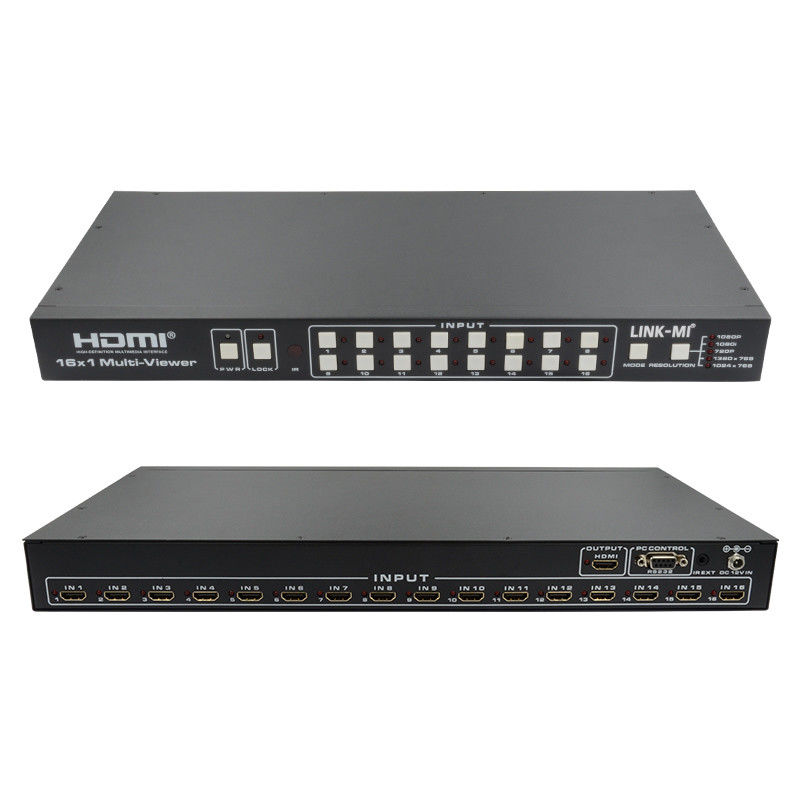

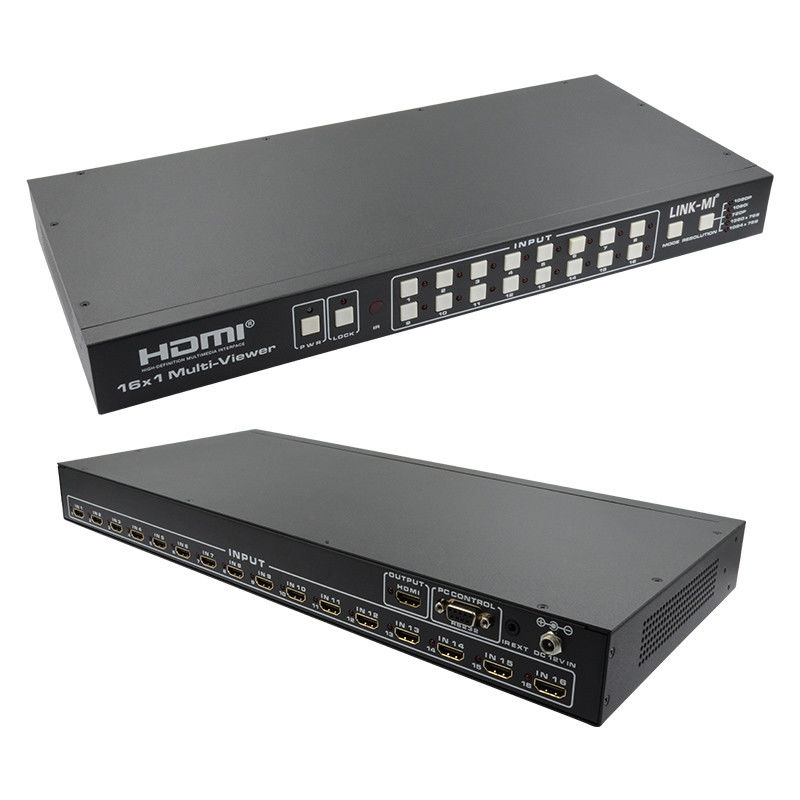

Panel Description
