2X1 HDMI Multi Viewer Any Picture Zoom In/Out 1080P 2X1 Video Switch Support PIP POP
Introduction
LM-SH21 is a high-performance HD video multiplexer, the main function is to enter 2 BNC/VGA/HDMI signals into one HDMI/VGA output and make 2 signals at the same time display on a single HD displaying unit. HD video multiplexers support projectors, LCD, DLP, plasma, full-color LED displaying unit etc with high-definition interface.
Features
1. With 2x HDMI in, 2x VGA in , 2x CVBS in;
1x HDMI out, 1x VGA out.
2. Pure hardware architecture.
3. Faroudja image processing technology.
4. High precision sampling of the analog input signal.
5. Strong data processing ability.
6. Control function: remote, front buttons, RS232.
7. Support a variety of formats and input and output ultra-high resolution, up to 1920x1080@60Hz.
Specification
| Model No. |
LM-SH21 |
| Input Signal |
|
2x HDMI
|
HDCP 1.3/ DVI 1.0, support max. 640*480 to 1920*1080@60Hz as specified in HDMI 1.0 |
| 2x VGA |
Support max. 640*480 to 1920*1080 |
| 2x CVBS |
NTSC, PAN or SECAM standard, auto identification |
| Output Signal |
| Output Port |
HDMI and VGA output synchronously |
| Resolution |
Support 1024*768, 1280*720, 1280*1024, 1920*1080@60Hz |
| Others |
| Control Methods |
IR remote, panel button, RS232, software control(Quarsystem) |
| Display Modes |

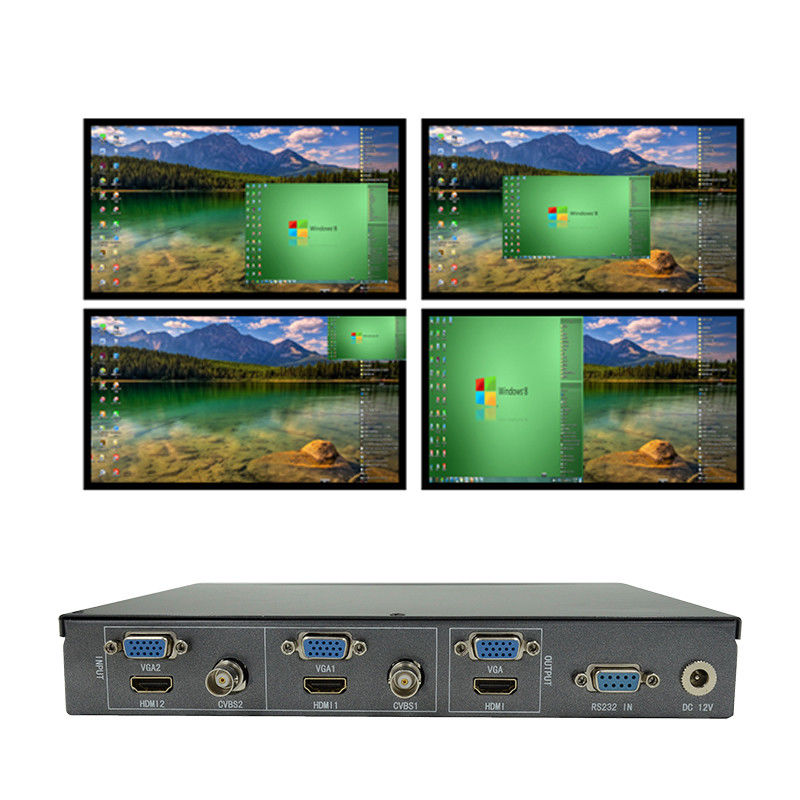

Any pictures zoom in/out anywhere and any size |
| Power Supply |
DC 12V |
| Note: Specifications are subject to change without notice |
Connection Diagram

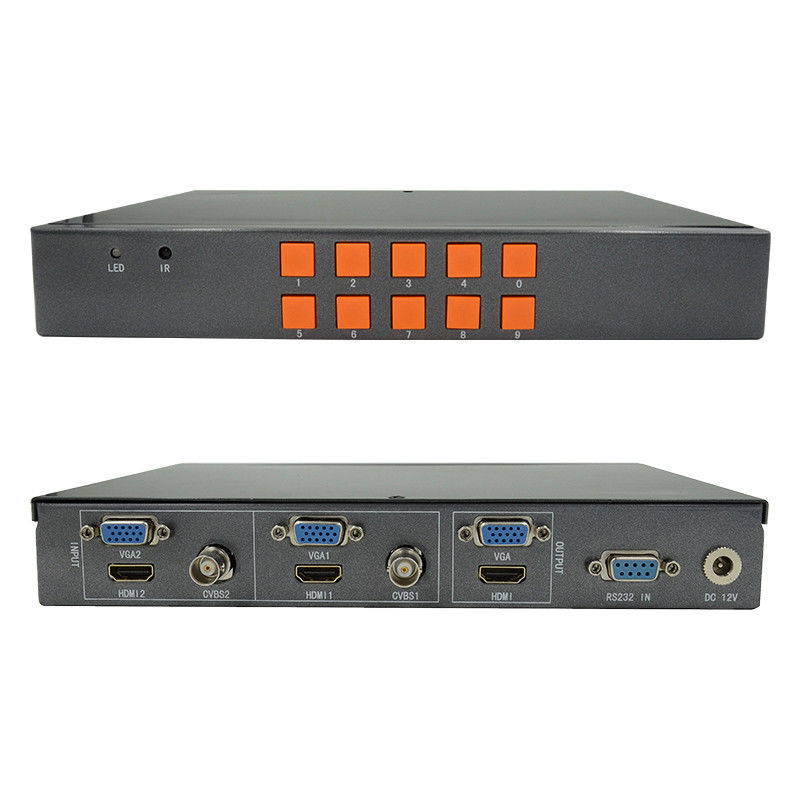

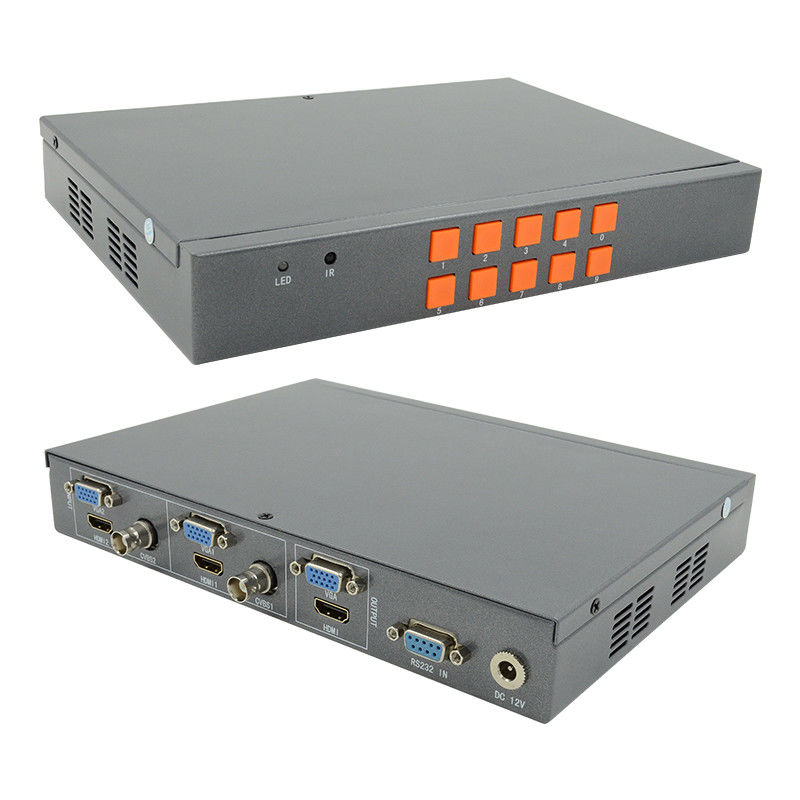

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SH21 2x1 HD Multiviewer Synthesizer.pdf
