9X1 HDMI Multi Viewer Support Multiple Display Modes PIP POP Window 9 in 1 out Video Switch
Introduction
LINK-MI LM-LM-SH91 is a high-performance HD video multiplexer, the main function is to enter 9 BNC/VGA/HDMI signals into one HDMI/VGA output and make 9 signals at the same time display on a single HD displaying unit. HD video multiplexers support projectors, LCD, DLP, plasma, full-color LED displaying unit etc with high-definition interface.
Features
1. Input signal support 9xHDMI, 9xVGA, 9xCVBS, 9xUSB
2. Output signal support 1xHDMI, 1xVGA
3. Support multiple display modes
4. Pure hardware architecture
5. Faroudja image processing technology
6. High precision sampling of the analog input signal
7. Strong data processing ability
8. Control function: remote, front buttons, RS232
9. Support a variety of formats and input and output ultra-high resolution, up to 1920x1080@60Hz
Specification
| Model No. |
LINK-MI LM-SH91 |
| Input Ports |
9x HDMI, 9x VGA, 9x CVBS x USB |
| Output Ports |
1x HDMI, 1x VGA |
| Control Ports |
1x RS232 |
| HDMI |
HDMI 1.0, HDCP 1.3, DVI 1.0 |
| CVBS |
NTSC, PAL or SECAM |
| Input Resolution |
Support 480I~1080P, HDMI and VGA signal support 640x480 to 1920x1080 |
| Output Resolution |
Max 1920x1080@60Hz |
| Color Depth |
24bit, 16.7M |
| Control Ways |
Panel buttons, Remote, RS232 |

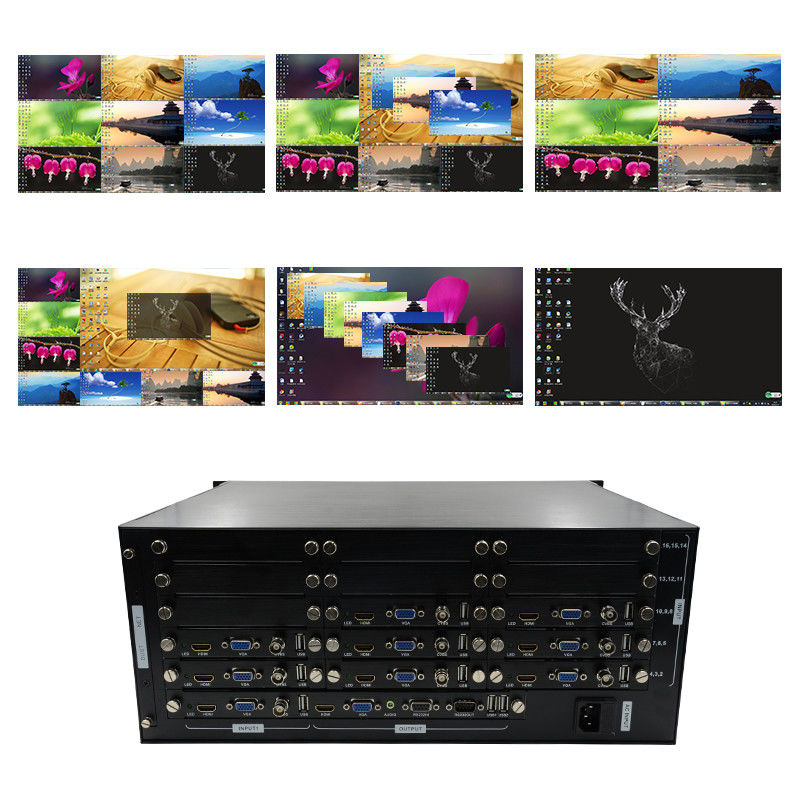

| Display Modes |
9x1, 8x1, 7x1, 6x1, 5x1 4x1, 3x1, 2x1 Multi-viewer Modes or 1 signal Full Screen Display; PIP, POP, window, overlay, roam, images of any size and location Multi-viewer Modes or 1 signal Full Screen Display |
| Signal identification |
Auto identify |
| Image Adjustment |
Zoom, Move, Adjustment of brightness, contrast, transparency, color temperature... |
| Power Supply |
AC 100-240V |
| Power Consumption |
≤15W |
| Dimension |
440mm(L)x177mm(H)x403mm(W) |
| Weight |
8.2kg |
| Note: Specifications are subject to change without notice |
Connection Diagram

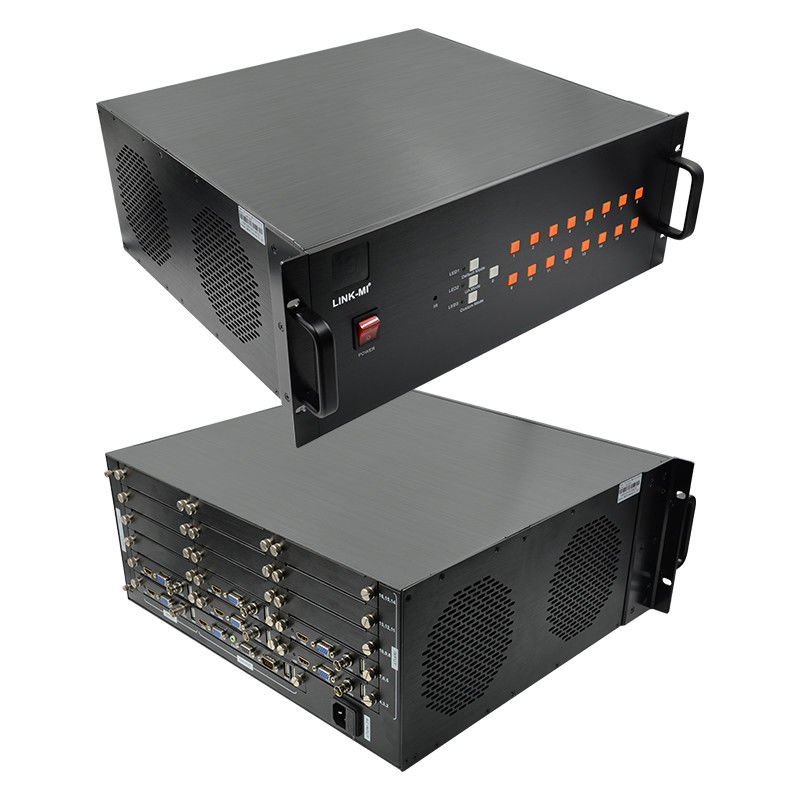

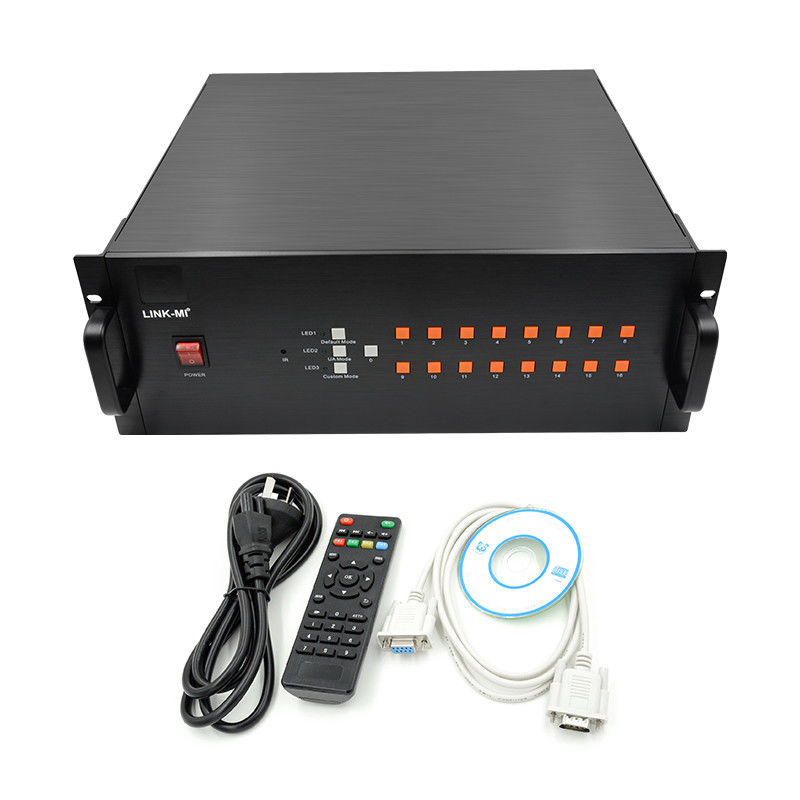

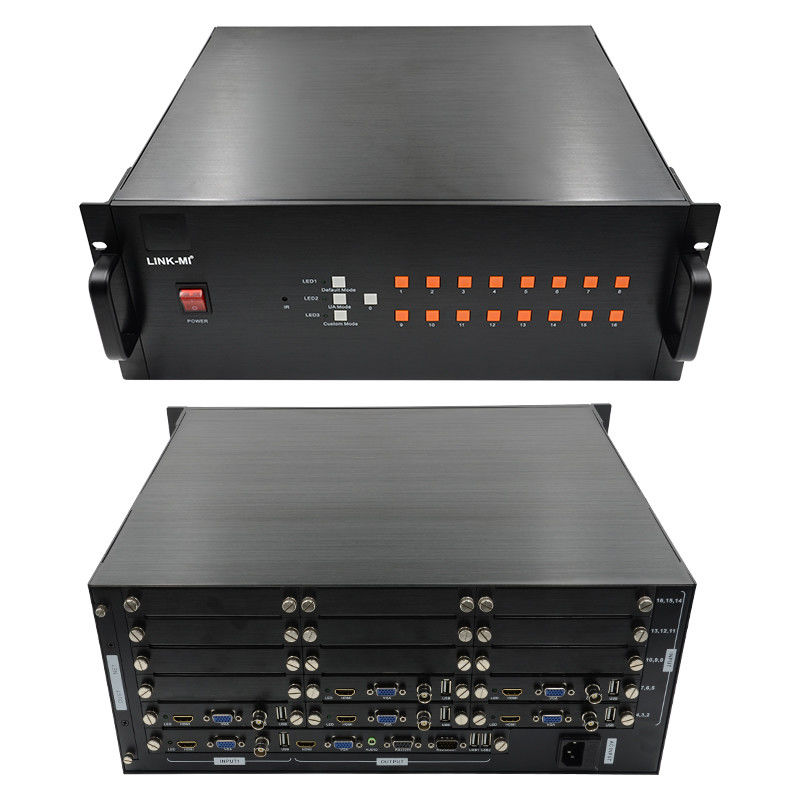

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SH91 9X1 HDMI Multi Viewer.pdf
