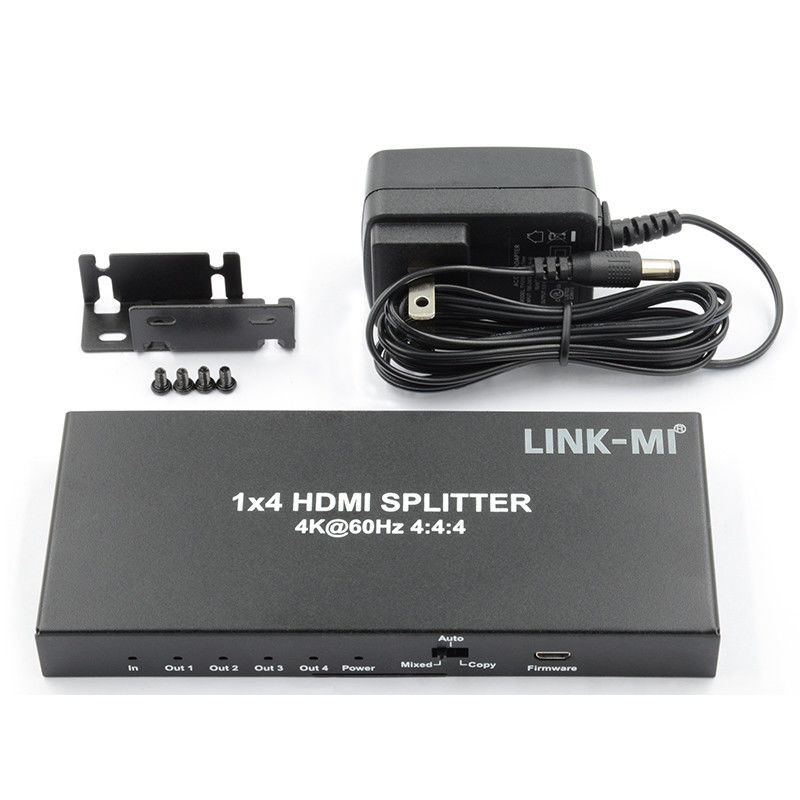

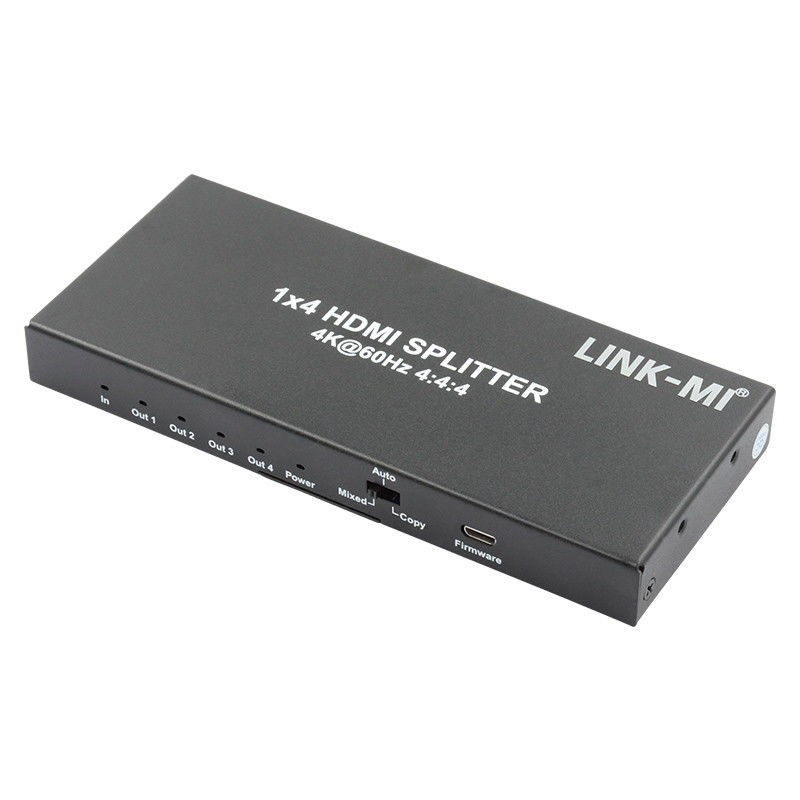

HDMI 2.0 1x4 HDMI Splitter Support HDCP2.2 4K60Hz 3D 18G HDR 1 in 4 out AV Splitter
Introduction
LINK-MI LM-SP06S 1X4 HDMI 2.0 Splitter can simultaneously displays an Ultra Hi-Def source on up to four Ultra HD displays. It supports resolution up to Ultra HD 4Kx2K (3840x2160@60Hz YUV 4:4:4), HDR, 3D and HDCP2.2.
Features
1. Simultaneously displays an Ultra Hi-Def source on up to four Ultra HD displays.
2. Support resolutions up to Ultra HD 4Kx2K(3840x2160@60Hz YUV 4:4:4 ).
3. Support four kinds of EDID handling abilities.
4. Support HDCP2.2/1.4 Compliant.
5. Support 36 bit Deep Color.
6. Support LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio.
7. Support 3D.
8. Bandwidth 18G.
9. Support HDR.
10. Support online firmware upgrade via Micro USB Port.
Specification
| Model No. |
LM-SP06S |
| Functions |
1x4 Splitter Function |
| Bandwidth frequency |
18Gbps |
| HDCP |
HDCP2.2 |
| Input ports |
1x HDMI input (female) |
| Output ports |
4x HDMI outputs (female) |
| Resolution outputs |
up to 4Kx2K(3840x2160@60Hz YUV 4:4:4) |
| Transmission Distance |
15m(Maximum)over standard HDMI cable/26AWG |
| Net Weight |
245g |
| Dimensions(LxWxH) |
150x64.2x17mm |
| Power consumption |
2W(MAX) |
| Operating Temperature Range |
-5 to +40℃(+23 to +104℉) |
| Operating Humidity Range |
5 to 90%RH (No Condensation) |
| Note: Specifications are subject to change without notice |
Connection Diagram

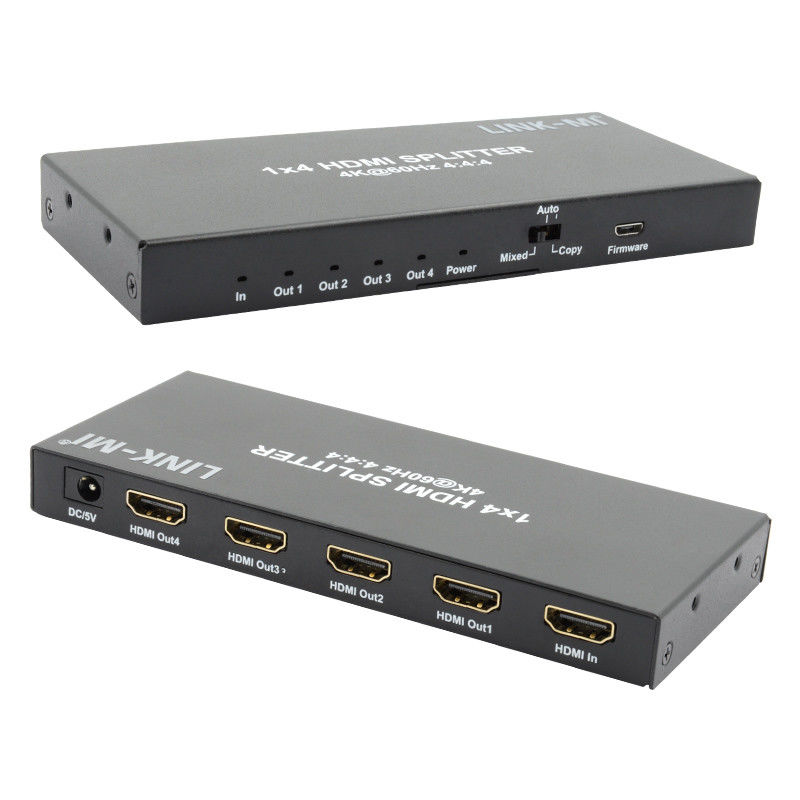

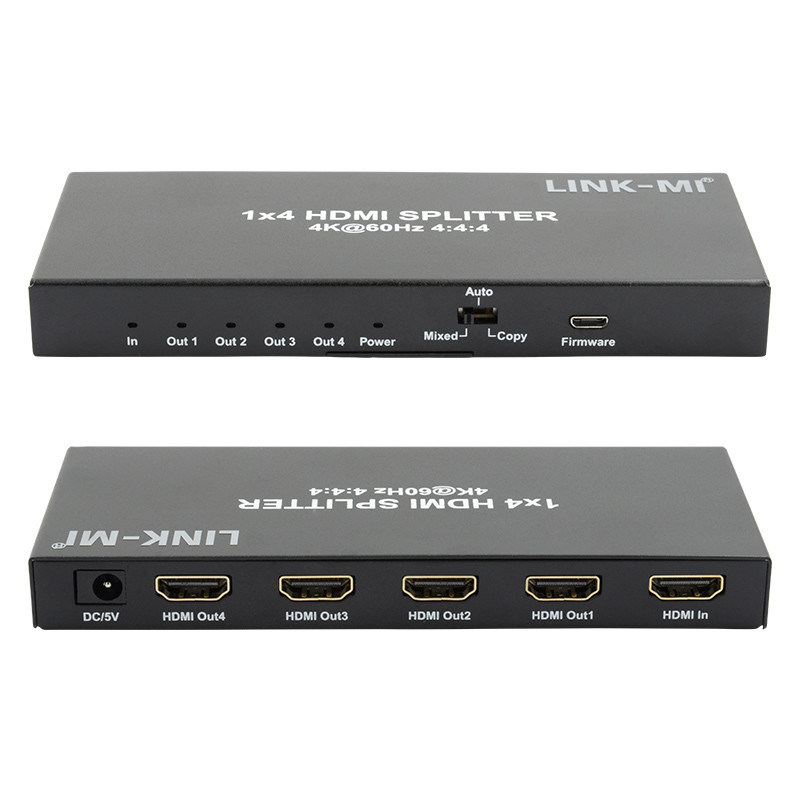

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SP06S 1x4 HDMI Splitter 4K@60Hz YUV 444 HDCP2.2...
