1X2 HDMI Splitter/2x1 Switch 4K@60hz YUV4:4:4 18Gbps Support HDCP2.2 HDR10
Introduction
LINK-MI LM-SW11 comes with 2 HDMI in and 2 HDMI out, it can be used as 1 x 2 HDMI splitter or 2 x 1 HDMI switch. It supports 4K@60Hz as specified in HDMI 2.0, HDCP2.2/1.4 and EDID.
Features
1. HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
2. Bandwidth upto 18Gbps
3. HDCP2.2/ HDCP1.4
4. Support HDR10,Dolby vision
5. Support 2xHDMI in, 2xHDMI out
6. Support EDID copy
7. Micro USB interface for user to upgrade firmware
8. Low power consumption(2W max), 5V input
Specification
|
Operating Temperature Range
|
0℃ to +40℃(+32℉ to +104℉)
|
|
Operating Humidity Range
|
5 to 90%RH (No Condensation)
|
|
Power supply
|
5V
|
|
Maximum power
(work under 4K2K/60hz)
|
358mA
|
|
Max resolution
|
4k@60hz YUV4:4:4
|
|
Function
|
HDR10 and Dolby vision
|
|
HDMI version
|
HDMI 2.0
|
|
HDCP version
|
HDCP2.2 / HDCP1.4(Auto choose depend on TV version)
|
|
Control ways
|
Switch button and EDID
|
|
Distance
|
1080P: input 8m max; output 15m max
4k@30hz: input 8m max;output 15m max
4k@60hz-8bit: input 5m max;output 5m max
|
|
Dimensions(LxWxH)
|
71.7x52x12mm
|
| Note: Specifications are subject to change without notice |
Connection Diagram

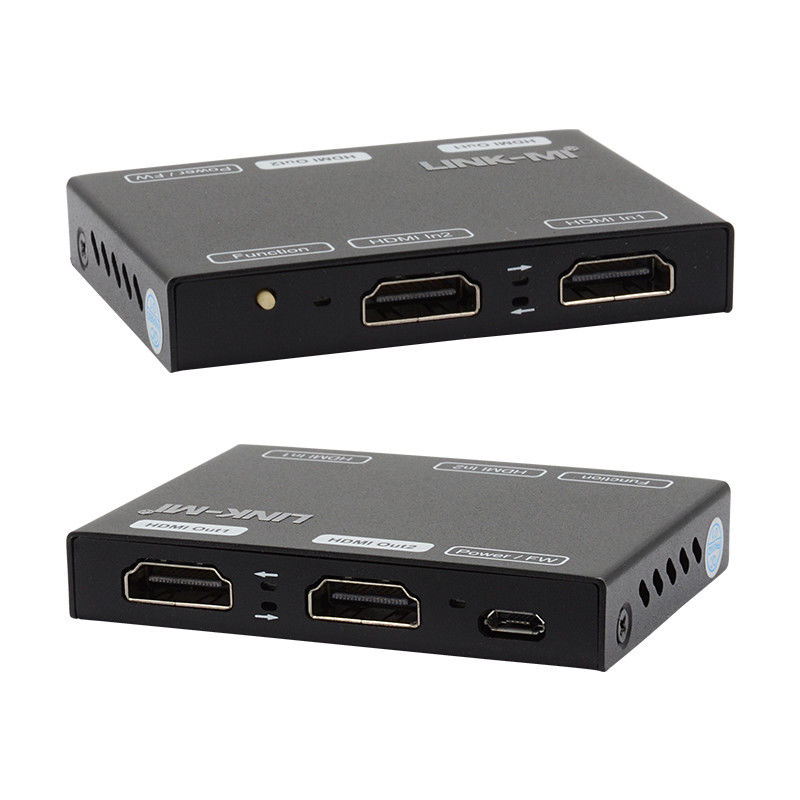

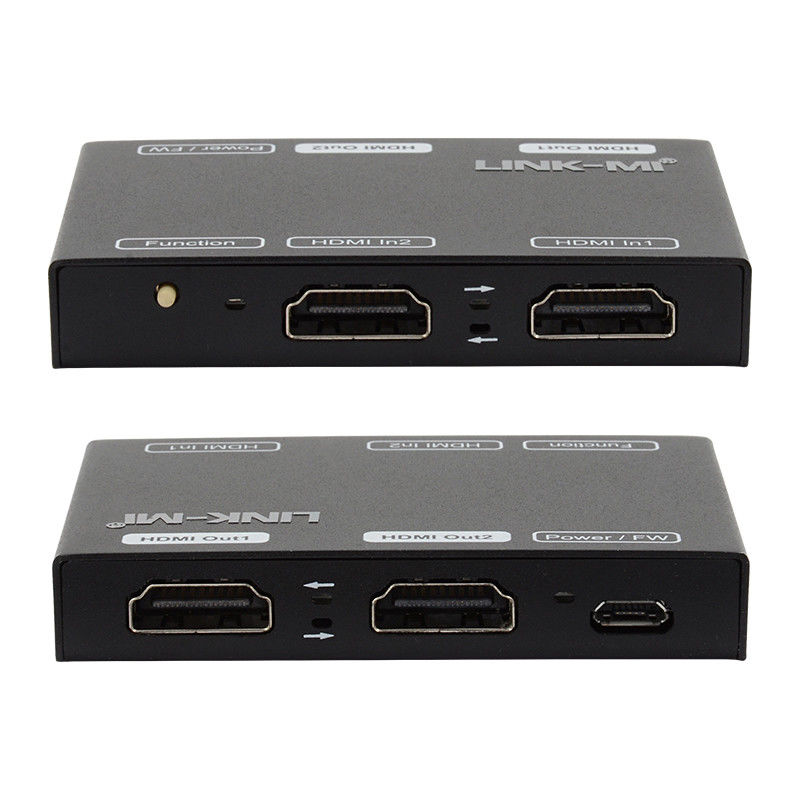

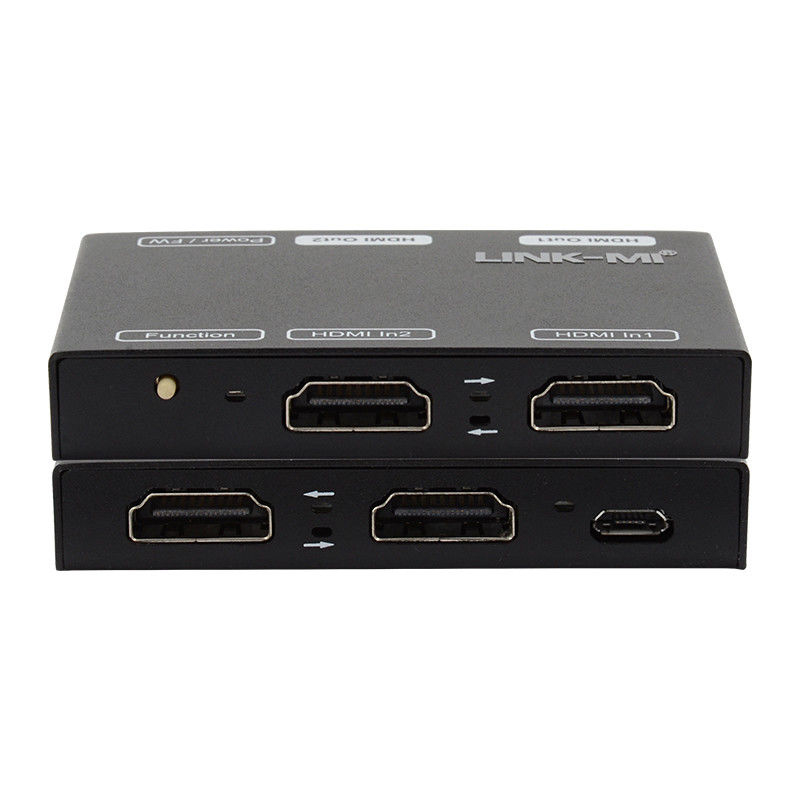

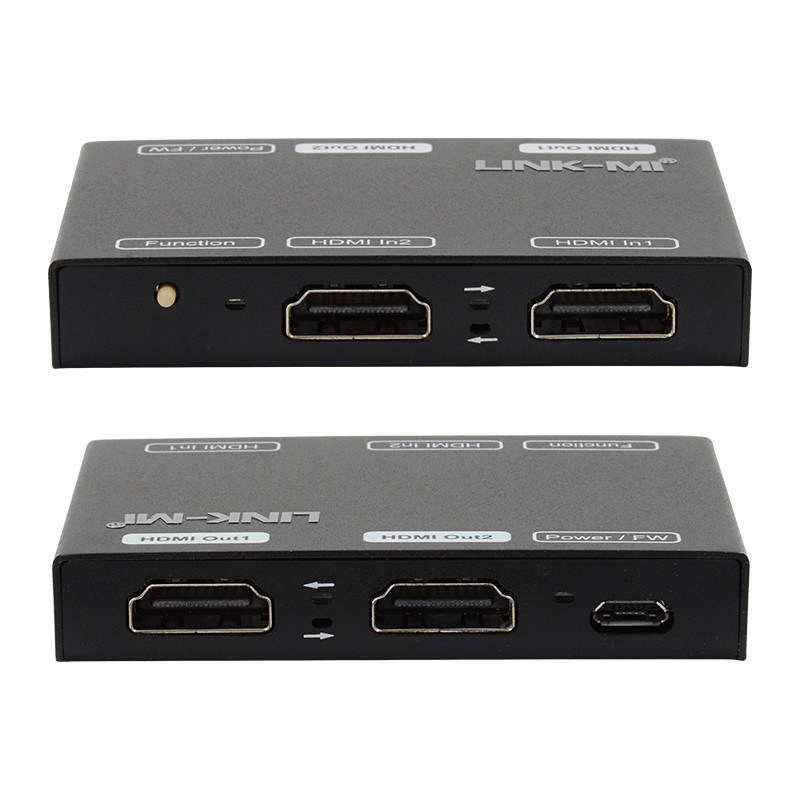

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SW11 HDMI 2x1 Switch 1x2 Splitter.pdf
