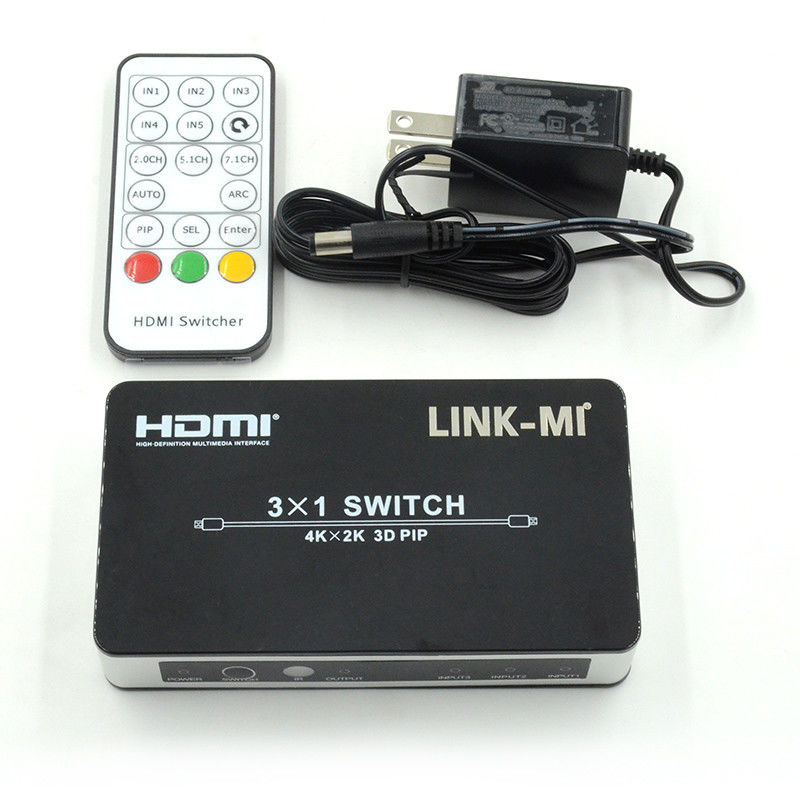

HDMI Switch 3x1 4K2K Support PIP 3D 3 to 1 Video Switch
Introduction
LINK-MI LM-SW03-4K2K HDMI Switch comes with 3 HDMI in, 1 HDMI out. It's used to switch any one of the three signal to one display.
Features
1. 3 HDMI input signal switch to 1 HDMI sink device.
2. HDCP 1.4 protocol compliant.
3. 3D HDMI 1.4a video format support.
4. Support PIP (Picture in picture), contain 1 main picture and 3 sub-pictures.
5. 3D video support including Frame packing for all 3D formats up to a 297MHz TMDS clock.
6. Support display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz
7. Support deep color 30bit, 36bit, 48bit per pixel.
8. Digital audio format, as DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD.
Specification
| Frequency Bandwidth |
2.97Gbps |
| HDMI Switch Input Ports |
3×HDMI Female input port |
| HDMI Switch Output Ports |
1×HDMI Female output ports |
| Power Supply |
DC 5V 1A |
| ESD Protection |
Human Body Model:± 8kV (air-gap discharge)
± 4kV (contact discharge)
|
| Dimensions (L×W×H) |
65×118×25mm |
| Weight |
120g |
| Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity |
20 ~ 90% RH (Non-condensing) |
| Power Consumption |
1W |
| Note: Specifications are subject to change without notice |
Connection Diagram

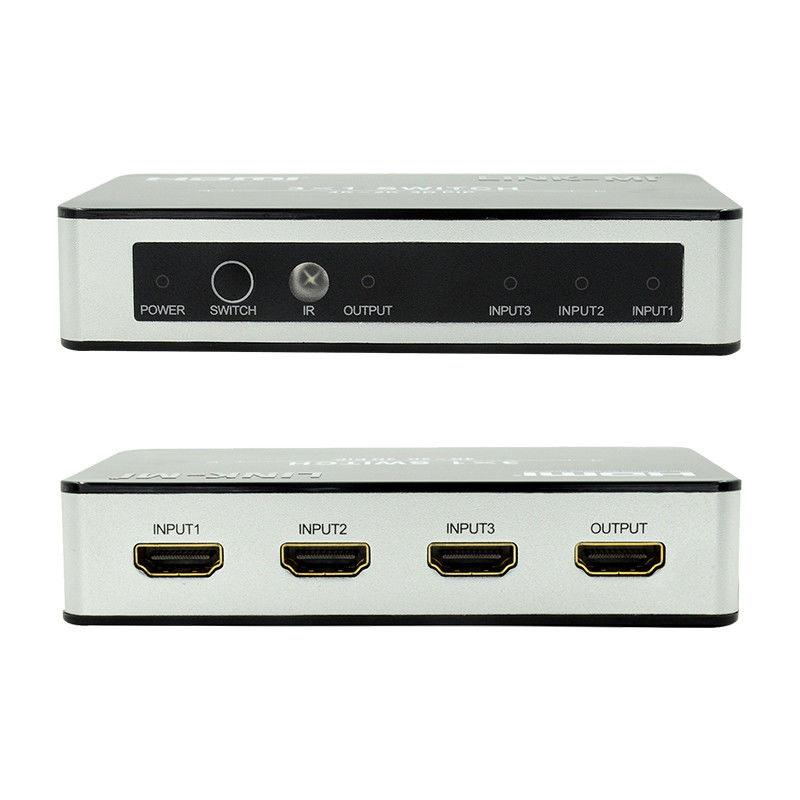

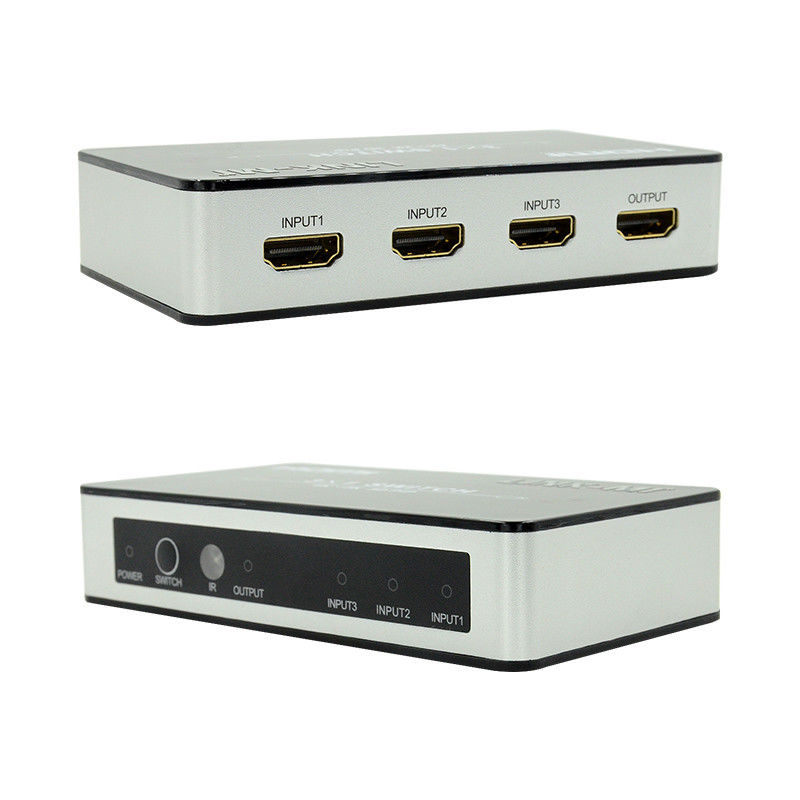

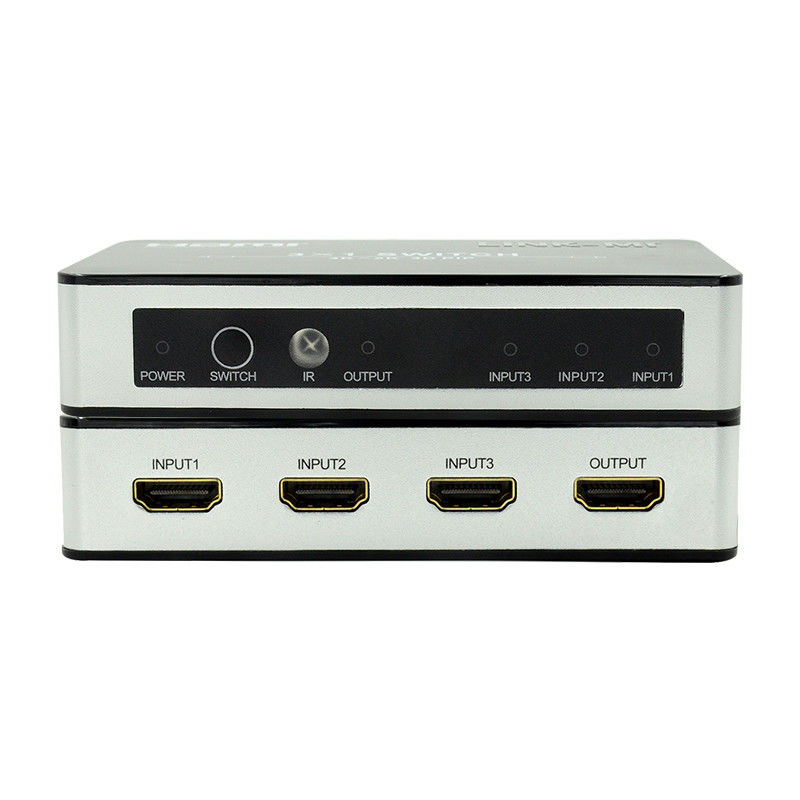

Panel Description
FAQ
