60m HDMI Extender over Single Cat5e/6 Support 3D IR
Introduction

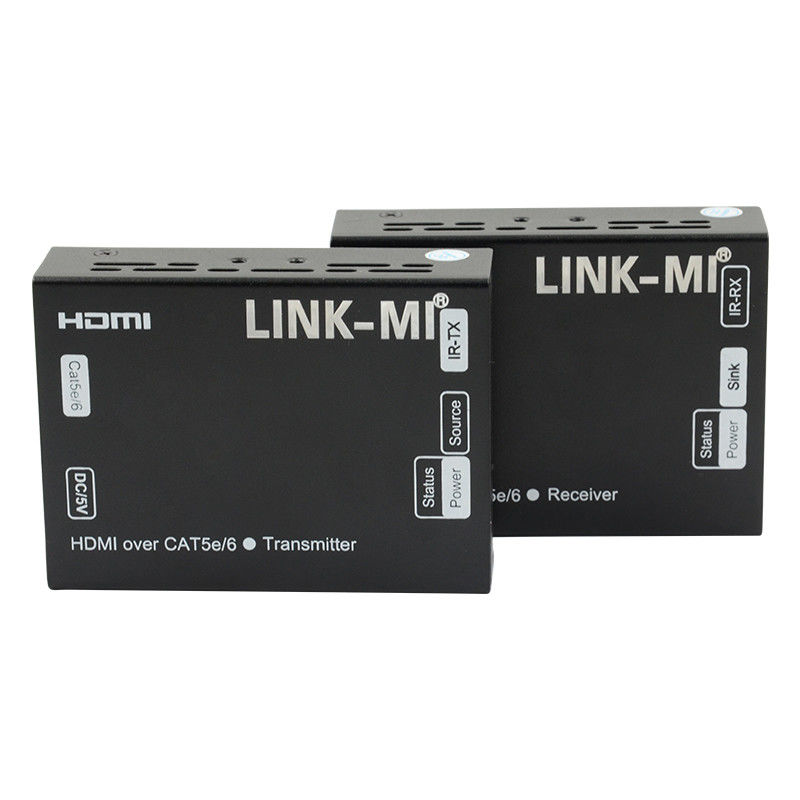

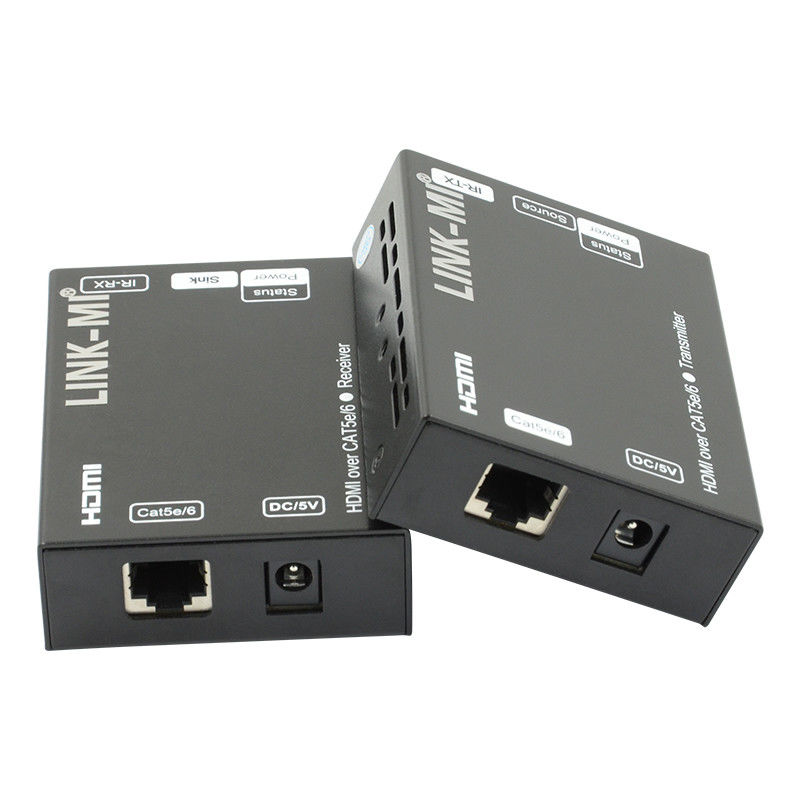

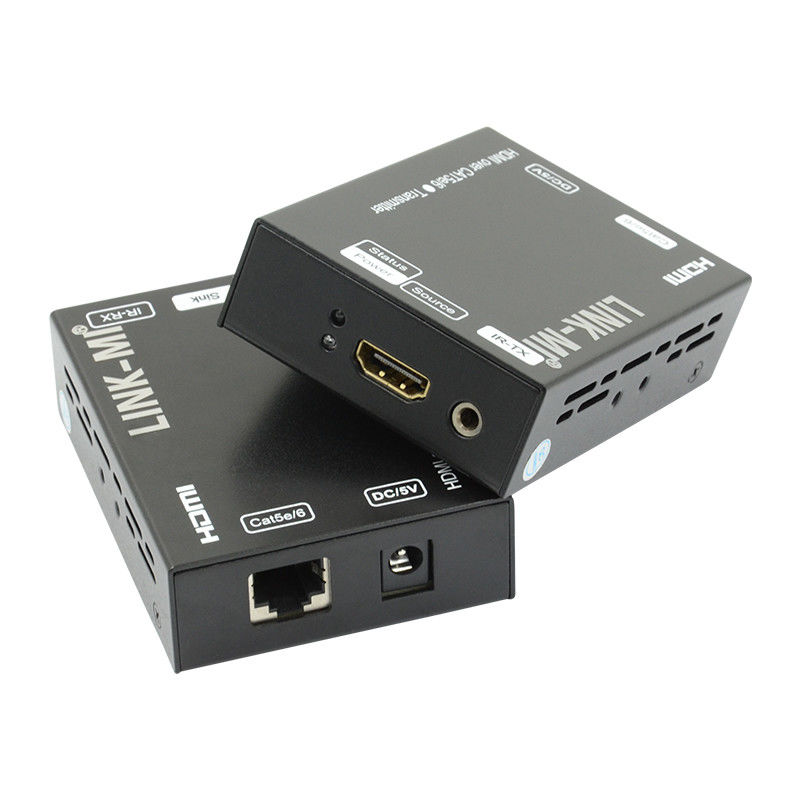

LINK-MI LM-EX60-3DIR 60m HDMI Extender includes 1 Transmitter and 1 Receiver. It allows HDMI Audio/Video Signals and IR to be transmitted over a 60m single cat5e/6 cable. Its transmission distance reaches up to 60 meters under the video format of 1080p. It is with Infrared control signal passing through function. It supports 3D Video Format.
Features

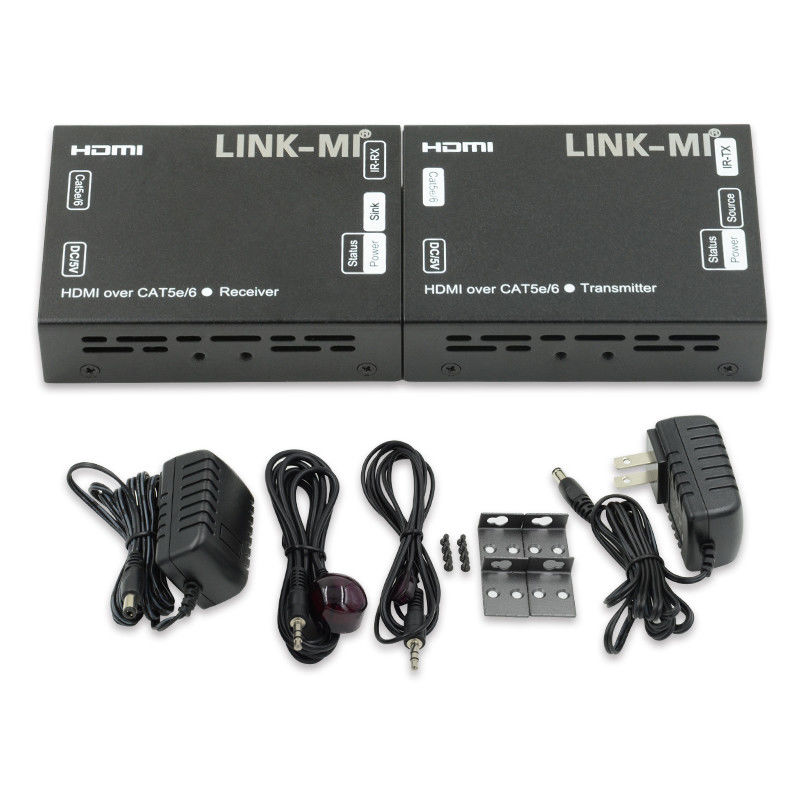

1. Each set includes one transmitter and one receiver.
2. Allows HDMI Audio/Video Signals and IR to be transmitted over a 60m single Cat5e/6 cable (UTP cable).
3. Use single Cat5e/6 cable to substitute HDMI cable to achieve long distance transmission, cat5e/6 cable follows the standard of IEEE-568B.
4. Transmission distance reaches up to 60 meters under the video format of 1080p.
5. Auto-adjustment of feedback, equalization and amplify.
6. Signaling rates up to 2.25 Gbits at 1080p.
7. With infrared control signal passing through function.
8. Support 3D video format.
9. With mounting ears.
Specification
|
Operating Temperature Range
|
-5 to +35℃(+23 to +95℉)
|
|
Operating Humidity Range
|
5 to 90%RH (No Condensation)
|
|
Input Video Signal
|
0.5-1.0 Volts P-P
|
|
Input DDC Signal
|
5 volts p-p(TTL)
|
|
Support Video Format
|
DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P 3D video format
|
|
Video Output
|
HDMI
|
|
Support Audio Format
|
DTS-HD Master Audio,Dolby true-HD etc.
|
|
Transmission Distance
|
1080P 8-bit 50m(Maximum) over CAT5E/CAT6 /24AWG/Solid(recommend to use 23AWG Cat6 cable)
|
|
Power consumption
|
3watts(Maximum)
|
|
Dimension (L×W×H)
|
85x62x23mm
|
|
IR wavelengh & frequency
|
Wavelengh:940mm, frequency 38KHz
|
|
Net Weight
|
260g(Pair)
|
| Note: Specifications are subject to change without notice |
Connection Diagram

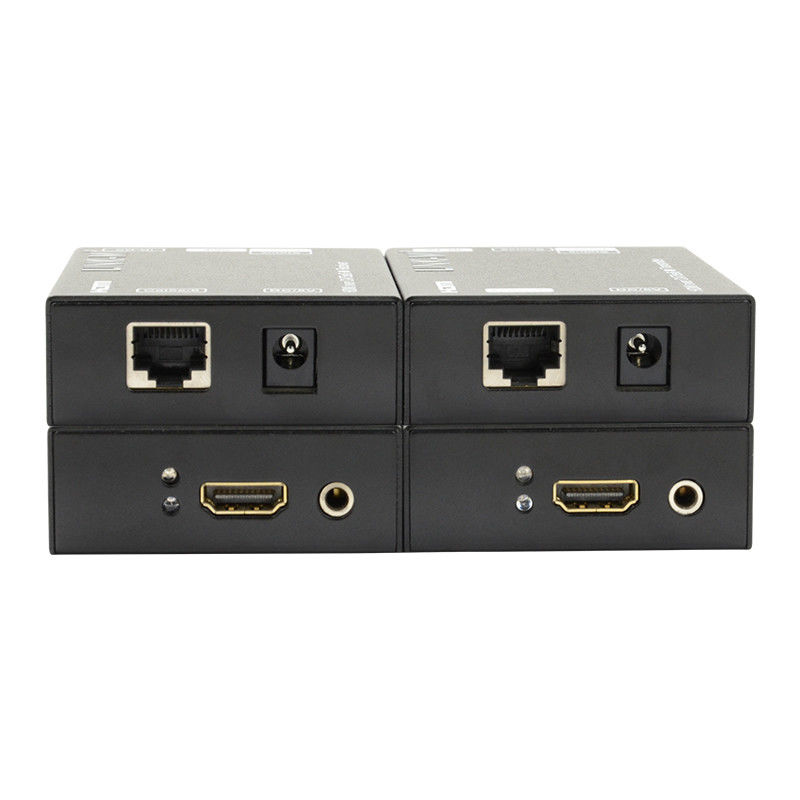

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-EW60-3DIR 60m HDMI Wall Plate Extender.pdf
