H.264 HD HDMI Encoder for IP TV with Remote Management in WAN WEB
Introduction
LINK-MI LM-HE01 is a HDMI Encoder for IP TV. It supports 1080p HD video input, H.264 encoding. It supports WEB interface management authority and remote management in WAN (WEB).
Features
1. Support H.264 encoding.
2. Support UDP, HTTP, RTSP, RTMP, ONVIF protocol.
3. Support MPEG1 Audio Layer 2.
4. CBR/VBR rate: 16Kbps~16Mbps.
5. 1000M network interface uses full duplex mode.
6. Support up to 720p, 1080p@60HZ HD video input.
7. Support image parameter settings.
8. WEB interface management authority.
9. Support remote management in WAN (WEB).
10. Support resolution customized settings.
11. Support one key to restore the factory configuration.
Specification
| Model No. |
LM-HE01 |
| Interfaces |
1x HDMI in, 1x LAN out, 1x Reset button |
| Encoding |
H.264 |
| Protocol |
UDP, HTTP, RTSP, RTMP, ONVIF protocol |
| CBR/VBR rate |
16Kbps~16Mbps |
| Resolution |
720p, 1080p@60HZ |
| Image parameter settings |
Supported |
| WEB interface management authority |
Supported |
| Remote management in WAN (WEB) |
Supported |
| Resolution customized settings |
Supported |
| Factory configuration |
one key to restore |
Connection Diagram

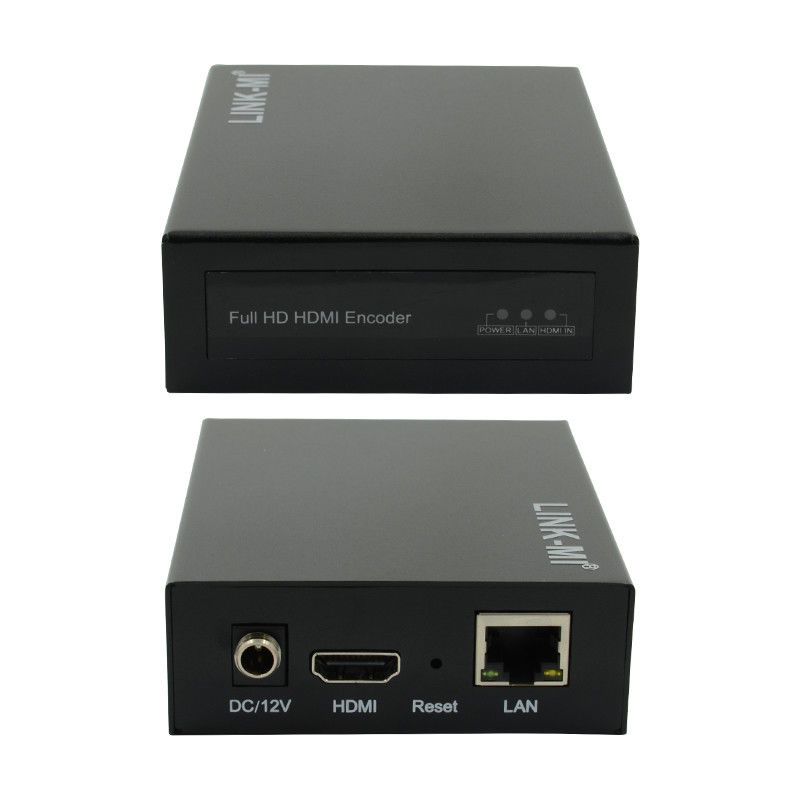

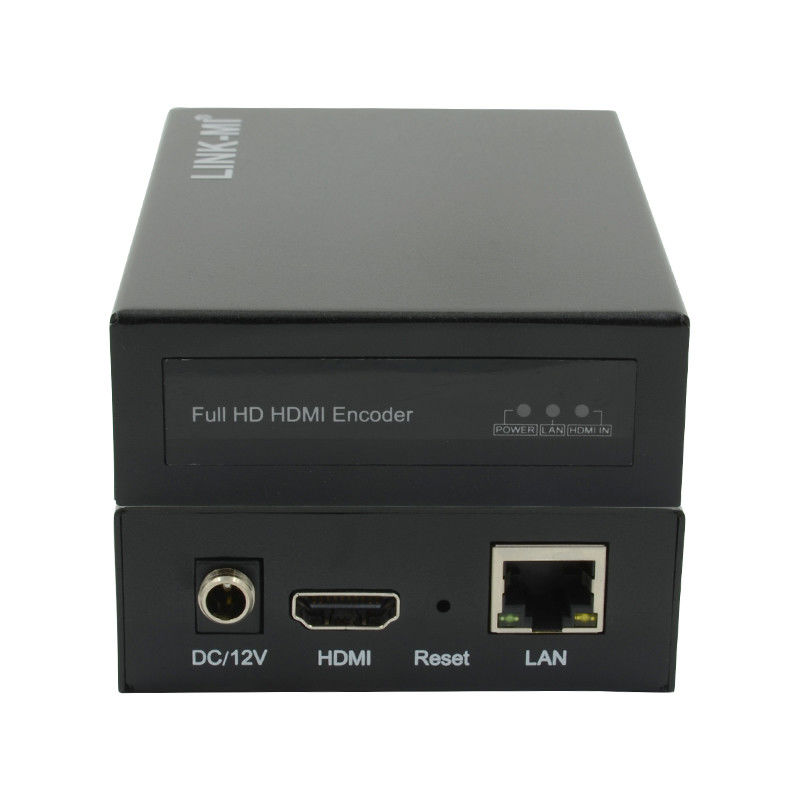

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-HE01 H.264 HDMI Encoder for IP TV.pdf
