H.265/264 HDMI Encoder for IP TV Support 1080P@60Hz with Audio extraction & Embedded
Introduction
LINK-MI LM-HE07 is a H.265/264 HDMI Encoder for IP TV which Supports resolution up to 1080P@60Hz. It comes with Audio extraction & Embedded and RS232 passthrough. It supports many protocol like RTSP/HLS/RTMPS/RTP/UDP.
Features
1. H.265 HD HDMI Encoder for IP TV
2. Support RTSP/HLS/RTMPS/RTP/UDP protocol
3. 1000M network interface uses full duplex mode
4. Support 1080P@60Hz HD video input
5. Support Audio extraction & Embedded
6. Support RS232 passthrough
Specification
|
Operating Temperature
|
0 to +40 ℃(+23 to 149℉)
|
|
Operating Humidity
|
5 to 95%RH(No Condensation)
|
|
Max resolution
|
1080P60HZ-YUV444-8bit
|
|
HDCP Compliant
|
HDCP1.4
|
|
Audio Format Supported
|
Input: LPCM2.0 Sample rate 44.1KHz and 48KHz
Audio Encode:AACLC,AAC+,AAC++
Audio bit rate:
AACLC: 48~320
AAC+: 32~128
AAC++: 16~64
|
|
RS-232 serial port
|
3PIN terminal block connectors
|
|
Ethernet port (IP control)
|
RJ45, female
|
|
Default IP
|
192.168.1.168
|
|
Dimensions(WxHxD)
|
124*90*21mm
|
|
Net Weight
|
300g
|
|
Power consumption
|
DC12V1A 4W(Max)
|
| Note: Specifications are subject to change without notice |
Connection Diagram

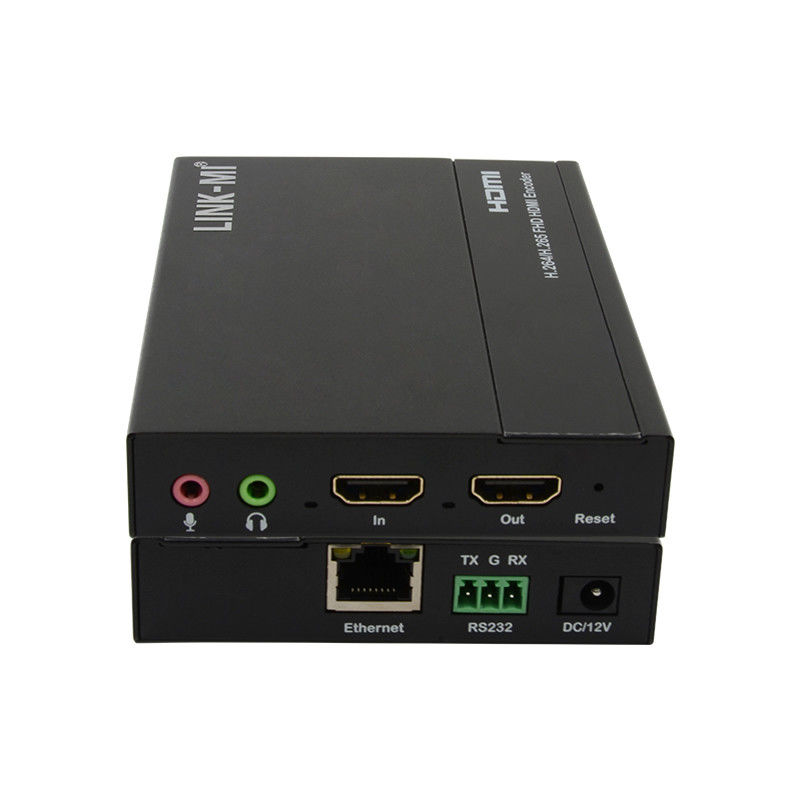

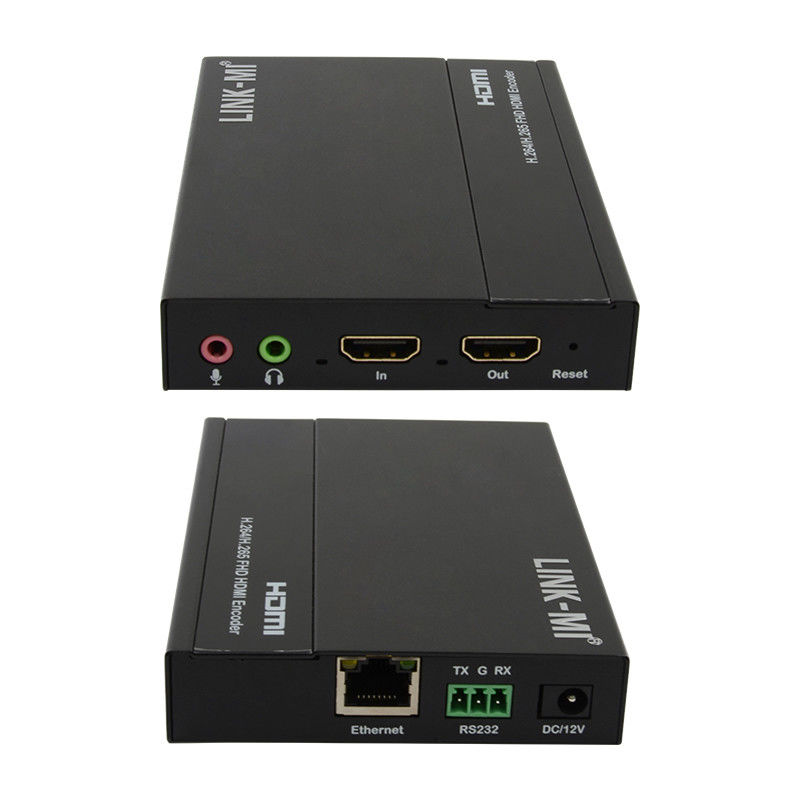

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-HE07 H.265 & 264 1080P HDMI Encoder.pdf
