4X4 HDMI Matrix Switcher with HDMI VGA AV mixed inputs Seamless Switching 2X2 Video Wall Controller
Introduction
LINK-MI LM-H944F 4x4 Matrix switcher is a high-performance with seamless switching output and mixed input 4x4 matrix switcher, 4 mixed input to support digital video signals and analog video signal, and 4 outputs with seamless switching function, seamless switching mode: fast switching, fade in/fade out, blinds and so on; the mixing matrix switcher adopts the advanced digital technology, with scaler function, and achieve a variety of formats to achieve a unified output signal, switching seamlessly perfect visual effects.

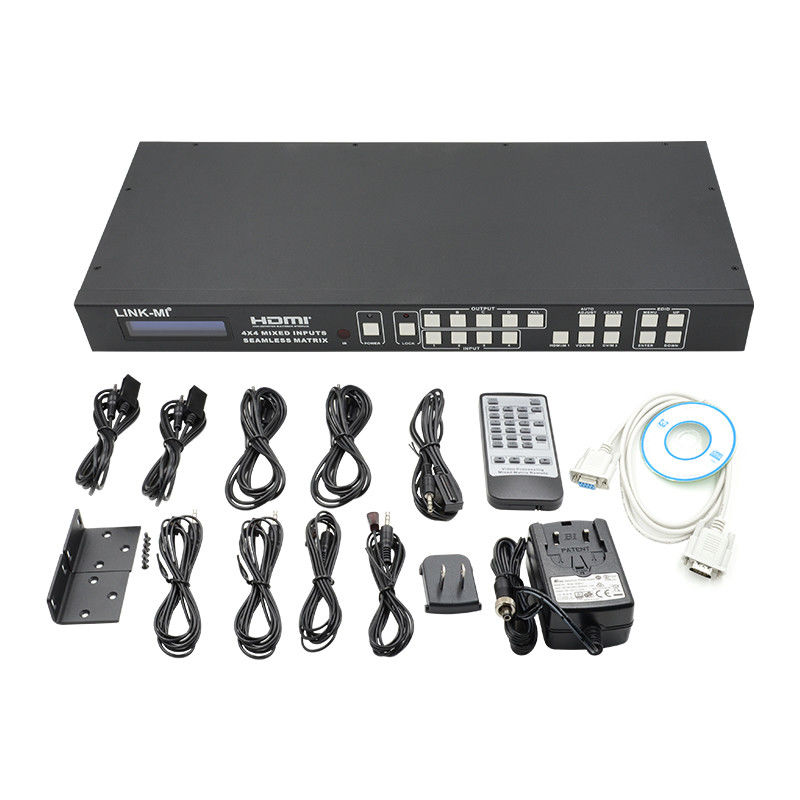

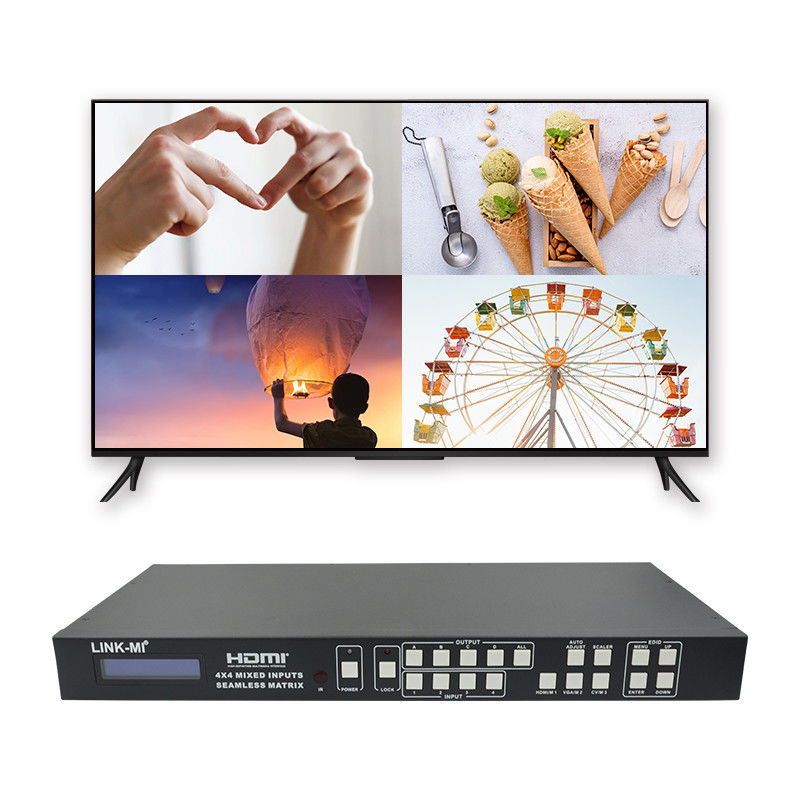

At the same time it with infrared matrix function, analog video signal input with embedded audio function. Flexible control mode diversity, through the front panel button, remote control, RS-232 and TCP/IP control. As a video wall processor, the matrix switcher is able to zoom in one input image four times to the outputs. And as a Multi-viewer processor, the matrix switcher can mix inputs with any combos to one image, and then transfer to all the outputs.
Features
1. Compliant HDMI1.3, HDCP1.3 and DVI1.0
2. Input video supports HDMI, VGA and C-video
3. Supports input resolutions :HDMI: 480i to 1080p VGA:1920 x 1080P@60Hz, 1360 x 768P@60Hz,1280 x 1024P@60Hz, 1024 x 768P@60Hz,1280 x 720P@60Hz,1280 x 768P@60Hz, 800 x 600@60Hz,640 x 480P@60Hz
CV: Supports PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats
4. Supports output resolutions :1920x1080P@60Hz
5. Supports seamless switching output,optional seamless switching mode:fast switching,fade in/fade out,blinds and so on
6. The RS-232 for the firmware update
7. Supports RS-232, remote control, on-panel control and TCP/IP Control
8. Supports smart EDID management
9. Picture Adjustment Settings
10. Automatically adjust the VGA input video
11. Supports power-off memory
Specification
|
Input Ports
|
4×HDMI, 4xVGA, 4xRCA, 1×RS-232,
1xRJ-45(Control), 5×IR INPUT, 4xAudio
|
|
Output Ports
|
4×HDMI, 4xIR OUTPUT
|
|
Input Resolutions Support
|
Up to 1920x1080P@60Hz
|
|
Output Resolutions Support
|
Up to 1920x1080P@60Hz
|
|
Control
|
IR , RS-232 , TCP/TP , Buttons
|
|
ESD Protection
|
Human-body Model:
± 8kV (Air-gap discharge)
± 4kV (Contact discharge)
|
|
Power Supply
|
12 V/2.5 A DC (US/EU standards,
CE/FCC/UL certified)
|
|
Dimensions
|
440mm (W)×200mm (D)×44.5mm (H)
|
|
Weight
|
2380 g
|
|
Chassis Material
|
Metal
|
|
Silkscreen Color
|
Black
|
|
Operating Temperature
|
0 ºC~40 ºC/32 ºF~104 ºF
|
|
Storage Temperature
|
−20 ºC~60 ºC/−4 ºF~140 ºF
|
|
Relative Humidity
|
20~90 % RH (non-condensing)
|
|
Power Consumption
|
13.5 W(Max)/1.2W(Standby)
|
| Note: Specifications are subject to change without notice |
Connection Diagram

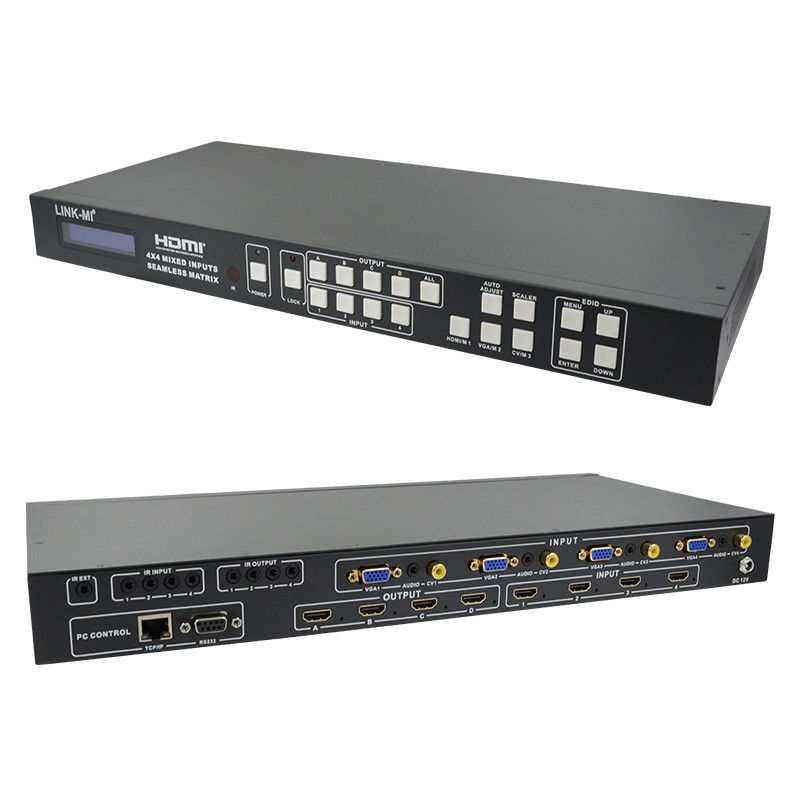

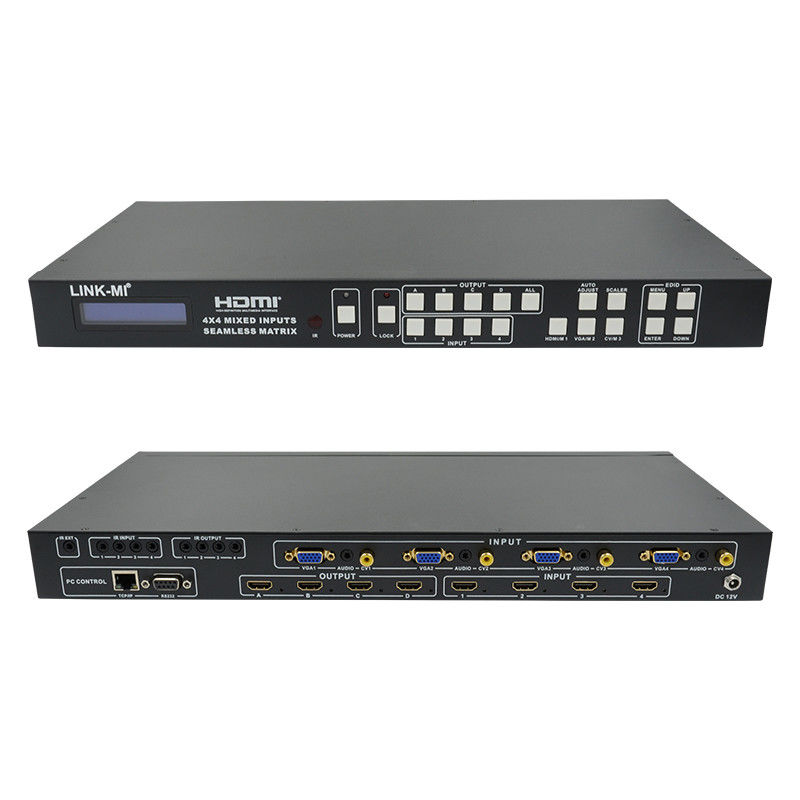

Panel Description
