HDMI to AHD Converter, With 1xlooping AHD output HDMI - AHD2.0 Convertor
Introduction
LINK-MI LM-HDA01 HDMI-AHD2.0 is a professional HD convertor change HDMI to AHD2.0 signal and with AHD loop zoom in output. Industrial level for power input design 5V-26V. Automatically change frequency and scaling to achieve synchronous transmission voice and image.
Features
1. HDMI input:SD:480i/576i HD:720p50/60 1080i50/60 3G:1080p25/30/50/60
2. Output AHD resolution to 1080p@30Hz /1080p@25Hz
3. lWith AHD Loop output, be used as Repeater.
4. lHDMI1.4 Standard, HDCP1.2 protocol, Support CEC
5. lBuilt-in ESD protect circuit. Easy to install.
6. Support ODM and OEM.
Specification
| Port |
AHD port |
Standard BNC X 2 |
| HDMI port |
Standard HDMI connector |
| Power in port |
DC_2.1mm X 1 |
| Keypad control |
Control AHD output format, default 1080p30 |
| AHD |
AHD output format |
AHD-1080p25,AHD-1080p30 |
| HDMI |
HDMI input |
480i60 , 576i50, 720p60, 1080i50, 1080i60, 1080p25, 1080p30,1080p50,1080p60 |
| Other parameters |
Power |
DC 5V~24V input |
| Red light |
Light on=Power in; light off=power off |
| Green Light |
Light on=Signal input, light off= No signal |
| Power consumption |
Currency<620mA when DC5V input |
| Working Temperature: |
From 0 to 60 degree |
| Working Humidity: |
20% ~ 80% |
| Net weight |
240g |
| Outline size |
L*W*H(116mm*110mm*25mm) |
| Note: Specifications are subject to change without notice |
Connection Diagram

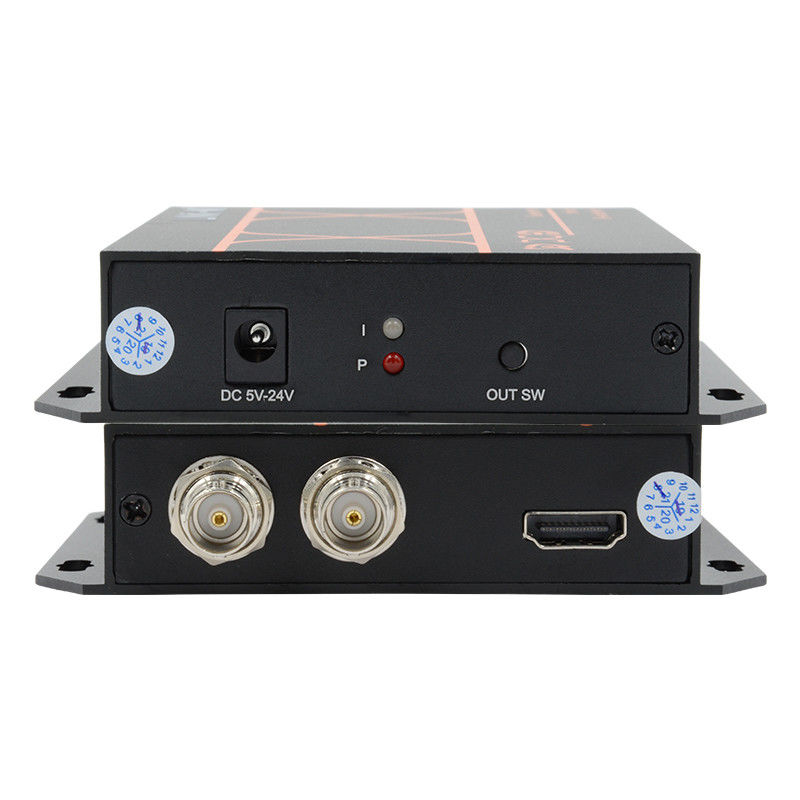

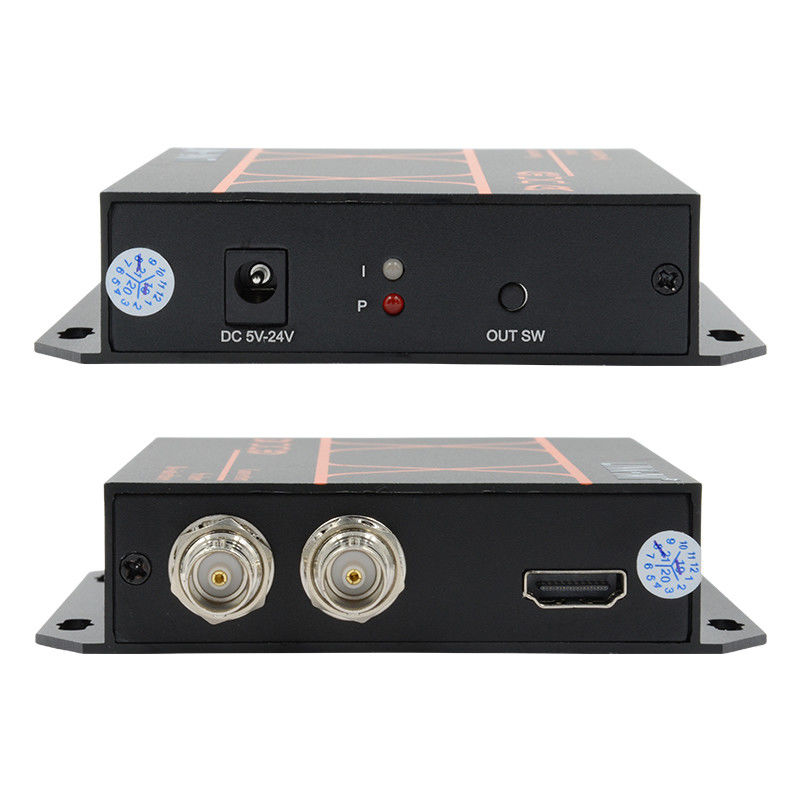

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-HDA01 HDMI to AHD Converter.pdf
