DVI to HDMI Converter with Audio Support DVI Analog RCA Audio Input
Introduction
LINK-MI LM-DVIH01 This DVI-D with Audio to HDMI converter converts DVI and analog audio signals into HDMI output with DVI loop out. It enables us to connect DVI and audio sources to an HDMI display. This device also amplifies and equalizes incoming TMDS data before re-transmitting it in optimal quality regardless of its original signal quality
Features
1. Easy to install and operate.
2. HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant.
3. Supports DVI/analog audio input and HDMI output.
4. Automatic detection of input format.
5. Operational Frequency of: 225MHz
6. Frequency Bandwidth of: 2.25Gbps (single link).
7. Supports high resolution input/output:
PC: VGA@60/72/75/85Hz, SVGA@60/72/75/85Hz,
XGA@60/70/75/85Hz, SXGA@60/75/85Hz, UXGA@60Hz.
SD/HD: 480i/p@60Hz, 576i/p@50Hz, 720p@50/60Hz, 1080i@50/60Hz and 1080p@24/50/60Hz.
Specification
|
Input ports
|
1 x DVI-D , 1 x RCA
|
|
Output ports
|
1 x DVI-D , 1 x RCA, 1 x HDMI
|
|
Power Supply
|
5V/1A DC (US/EU standards, CE/FCC/UL certified)
|
|
Dimensions (mm)
|
70(W) X 145 (D) X 25 (H)
|
|
Weight(g)
|
300
|
|
Operating Temperature
|
0°C ~ 40°C / 32°F ~ 104°F
|
|
Storage Temperature
|
-20°C ~ 60°C / -4°F ~ 140°F
|
|
Relative Humidity
|
20 ~ 90% RH (Non-condensing)
|
| Note: Specifications are subject to change without notice |
Connection Diagram

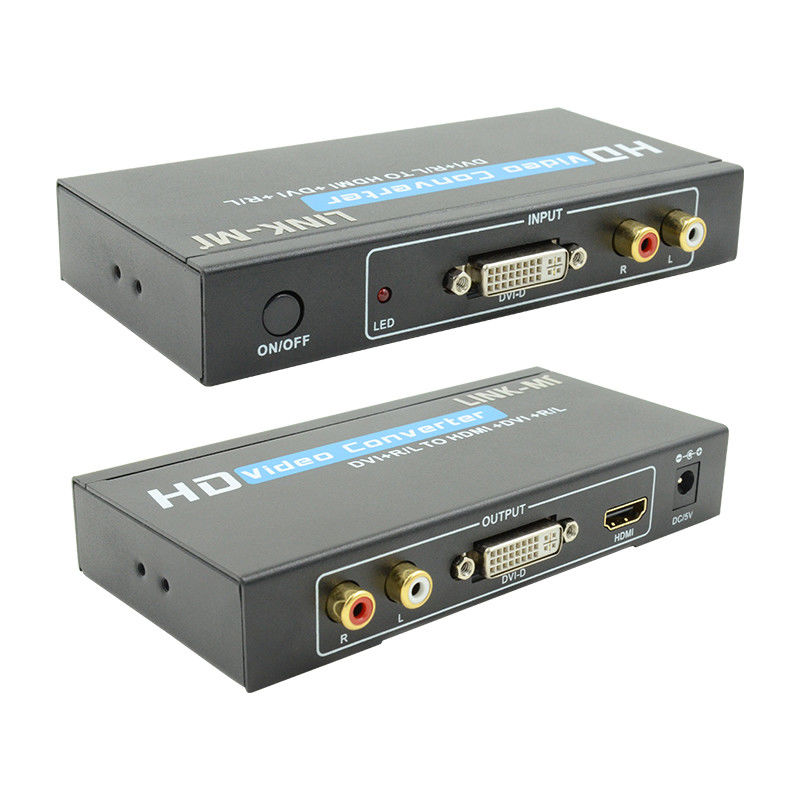

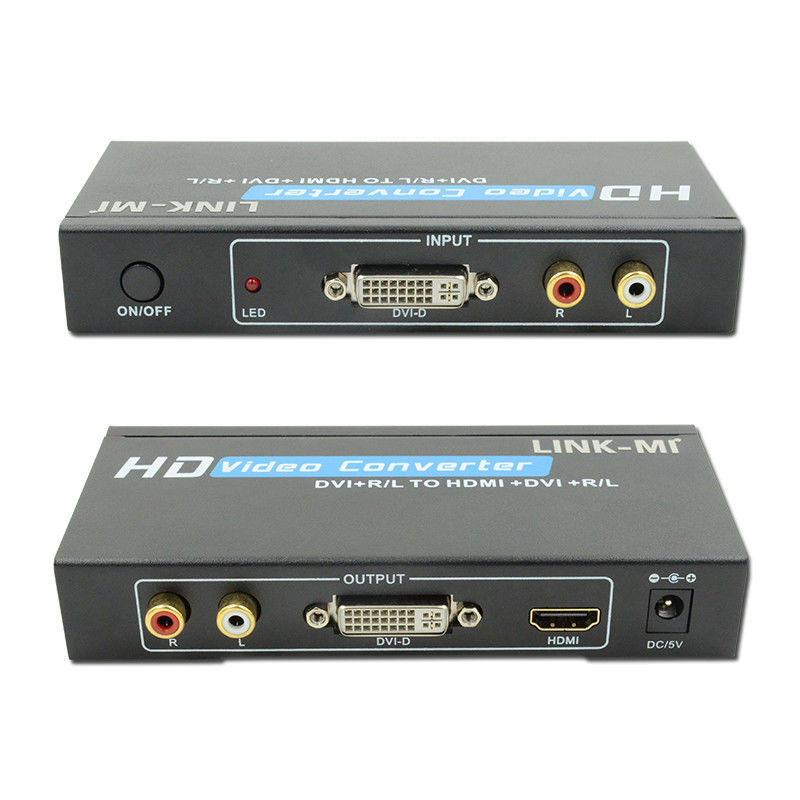

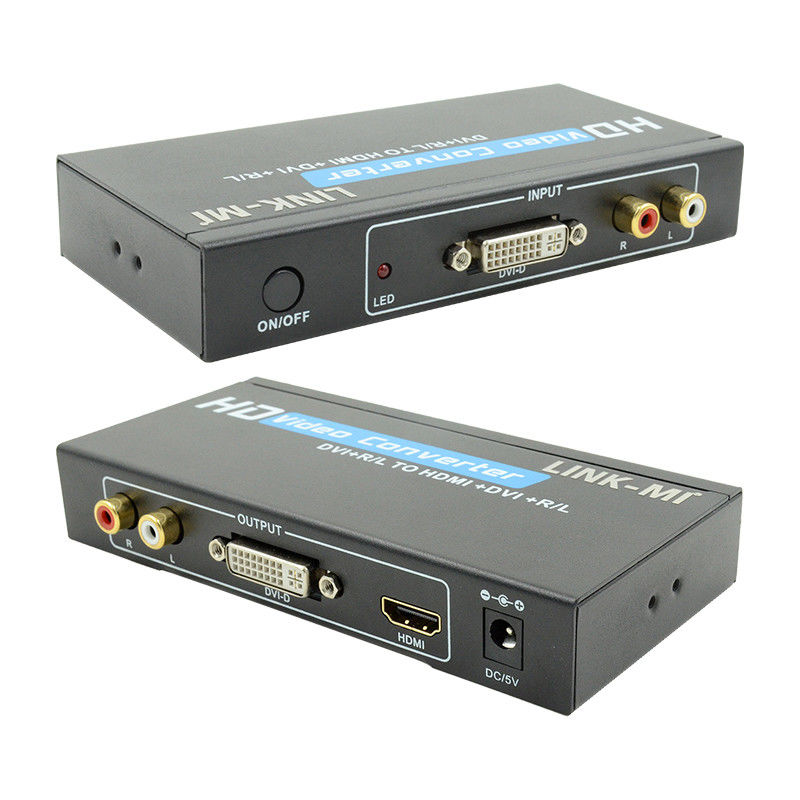

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-DVIH01 DVI-D with Audio to HDMI Converter.pdf
