SDI to HDMI Converter All to HDMI SDI to VGA CVBS Video Converter
Introduction

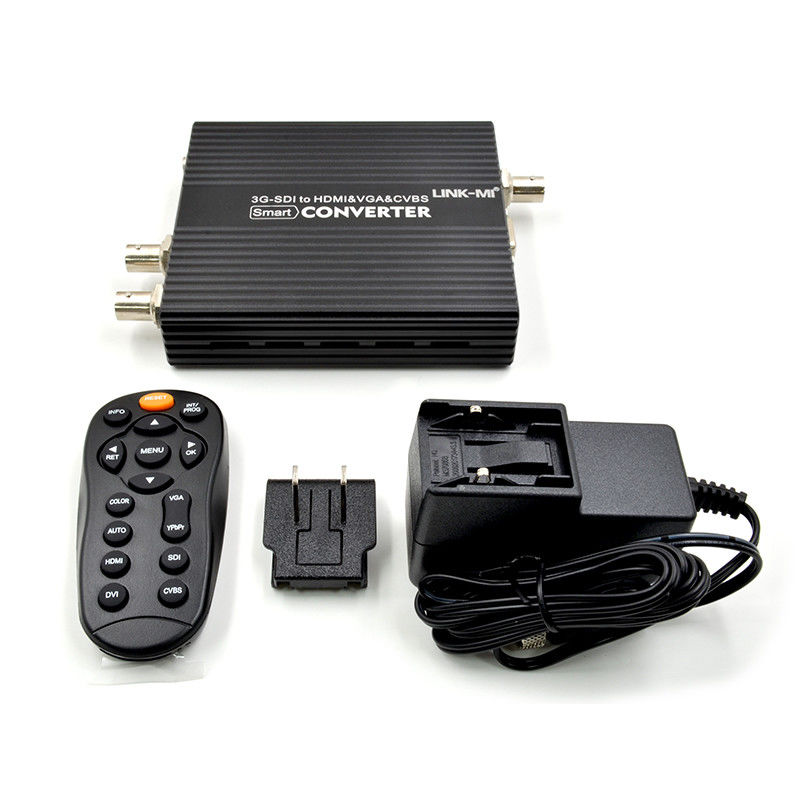

LINK-MI LM-SC5810P SD/HD/3G SDI-HDMI&VGA&CVBS video converter is a high-quality, high-performance video signal conversion products, compatible with SD/HD/3G SDI signal, which built in high-performance cable equalizer, support the transmission distance up to 200 m HD-SDI, 3G-SDI signals up to 120 meters [Note: Meets Belden 1694A cable standards, SDI standard signal indicators].
Features
1. Support all type SDI resolution
2. SMPTE 425M (A level and B level), SMPTE424M, SMPTE292M, SMPTE259M-C
3. Carry 1 channel SDI signal loop out.
4. Support for OSD menu operation interface
5. Automatically detect the HDMI EDID information adaptive HDMI best mode
6. Supports all formats asymmetric conversion
7. The signal lost blue screen warning
8. VGA output format can be specified 720p/1080p
9. Automatically embed SDI audio signal to HDMI signal.
10. User selectable output format (HDMI and VGA and AV)
11. Intelligent adaptation of PAL / NTSC
Specification
| Brand |
LINK-MI |
|
Model No.
|
LM-SC5810P
|
| Material |
Metal |
| Color |
Black |
| Application |
Convert SD/HD/3G SDI to HDMI |
| Input Interface |
1*BNC SDI |
| Input Signal Type |
SD-SDI ( 270Mbps ); HD-SDI ( 1.485Gbps ); 3G-SI ( 2.97Gbps ) |
| Input Format |
525i @ 59.94; 625i @ 50; 720p @ 23.98/24/25/29.97/30/50/59.94/60; 1080i @ 50/59.94/60; 1080p @ 23.98/24/.25/29.97/30/50/59.94/60 |
| SDI Signal Range |
0.8V P-P |
| SDI Impedance |
75 ohms |
| SDI Coupling Type |
AC Coupling
|
| SDI Signal Jitter ( Typical Value ) |
SD-SDI<= 0.1UI; HD-SDI<= 0.2UI; 3G-SDI<= 0.4UI |
| Max. Input Coax Length |
Belden 1694A: SD-SDI 400m, HD-SDI 200m, 3G-SDI 140m
Note: the above transmission distance for different specifications of the cable, test results will be different
|
| SDI Loop Out Interface |
1*BNC SDI |
| HDMI/DVI Output Interface |
1*HDMI |
| AV ( CVBS ) Output Interface |
1* BNC |
| VGA Output Interface |
1* VGA |
| Dimension ( L*W*H ) |
154*119*36mm |
|
Powe Supply
|
5-24V DC
|
| Note: Specifications are subject to change without notice |
Connection Diagram

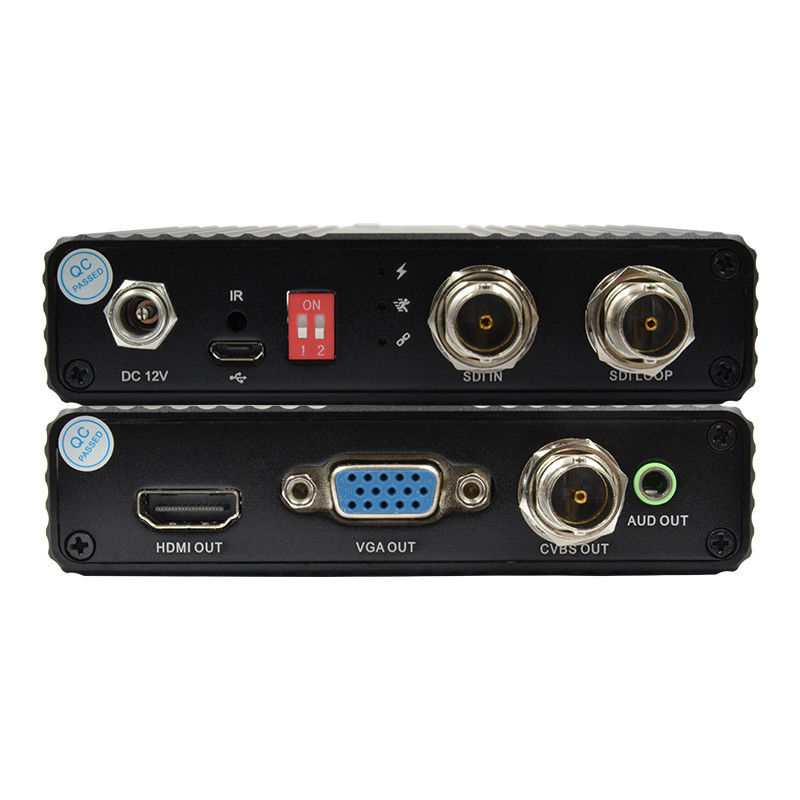

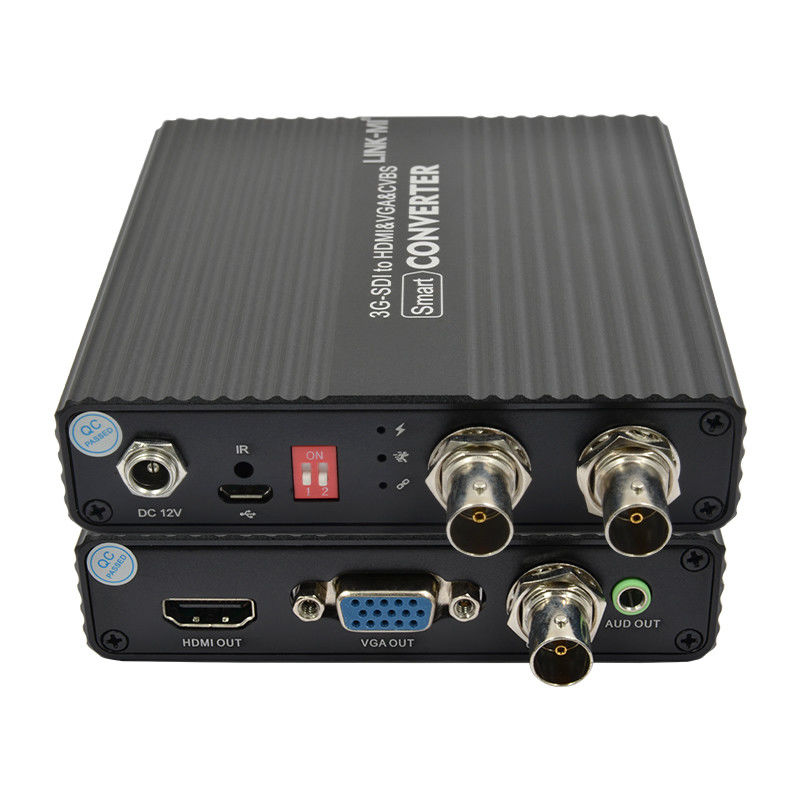

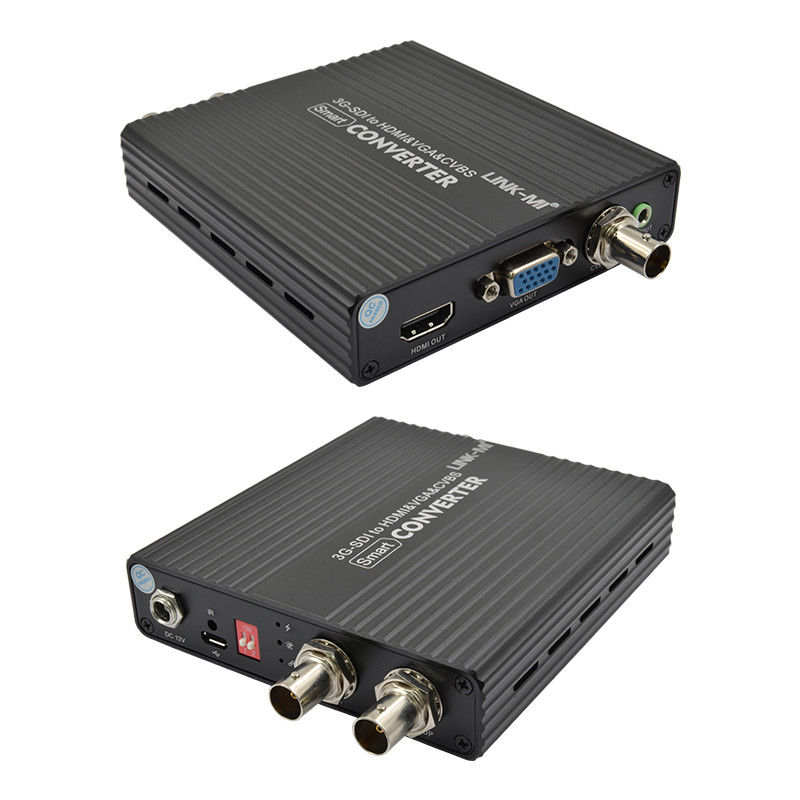

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SC5810P SDI-HDMI&VGA&CVBS Converter User Manual...
