Professional HDMI to 3G SDI Converter with Audio
Introduction
LINK-MI LM-PHS01 HD Video Converter supports HDMI signal convert to 3G/HD/SD SDI signal. The device Integrated HDMI receiver and 3G/HD/SD-SDI encoder, easily converted HDMI signal to 3G/HD/SD-SDI signal.
Meanwhile, it supports the HDMI audio de-embedding and embed to SDI signal, but also external input analog audio signal can be embedded in the SDI signal.
Additionally, it also supports "Frame Rate Convert" function, it can convert different resolution HDMI signal to a fixed resolution SDI signal output. The output resolution setting use digital coding switch, easy to operate.
Features
1. Standard HDMI signal input
2. Optional 3G/HD/SD SDI output signal
3. Optional 1080P/1080I/720P/480I/576I/1080PSF output
4. HDMI input signal auto detected
5. HDMI audio de-embedded and embedded into the SDI signal
6. External analog audio signal embedded in the SDI signal
7. The SDI can be set to "any frequency" output
8. Special function can be customized
Specification
|
Product name
|
HDMI to SDI Video Converter
|
|
Product model
|
LM-PHS01 |
| HDMI Input |
Input Signal
|
Signal HDMI Standard |
| Connector |
HDMI |
|
Amplitude of the signal
|
800mV ±10% ( 100 Ω) |
| Impedance |
100Ω |
| Analog Audio Input |
Input signal
|
Analog Stereo Audio |
| Digital Sample |
48K |
| Impedance |
600Ω
|
| Connector |
Earphones |
| SDI Output |
Output Signal |
SDI (serial digital video signal)
|
| Bit Rate |
270Mbps~2.97Gbps |
| Impedance |
75Ω |
|
Amplitude of the signal
|
800mV ±10% |
| Connector |
BNC comply IEC169-8 standards
|
| General Parameters |
Operating voltage
|
DC 5-12V |
| Power |
<2W |
|
Host size
|
136X 80X 25 mm
|
|
Control panel
|
Digital code switch
|
| Weight |
0.3kg |
|
Working temperature
|
0℃~50℃ ,no condensation
|
|
Storage temperature
|
-20℃~75℃
|
|
Work humidity
|
20-70%RH |
|
Storage humidity
|
0-90%RH,no condensation |
Connection Diagram

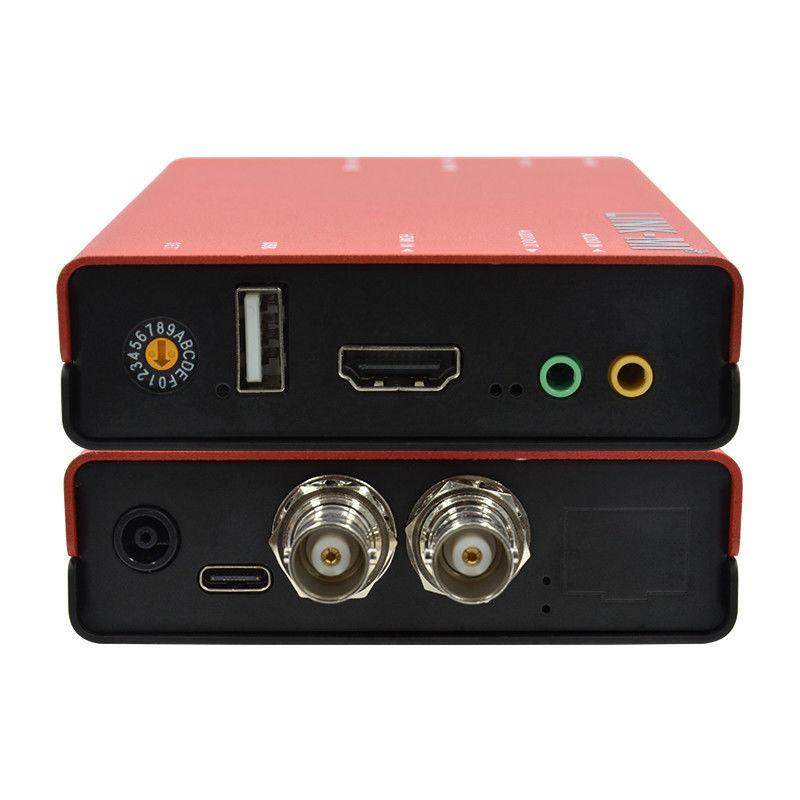

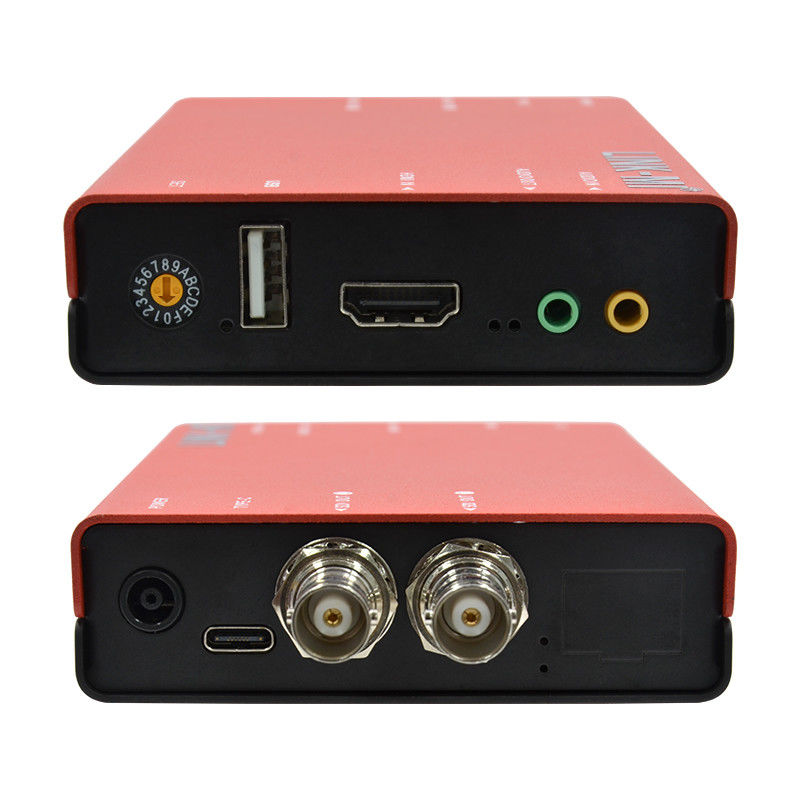

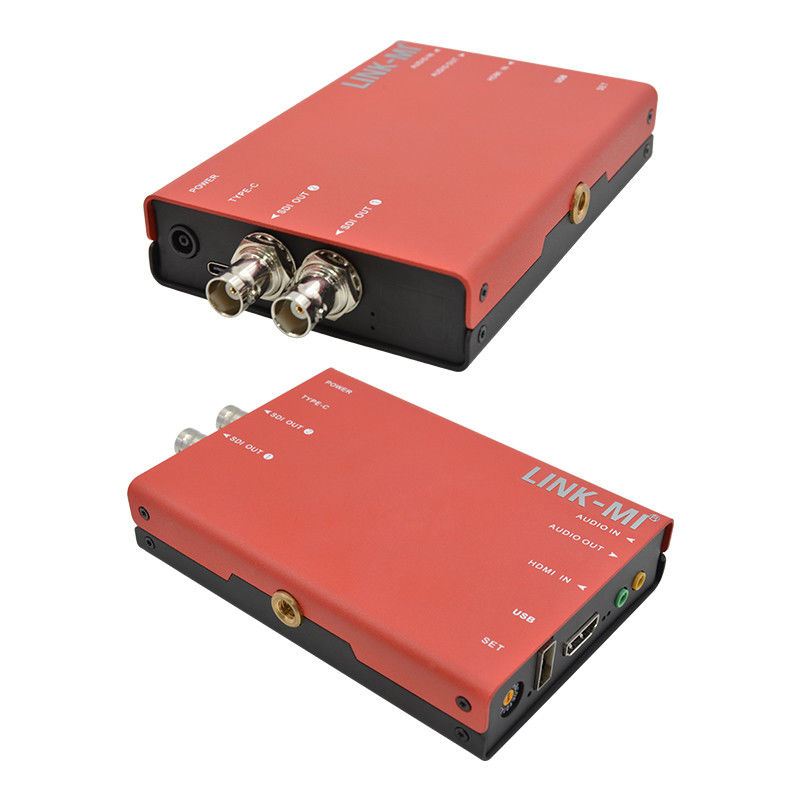

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-PHS01 HDMI to SDI Video Converter V03.pdf
