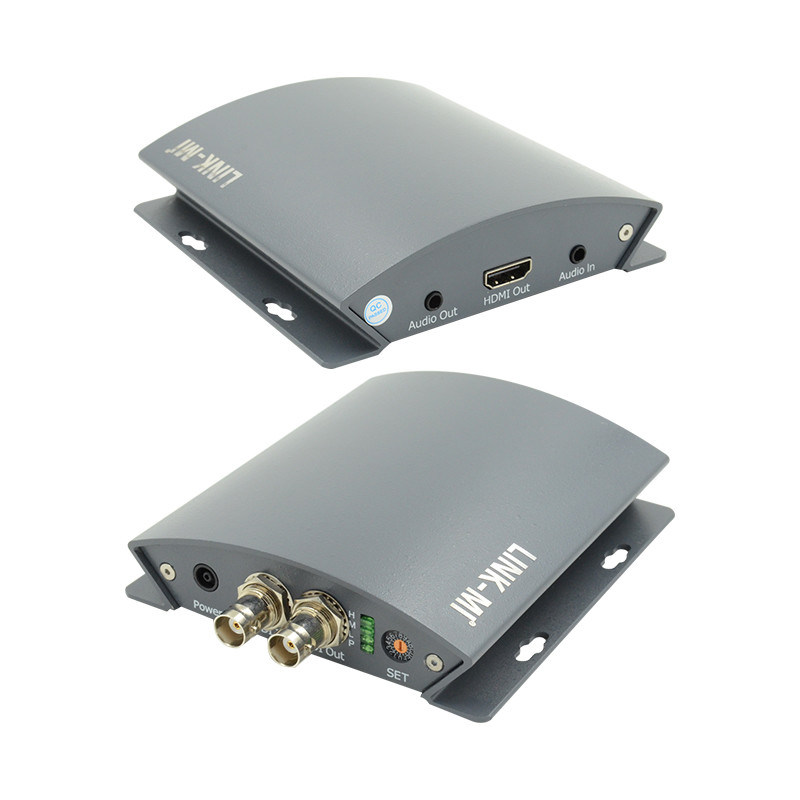

Pro 3G SDI to HDMI Converter Box
Introduction
LINK-MI LM-PSH01 Pro 3G SDI to HDMI Converter Box Support 1080P to 720P downscaler function. It comes with external analog audio inputs.
Features
1. Supports 3G/HD/SD SDI Signal Input/Looping Output
2. Supports 1080p/1080i/720p/480i/576i Video format
3. Supports 1080PSF/ 720P 30/25/24Hz
4.1080P/1080I, 720P Frequency conversion output
5. Supports 1080I/1080P to 720P Down-Conversion function
6. Support PAL/NTSC/720P to 1080I/1080P Up-Conversion function
7. Adaptively SDI Input signal
9. SDI embedded audio can be de-embedded
10. Support 3G/HD/SD-SDI audio de-embedded to analog stereo audio output
11. Support external analog audio inputs embedded in HDMI
12. Can be costumed
Specification
| Name |
SDI to HDMI Video Converter Adapter |
| Model No. |
LM-PSH01 |
| SDI Input / Output |
Signal |
3G/HD/SD SDI |
| Connector |
BNC ( IEC169-8 Standard ) |
| SMPTE |
270Mbps-2.97Gbps |
| Signal Amplitude |
800mv ±10% ( 75 Ω) |
| Impedance |
75Ω |
| Analog Audio Output |
Output Signal |
Analog Stereo Audio |
| Impedance |
16Ω |
| Connector |
Earphones |
| HDMI Output |
Output Signal |
HDMI Signal |
| Connector |
HDMI |
| Signal Amplitude |
800mv ±10% ( 75 Ω) |
| Impedance |
100Ω |
| General Parameters |
Power Supply |
DC 5-12V |
| Power |
<2W |
| Dimension(L*W*H) |
141*102*30 mm |
| Control |
DIP Switch |
| Net Weight |
0.3kg |
| Operating Temperature Range |
0-50℃ |
| Storage Temperature Range |
-20 to 75℃ |
| Operating Humidity Range |
20-70%RH |
| Storage Humidity Range |
0-90%RH |
Connection Diagram

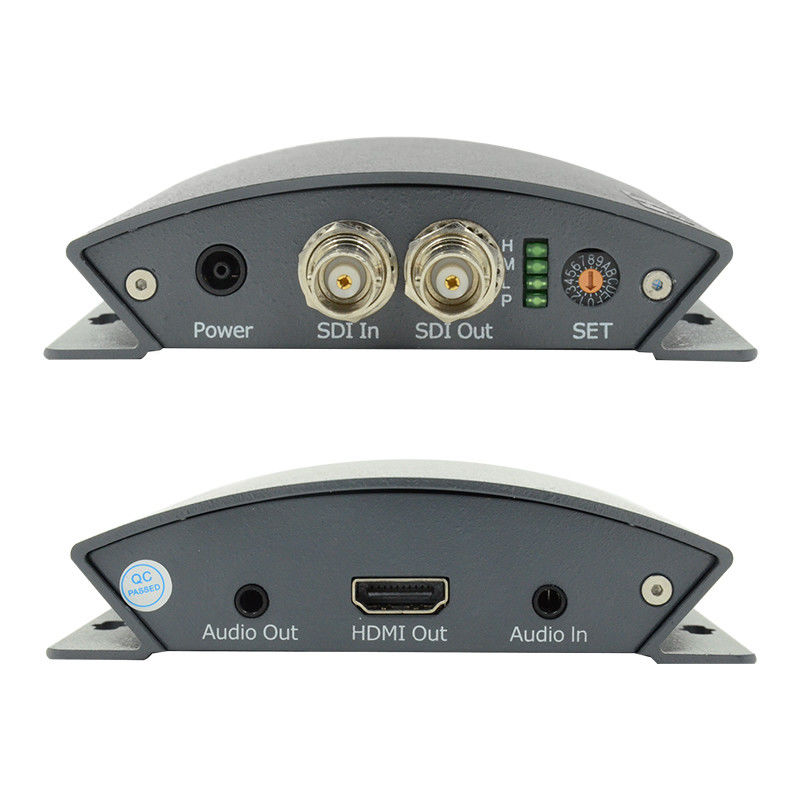

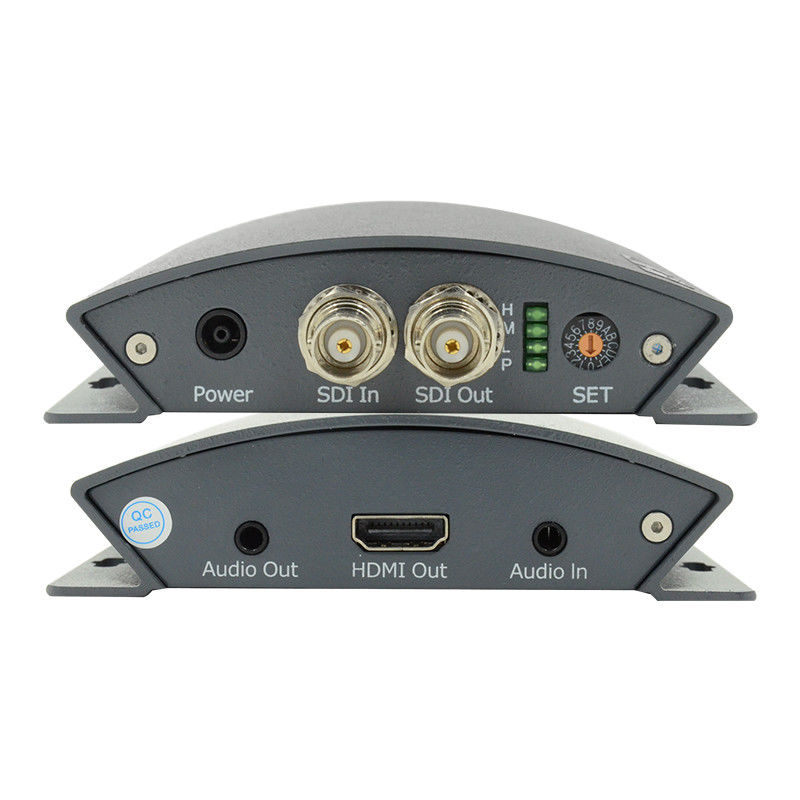

Panel Description
