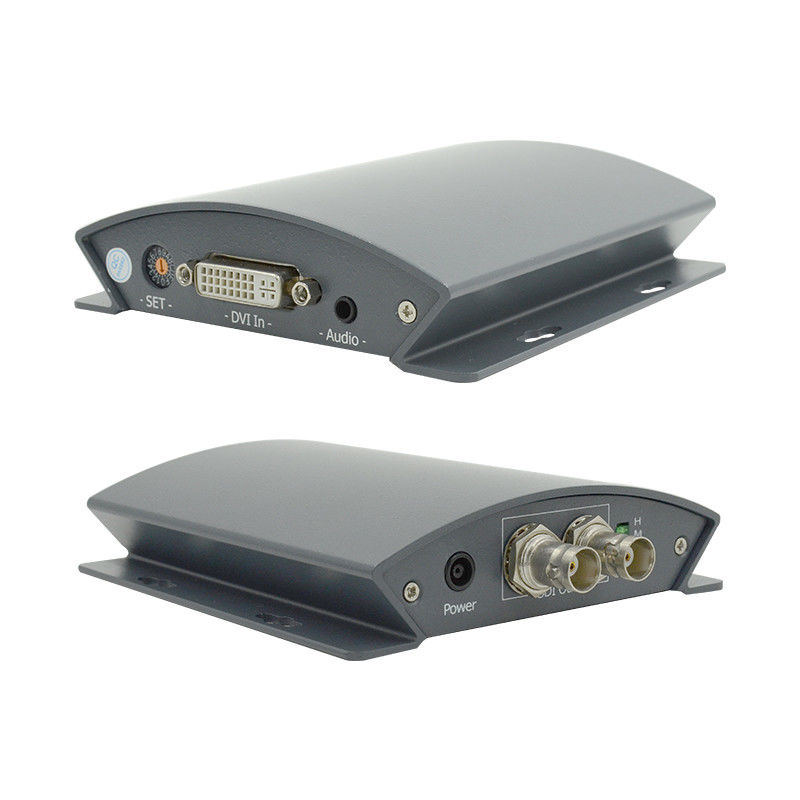

HD Video DVI to BNC SDI Converter
Introduction
LINK-MI HD Video Converter is a device to convert DVI signal to 3G/HD/SD SDI signal. It integrates DVI Receivers and 3G/HD/SD-SDI Encoder, can convert the DVI signal to 3G/HD/SD-SDI signal. At the same time, LM-PDS01 supports external analog stereo audio signal embedded in the 3G/HD/SD-SDI signal.
Features
1. VESA Standard DVI signal input
2. Optional 3G / HD / SD SDI signal output
3. Optional 1080P/1080I/720P/480I/576I/1080PSF output
4. DVI input signal adaptive
5. Support DVI external analog stereo audio signal embedded in the SDI signal
6. SDI set up "frequency" output
7. SDI set up "fixed frequency" output
8.Special features can be customized
Specification
| Name |
HD Video DVI to BNC SDI Converter |
| Model No. |
LM-PDS01 |
| DVI Input |
Signal |
VESA Standard DVI signal |
| Connector |
DVI-I |
| Signal Amplitude |
800mV ±10% ( 75 R) |
| Impedance |
100Ω |
| Analog Audio Input |
Input Signal |
Analog Stereo Audio |
| Digital Sample |
48K |
| Impedance |
16Ω |
| Connector |
Earphones |
| SDI Output |
Output Signal |
3G/HD/SD SDI Signal |
| Code Rate |
270Mbps~2.97Gbps |
| Impedance |
75Ω |
| Signal Amplitude |
800mV ±10% |
| Connector |
BNC (IEC169-8 Standard) |
| General Parameters |
Power Supply |
DC 5-12V |
| Power |
<2W |
| Dimension(L*W*H) |
141*102*30 mm |
| Control |
DIP Switch |
| Net Weight |
0.3kg |
| Operating Temperature Range |
0-50℃ |
| Storage Temperature Range |
-20 to 75℃ |
| Operating Humidity Range |
20-70%RH |
| Storage Humidity Range |
0-90%RH |
Connection Diagram

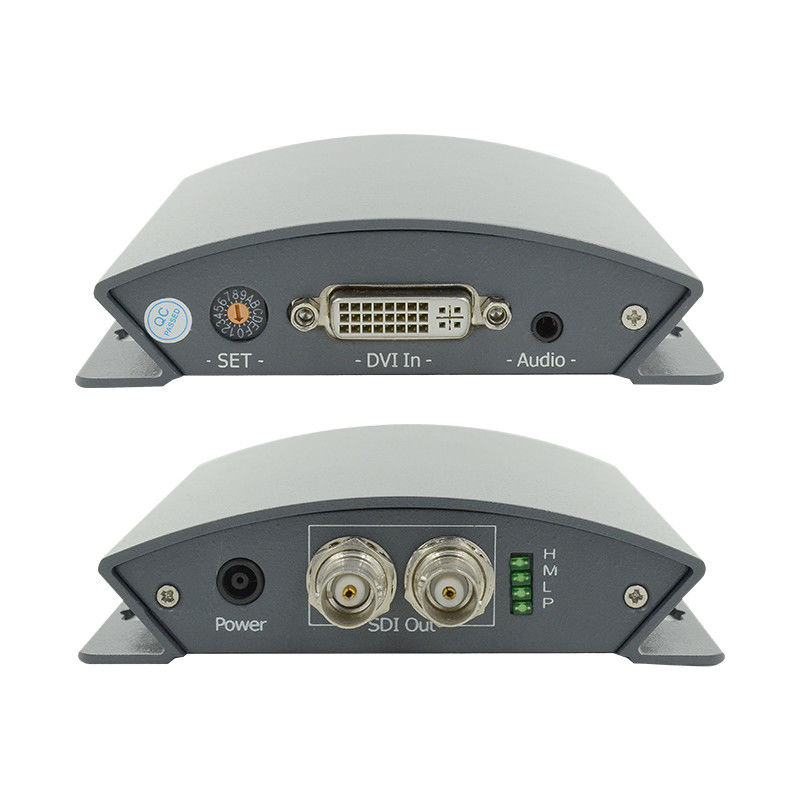

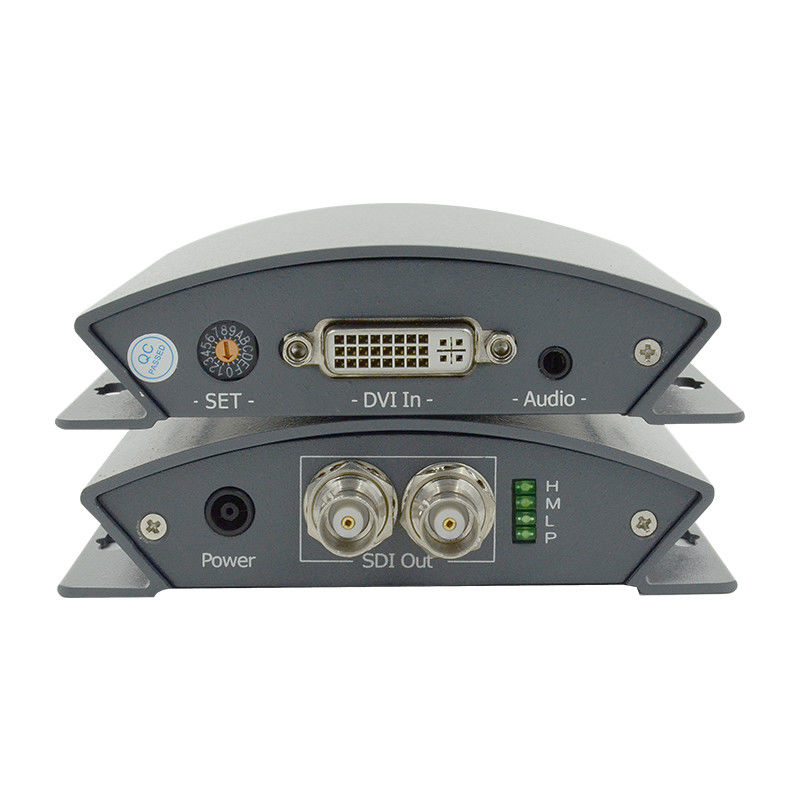

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-PDS01 DVI to SD_HD_3G SDI Converter.pdf
