Professional CVBS to SDI HD Video Converter
Introduction
This HD Video Converter, It support CVBS signal convert to 3G/HD/SD SDI signal. The device Integrated CVBS receiver and 3G/HD/SD-SDI encoder, easily converted CVBS signal to 3G/HD/SD-SDI signal. Meanwhile, PD6341 supports external input analog audio signal can be embedded in the SDI signal. Additionally, PD6341 also supports "Frame Rate Convert" function, it can convert different resolution CVBS signal to a fixed resolution SDI signal output. The output resolution setting use digital coding switch, easy to operate.
Features
1. standard CVBS signal input
2. Optional 3G / HD / SD SDI signal output
3. Optional 1080P / 1080I / 720P / 480I / 576I common resolution
4. Optional 1080PSF / 720P 30/25/24 special resolution
5. CVBS input signal adaptive
6. Support external analog stereo audio signals embedded in SDI signal
7. SDI can be set to "frequency" output
8. SDI can be set to "fixed frequency" output
9. Special features can be customized
Specification
| Name |
CVBS to SDI HD Video Converter |
| Model No. |
LM-PCS01 |
| CVBS Video Input |
Signal |
Standard CVBS Signal |
| SMPTE |
27M |
| Connecter |
BNC |
| Signal Amplitude |
800mv ±10% ( 75 Ω) |
| Impedance |
75Ω |
| Analog Audio Input |
Input Signal |
Analog Stereo Audio |
| Digital Sampling |
48K |
| Impedance |
16Ω |
| Connector |
Earphones |
| SDI Video Output |
Output Signal |
SDI HD serial digital video signal |
| Connector |
BNC ( IEC169-8 Standard ) |
| Signal Amplitude |
800mv ±10% |
| Impedance |
75Ω |
| General Parameters |
Power Supply |
DC 5-12V |
| Power |
<2W |
| Dimension(L*W*H) |
141*102*30 mm |
| Control |
DIP Switch |
| Net Weight |
0.3kg |
| Operating Temperature Range |
0-50℃ |
| Storage Temperature Range |
-20 to 75℃ |
| Operating Humidity Range |
20-70%RH |
| Storage Humidity Range |
0-90%RH |
Connection Diagram

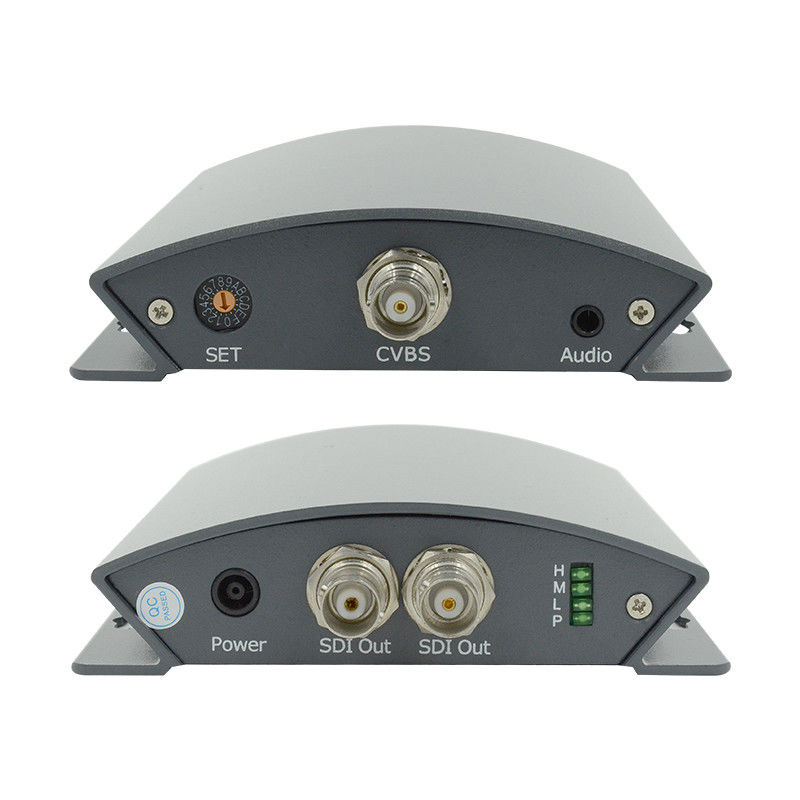

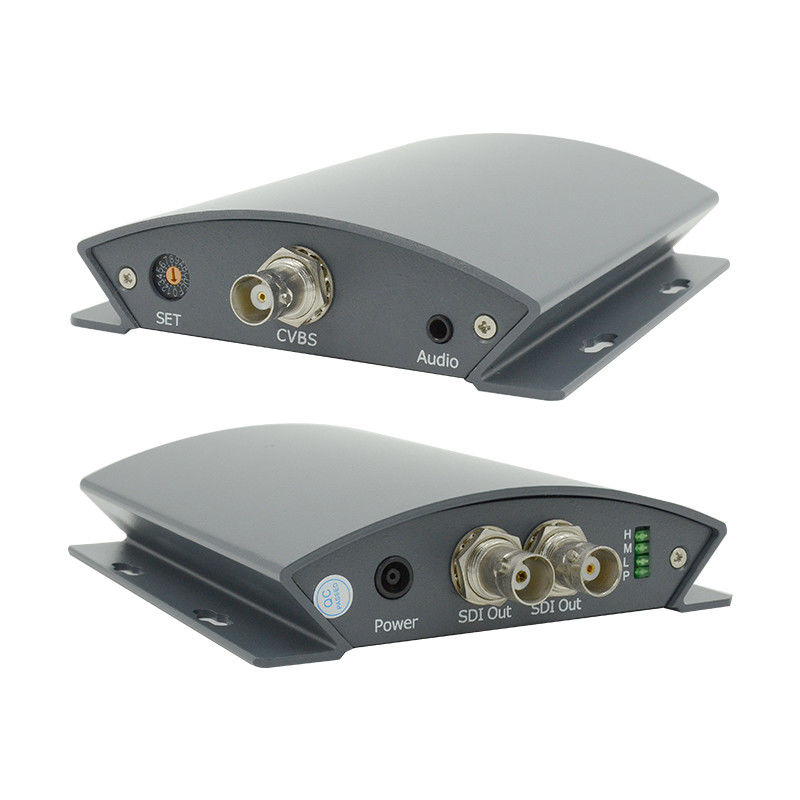

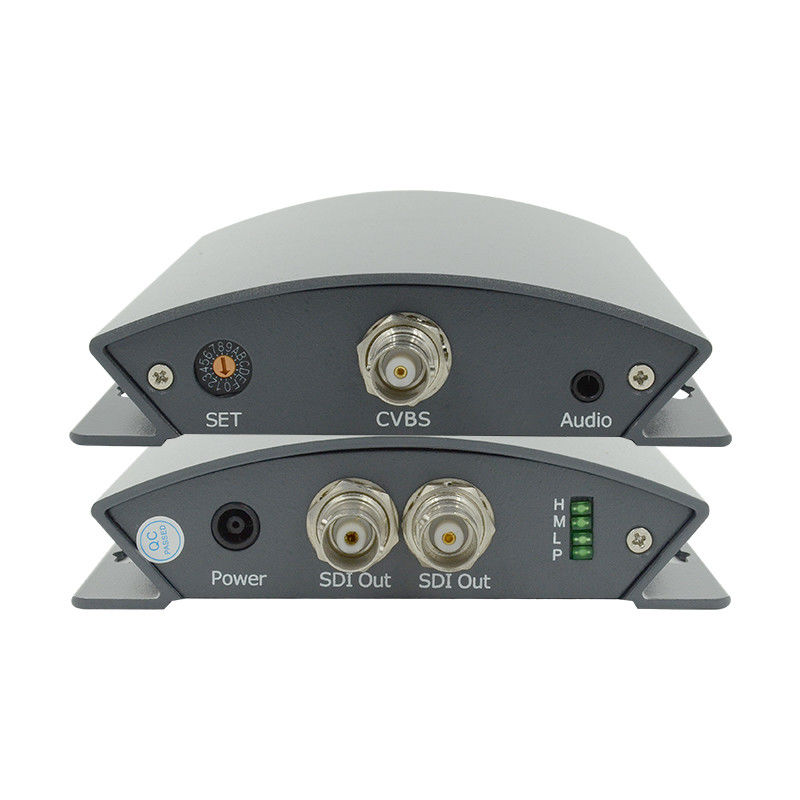

Panel Description
