Pro YPbPr to SDI HD video converter

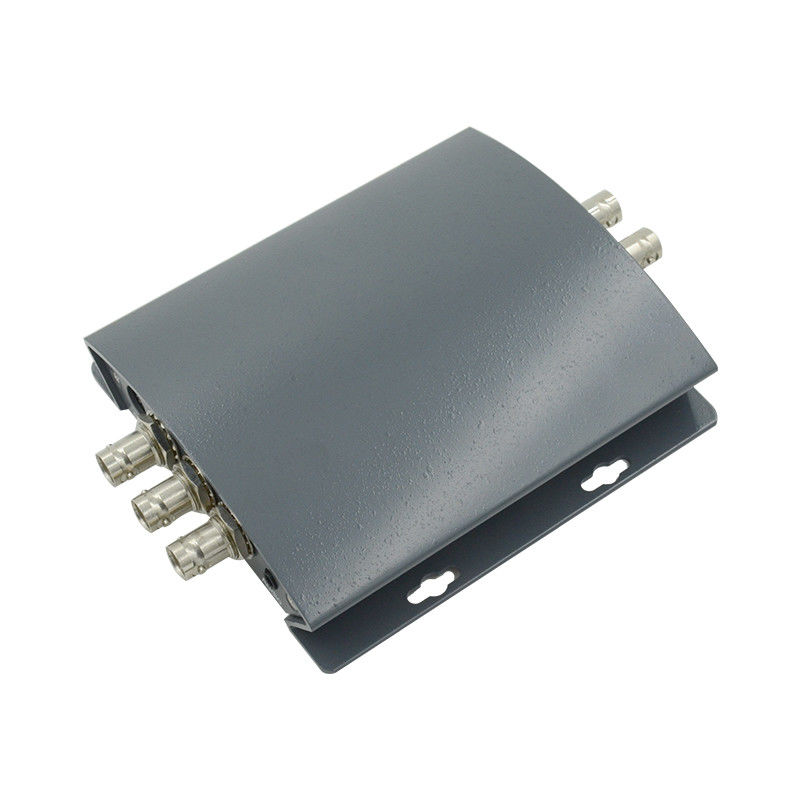

Introduction
LINK-MI LM-PYS01 HD video converter, support YPbPr signal input and 3G / HD / SD SDI signal output. This device integration YPbPr receivers and 3G / HD / SD-SDI encoder, convert YPbPr signal to 3G / HD / SD-SDI signals. Simultaneously, LM-PYS01 supports external analog stereo audio signal embedded in the SDI signal. In addition, LM-PYS01 also support the "frequency-conversion" function, YPbPr signals can be input "convert" to SDI signal output fixed resolution and converter SD 480I / 576I "up converting" to HD SDI. You can also "transform under" HD 1080P / 720P / 1080I to SD SDI output, optional trim or extra time "down converted" black edges. Resolution through digital coding switch to select, easy to operate.
Features
1. Standard YPbPr signal input
2. Optional 3G / HD / SD SDI signal output
3. Optional 1080P / 1080I / 720P / 480I / 576I common resolution
4. Optional 1080PSF / 720P 30/25/24 special resolution
5. Optional "down converted" trim or add black borders
6. YPbPr input signal adaptive
7. Support external analog stereo audio signals embedded in SDI signal
8. SDI set up "frequency" output
9. SDI set up "fixed frequency" output
10. Special features can be customized
Specification
| Name |
HD video YPbPr to SDI converter |
| Model No. |
LM-PYS01 |
| YPbPr Input |
Signal |
YPbPr Standard |
| Connector |
BNC |
| SMPTE |
27M |
| Signal Amplitude |
800mv ±10% ( 75 Ω) |
| Impedance |
75Ω |
| Analog Audio Iutput |
Output Signal |
Analog Stereo Audio |
| Impedance |
16Ω |
| Connector |
Earphones |
| SDI Output |
Output Signal |
SDI Signal |
| Connector |
BNC (IEC169-8 Standard) |
| Signal Amplitude |
800mv ±10% ( 75 Ω) |
| Impedance |
175Ω |
| General Parameters |
Power Supply |
DC 5-12V |
| Power |
<2W |
| Dimension(L*W*H) |
141*102*30 mm |
| Control |
DIP Switch |
| Net Weight |
0.3kg |
| Operating Temperature Range |
0-50℃ |
| Storage Temperature Range |
-20 to 75℃ |
| Operating Humidity Range |
20-70%RH |
| Storage Humidity Range |
0-90%RH |
Connection Diagram

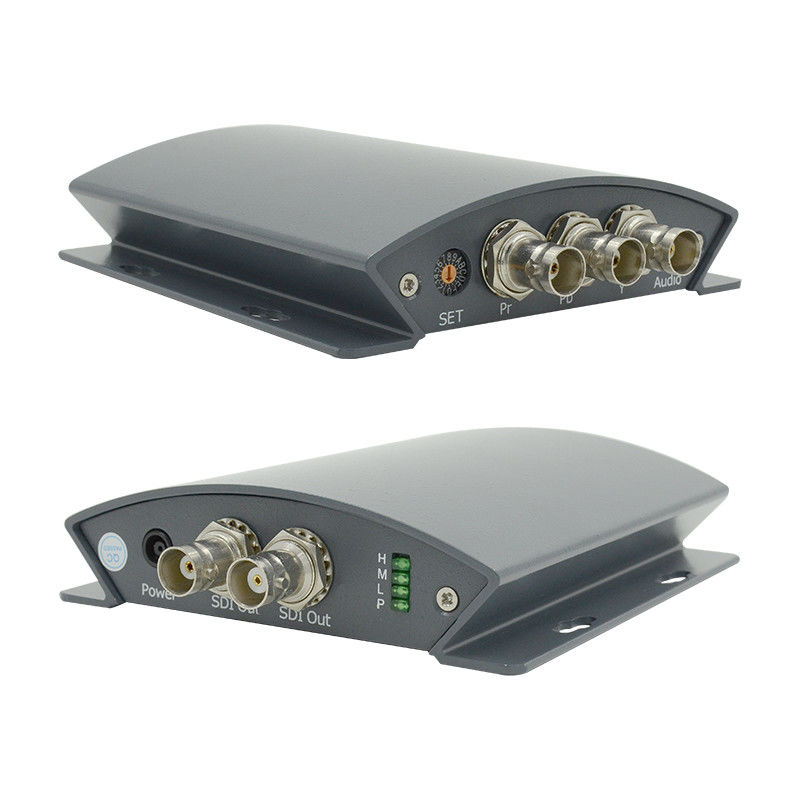

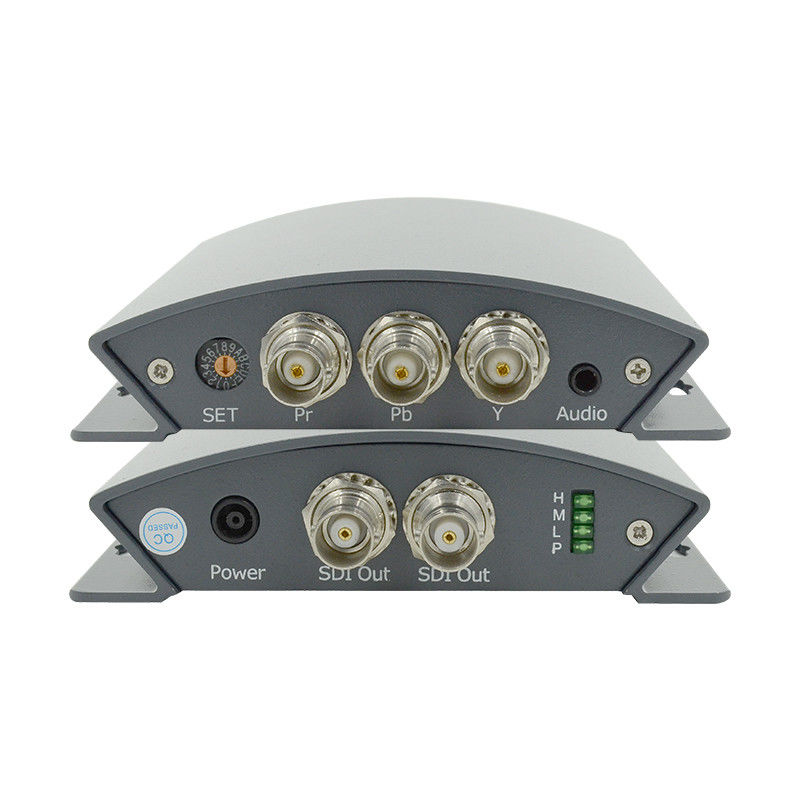

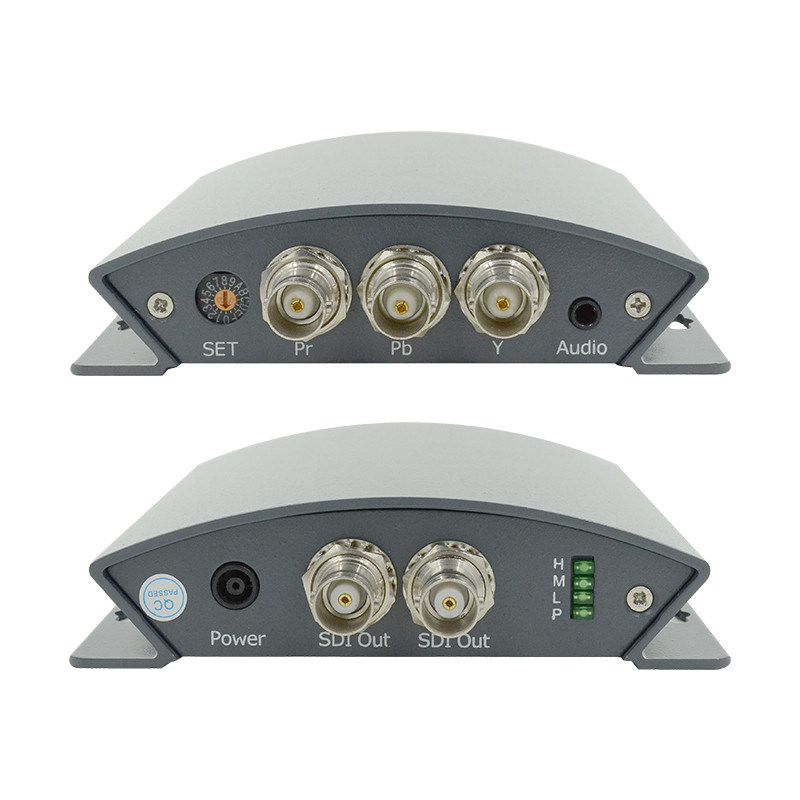

Panel Description
