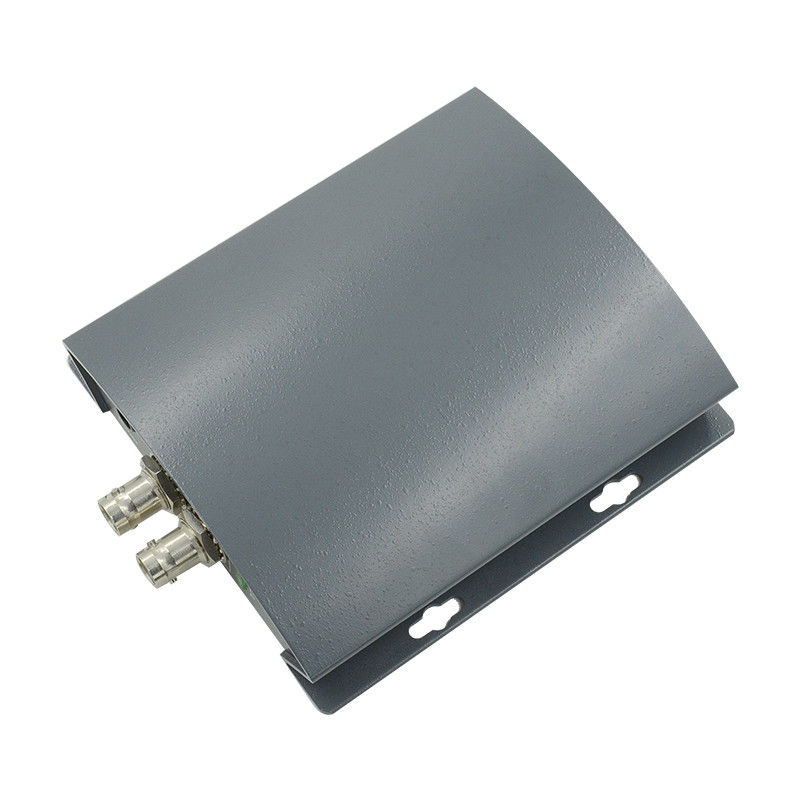

Pro VGA to SDI Converter
Introduction
LINK-MI LM-PVS01 Pro VGA to SDI Converter, a device which can convert VGA Signal to 3G/HD/SD SDI Signal, integrated VGA Receiver and 3G/HD/SD SDI Encoder. LM-PVS01 Pro VGA to SDI Converter can embedded external analog Stereo audio to 3G/HD/SD SDI Signal and Supports frequency conversion function, can transfer VESA Standard VGA input signal to standard SDI signal output. And the Output resolution can be choosed by DIP Switch, easy to use.
Features
1. VESA Standard VGA Signal Input
2. 3G/HD/SD SDI signal output
3. High resolution video output format 1080p/1080i/720p/480i/576i/1080psf
4. VGA input signal adaptively
5. Supports embedded external analog stereo audio to SDI signal
6. SDI can be setting as “ frequency conversion function “ output
7. SDI can be setting as “ fixed-frequency” output
8. Special function can be customized
Specification
| Product Type |
Pro VGA to SDI Converter |
| Model No. |
LM-PVS01 |
| VGA Input |
Input Signal |
VESA Standard VGA Signal |
| Connector |
DB-15 |
| Signal Amplitude |
800mV±10%(75R) |
| Impedance |
75Ω |
| Analog Audio Input |
Input Signal |
Analog Stereo Audio |
| Digital Sampling |
48K |
| Impedance |
16Ω |
| Connector |
Earphones |
| SDI Output |
Output Signal |
3G/HD/SD SDI |
| SMPTE |
270Mbps-2.97Gbps |
| Signal Amplitude |
800mV±10% |
| Impedance |
75Ω |
| Connector |
BNC ( IEC169-8 Standard) |
| General Parameters |
Power Supply |
DC 5-12V |
| Power Consumption |
<2W |
| Dimension ( LxWxH) |
141x102x30mm |
| Control |
DIP Switch |
| Weight |
0.3kg |
| Operating Temperature Range |
0-50℃ |
| Storage Temperature Range |
-20 to 75℃ |
| Operating Humidity Range |
20-70%RH |
| Storage Humidity Range |
0-90%RH |
Connection Diagram

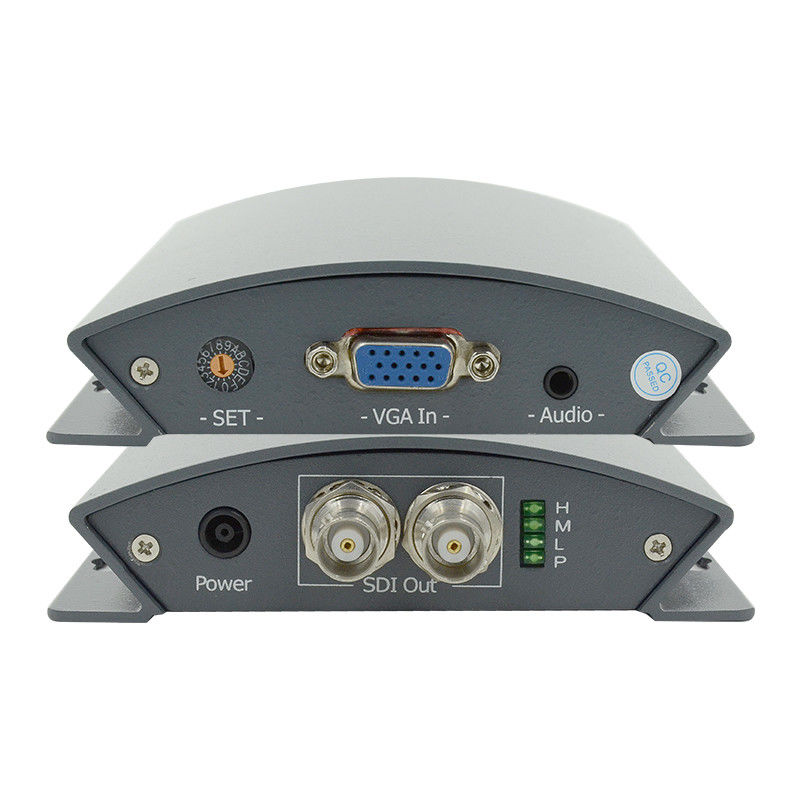

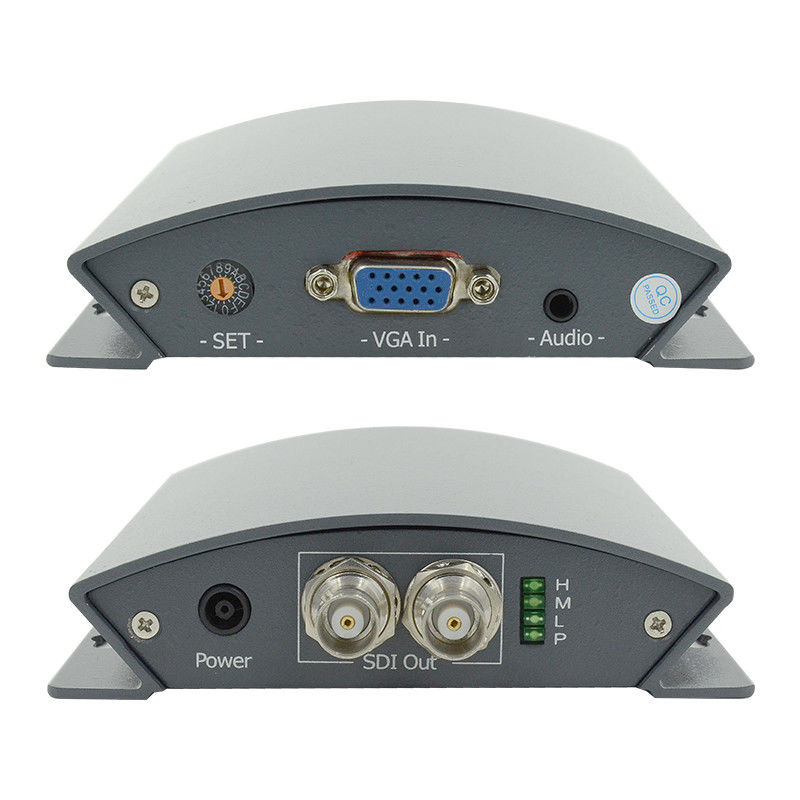

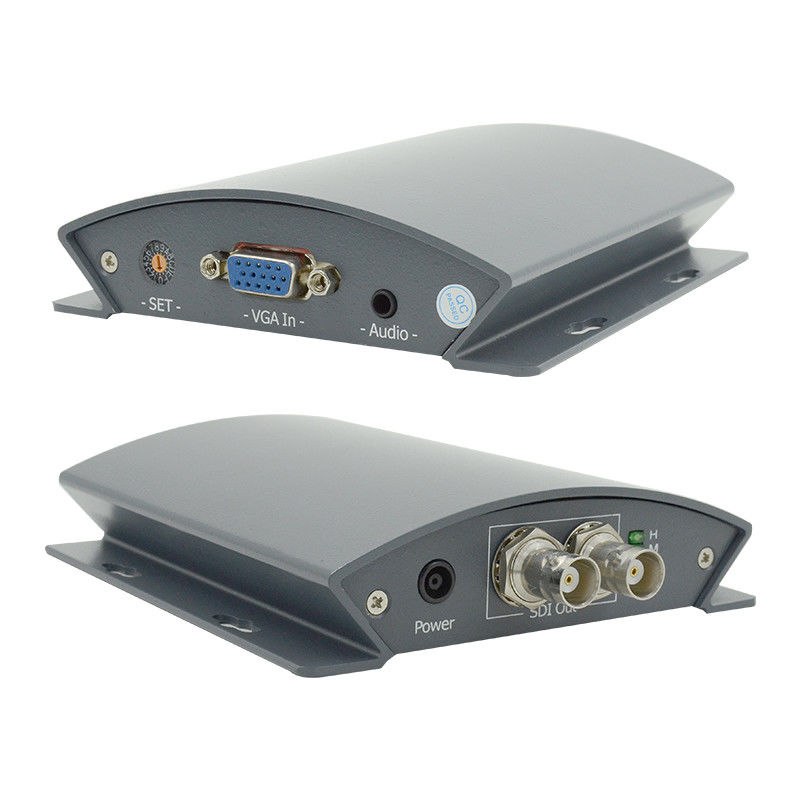

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-PVS01 Pro VGA to SDI Converter.pdf
