SDI to DVI Video Converter Support 3G HD SD
Introduction
LINK-MI LM-PSD01 SD/HD/3G SDI to DVI Converter is a device integrated 3G/HD/SD-SDI receiver and DVI encoder, it support 3G / HD / SD-SDI signals transfer to DVI signal, while LM-PSD01 also support 3G/ HD/SD-SDI signal de-embedded audio output to an analog port.
In addition, this model also support the frequency conversion function, you can convert SDI input signal to the VESA standard resolution output.
Features
1. Supports 3G/HD/SD SDI Signal Input
2. Supports 1080p/1080i/720p/480i/576i Video format
3. SD DVI output
4. SDI input signal adaptive
5. SDI embedded audio de-embedding
6. Supports Analog stereo audio output
7. Support the "frequency" feature DVI output
8. Special functions can be customized
Specification
| Name |
SDI to DVI HD Video Converter |
| Model No. |
LM-PSD01 |
| SDI Input / Output |
Signal |
3G/HD/SD SDI |
| Connector |
BNC ( IEC169-8 Standard ) |
| SMPTE |
270Mbps-2.97Gbps |
| Signal Amplitude |
800mv ±10% ( 75 Ω) |
| Impedance |
75Ω |
| Analog Audio Output |
Output Signal |
Analog Stereo Audio |
| Impedance |
16Ω |
| Connector |
Earphones |
| DVI Output |
Output Signal |
Digital DVI Output |
| Connector |
DVI-I |
| Signal Amplitude |
800mv ±10% ( 75 Ω) |
| Impedance |
75Ω |
| General Parameters |
Power Supply |
DC 5-12V |
| Power |
<2W |
| Dimension(L*W*H) |
141*102*30 mm |
| Control |
DIP Switch |
| Net Weight |
0.3kg |
| Operating Temperature Range |
0-50℃ |
| Storage Temperature Range |
-20 to 75℃ |
| Operating Humidity Range |
20-70%RH |
| Storage Humidity Range |
0-90%RH |
Connection Diagram

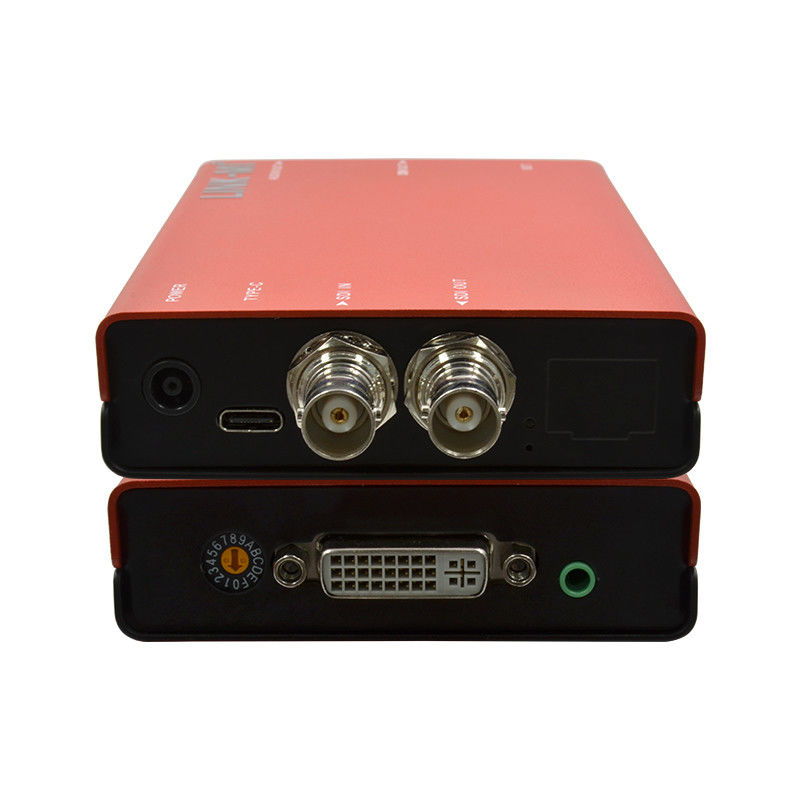

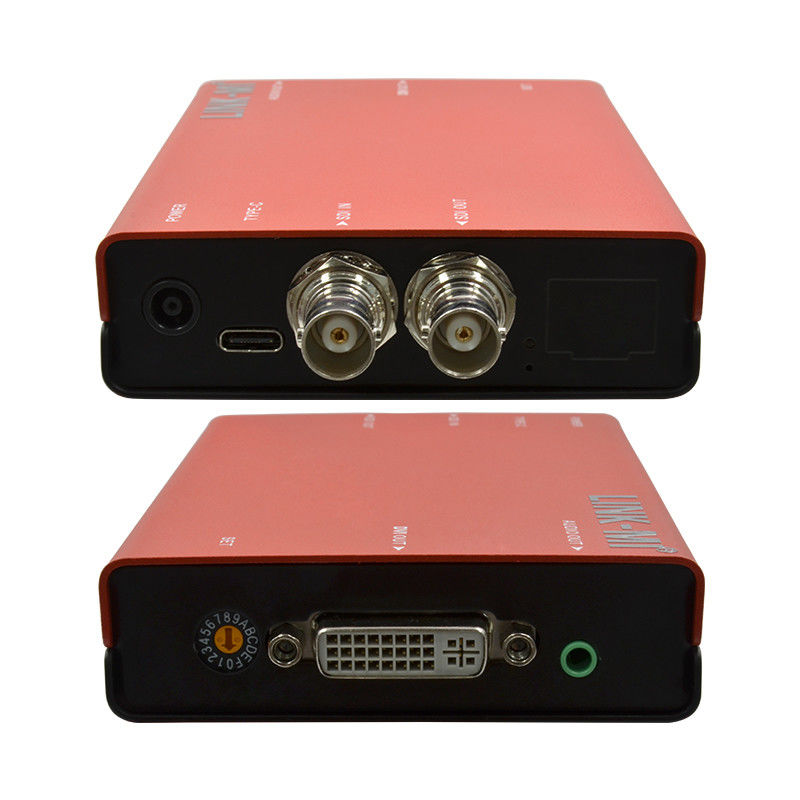

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-PSD01 Pro SDI to DVI Video Converter -NEW.pdf
