BNC SDI to YPbPr Converter
Introduction
LINK-MI LM-PSY01 BNC SDI to YPbPr Converter is a device to convert 3G/HD/SD-SDI signal to YPbPr Signal, based on the LINK - MI Third Generation Technology. It integrates 3G/HD/SD-SDI Receivers and YPbPr Encoder, can convert the 3G/HD/SD-SDI signal to component Video output. At the same time, LM-PSY01 BNC SDI to YPbPr Converter also can support De-embedded audio from 3G/HD/SD SDI signal, output to the analog ports. LM-PSY01 BNC SDI to YPbPr Coverter integrated up-conversion and down-conversion function, with adaptively SDI signal input. The output resolution can be changed freely. Down-conversion can select Left/Right Cut or Top/Bottom with Black. It also can support full screen output.
Features
1. Based on the LINK - MI Third Generation Technology
2. Supports 3G/HD/SD SDI Signal Input
3. Supports 3G/HD/SD SDI Signal Looping Output
4. Supports 1080p/1080i/720p/480i/576i Video format
5. Supports 1080PSF/ 720P 30/25/24Hz
6. SD/HD YPbPr output
7. Support up-conversion and down-conversion function
8. Select 3 kinds of mode freely under down-conversion
9. Adaptively SDI input signal
10. De-embedded Audio from SDI input signal
11. Supports Analog stereo audio output
12. Can be costumed
Specification
| Name |
BNC SDI to YPbPr Converter |
| Model No. |
LM-PSY01 |
|
SDI Input / Output
|
Signal |
3G/HD/SD SDI |
| Connector |
BNC ( IEC169-8 Standard ) |
| SMPTE |
270Mbps-2.97Gbps |
| Signal Amplitude |
800mv ±10% ( 75 Ω) |
| Impedance |
75Ω |
|
Analog Audio Output
|
Output Signal |
Analog Stereo Audio |
| Impedance |
16Ω |
| Connector |
Earphones |
|
YPbPr Output
|
Output Signal |
Analog YPbPr Signal |
| Connector |
BNC ( IEC169-8 Standard ) |
| Signal Amplitude |
800mv ±10% ( 75 Ω) |
| Impedance |
75Ω |
|
General Parameters
|
Power Supply |
DC 5-12V |
| Power |
<2W |
| Dimension(L*W*H) |
141*102*30 mm |
| Control |
DIP Switch |
| Net Weight |
0.3kg |
| Operating Temperature Range |
0-50℃(non-condensing) |
| Storage Temperature Range |
-20 to 75℃ |
| Operating Humidity Range |
20-70%RH |
| Storage Humidity Range |
0-90%RH |

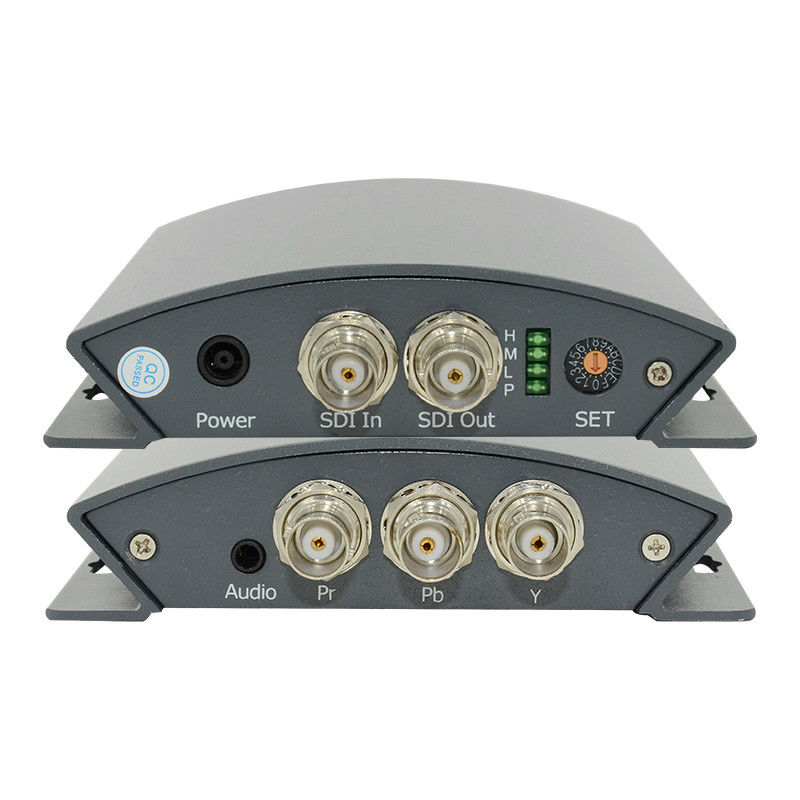

Connection Diagram

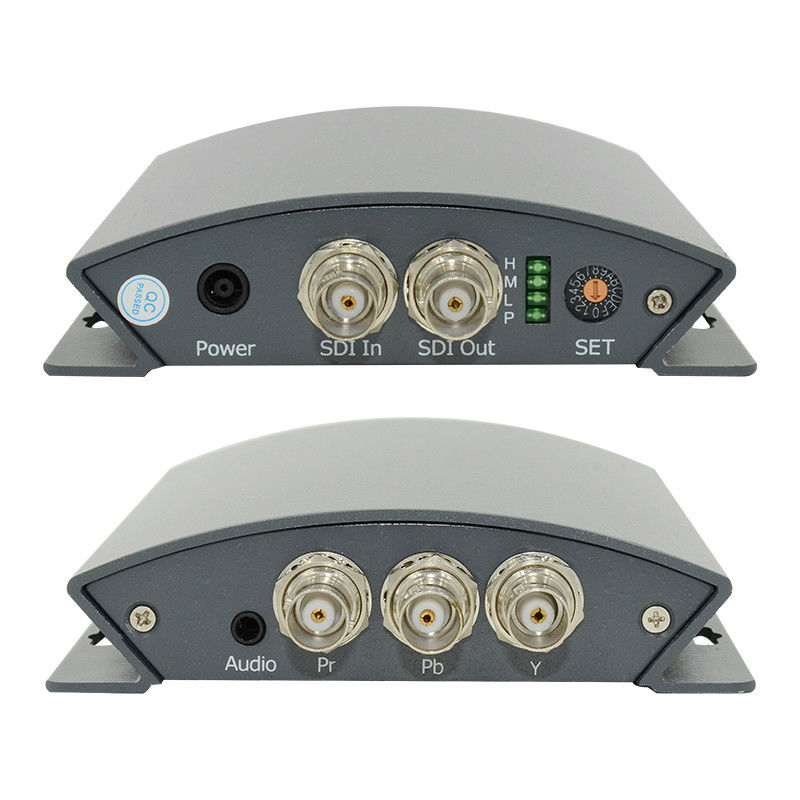

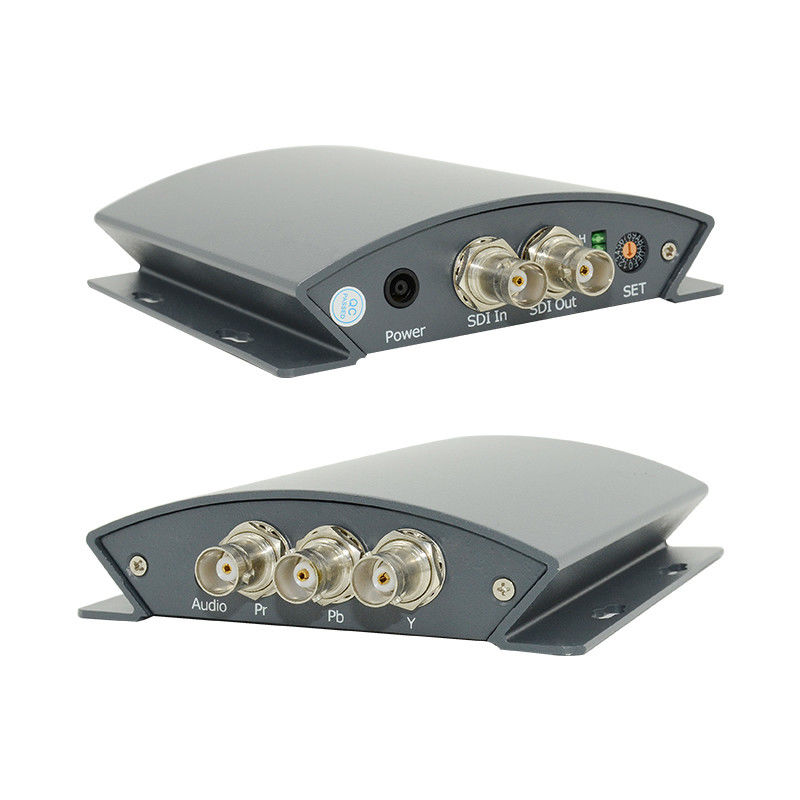

Panel Description
