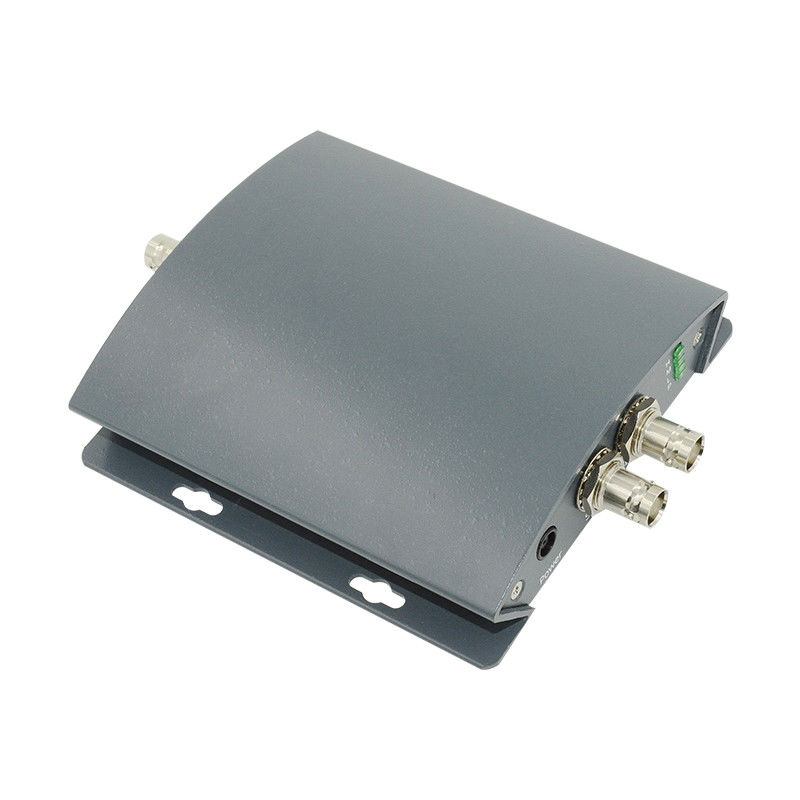

AV/CVBS Signal Supports SDI to BNC Video Converter Adapter
Introduction
LINK-MI LM-PSC01 AV/CVBS Signal Supports SDI to BNC Video Converter Adapter is apply to 3G/HD/SD SDI Signal Conversion Converter, integrates FRCS ( Frames Rate Conversion System), SDI Receivers and CVBS Encoder, can convert the 3G/HD/SD SDI signal to composite Video CVBS. At the same time, LM-PSC01 AV/CVBS Signal Supports SDI to BNC Video Converter Adapter supports de-embedded audio from 3G/HD/SD SDI signal, output to the analog ports.
Features
1. Supports 3G/HD/SD SDI Signal Input
2. Supports 3G/HD/SD SDI Signal Looping Output
3. Supports 1080p/1080i/720p/480i/576i Video format
4. Supports 1080PSF/ 720P 30/25/24Hz
5. SD CVBS output ( Supports PAL/NTSC )
6. Supports Down-Conversion function
7. Down-Conversion have three mode ( ( Left/Right Cut, T/B Black, Point to Point Output ) can be choosed
8. Adaptively SDI Input signal
9. De-embedded Audio from SDI Input signal
10. Supports Analog stereo audio output
11. SDI Looping out and synchronous CVBS output
12. Color Bar output
13. Can be costumed
Specification
| Name |
SDI to BNC Video Converter Adapter |
| Model No. |
LM-PSC01 |
| SDI Input / Output |
Signal |
3G/HD/SD SDI |
| Connector |
BNC ( IEC169-8 Standard ) |
| SMPTE |
270Mbps-2.97Gbps |
| Signal Amplitude |
800mv ±10% ( 75 Ω) |
| Impedance |
75Ω |
| Analog Audio Output |
Output Signal |
Analog Stereo Audio |
| Impedance |
16Ω |
| Connector |
Earphones |
| CVBS Output |
Output Signal |
Analog CVBS Signal |
| Connector |
BNC ( IEC169-8 Standard ) |
| Signal Amplitude |
800mv ±10% ( 75 Ω) |
| Impedance |
75Ω |
| General Parameters |
Power Supply |
DC 5-12V |
| Power |
<2W |
| Dimension(L*W*H) |
141*102*30 mm |
| Control |
DIP Switch |
| Net Weight |
0.3kg |
| Operating Temperature Range |
0-50℃ |
| Storage Temperature Range |
-20 to 75℃ |
| Operating Humidity Range |
20-70%RH |
| Storage Humidity Range |
0-90%RH |
Connection Diagram

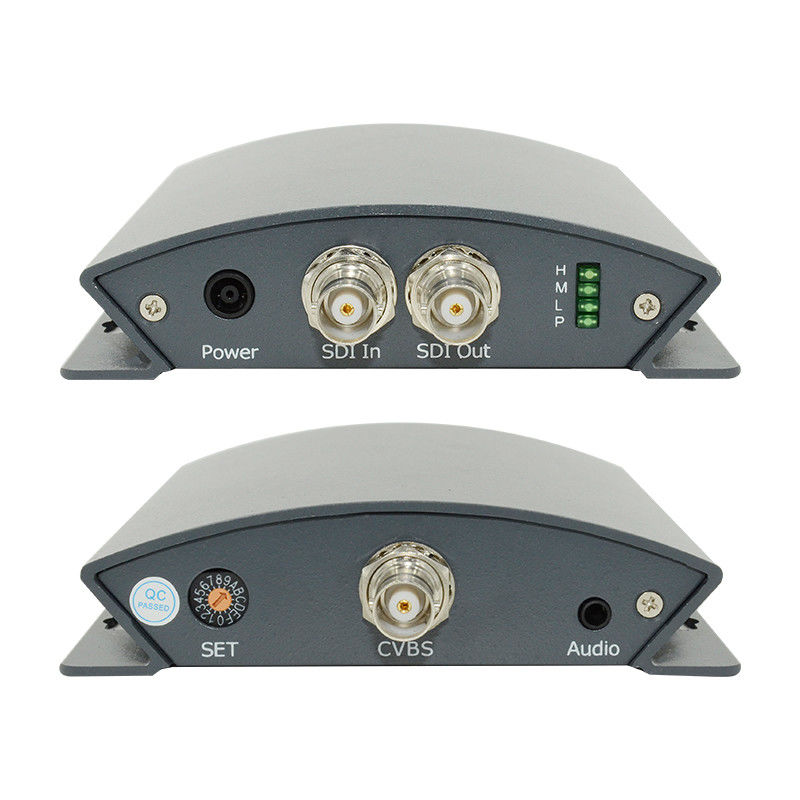

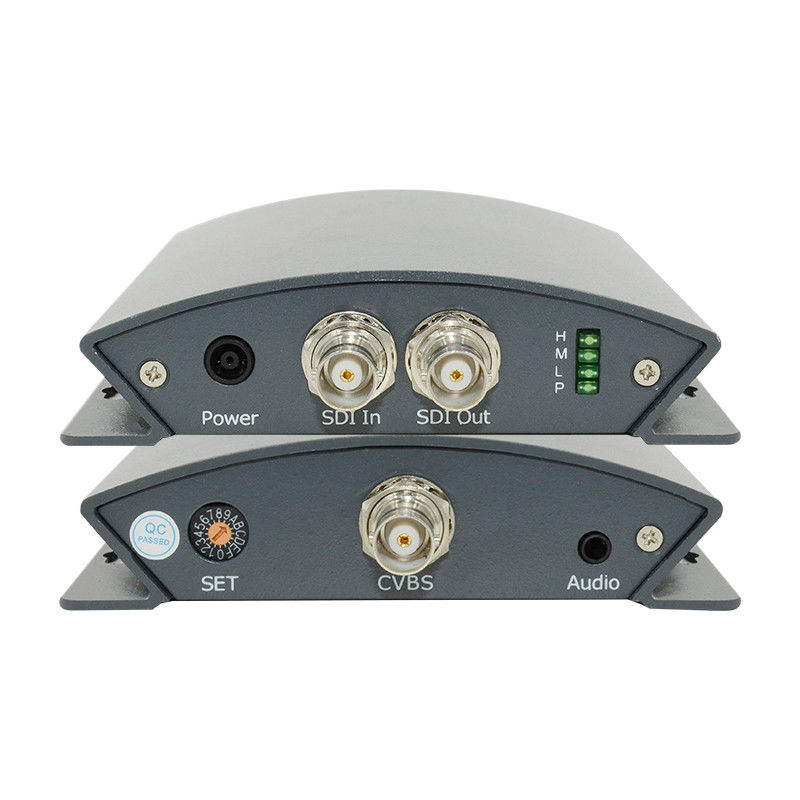

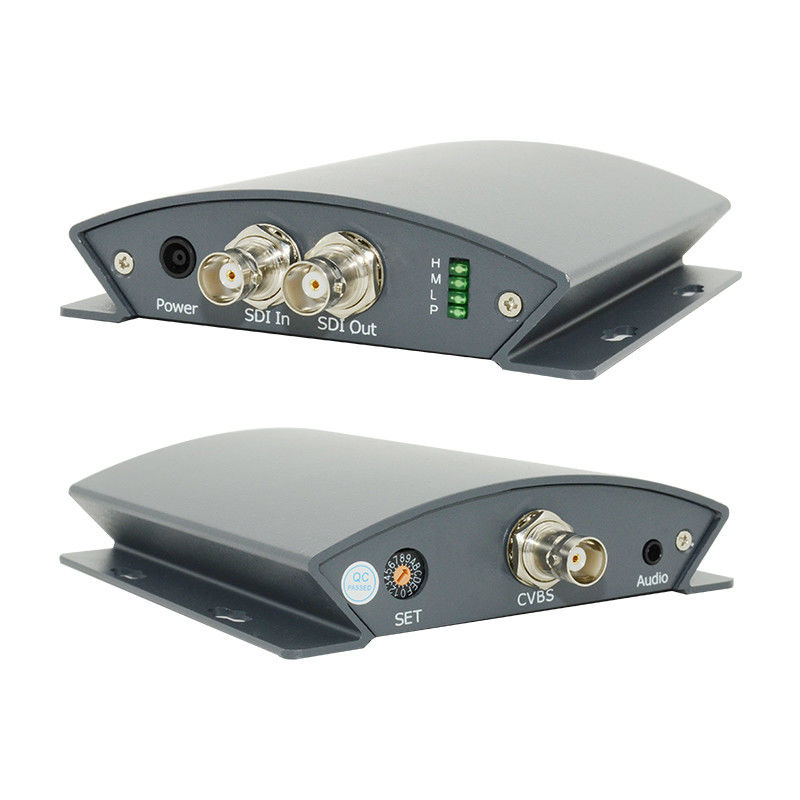

Panel Description
