1x4 SDI Splitter Broadcast 3G/HD/SD Video Splitter
Introduction
LINK-MI LM-PSD14 Broadcast 1x4 3G/HD/SD SDI splitter Upscale PAL/NTSC/720P to 1080I/1080P is a dedicated 3G/HD/SD SDI signal splitter, integrates FRCS ( Frames Rate Conversion System), SDI Receivers and SDI Encoder, can convert the 3G/HD/SD SDI signals to different resolutions of 3G/HD/SD SDI video signals. At the same time, this 3G/SD/HD SDI Splitter support de-embedded audio from 3G/HD/SD-SDI signal, and embedded to SDI outputs.
It supports Unique clock regeneration clock to dithering in time function to keep stable quality of the output signal,as well as conforms to broadcasting standard. LM-PSD14 integrated up/down-conversion function,adaptive SDI signal input and selectable 1080p/1080i/720p output etc. Down-conversion can select Left/Right Cut or Top/Bottom with Black. It also can support full screen output.
Features
1. Based on LINK-MI third-generation technology
2. Supports 3G/HD/SD SDI Signal Input
3. Supports 3G/HD/SD SDI Signal Output
4. Supports 1080p/1080i/720p/480i/576i Video format
5. Supports 1080PSF/ 720P 30/25/24Hz
6. Adaptively SDI Input signal
7. SDI input embedded audio de-embedding
8. SDI Output audio em-bedder
9. Three modes are free to choose
10. Supports Up-Conversion and Down-Conversion function
11. With three mode can be selected freely on Down-Conversion function
12. Clock Recovery
13. Special features can be customized
Specification
| Name |
Broadcast 1x4 3G/HD/SD SDI Splitter |
| Model No. |
LM-PSD14 |
| SDI Input |
Signal |
3G/HD/SD SDI |
| Connector |
BNC ( IEC169-8 Standard ) |
| SMPTE |
270Mbps-2.97Gbps |
| Ability of Equalization |
100M(3G SDI,1694A) |
| Impedance |
75Ω |
| SDI Output |
Output Signal |
HD SDI serial digital video signal |
| Connector |
BNC ( IEC169-8 Standard ) |
| SMPTE |
270Mbps~2.97Gbps |
| Signal Amplitude |
800mv ±10% ( 75 Ω) |
| Impedance |
75Ω |
| General Parameters |
Power Supply |
DC 5-12V |
| Power |
<2W |
| Dimension(L*W*H) |
141*102*30 mm |
| Control |
DIP Switch |
| Net Weight |
0.3kg |
| Operating Temperature Range |
0-50℃ |
| Storage Temperature Range |
-20 to 75℃ |
| Operating Humidity Range |
20-70%RH |
| Storage Humidity Range |
0-90%RH |
Connection Diagram

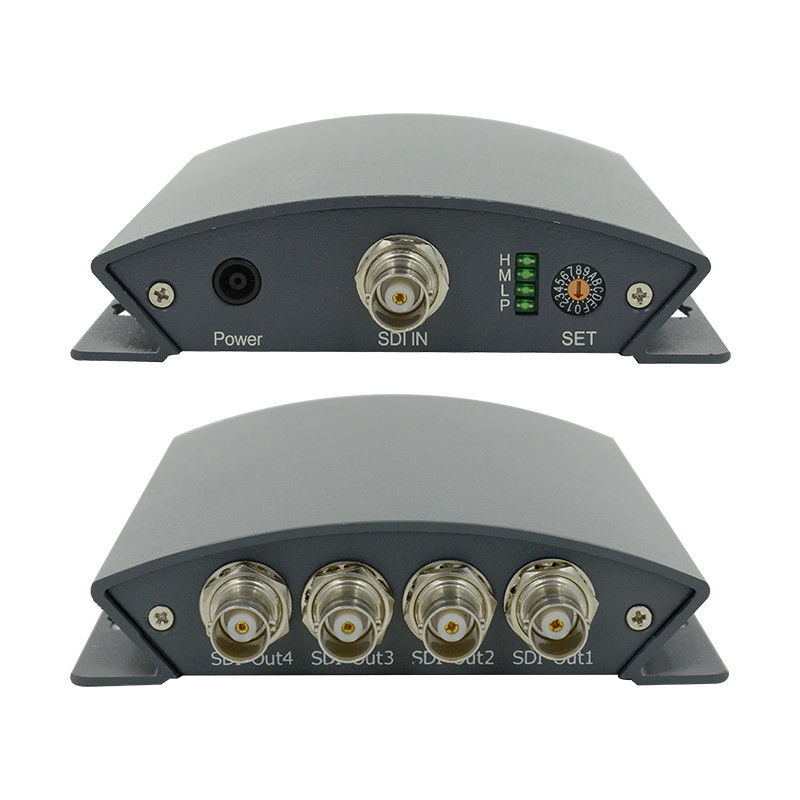

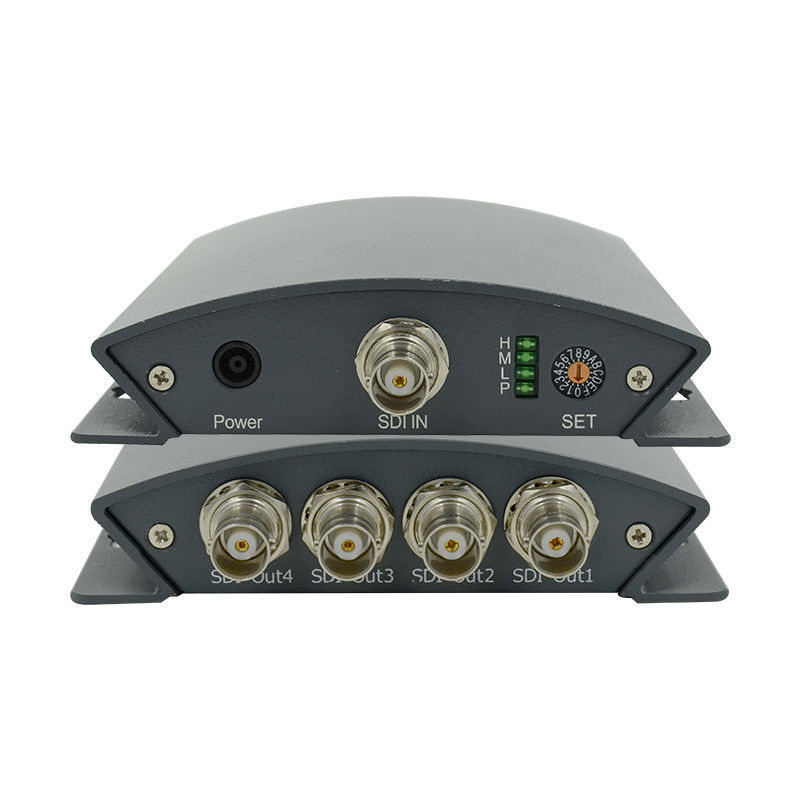

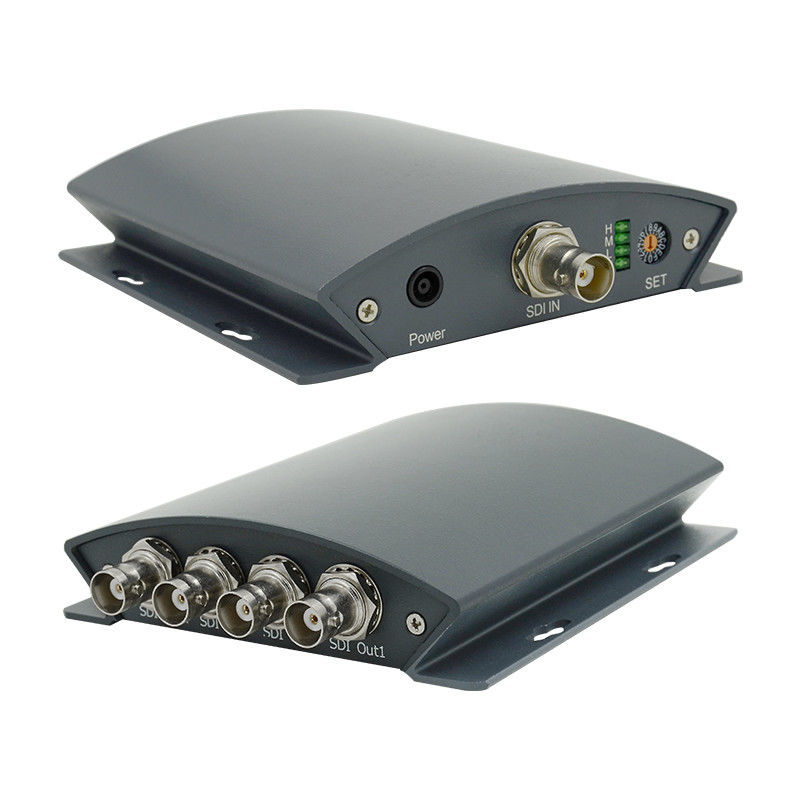

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-PSD14 Broadcast 1x4 3G_HD_SD SDI Splitter.pdf
