4x1 HDMI Multi-Viewer PIP POP with IR Remote RS232 Control Center Control
Introduction

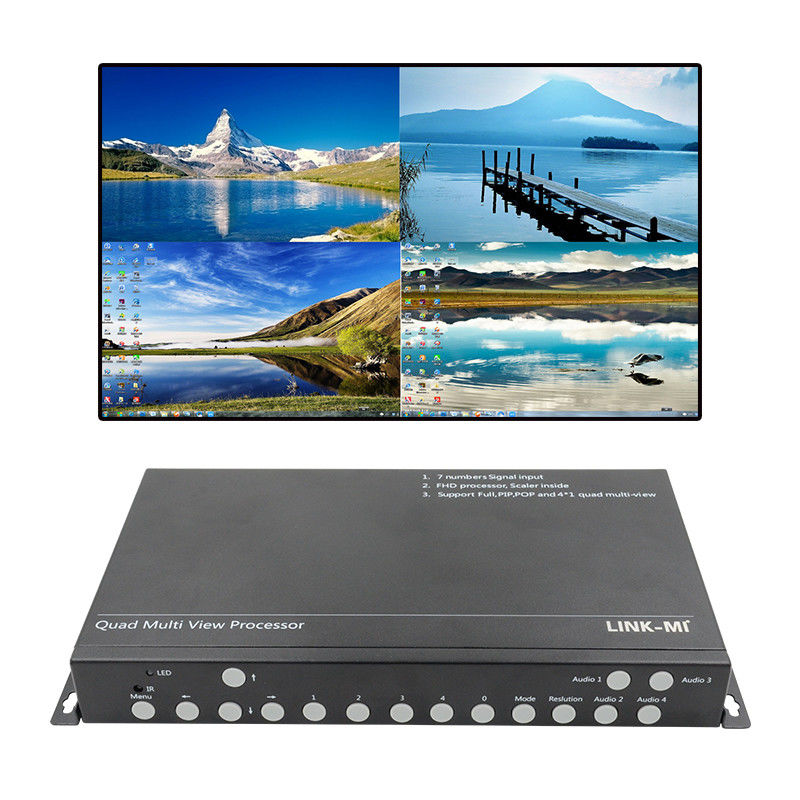

LINK-MI LM-TS71 4x1 HD Quad Video Multiviewer is a high-performance, its main function is to make the four HD or analog signals displayed simultaneously on a super-high-definition display unit under quad mode, and contain PIP, POP function. This type of HD Quad video multi viewer supports 1 channel VGA, 2-way DP, 4-way HDMI signal input. Maximum input signal of DP supports 1920x1080@60Hz, the highest HDMI input signal can support 1920x1080@60Hz, and the maximum output resolution up to 1920x1080@60Hz; Support 1 HDMI signal output, the output resolution and refresh rate up to 1920x1080@60Hz.
LM-TS71 4x1 HD Quad Video Multiviewer is currently using a relatively large number of standard products on the market, products are mainly used in where need to usea single display unit simultaneously display multiple HD signals workplace like video conferencing, teaching, exhibitions...etc.
Features
1. Support 1 single display unit simultaneously display 4 high-definition signals, or switch a certain signal to full-screen display.
2. Support 1 channel VGA, 2-way DP, 4-way HDMI (including 3-way compatible mobile signal) input signal.
3. Support 1 HDMI output, output resolution up to 1920x1080@60Hz.
4. All input signals contain audio, support audio and video synchronous switching and four audio independent switching under quartering.
5. Support image fixed position POP, PIP function.
6. Support control by chassis buttons, IR remote control, RS-232 serial port and the center control.
Specification
| Name |
Specification |

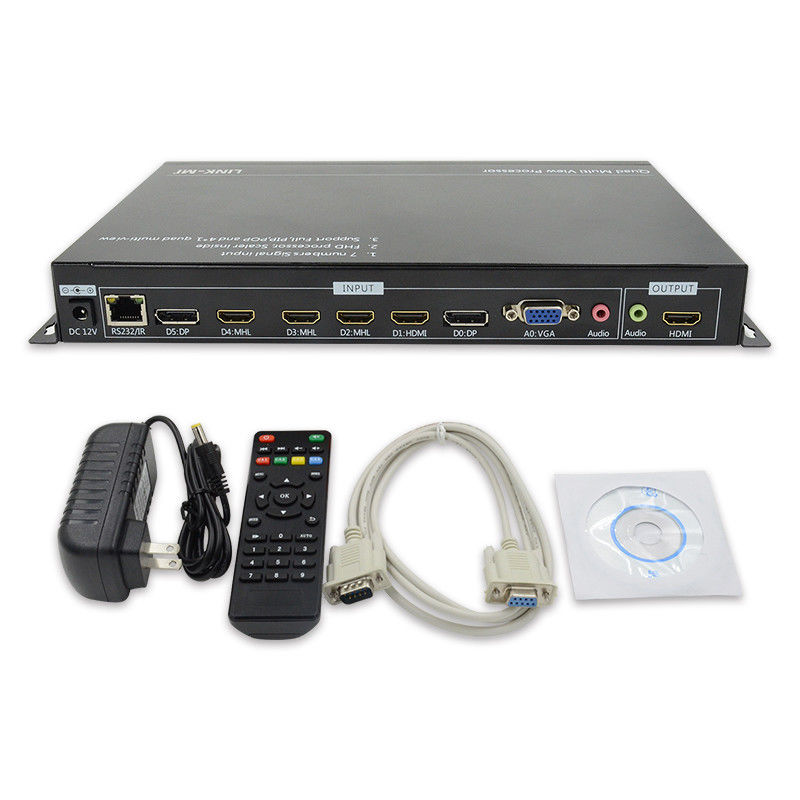

| Signal input |
| Input port |
1 channel VGA, 2-way DP, 4-way HDMI, 4-way USB, 1 left and right channel audio |
| Resolution |
DP supports a maximum resolution of 1920×1080 @ 60HZ, backward compatible;
HDMI supports a maximum resolution of 1920×1080 @ 60HZ, downward compatible
|
| audio |
Input audio supports 3.5mm audio interface for bind VGA |
| Color depth |
24bit,1677 ten thousand |
| POP,PIP mode |
Fixed model |
| output |
| interface |
1 channel HDMI 1.4 output connected display devices that support audio and video sync output;
A 3.5mm audio left and right channel stereo, for connecting stereo
|
| Resolution |
1920×1080 @ 60HZ, 1280×720 @ 60HZ optional |
| Color depth |
24bit,1677 ten thousand |
| Control mode |
RS232,IR,case key |
| Control software |
Not available |
| voltage |
DC:12V |
| dimension |
278mm(L)×36mm(H)×166mm(W) |
| weight |
1.2kg |
| Power |
Maximum 15W |
| Note: Specifications are subject to change without notice |
Connection Diagram

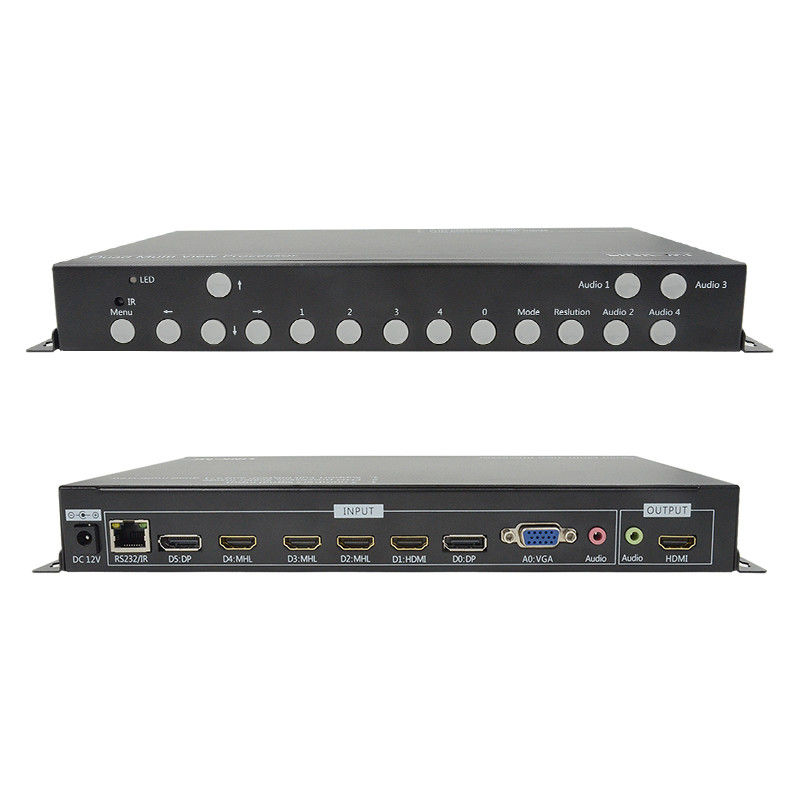

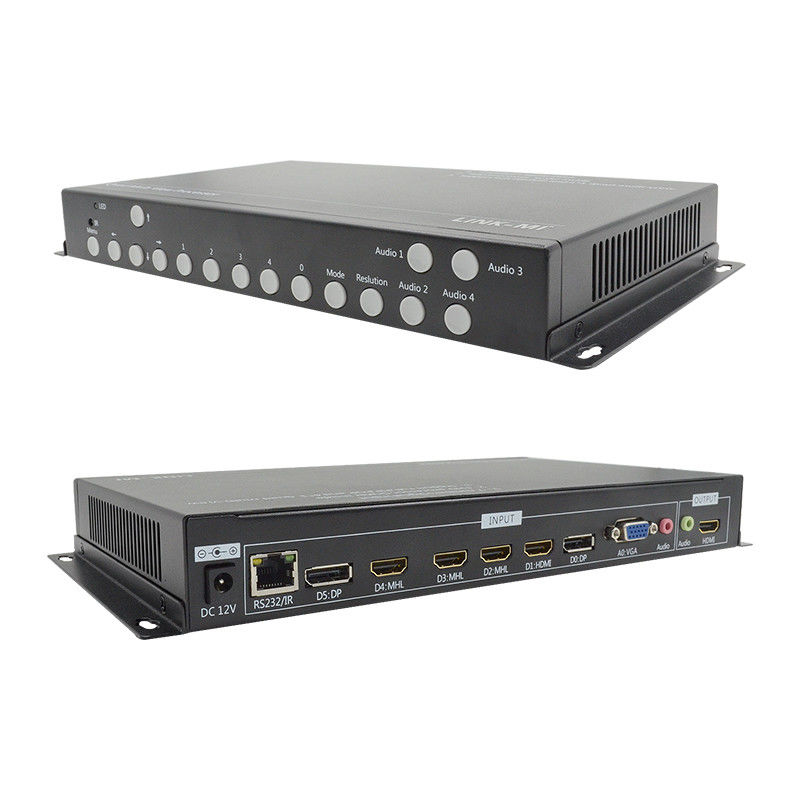

Panel Description
