HDMI Video Rotator 90°180°270° HD Video Upscaling Rotary Switch
Introduction

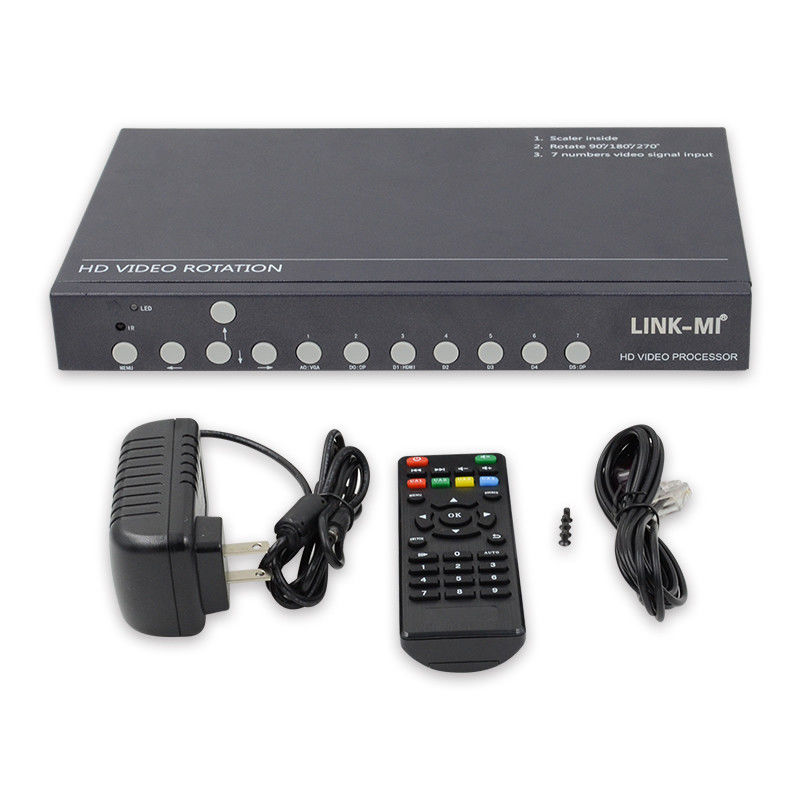

LINK-MI LM-TN701 HD Video Upscaling Rotary Switch is a high quality and high performance image upscaling rotary switch, use the high speed image processor chip. This product is main function is that can supports HDMI, DP, Smart Mobile and VGA signal input and switch any one of the input signals to HDMI output. This product supports video and audio synchronous switch of different signal formats, and setting the image 90 degree, 180 degree and 270 degree rotation.
Features
1. Input signals
Supports 1x VGA, 2x DP ( DisplayPort ), 4x HDMI and 1x Audio ( bound with VGA Signal ) input, the highest output signal supports 1920x1200@60Hz and downward compatibility.
2. Mobile Phone Input function
3x HDMI input ports supports smart phone signal input, can connect with Mobile Phone via a micro USB to HDMI cable, display the video in Mobile phone directly.
3. Output Signal
1x HDMI and 1x Stereo Audio output, the output resolution supports 1280x720@60Hz and 1920x1080@60Hz optionally
4. Switch Function
Select one of different input signal source and switch to HDMI display, and realized video and audio synchronous switch via remote controller or chassis buttons or Control software
5. Upscaling Function
Different Resolution, different refresh rate and different signal format ( VGA, DP, HDMI ) can be upscaled and switch to fixed HDMI signal and fixed resolution output. The output resolution supports 1280x720@60Hz and 1920x1080@60Hz optionally.
6. Image Rotation Function
Supports image 90 degree, 180 degree and 270 degree rotation function via remote controller or chassis buttons. This function is widely use in specific place which need the image rotation.
Specification
| Input Signal |
| 1x VGA |
HD15 port, supports 640x480@60Hz to 1920x1200@60Hz |
| 2x DP |
DisplayPort 1.1 |
| 4x HDMI |
HDMI 1.4 ( HDCP 1.3 ), three of 4 HDMI Input ports Compatible with smart phone signal |
| 1x Audio |
3.5mm earphone port, supports L/R stereo audio, bound with VGA Video signal |
| Output Signal |
| 1x HDMI |
HDMI 1.4 ( HDCP 1.3 ), 1920x1080/60Hz, 1280x720/60Hz optional |
| 1x Audio |
3.5mm earphone port, supports L/R Stereo Audio |
| Others |
| Control Mode |
Remote Controller, Chassis Buttons, RS232 Serial port |
| Power Supply |
DC 12V |
| Power Consumption |
10w |
| Dimension ( LxWxH) |
280x170x35mm |
| Net Weight |
1.1kg |
| Note: Specifications are subject to change without notice |

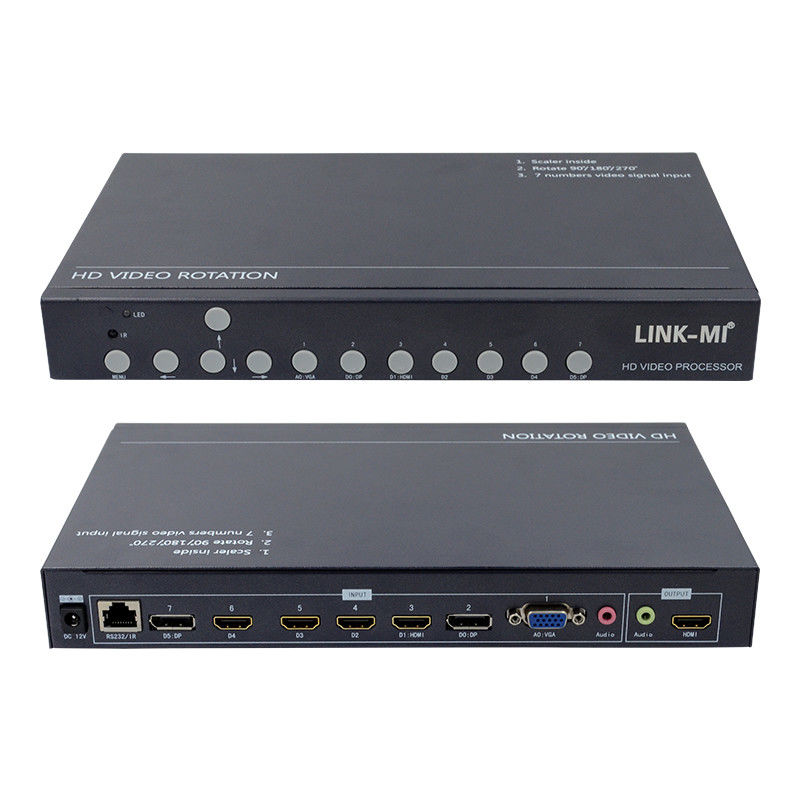

Connection Diagram

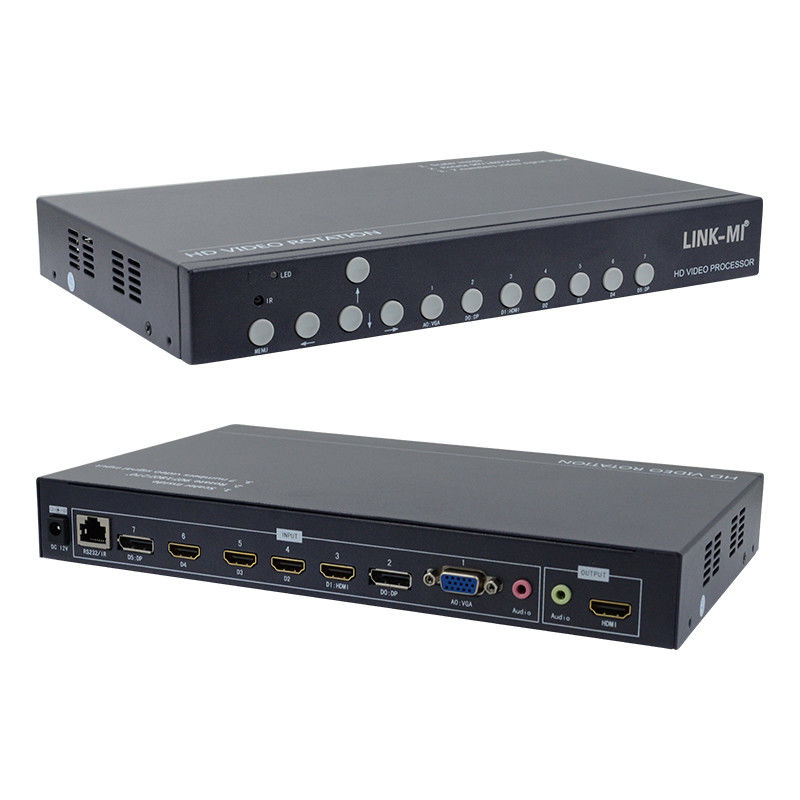

Panel Description
FAQ
