Mobile Phone Video Rotating Box Sync Screen Rotator HDMI Video Processor

High Performance Mobile Phone Sync Screen Rotator HDMI Video Processor

Introduction

 LINK-MI LM-TN702 is a high-performance Mobile Phone Syn cscreen Rotator, uses high-speed image processing chip inside. The main function is to display real-time, synchronous image to HD Vertical Advertisement Machine from Mobile Phone.

 LM-TN702 can input multiplex signals, convert signal format and Upscaling to 1280*720@60HZ or 1920*1080 HDMI signal output. It also can set 90, 180, 270 degree rotation for all signals.

Features

1. Input Signals

Supports 1x VGA, 2x DP(DisplayPort), 4x HDMI and 1x Audio(bound with VGA Signal) input The highest output signal supports 1920x1200@60Hz and downward compatibility.

2. Mobile Phone Input Function

3x HDMI input ports support smart phone signal input, can connect with Mobile Phone via a micro USB to HDMI cable to display image in Mobile phone directly. But the mobile phone must support Mobile High-Definition Link function.

3. Output Signal

1x HDMI and 1x Stereo Audio output, the output resolution supports 1280x720@60Hz and 1920x1080@60Hz optionally.

4. Switch Function

Select one of different input signal source and switch to HDMI display, and realize switching video and audio synchronously via remote controller, buttons, Control software or center control.

5. Upscaling Function

Different Resolution, different refresh rate and different signal format ( VGA, DP, HDMI) can be upscaled and switched to fixed HDMI signal and fixed resolution output. The output resolution supports 1280x720@60Hz and 1920x1080@60Hz optionally.

6. Image Rotation Function

Supports image 90 degree, 180 degree and 270 degree rotation function via remote controller or buttons. This function is widely used in specific place which needs the image rotation.

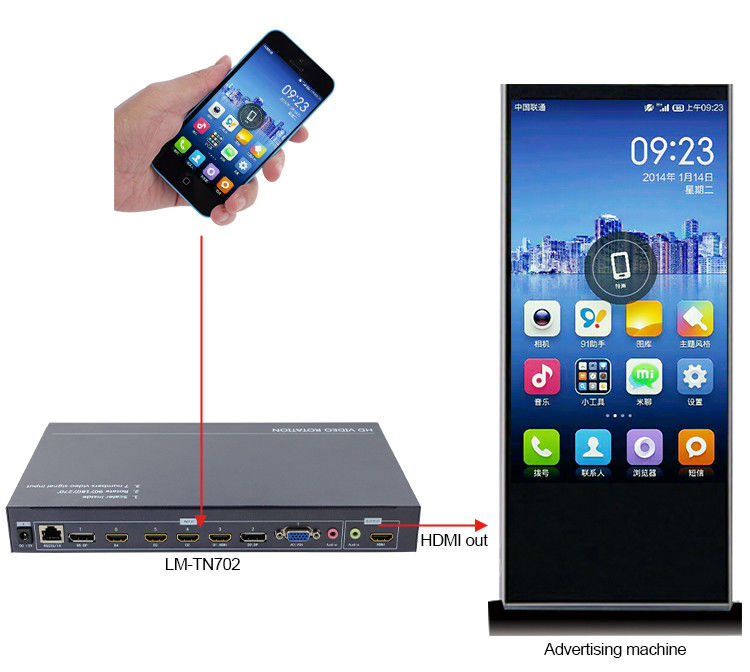

7. Mobile Phone and Vertical Advertisement Machine Display Synchronously

Different Smartphone realizes displaying image from Smartphone to the Vertical Advertisement Machine synchronously by different connection, There are mainly three ways to connect as below:

(1) Android Smartphone support Mobile High-Definition Link function:

Using an ordinary micro USB to HDMI cable to connect with HDMI input port, and then via menu settings to realize Mobile Phone and Vertical Advertisement Machine displaying synchronously.

(2) iPhone:

Using an ordinary Lightning to HDMI Converter plus a HDMI cable to connect with HDMI input port, and then via menu settings to realize Mobile Phone and Vertical Advertisement Machine displaying synchronously.

(3) Smartphone with projection screen function:

The Android Mobile Phone 4.2 Version and above, iphone 5, iphone6 can support this function at present. It only needs to add a regular Mobile Phone Syncscreen device to connect with LM-TN702, After configuration, it can realize Mobile Phone and Vertical Advertisement Machine displaying synchronously.

Specification

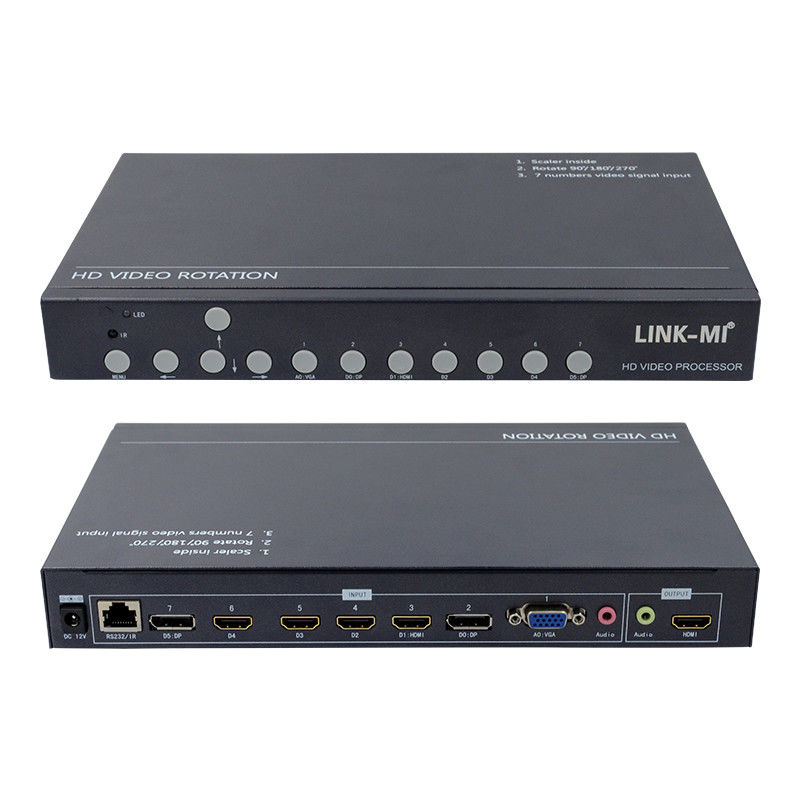

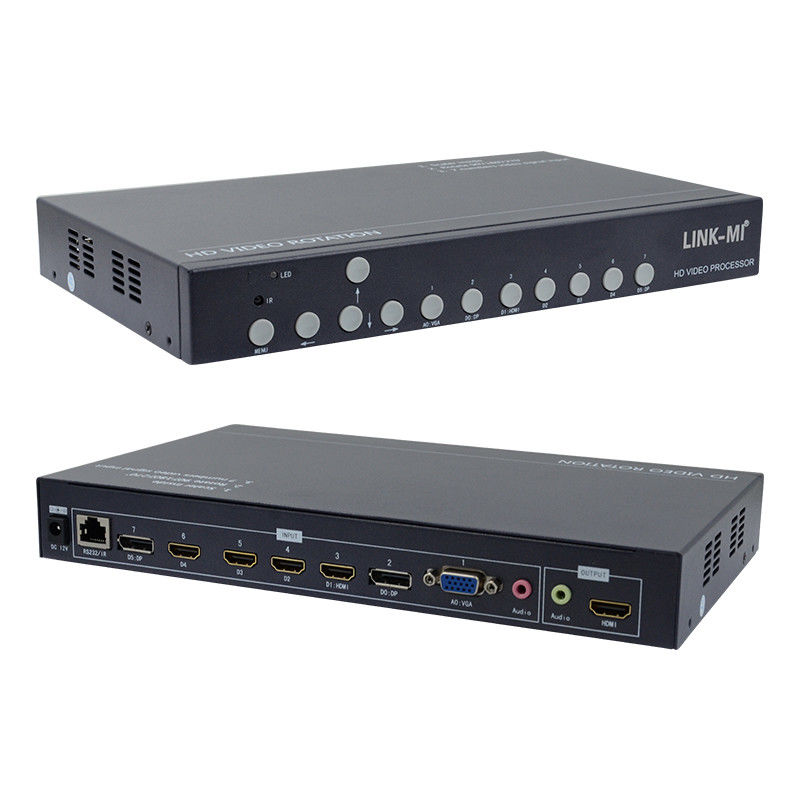

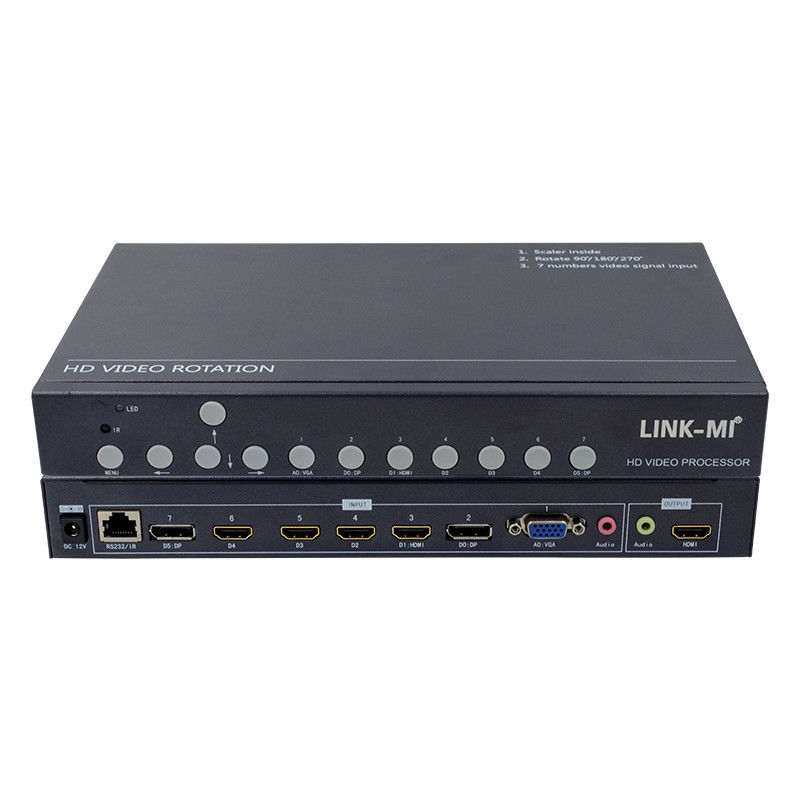

Panel Description

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-TN702 Mobile Phone SyncScreen Rotator 1080P.pdf...
