Mobile Phone Screen Device Support 90 180 270 Degree Rotation HDMI Video Processor
Introduction
LINK-MI LM-R90 This Mobile phone screen device is a high performance vertical screen display device for mobile phones.It uses a high-speed picture processing chip. Its main function is to display the content of the mobile phone in real-time and synchronous to the high-definition vertical screen display unit. It supports 1 HDMI input, 1 HDMI compatible with mobile signal, 1 DP, the signal for a variety of formats and format conversion times line processing into HDMI output signal of 1920*1080, and can be set to display pictures are 90, 180, 270 degree rotation and for the mobile phone signal cut black side function.
Features
1. Support 1×HDMI, 1×HDMI compatible mobile signal, 1×DP signal input
2. Support high resolution up to 3840×2160@60HZ(input)/1920×1080@60HZ(output)
3. Support two HDMI signals synchronously output the same picture
4. Achieve 90 degrees, 180 degrees, 270 degrees of rotation
5. Support automatic identification function
6. Support Mobile phone vertical screen display function with the same screen
Specification
| name |
Supported Standards |
| Input signal |
| D P x 1 |
DisplayPort 1.1 |
| HDMI x 1 |
HDMI1.4,Compatible mobile signal |
| HDMI x 1 |
HDMI2.0 |
| Output signal |
| HDMI x 2 |
HDMI1.3,1920x1080P/60HZ； |
| Audio x 1 |
3.5mm headphone interface, support left and right channel stereo |
| others |
| control mode |
Infrared remote control, chassis keys; |
| Power supply |
DC-12V |
| power consumption |
10W |
| Chassis size |
236mmx140mmx30mm |
| weight |
0.8Kg |
| Note: Specifications are subject to change without notice |

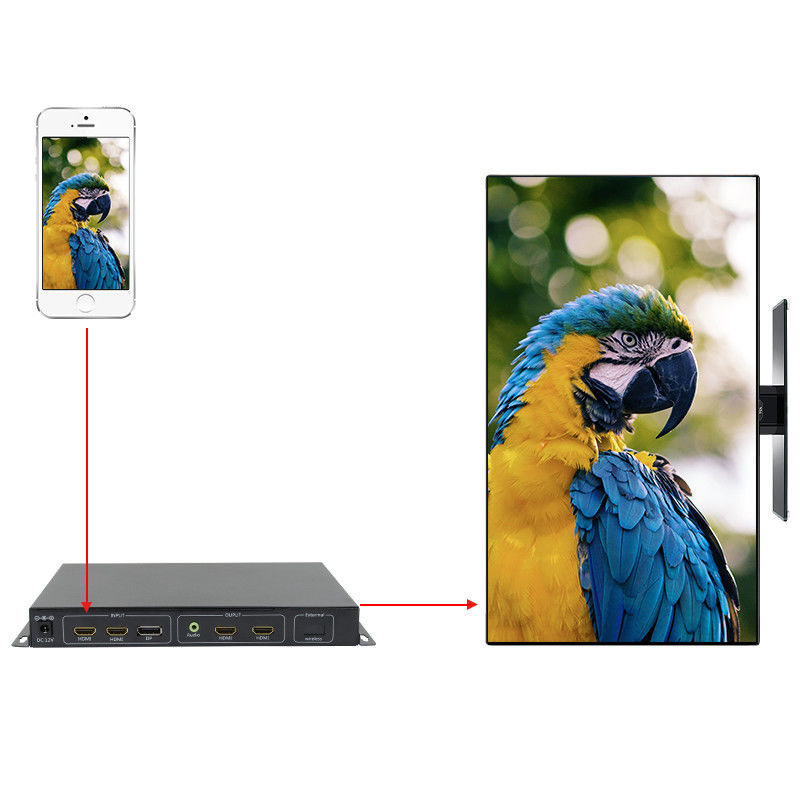

Connection Diagram

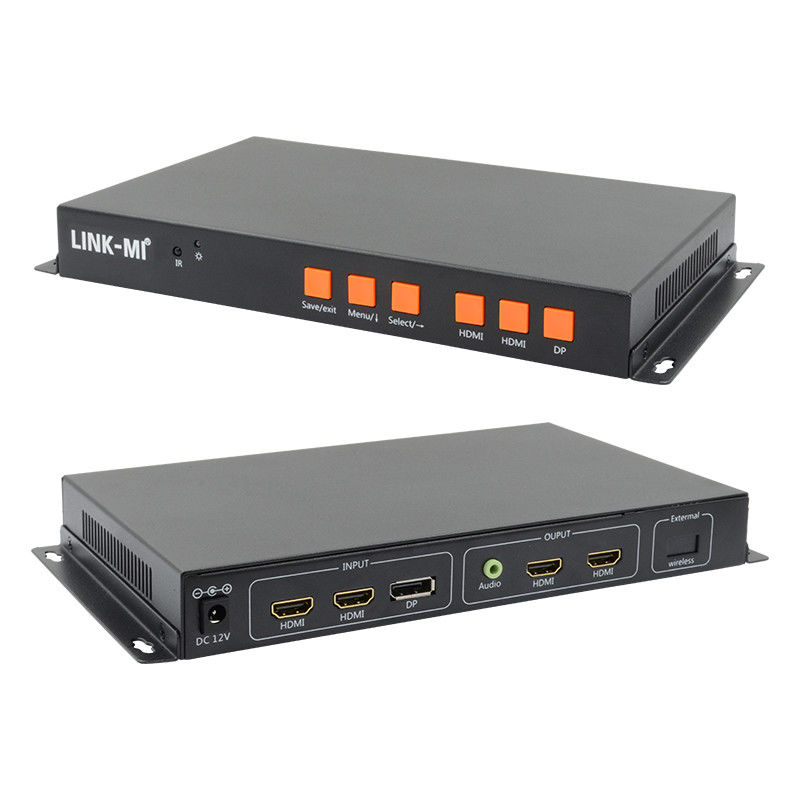

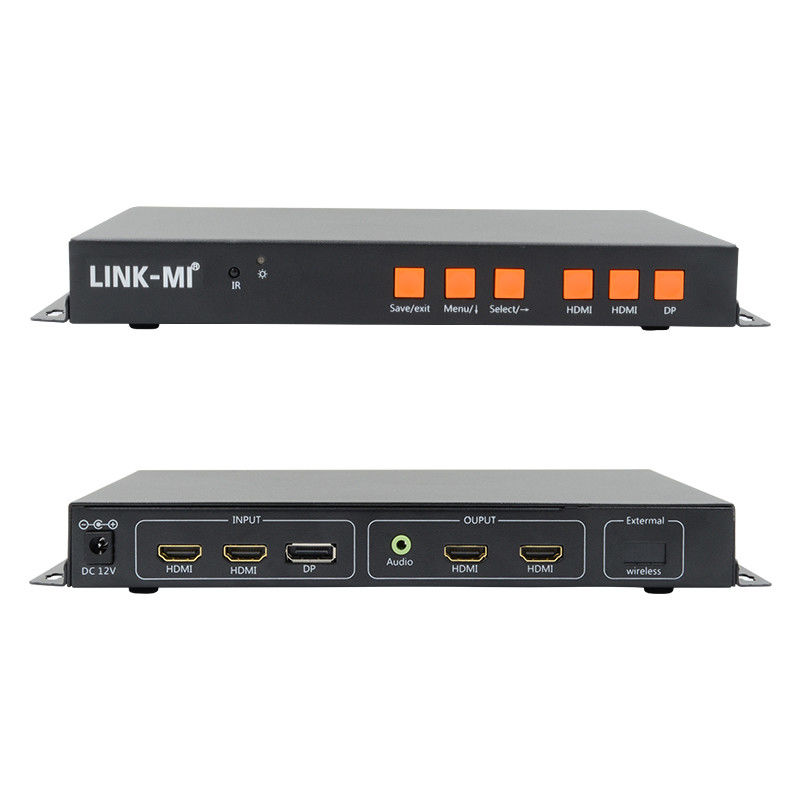

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-R90 Mobile Phone Screen Device_EN V.200323.pdf
