4K HDMI Rotation Controller Smart Phone Cast Screen Controller
Introduction
LINK-MI LM-R41 rotation controller is a high-performance smart phone cast screen controller. Its main function is to make the interface of the smart phone cast to the vertical screen even on the LCD TV or other display units placed vertically. At the same time, it can also intercept part of the source of the computer or player, so that the image is displayed on the vertical LCD screen without distortion.
LM-R41 can auto cut the black border of the smart phone signal on the vertical screen, and can also be fixed at a ratio of 9:16. Users can connect to the machine through a wireless or wired screen projector to complete the mobile phone vertical screen projection function.
Features
1. 4 HDMI signals input;
2. The input signals can be switched via remote;
3. One port supports 4K@60Hz, other ports support 4K@30Hz;
4. 1 HDMI signal output, the resolution up to 3840x2160,and support 1080P, 720P;
5. The the signal can be rotated 90, 180, 270 degree;
6. Support image upside down, left right mirror;
7. Support smart phone dongle, computer, android player...
Specification
| Name |
specification |
| Input signals |
| HDMI x 4 |
HDMI 2.0 x1, HDMI 1.4 x3 |
| Output signals |
| HDMI x 1 |
HDMI 2.0; 1280x720@60Hz, 1920x1080@60Hz, 3840x2160@60Hz |
| Audio x 1 |
3.5mm headphone jack, support L R stereo |
| Other |
| Way to control |
Remote buttons |
| power |
12V/2A |
| Power consumption |
10W |
| Chassis size |
188mm(L)x118mm(W)x22mm(H) |
| Weight |
0.5Kg |
| Note: Specifications are subject to change without notice |

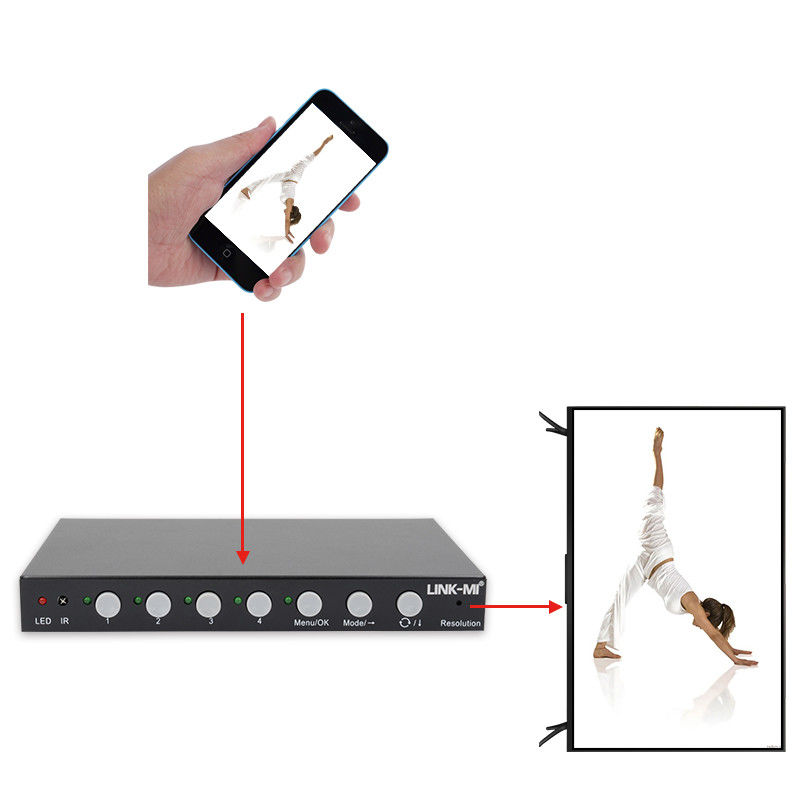

Connection Diagram

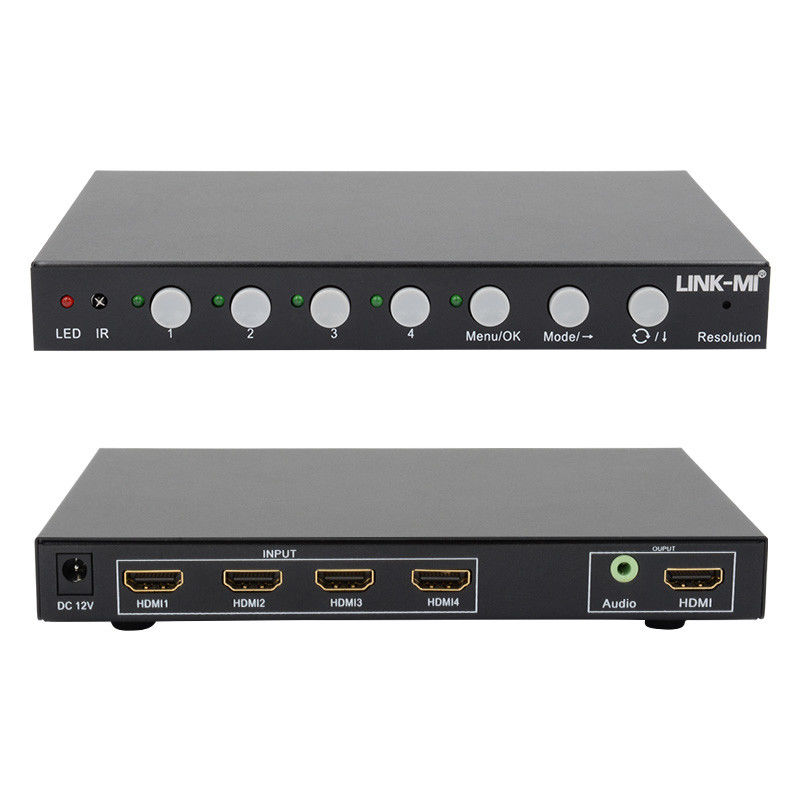

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-R41 Mobile Sync Screen Rotation Controller.pdf
