HD Video Rotater 90/180/27 Degree Rotation Controller
Introduction

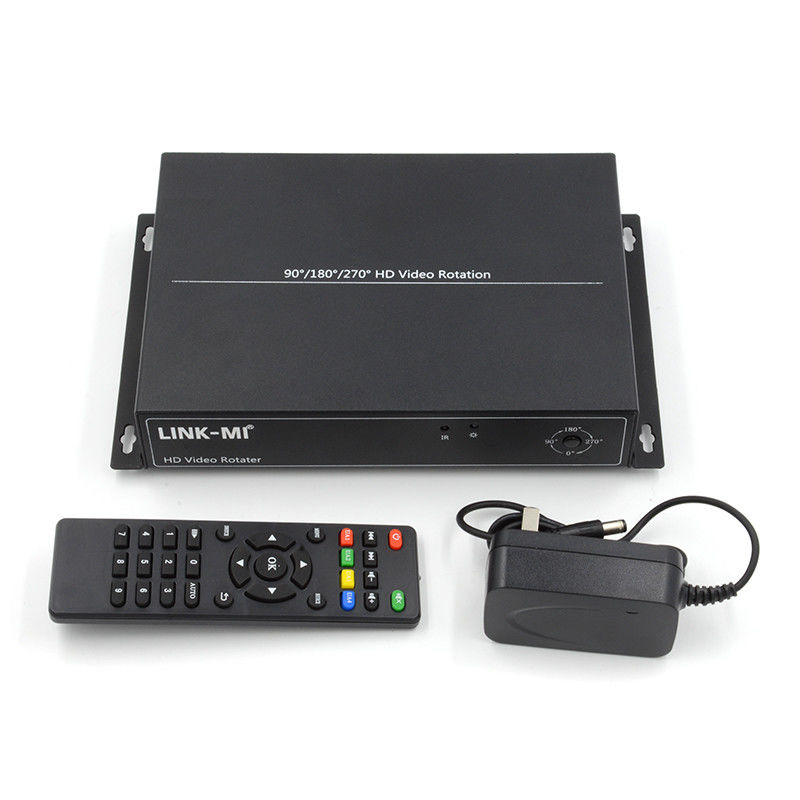

LINK-MI LM-TR21V is a HD Video Rotater which supports 90/180/270 degrees rotation. It support control via remote and front buttons.
Features
1. HDMI supports HDCP 1.4 protocol.
2. Supporting 2-channel HDMI input;
3. Supporting 1 channel HDMI output, output resolution 1920*1080P@60Hz;
4. Supporting audio separation, 1 channel stereo audio output;
5. Support automatic recognition of input signals;
6. Supporting IR and key control ;

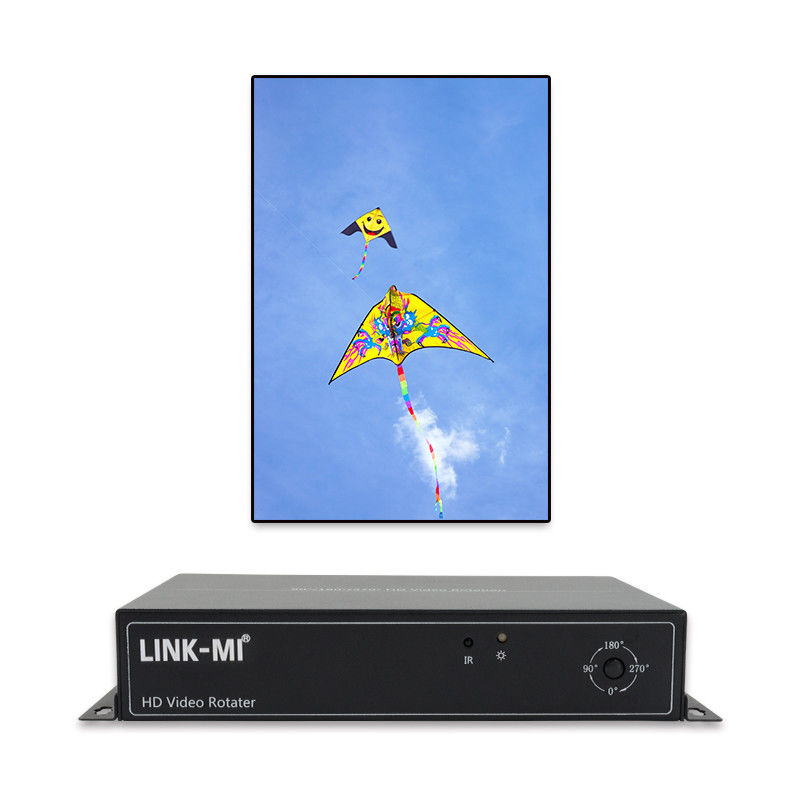

7. Supports video rotation of 90/180/270 degrees. 1080P technology is used to process the whole process.
Specification
| Input |
|
| HDMI-1 Signal |
HDMI 1.3 (HDCP 1.2) is compatible with DVI 1.0, HDMI embedded audio, resolution support 19020*1080@60Hz and below. |
| HDMI-2 Signal |
HDMI 1.3 (HDCP 1.2) is compatible with DVI 1.0, HDMI embedded audio, resolution support 19020*1080@60Hz and below. |
| Output |
| HDMI type |
HDMI1.3 |
| Resolution |
1920x1080@60Hz |
| Audio |
3.5mm interfacer, stereo audio |
| Other |
| Control |
Remote,Key Panel |
| Power supply and waste |
DC12V/1A,6W |
| Work temperature |
0-60℃ |
| Size |
195mm(L)*139mm(D)*38mm(H) |
| Note: Specifications are subject to change without notice |
Connection Diagram

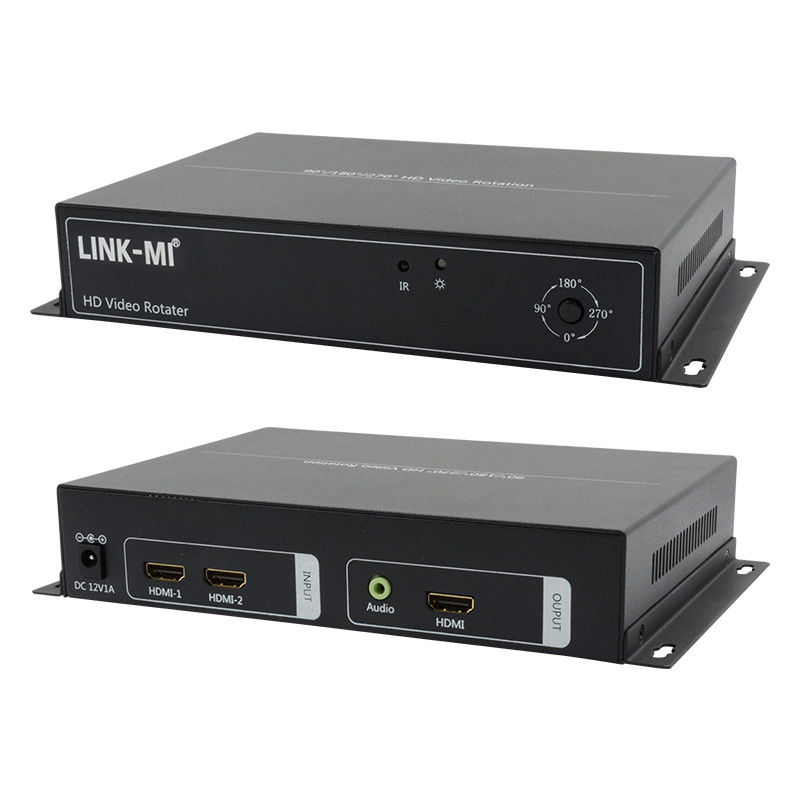

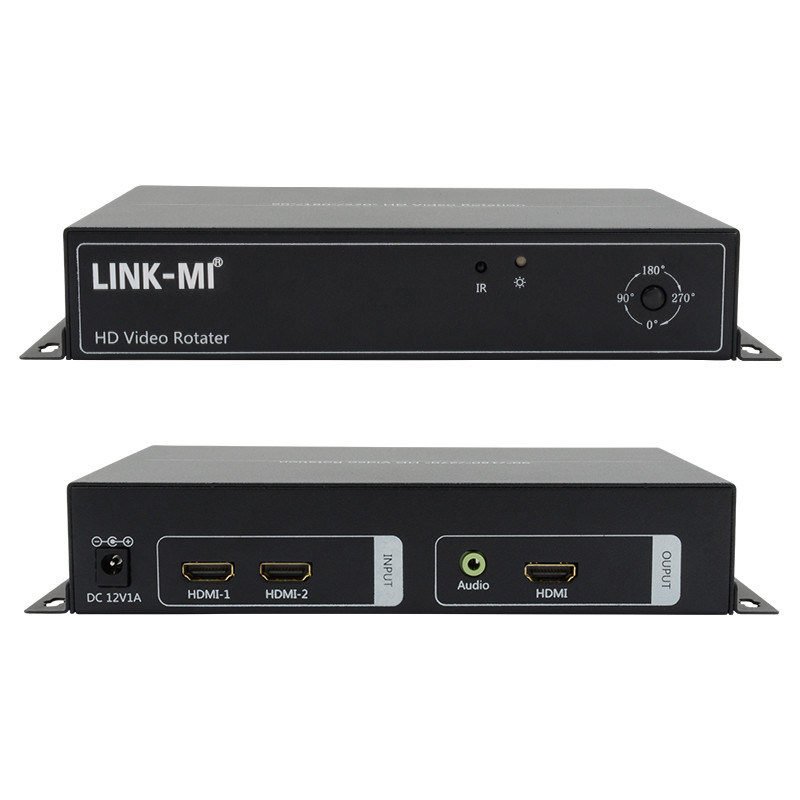

Panel Description
