HD Video Processor 4 in 1 out HDMI Character Superimposer Caption Adder
Introduction
LINK-MI LM-WPS41 is a multi-function video processor. The device supports characters superimposed, multiple signal scaler switching, signal format conversion, image turned 180 degree, image cut, image compression and so on.
This product supports 1xComposite Video ( CVBS ), 1xVGA, 1xHDMI, 1xUSB signals input, 1xHDMI and 1xStereo Audio signal output. The video resolution supports up to Full HD 1920x1080@60Hz, and all input signals support audio and video synchronous switching.
Features
1. HD Scaler Function

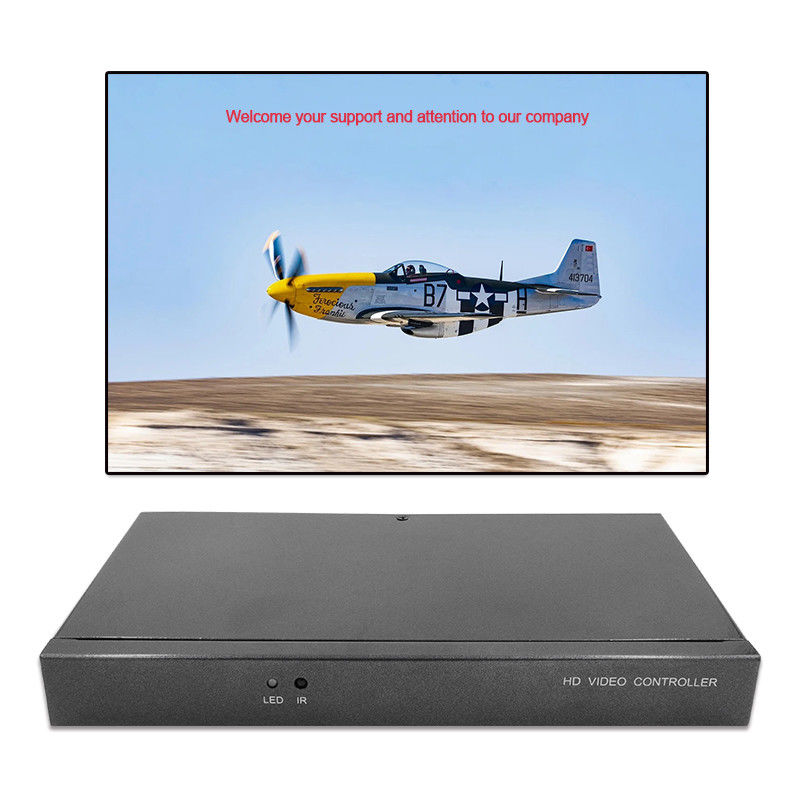

2. Characters Superimposed Function
3. 180 degree Rotation function
4. Image Clipping function
5. Image Compressed function
6. U-Disk play function
Specification
| Product Name |
HD Character Superimposer |
| Input Signal |
| VGA Signal |
HD15 pin port, with 1x 3.5mm Stereo audio port. Supports 640*480 /85Hz to 1920*1080 /60Hz |
| HDMI Signal |
HDMI 1.4, HDCP 1.3, DVI 1.0, HDMI Embedded audio |
| Video Signal |
Automatically identify NTSC, PAL or SECAM TV formats, and with 1x 3.5mm audio port |
| USB ( U-Disk ) |
Standard USB 2.0 port, can insert U-Disk, embedded audio, supports Video, image, MP3, TXT document formats |
| Output Signal |
| HDMI Output |
1x HDMI output, supports 1920x1080p/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Audio Output |
3.5mm Audio, supports L/R Stereo audio, Video and Audio synchronous switching |
| Others |
| Control mode |
Infrared Remote Controller, RS232 |
| Power Supply |
DC 12V |
| Power Consumption |
≤10 watts |
| Chassis Specifications |
| Dimensions( L*W*H) |
238*129*27mm |
| Weight |
0.65kg |
| Note: Specifications are subject to change without notice |
Connection Diagram

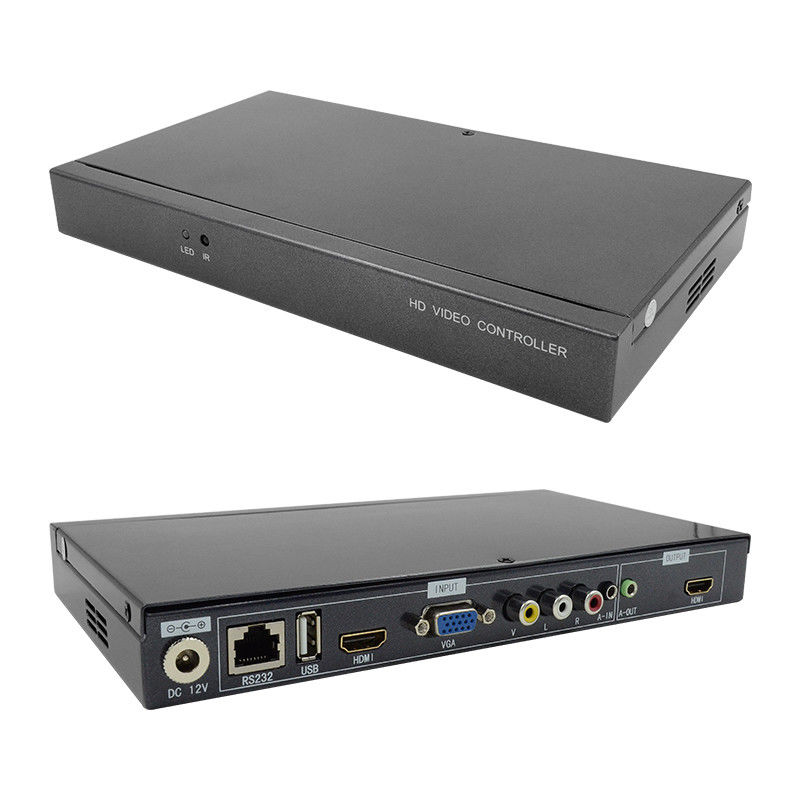

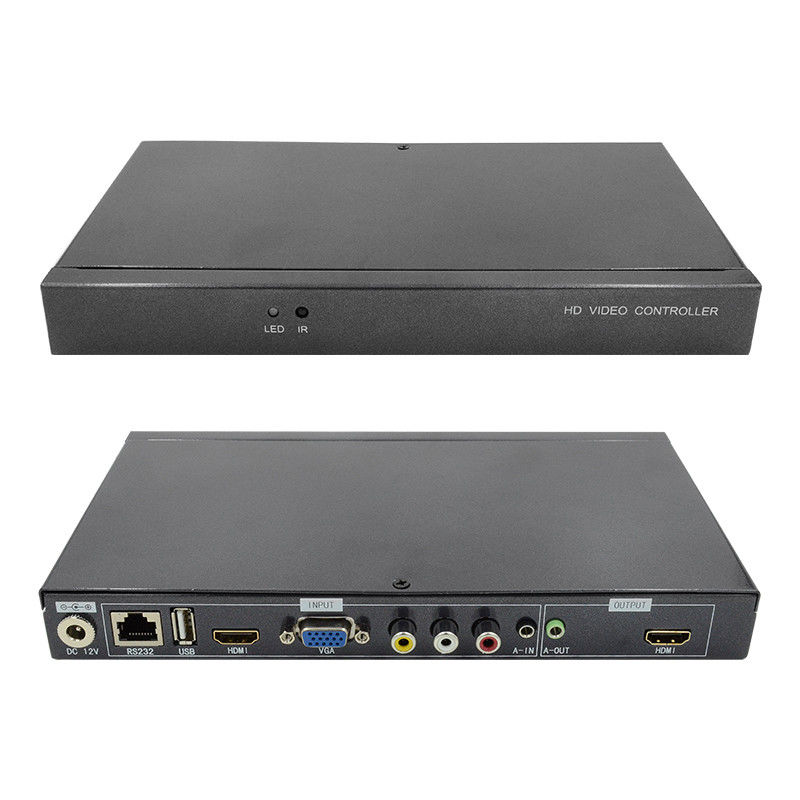

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-WPS41 HD Caption Adder.pdf
