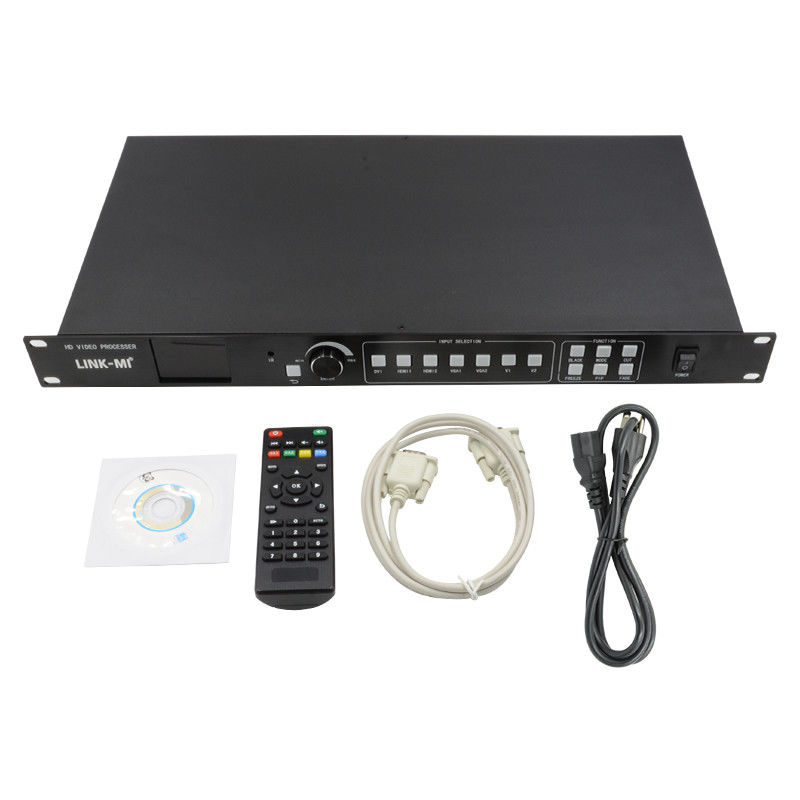

LED Video Processor 7 in 3 out HDMI Wall Controller
Introduction
LINK-MI LM-VC73 video processor is a high-performance full-color LED video processor, using advanced European and American image processing chip for scheme design. The product designuses 30 bit digital image processing technology,advanced de-interlacing signal processing and true seamless handover technology for professional demonstration environment. Compared with ordinary LED full-color video processor on the market, LM-VC73 support the highest resolution ratio that can reach 3840x660@60HZ; support 1 DVI and 2 HDMI, 2 VGA, 2 BNC signal, a total of 7 input signals, and can be customized according to user needs audio
function.
Features
1. Multiple input interfaces
2. Multiple output interfaces
3. Output a variety of resolution ratio
4. Seamless handover

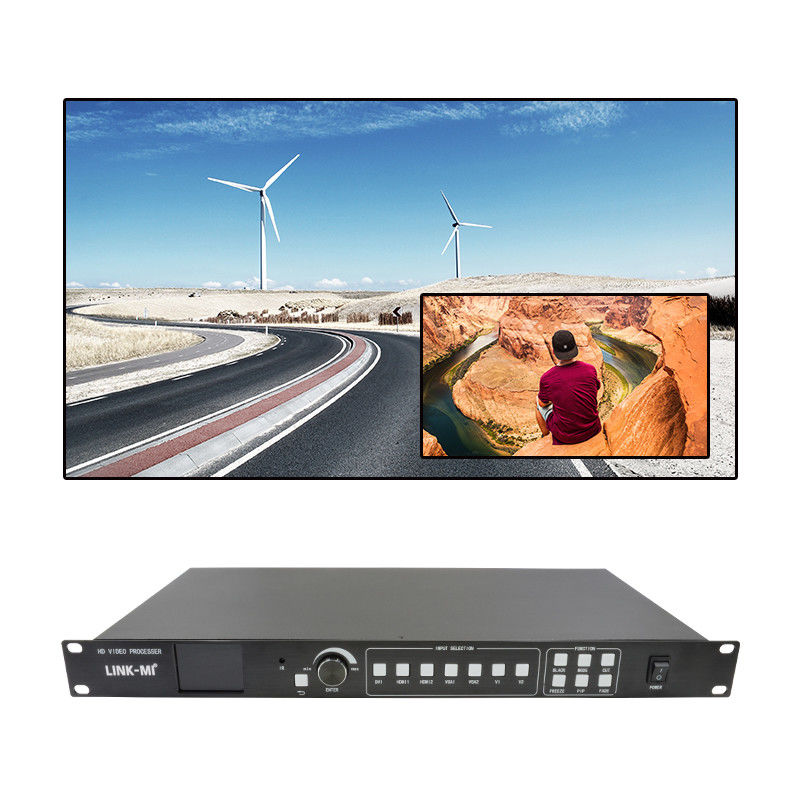

5. The PIP of an arbitrary position and size
6. picture capture function
7. audio customization independent audio output
8. picture freeze
9. One button black screen
10. broadcast level image scaling engine
11. ALED video processor that can be spliced
12. LCD interface
13. Clear push-button navigation
14. Avariety of control methods
Specification
| Video input |
| port |
Number |
Supported Standards |
| Compound (BNC input) |
2 |
PAL,NTSC,PAL-M/N,SECAM |
| VGA(DB-15) |
2 |
VESA standard,PC to 1920x1200,HD to 1080p |
| HDMI 1.3a |
2 |
480i/p,576i/p,720p,1080i/p,color depth supports 8, 10, and 12 bits |
| DVI |
1 |
VESA standard,PC to 1920x1200,HD to 1080p
support 1 loop out
|
| Video output |
| HDMI |
1
|
1024X768@60HZ 1280x720@60HZ 1280x720@50HZ 1440x900@60HZ 1280x1024@60HZ 1366x768@60HZ 1600x1200@60HZ 1680x1050@60HZ 1920x1080@60HZ 1920x1080@50HZ 1920x1200@60HZ 1024x1280@60HZ 2048x640@60HZ 2048x1152@60HZ 2304x1152@60HZ 2560x816@60HZ
1536x1536@60HZ 3840x660@60HZ
|
| DVI |
1
|
| VGA |
1
|
| Auxiliary |
| Power supply |
100VAC – 240VAC 50/60HZ |
| power consumption |
20W |
| weight |
3.5KG |
| Chassis size |
44cmx24cmx4.4cm |
| Note: Specifications are subject to change without notice |
Connection Diagram

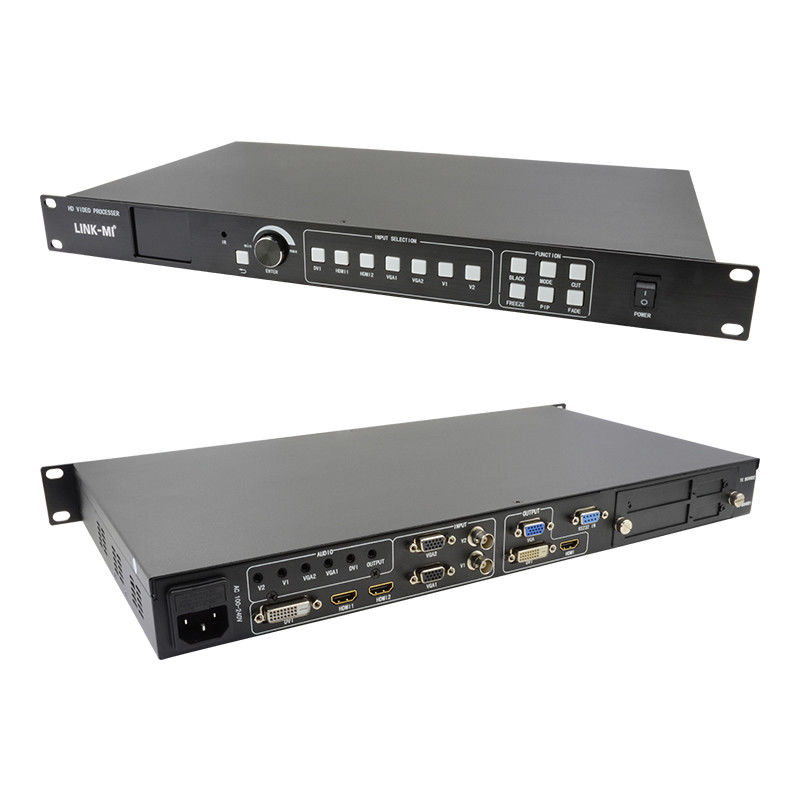

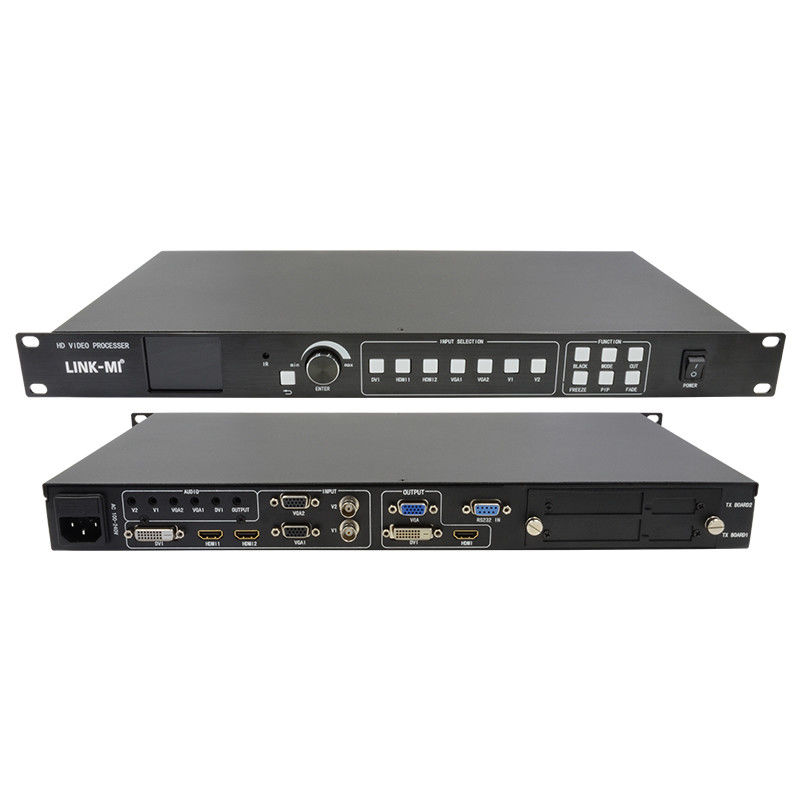

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-VC73 LED Video Processor 7 in 3 out.pdf
