50m HDMI Extender Over Cat5e/6 Cable with EDID Function Support 1080P
Introduction
LINK-MI LM-EX11 50M HDMI Extender transmits digital audio and video over UTP Cat5e/6 Cable with zero signal loss. Its transmission distance is up to 50m under 1080P. It comes with EDID function.
Features

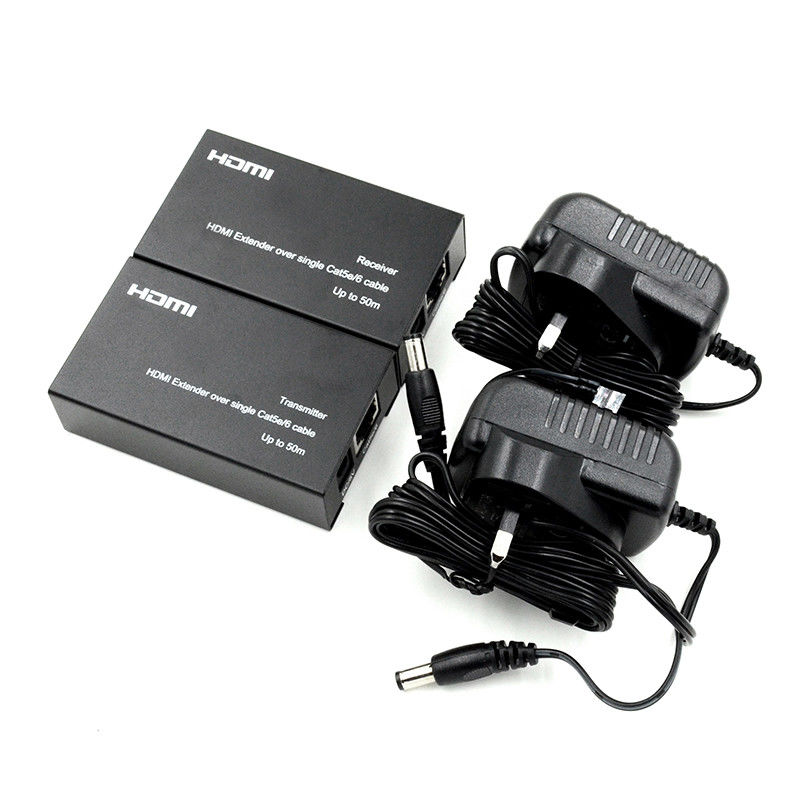

1. Each set includes 1 transmitter and 1 receiver.
2. Use single UTP LAN cable (Cat5E/6) to substitute HDMI cable to achieve long distance transmission, the UTP Cable follows the standard of IEEE-568B.
3. Transmission distance extend up to 50 meters under 1080P.
4. Support Deep Color up to 36 bits.
5. Support lossless compressed digital audio: Dolby True-HD, DTS-HD Master Audio.
6. Transmit Digital Audio and Video over the CAT6/CAT5e cable with zero signal loss.
7. Data transfer speed 6.75 Gbps.
8. DC 5V power supply.
9. EDID copy function.
Specification
| Model No. |
LM-EX11 |
| Input interfaces |
1x HDMI, 1x Cat5e/6 |
| Output interfaces |
1x HDMI, 1x Cat5e/6 |
| Input Video Signal |
0.5-1.0 Volts P-P |
| Input DDC Signal |
5 volts p-p (TTL) |
| Support Video Format |
DTV/HDTV: 480i/576i/480P/576P/720P/1080i/1080P |
| Video Output |
HDMI, HDCP1.1 |
| Suppport Audio Format |
DTS-HD Master Audio, Dolby true-HD etc. |
| Transmission Distance |
1080p 8-bit 50m (Maximum) over Single Ca5e/6 Cable |
| Power Consumption |
5 watts (Maximum) |
| Operating Temperature |
-5 to +35 ℃ (+23 to +95 °F) |
| Operating Humidity |
5 to 90%RH (No condensation) |
Connection Diagram

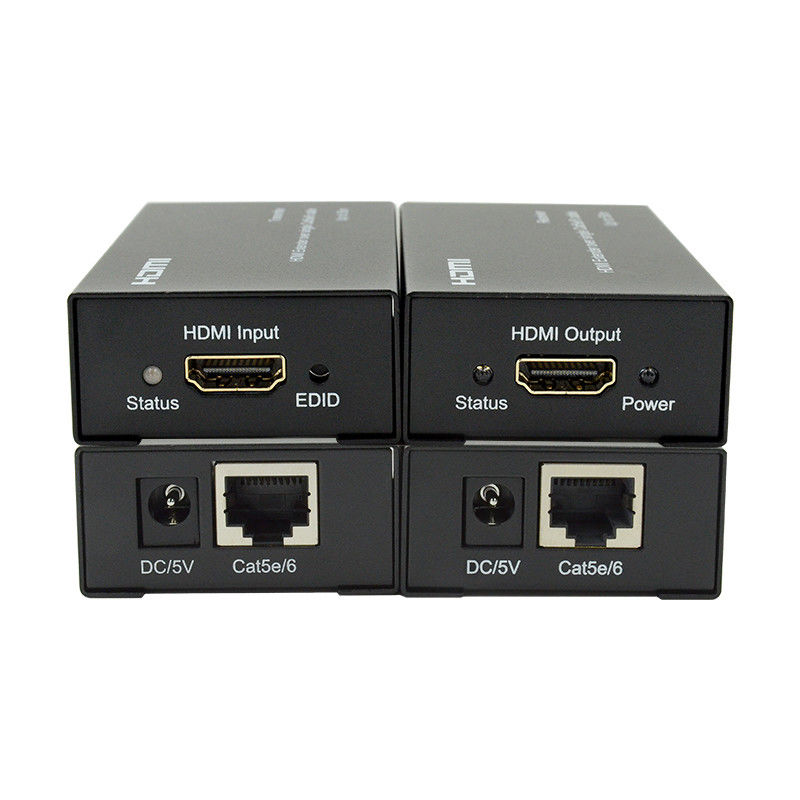

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-EX11 50m HDMI Extender over Cat5e 6.pdf
