4x1 HD Multi Viewer Video Synthesizer with VGA/DVI/CVBS inputs Support RS232 TCP/IP 1080P
Introduction
LINK-MI LM-SD41 This HD Video synthesizer uses high performance processor, the main function is input 4 numbers Digital HD Video or analog video and converted into one number DVI and one number VGA signal output to one display unit,like HD projector, LCD display,DLP,PDP,and full-color LED display.it is easy to realization of switching, fenestration, superposition the video, roaming function.
It is a classic products on the market applications , the products are mainly used in the video conference, teaching, exhibition display with a single display project equipment
simultaneously monitor a plurality of HD signal.
Features
1. 4xVGA, 4xDVI(compatible with HDMI), 4xCVBS inputs, total 12 signal inputs.
2. 1xVGA, 1xDVI sync output.
3. Compatible with various resolution signal input, support 1920*1080 ultra-high resolution signal output.
4. 1 single screen displays 4 high-definition digital or analog signals simultaneously.
5. Display in any size, any position, window opening, overlay, roaming, PIP, POP function.
6. Chassis button, infrared remote control, RS-232 serial port, TCP/IP, central control and other control ways.
Specification
| Input interface |
4 numbers CVBS/VGA/DVI |
| Input resolution |
Support 480I~1080P, DVI and VGA signal support 640x480 to 1920x1200 |
| Color |
24bit,16.7M |
| Zoom |
Any where, Any size |
| DVI |
DVI1.0 and HDCP1.3 |
| CVBS |
NTSCPAL or SECAM |
| Distinguish |
Auto |
| Output interface |
DVI and VGA |
| Output resolution |
1024x768 to 1920x1200 |
| Output frequency |
60Hz and 1080P 15Hz/25Hz/30Hz/50Hz/60Hz |
| Control |
RS232 and Remote |
| Control software |
Free to customer |
| Input voltage |
AC 100V to 240V |
| power |
25W Max. |
| Note: Specifications are subject to change without notice |
Connection Diagram

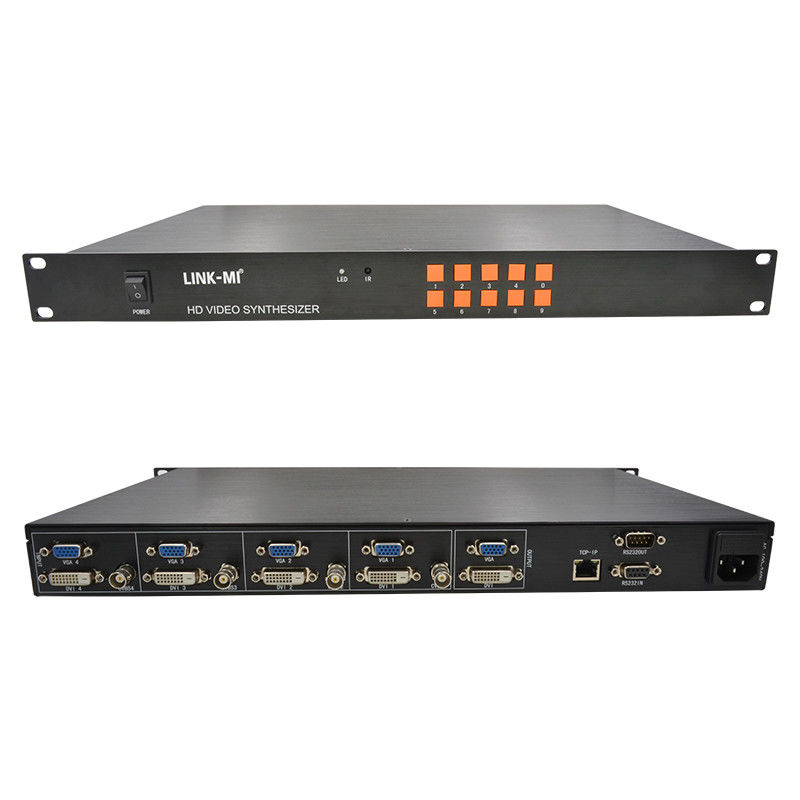

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SD41 4X1 Multi-viewer DVI VGA CVBS.pdf
