Mobile Phone SyncScreen Rotator 90/180/270 Degree Rotation HDMI Video Processor
Introduction
LINK-MI LM-TN703 HD Video Upscaling Rotary Switch is a high quality and high performance image upscaling rotary switch, use the high speed image processor chip. This product is main function is that can supports HDMI, DP, Smart phone and VGA signal input and switch any one of the input signals to HDMI output. This product supports video and audio synchronous switch of different signal formats, and setting the image 90 degree, 180 degree and 270 degree rotation.
Features
1. Input signals
2. Mobile Phone Input function
3. Output Signal
4. Switch Function
5. Upscaling Function
6. Image Rotation Function
Specification
| Input Signal |
| 1x VGA |
HD15 port, supports 640x480@60Hz to 1920x1200@60Hz 4k2k |
| 2x DP |
DisplayPort 1.1 |
| 4x HDMI |
HDMI 1.4 ( HDCP 1.3 ), three of 4 HDMI Input ports Compatible with smart phone signal |
| 1x Audio |
3.5mm earphone port, supports L/R stereo audio, bound with VGA Video signal |
| Output Signal |
| 1x HDMI |
HDMI 1.4 ( HDCP 1.3 ), 1920x1080/60Hz, 1280x720/60Hz optional |
| 1x Audio |
3.5mm earphone port, supports L/R Stereo Audio |
| Others |
| Control Mode |
Remote Controller, Chassis Buttons, RS232 Serial port |
| Power Supply |
DC 12V |
| Power Consumption |
10w |
| Dimension ( LxWxH) |
280x170x35mm |
| Net Weight |
1.1kg |
| Note: Specifications are subject to change without notice. |

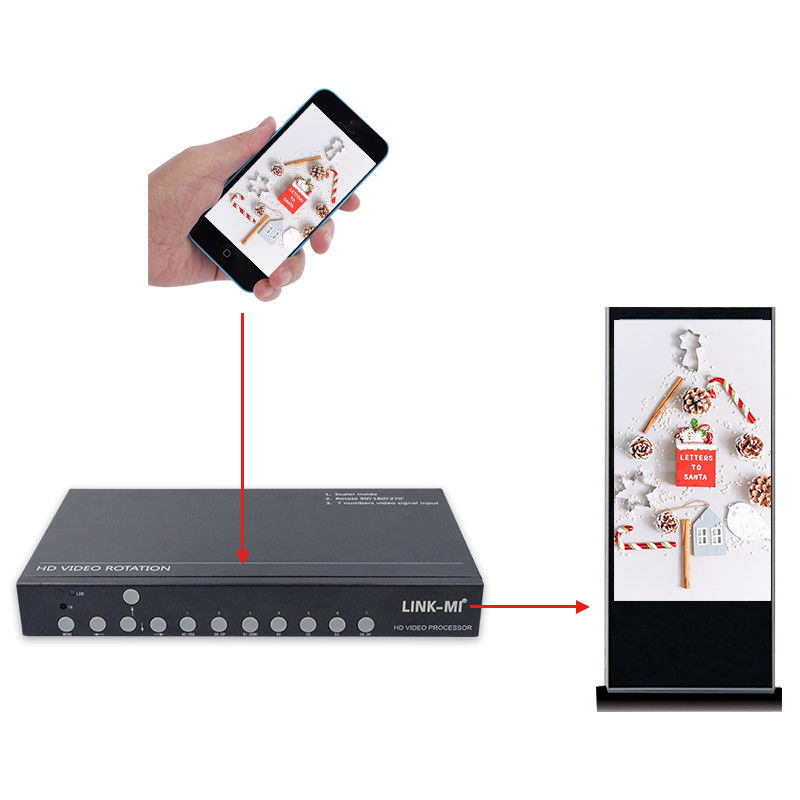

Connection Diagram

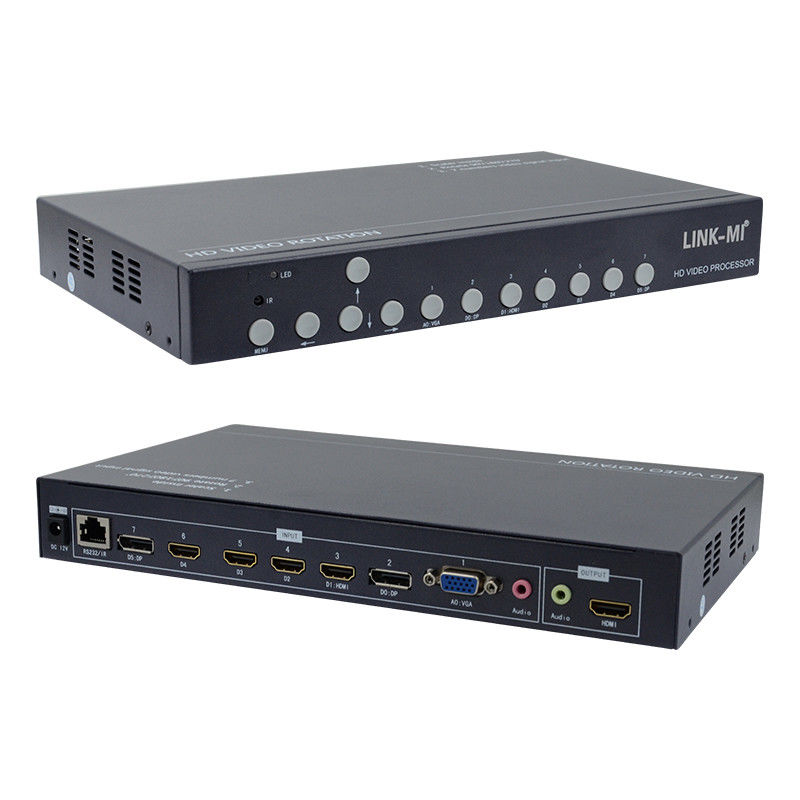

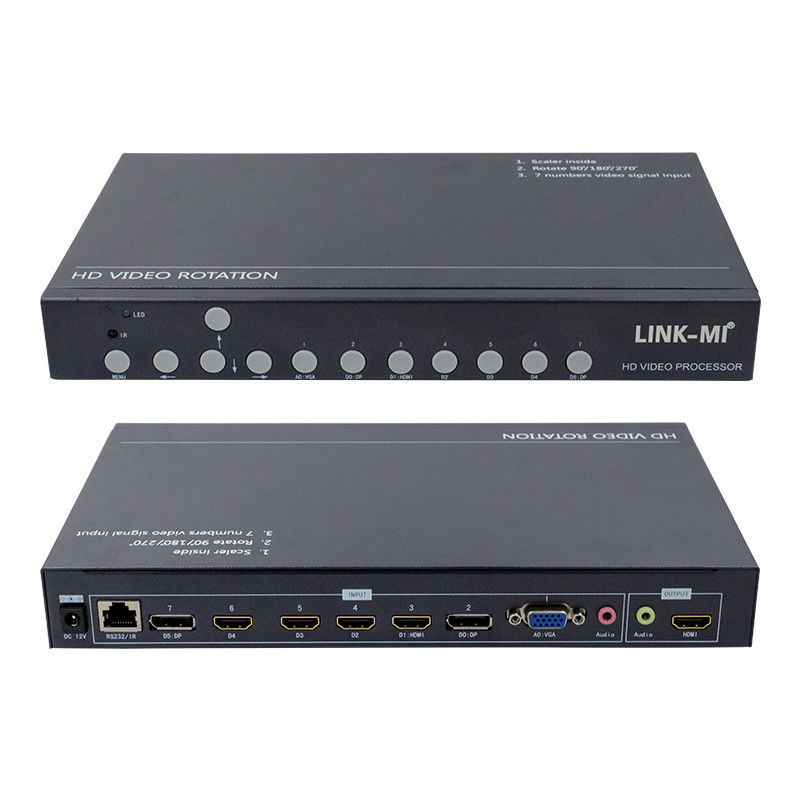

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-TN703 Mobile Phone SyncScreen Rotator 4K.pdf
